Imagine a perfectly synchronized ballet. Each dancer moves with precision and timing, ensuring a flawless performance. Now, replace the dancers with engine valves and pistons, and the choreographer with the timing chain. If the timing is off, even by a fraction of a second, the entire engine performance suffers, potentially leading to catastrophic damage. This is the stark reality of a failing timing chain, a crucial component in your 2011 Nissan Juke's engine.

Understanding the Role of the Timing Chain

The timing chain (or timing belt in some vehicles) is the unsung hero responsible for synchronizing the rotation of the crankshaft and the camshaft(s). The crankshaft, connected to the pistons, converts their linear motion into rotary motion. The camshaft(s), on the other hand, control the opening and closing of the intake and exhaust valves, allowing air and fuel into the cylinders and exhaust gases out. If these two components are not perfectly synchronized, the valves can collide with the pistons, resulting in severe engine damage.

In the 2011 Nissan Juke, equipped with the 1.6L MR16DDT turbocharged engine or the 1.6L HR16DE naturally aspirated engine, a timing chain is used rather than a timing belt. Timing chains offer greater durability and longer lifespan compared to timing belts, but they are not immune to wear and tear.

How the Timing Chain Works Mechanically

The timing chain is a robust, roller-type chain that loops around several sprockets. These sprockets are securely attached to the crankshaft and camshaft(s). As the crankshaft rotates, it drives the timing chain, which in turn rotates the camshaft(s) at precisely timed intervals. Tensioners and guides are also used. These components minimize slack and vibration, ensuring the chain remains taut and maintains accurate timing. The tensioner is usually hydraulically actuated, using engine oil pressure to maintain the correct tension. Guides, typically made of durable plastic, provide a smooth surface for the chain to ride on, reducing friction and wear.

The MR16DDT (turbocharged) engine is known to be more prone to timing chain issues compared to the HR16DE (naturally aspirated) engine. This is primarily due to the increased stresses and temperatures generated by the turbocharger.

Symptoms of a Failing Timing Chain

Recognizing the symptoms of a failing timing chain early on can save you from costly repairs. Here are some common warning signs:

  • Rattling Noise: A distinct rattling or whirring noise coming from the engine, especially during startup or idle, is a classic indicator. This noise is often caused by the chain slapping against the timing cover due to excessive slack.
  • Check Engine Light: The engine control unit (ECU) may trigger the check engine light if it detects timing discrepancies. Diagnostic trouble codes (DTCs) such as P0011 (Camshaft Position A - Timing Over-Advanced or System Performance) or P0340 (Camshaft Position Sensor A Circuit) are commonly associated with timing chain problems.
  • Engine Misfires: Incorrect valve timing can lead to misfires, resulting in rough idling, reduced power, and poor fuel economy.
  • Difficulty Starting: A stretched or damaged timing chain can disrupt the engine's compression cycle, making it difficult to start.
  • Metal Shavings in Oil: As the timing chain and its associated components wear, metal particles can contaminate the engine oil. This is a serious sign that requires immediate attention.

The Cost of Timing Chain Replacement

Replacing a timing chain is a labor-intensive job, typically requiring specialized tools and expertise. The cost of the repair can vary depending on several factors, including:

  • Engine Type: While both engines are 1.6L, the turbocharged MR16DDT often has a slightly higher labor cost due to the added complexity of the turbocharger system.
  • Parts Quality: Using genuine Nissan parts or high-quality aftermarket components will increase the cost but ensure greater reliability.
  • Shop Rate: Labor rates vary significantly between independent mechanics and dealership service centers.
  • Location: Prices tend to be higher in metropolitan areas due to higher overhead costs.

Estimated Cost Breakdown:

  • Parts: The timing chain kit, which typically includes the chain, sprockets, tensioner, and guides, can range from $200 to $600 depending on the brand and quality.
  • Labor: Labor costs can vary from $800 to $1500, depending on the shop rate and the complexity of the job.
  • Total Cost: Therefore, the total cost of timing chain replacement for a 2011 Nissan Juke can range from $1000 to $2100.

The Replacement Process: A Step-by-Step Overview

While the exact procedure may vary slightly depending on the specific engine, the general steps involved in timing chain replacement are as follows:

  1. Preparation: Disconnect the battery, drain the coolant and engine oil, and remove any components that obstruct access to the timing chain cover, such as the accessory drive belts, pulleys, and potentially the turbocharger on the MR16DDT engine.
  2. Timing Chain Cover Removal: Carefully remove the timing chain cover, taking care not to damage any seals or gaskets.
  3. Inspection: Inspect the timing chain, sprockets, tensioner, and guides for wear, damage, or excessive slack.
  4. Timing Alignment: Rotate the engine to bring the timing marks on the crankshaft and camshaft sprockets into alignment. This ensures that the engine is at Top Dead Center (TDC) on cylinder number one.
  5. Timing Chain Removal: Carefully remove the old timing chain, along with the sprockets, tensioner, and guides.
  6. Installation: Install the new timing chain, sprockets, tensioner, and guides, ensuring that the timing marks are properly aligned. Double-check the alignment to prevent future issues.
  7. Tensioner Activation: Activate the timing chain tensioner according to the manufacturer's instructions.
  8. Verification: Rotate the engine manually several times to verify that the timing marks remain aligned and that the chain moves smoothly.
  9. Timing Chain Cover Installation: Install the timing chain cover with new seals and gaskets, ensuring a proper seal to prevent oil leaks.
  10. Reassembly: Reinstall all the components that were removed during the preparation stage, including the accessory drive belts, pulleys, and the turbocharger (if applicable).
  11. Fluid Refill: Refill the engine with coolant and oil to the proper levels.
  12. Testing: Start the engine and listen for any unusual noises. Check for any leaks and monitor the engine's performance. Use a scan tool to check for any diagnostic trouble codes.

Pros and Cons of Timing Chain vs. Timing Belt

While the Juke utilizes a timing chain, it's worth comparing it to its alternative, the timing belt.

Timing Chain:

  • Pros: Generally longer lifespan, greater durability, less frequent replacement intervals.
  • Cons: More expensive to replace, noisier operation, heavier than a timing belt.

Timing Belt:

  • Pros: Quieter operation, less expensive to replace, lighter than a timing chain.
  • Cons: Shorter lifespan, requires more frequent replacement, more prone to sudden failure.

Real-World Insights and Recommendations

The 2011 Nissan Juke, particularly the turbocharged MR16DDT variant, is known to be susceptible to timing chain issues, especially if regular maintenance is neglected. Consistent oil changes with the correct viscosity oil are crucial for maintaining proper lubrication and preventing premature wear of the timing chain and its associated components. Using a high-quality synthetic oil can further enhance protection.

If you suspect a timing chain problem, it's essential to address it promptly. Ignoring the symptoms can lead to catastrophic engine failure, resulting in significantly higher repair costs. A stretched timing chain can cause bent valves and damaged pistons, which require a complete engine rebuild or replacement.

Consider having your mechanic inspect the timing chain during routine maintenance, especially if your Juke has high mileage or is showing any of the warning signs mentioned earlier. A visual inspection of the chain and tensioner can provide valuable insights into its condition.

While replacing a timing chain can be a DIY project for experienced mechanics, it's generally recommended to leave it to a qualified professional. The intricate nature of the job and the potential for severe engine damage make it a task best left to those with the proper tools, knowledge, and experience.

In conclusion, understanding the function, potential issues, and replacement process of the timing chain in your 2011 Nissan Juke is essential for maintaining its long-term reliability and performance. Proactive maintenance and timely repairs can prevent costly engine damage and ensure many more miles of enjoyable driving.

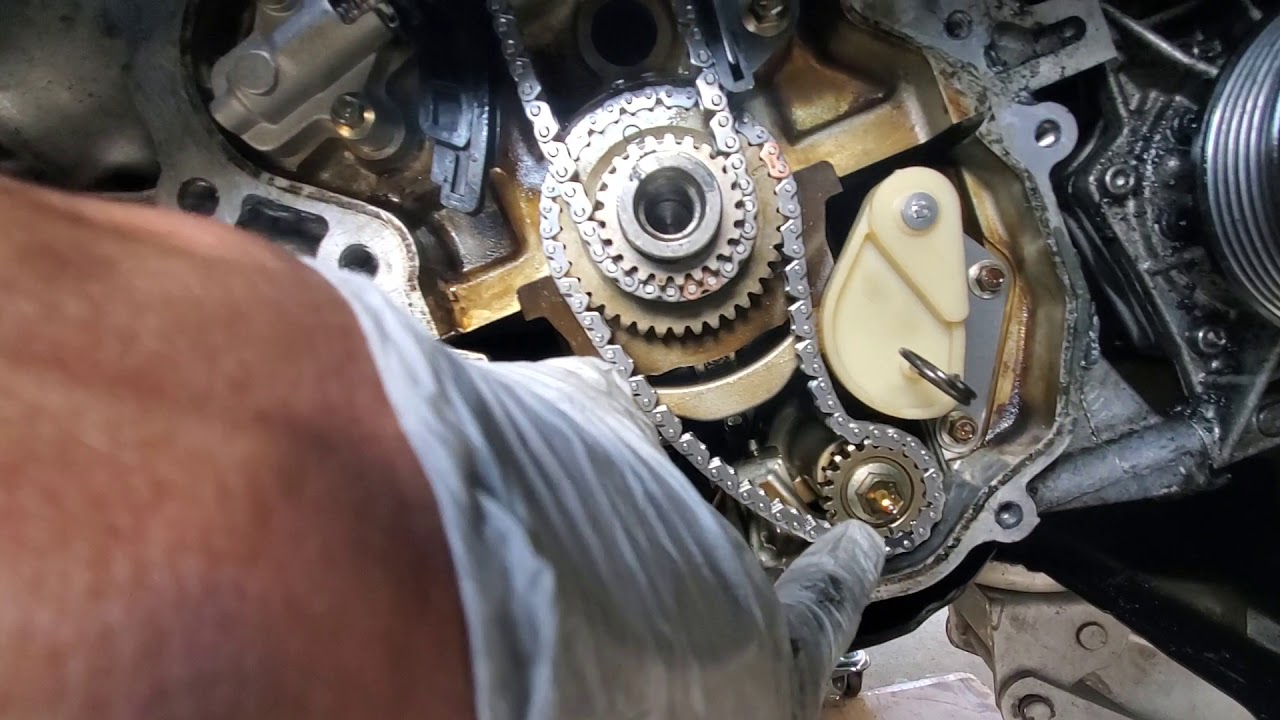

Cost And Process Of Timing Chain Replacement In A 2011 Nissan Juke 2012 Nissan juke timing belt replacement - YouTube
www.youtube.com

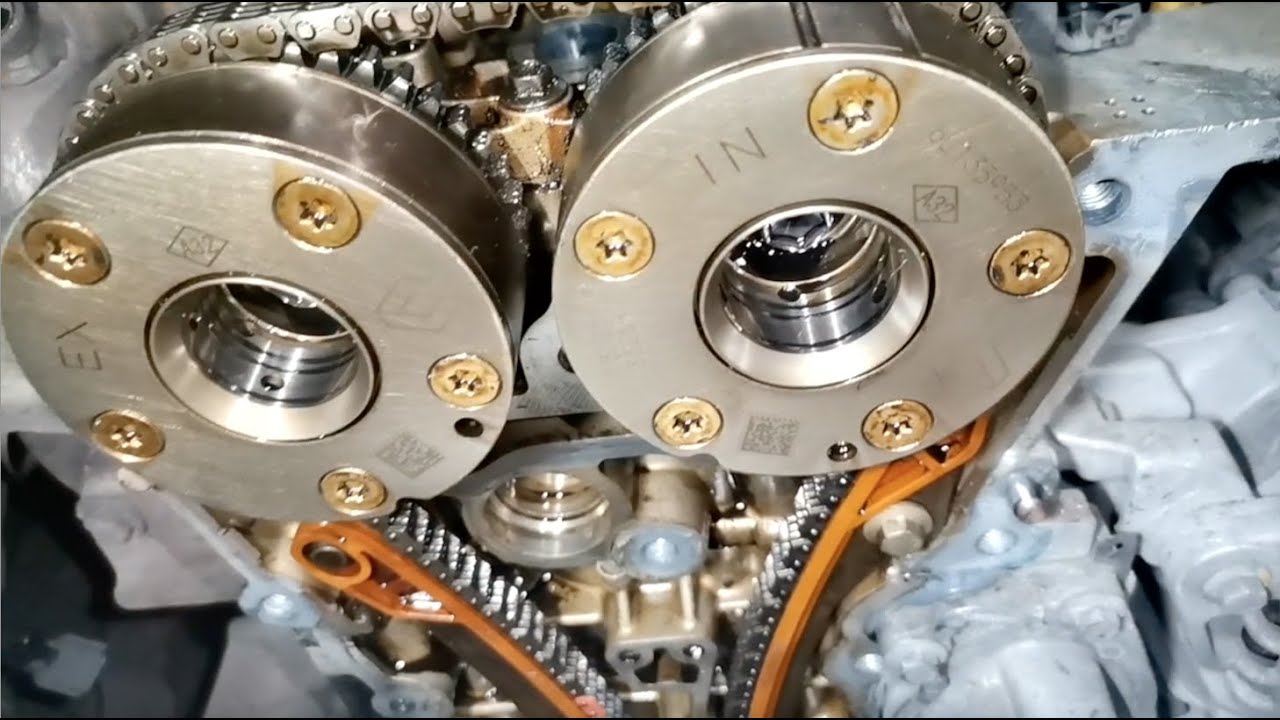

Cost And Process Of Timing Chain Replacement In A 2011 Nissan Juke 2011 Nissan Juke Timing Chain Diagram 2011 Nissan Juke Engin
