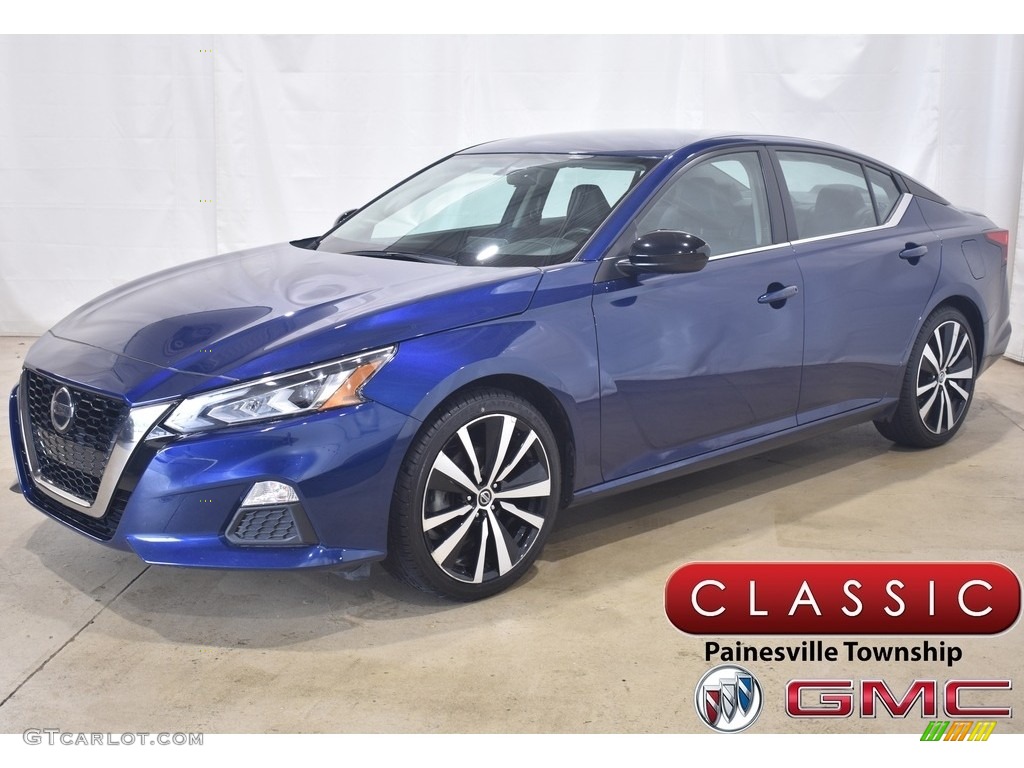

Deep Blue Pearl Nissan Altima

Let's talk about the Deep Blue Pearl paint on a Nissan Altima. It's more than just a pretty color; it's a multi-layered coating system designed for aesthetics and protection. Understanding its composition and application can be invaluable for anyone tackling paint repairs, modifications, or even just proper detailing.

The Anatomy of Deep Blue Pearl Paint

Deep Blue Pearl, often identified by its paint code BW5 (though this can vary slightly depending on the model year and manufacturing location), isn't a single coat of paint. It's a complex system, typically comprised of four distinct layers. Each layer plays a crucial role in the final appearance and durability.

1. Electrocoat (E-Coat) Primer

The foundation is the electrocoat primer, often called E-Coat. This layer is applied using a process called electrophoretic deposition. Think of it like electroplating, but instead of metal, we're depositing a resin-based primer. The bare metal body shell is submerged in a conductive bath containing the primer particles. An electrical current is then passed through the bath, causing the primer particles to be attracted to the metal surface and adhere to it uniformly. This process ensures excellent corrosion resistance, especially in hard-to-reach areas. The E-Coat provides a key adhesive surface for the subsequent layers and acts as a crucial barrier against rust. Any disruption to this layer, for example through a deep scratch reaching bare metal, can compromise the entire paint system and lead to corrosion.

2. Primer Surfacer

Next comes the primer surfacer. This layer is thicker than the E-Coat and serves several important purposes. Firstly, it helps to smooth out any minor imperfections in the E-Coat or the underlying metal. Secondly, it provides a uniform base color for the subsequent base coat. And thirdly, it enhances the adhesion of the base coat. Primer surfacers are typically formulated with properties that allow them to be easily sanded, further refining the surface for a flawless finish. The specific composition of the primer surfacer can vary, but it generally includes resins, pigments, and fillers. The color of the primer surfacer is usually a neutral gray or white, to provide a consistent underlayer for the color coats to follow.

3. Base Coat (Deep Blue Pearl)

This is where the magic happens. The base coat is responsible for the actual color and visual effect – in this case, the deep blue pearl. It's not just a solid blue. The "pearl" effect comes from the inclusion of tiny, platelet-shaped particles, typically made of mica, coated with titanium dioxide or other metal oxides. These particles are suspended within the base coat and aligned during the spraying process. When light strikes the surface, these platelets reflect and refract the light, creating the shimmering, iridescent appearance characteristic of pearl paints. The color itself comes from pigments added to the base coat. In Deep Blue Pearl, you'll find a combination of blue pigments, along with potentially some black or violet pigments to achieve the desired depth and hue. The concentration and specific types of these pigments are carefully controlled to match the original factory color. Importantly, the base coat provides the color, but it's not very durable or glossy on its own. It *requires* a clear coat to protect it and provide the final sheen.

4. Clear Coat

The final layer is the clear coat. This is a transparent coating applied over the base coat. Its primary function is to protect the base coat from environmental damage, such as UV radiation, acid rain, and scratches. The clear coat also provides the gloss and depth that gives the paint its shine. Modern clear coats are typically two-component systems, meaning they consist of a resin and a hardener. When mixed together, these components undergo a chemical reaction, resulting in a hard, durable, and glossy finish. The choice of clear coat can significantly impact the overall appearance and durability of the paint job. High-solids clear coats, for example, contain a higher concentration of resin, resulting in a thicker, more durable finish with excellent gloss retention. UV inhibitors are also added to the clear coat to prevent fading and discoloration of the base coat over time.

Understanding the Pearl Effect: Metamerism and Flop

Deep Blue Pearl, like all pearl paints, exhibits two key characteristics that are important to understand when performing repairs or modifications: metamerism and flop.

Metamerism refers to the phenomenon where two colors appear to match under one lighting condition but differ under another. This is because the spectral reflectance curves of the two colors are different. When matching Deep Blue Pearl, it's crucial to evaluate the color match under different lighting conditions (e.g., sunlight, fluorescent light, incandescent light) to ensure a consistent appearance.

Flop refers to the change in color intensity or hue as the viewing angle changes. This is due to the orientation of the pearl pigments within the base coat. When viewing the paint at a shallow angle, the light reflects differently than when viewing it head-on. This effect is particularly pronounced in pearl paints and can make color matching challenging. The best way to minimize flop mismatch is to apply the base coat with consistent technique and spray pressure, ensuring uniform pigment orientation.

Repairing Deep Blue Pearl Paint

Repairing Deep Blue Pearl paint requires careful attention to detail and a good understanding of the painting process. Here's a brief overview of the typical steps involved:

1. Preparation: Thoroughly clean the damaged area and feather the edges of the existing paint. Sand the area to provide a good surface for adhesion.
2. Priming: Apply a primer surfacer to fill any imperfections and provide a uniform base. Sand the primer smooth.
3. Base Coat Application: Apply several thin coats of Deep Blue Pearl base coat, allowing each coat to dry fully before applying the next. Pay close attention to spray technique and pressure to ensure uniform pigment orientation and minimize flop.
4. Clear Coat Application: Apply several coats of clear coat, allowing each coat to dry fully before applying the next. Wet sand and buff the clear coat to achieve a smooth, glossy finish.

Important Considerations:

• Color Matching: Obtaining an exact color match is crucial. Use a paint code lookup tool or consult with an automotive paint supplier to ensure you get the correct color formulation. It's often beneficial to spray a test panel to verify the color match before applying the paint to the vehicle.
• Blending: To avoid a noticeable color difference, it's often necessary to blend the new paint into the surrounding areas. This involves gradually fading the new paint into the existing paint, creating a seamless transition.
• Equipment: Using high-quality spray equipment is essential for achieving a professional finish. A good quality spray gun, air compressor, and paint filters will help ensure consistent paint application and minimize defects.
• Safety: Always wear appropriate personal protective equipment (PPE) when painting, including a respirator, gloves, and eye protection. Ensure adequate ventilation to avoid inhaling harmful fumes.

Modifying Deep Blue Pearl: Customizing the Look

While Deep Blue Pearl is beautiful on its own, some owners may want to customize the look further. Here are some popular modification options:

• Adding Flakes: Adding metallic or holographic flakes to the clear coat can create a more dramatic, eye-catching effect.
• Tinting the Clear Coat: Tinting the clear coat with a candy color can subtly alter the hue of the Deep Blue Pearl, creating a unique custom color.
• Applying a Matte Clear Coat: Replacing the gloss clear coat with a matte clear coat can give the Deep Blue Pearl a more subtle, understated appearance.

Remember that any modifications to the paint system can affect its durability and appearance. It's always best to consult with a professional painter before making any significant changes.

In conclusion, Deep Blue Pearl is a sophisticated paint system that requires careful attention to detail when repairing or modifying. Understanding the composition of the paint, the characteristics of pearl paints, and the proper application techniques will help you achieve a flawless and durable finish. Good luck with your project!
