Lifting Your Nissan Hardbody: A Comprehensive Guide

The Nissan Hardbody, a beloved truck known for its ruggedness and reliability, often finds itself in the hands of enthusiasts looking to enhance its off-road capabilities and aggressive stance. Lifting your Hardbody is a popular modification, but it's crucial to understand the potential problems that can arise and how to address them effectively. This guide provides a comprehensive overview of lifting your Nissan Hardbody, covering common issues, symptoms, causes, and solutions.

Problem: Ride Quality Degradation and Component Wear After Lifting

One of the most frequent complaints after lifting a Nissan Hardbody is a noticeable decrease in ride quality. The truck may feel stiffer, bouncier, or generally less comfortable than before. This issue is important because a degraded ride not only reduces driving enjoyment but also contributes to premature wear on suspension components, tires, and even the vehicle's frame.

Symptoms of Ride Quality Issues After Lifting:

  • Increased Harshness: Feeling every bump and imperfection in the road.
  • Bounciness: Excessive up-and-down movement after hitting a bump.
  • Vibration: Uncomfortable vibrations transmitted through the steering wheel and seats.
  • Noise: Clunking or rattling sounds from the suspension.
  • Poor Handling: Difficulty maintaining control, especially at higher speeds or on uneven terrain.
  • Reduced Tire Contact: Tires may lose contact with the road momentarily on rough surfaces, affecting traction and braking.

Root Cause: Suspension Geometry Alterations and Component Stress

Lifting a vehicle alters the carefully engineered suspension geometry. The original angles of the control arms, tie rods, and axles are changed, leading to increased stress on various components. Here's a breakdown:

1. Increased Angle on Ball Joints and Tie Rods: Lifting the suspension changes the operating angle of ball joints and tie rod ends. This increased angle can exceed their designed range of motion, leading to accelerated wear and potential binding. The ball joints, especially, are crucial for smooth steering and suspension movement.

2. Stiffer Spring Rates: Many lift kits include new springs or add-a-leaf kits to achieve the desired height. These replacement springs often have higher spring rates than the factory springs. While this helps prevent sagging and provides increased load capacity, it also makes the ride stiffer and less compliant over bumps.

3. Shock Absorber Mismatch: Using the original shock absorbers with a lifted suspension is a common mistake. The factory shocks are designed to operate within a specific range of travel. Lifting the suspension can push the shocks beyond this range, causing them to bottom out or top out prematurely. This leads to a jarring ride and can damage the shocks internally.

4. Axle Angle Issues (4x4 Models): On 4x4 Hardbodies, lifting the suspension increases the angle of the front axles. Excessive axle angles can cause vibration, premature wear on the CV joints (constant velocity joints), and even breakage. The higher the lift, the more significant this problem becomes.

5. Torsion Bar Preload (If applicable): Some lift kits for Nissan Hardbodies involve cranking up the torsion bars. While this raises the front end, it dramatically increases the preload on the torsion bars. This results in a significantly stiffer ride and can also put undue stress on the torsion bar mounts.

What Happens If Ignored:

Ignoring these ride quality issues can lead to a cascade of problems:

  • Premature Wear and Failure of Suspension Components: Ball joints, tie rod ends, shocks, and axles will wear out much faster than expected.
  • Deterioration of Tires: Uneven tire wear and reduced lifespan due to improper alignment and suspension issues.
  • Damage to the Vehicle's Frame: Constant jarring and vibrations can stress the frame, potentially leading to cracks or other damage over time.
  • Safety Concerns: Poor handling and reduced braking performance can compromise safety, especially in emergency situations.
  • CV Joint Failure (4x4): A common issue resulting in clicking noises during turning and eventual breakage.

Recommended Fixes:

Addressing these issues requires a multi-faceted approach:

1. Install Longer Shocks: Replace the factory shocks with shocks specifically designed for the lift height. These shocks will have the correct travel range to provide optimal damping and prevent bottoming out or topping out. Look for shocks with adjustable damping to fine-tune the ride quality. Bilstein 5100 series are a popular choice.

2. Use Corrected Ball Joints and Tie Rod Ends: Consider installing ball joints and tie rod ends designed to accommodate the increased angles of a lifted suspension. These components feature extended travel or different designs to maintain proper geometry and reduce stress. Some aftermarket manufacturers offer "extended" ball joints specifically for lifted applications.

3. Differential Drop Kit (4x4 Models): For 4x4 Hardbodies, a differential drop kit lowers the front differential. This reduces the angle of the front axles, minimizing stress on the CV joints and improving ride quality. These kits typically include spacers that are installed between the differential and its mounting points on the frame.

4. Replace Leaf Springs (Rear): Instead of add-a-leaf kits, consider replacing the entire leaf spring pack with a set designed for the desired lift height and spring rate. This provides a more consistent and controlled ride than adding leaves to the existing springs. Select a spring rate that matches your typical load and driving style. Deaver Spring is a well-regarded brand.

5. Adjustable Control Arms (Front): For larger lifts, consider installing adjustable control arms. These arms allow you to correct the suspension geometry and fine-tune the alignment. They are particularly helpful for maintaining proper camber and caster angles. Aftermarket upper control arms are readily available for lifted Hardbodies.

6. Re-Evaluate Torsion Bar Preload (If applicable): If your lift relies heavily on cranking up the torsion bars, consider de-cranking them slightly and supplementing the lift with other components, such as taller coil spring spacers. This will reduce the preload and improve ride quality.

7. Professional Alignment: After any suspension modification, a professional alignment is essential. A skilled alignment technician can adjust the camber, caster, and toe angles to optimize handling, tire wear, and overall ride quality. Be sure to find a shop experienced in aligning lifted vehicles.

Cost Estimates and Shop Advice:

The cost of addressing ride quality issues after lifting your Nissan Hardbody can vary greatly depending on the severity of the problem and the chosen solutions.

  • Shock Absorbers: $200-$600 (for a set of four)
  • Ball Joints and Tie Rod Ends: $100-$300 (per pair)
  • Differential Drop Kit: $50-$150
  • Leaf Spring Pack: $300-$800 (per pair)
  • Adjustable Control Arms: $400-$1000 (per pair)
  • Professional Alignment: $80-$200

It's always recommended to consult with a reputable off-road shop or experienced mechanic for advice and installation. These professionals can help you diagnose the specific problems and recommend the best solutions for your budget and driving needs. Getting multiple quotes and comparing prices is a good strategy.

Tip: When choosing a shop, ask about their experience with Nissan Hardbody lifts and their knowledge of suspension geometry. Don't be afraid to ask detailed questions about their proposed solutions and the expected results.

Credibility and Additional Information:

While there are no specific Technical Service Bulletins (TSBs) directly addressing ride quality after lifting a Nissan Hardbody, the issues discussed are well-documented within the online Hardbody enthusiast community. Forums like NissanForums.com and HardbodyNation are valuable resources for gathering information, sharing experiences, and getting advice from other owners.

Many Hardbody owners report experiencing similar ride quality issues after lifting their trucks, particularly with lifts exceeding 2-3 inches. The common mileage for CV joint failure after lifting a 4x4 Hardbody can range from 50,000 to 100,000 miles, depending on the severity of the lift and the driving conditions. Regularly inspecting your suspension components and addressing any signs of wear or damage promptly can help prevent more serious problems down the road.

By understanding the potential problems associated with lifting your Nissan Hardbody and taking the necessary steps to address them, you can enjoy the benefits of a lifted truck without sacrificing ride quality or reliability.

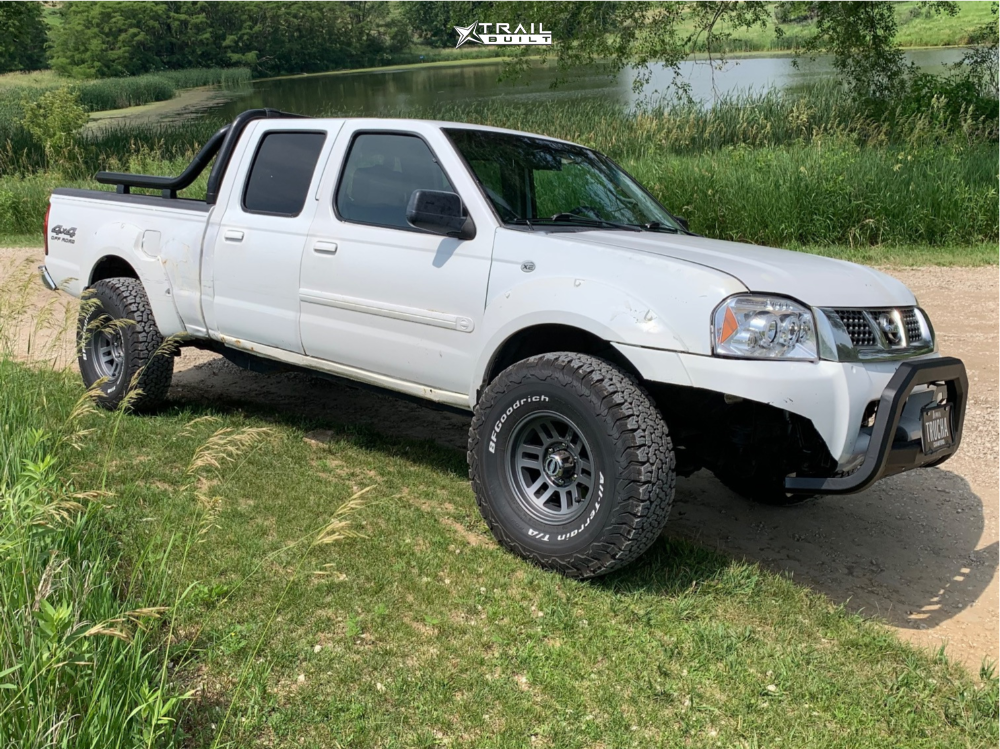

How To Lift Your Nissan Hardbody A Comprehensive Guide Nissan Hardbody Lift Kits
ar.inspiredpencil.com

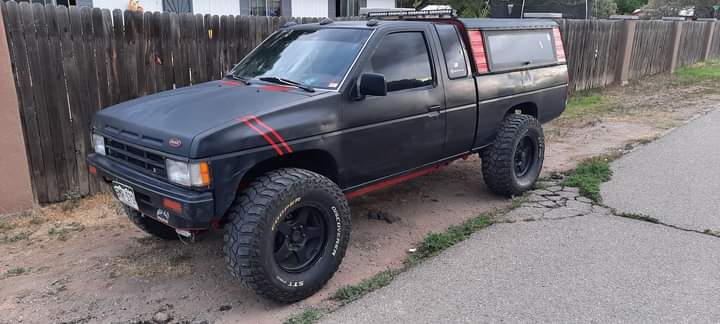

How To Lift Your Nissan Hardbody A Comprehensive Guide Nissan Hardbody Lift Kits
