Ka24de Engine Head Rebuild Guide

So, you're tackling a KA24DE head rebuild? Excellent! This guide is designed to walk you through the process, giving you the knowledge and confidence to get the job done right. A healthy cylinder head is absolutely critical to your engine's performance and longevity, so investing the time and effort into a proper rebuild is a worthwhile endeavor.

KA24DE: A Background

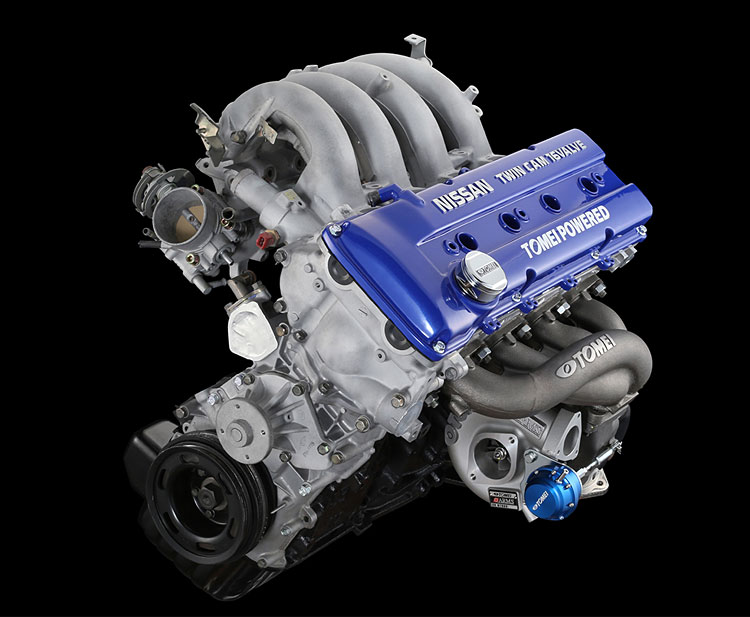

The KA24DE is a 2.4-liter, inline-four cylinder engine produced by Nissan. It's a workhorse, found in vehicles like the 240SX (S13 and S14 chassis), Nissan Trucks (D21 Hardbody and D22 Frontier), and even the Altima. Known for its robust design and relatively simple architecture, the KA24DE is a popular choice for both daily drivers and mild performance builds. It's a SOHC (Single Overhead Camshaft) engine with 4 valves per cylinder, giving it a decent balance of low-end torque and overall power.

Technical Breakdown: How the Cylinder Head Works

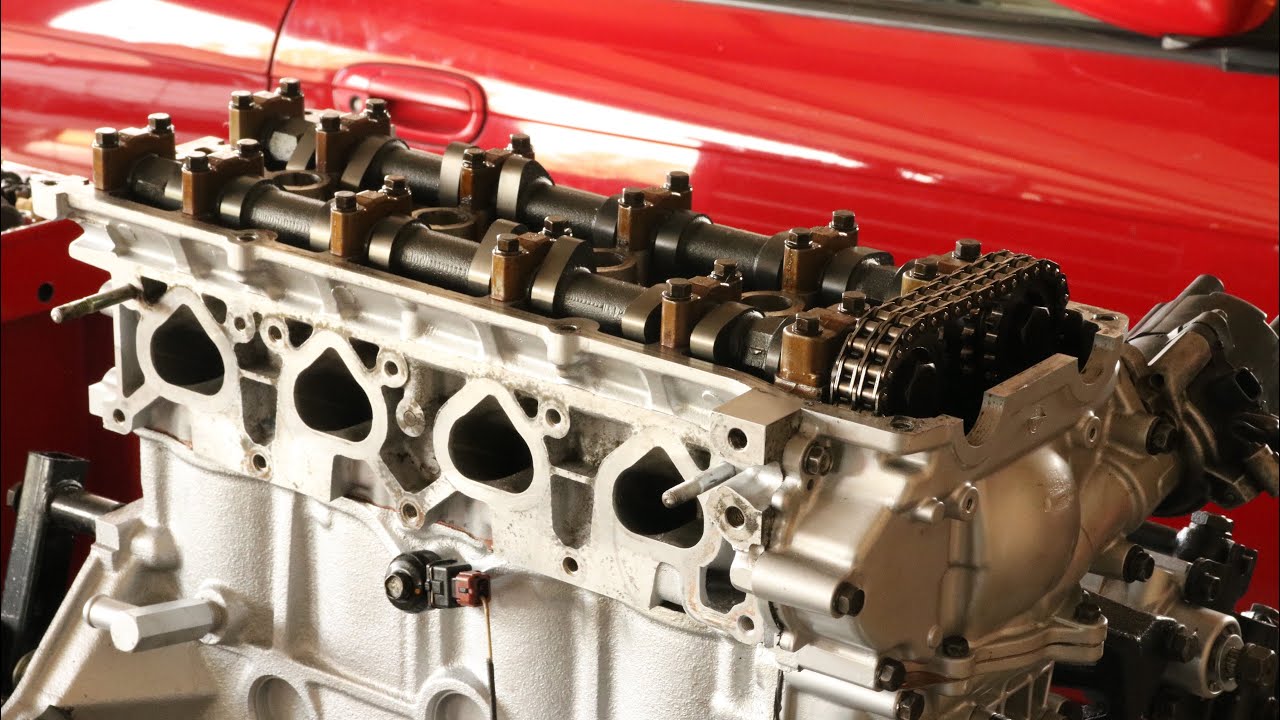

The cylinder head sits atop the engine block, forming the upper combustion chamber. It's a complex component responsible for several crucial functions:

• Intake and Exhaust: The head houses the intake and exhaust ports, which allow air and fuel mixture to enter the cylinder and exhaust gases to escape after combustion.
• Valve Train: The camshaft, valves, valve springs, and related components (rocker arms in the KA24DE) are all housed within the cylinder head. This is the valve train, and it's responsible for opening and closing the valves at the precisely timed intervals required for proper engine operation.
• Combustion Chamber: The head forms part of the combustion chamber, the space where the air/fuel mixture is ignited. The shape and volume of the combustion chamber directly impact the engine's compression ratio and combustion efficiency.
• Coolant and Oil Passages: Internal passages within the head allow coolant to circulate, dissipating heat generated during combustion. Oil passages also run through the head, lubricating the valve train components.

Understanding how these components interact is key to a successful rebuild. Let's delve into the process:

Step-by-Step KA24DE Head Rebuild Guide

1. Disassembly:
   • Preparation: Start by thoroughly cleaning the exterior of the head. This will help prevent contaminants from entering the engine.
   • Valve Cover Removal: Remove the valve cover.
   • Rocker Arm Assembly Removal: Carefully remove the rocker arm assembly. Note the position of each rocker arm and its corresponding lash adjuster (hydraulic lifter) if equipped. Keep these organized! You want to put them back in the same place they came from.
   • Camshaft Removal: Remove the camshaft bearing caps. Loosen them in a criss-cross pattern to evenly distribute the stress. Label each cap with its corresponding position and orientation (e.g., #1 Intake, #2 Exhaust). Remove the camshaft.
   • Valve Removal: This requires a valve spring compressor. Use the compressor to compress the valve spring, allowing you to remove the valve keepers (small, often split, conical pieces that hold the valve spring retainer in place). Once the keepers are removed, carefully release the spring compressor and remove the valve spring retainer, valve spring, and valve. Label each valve with its corresponding cylinder and intake/exhaust location. Store them in an organized manner.
   • Remove Valve Stem Seals: These are typically small rubber seals that fit around the valve stems. Use a valve stem seal removal tool to carefully extract them.
2. Inspection: This is the most important step!
   • Head Inspection: Look for cracks, especially around the valve seats, spark plug holes, and coolant passages. Check the head for warping using a straight edge and feeler gauges. Measure in multiple directions. If the head is warped beyond the service limit, it needs to be resurfaced (machined flat) or replaced.
   • Valve Inspection: Check each valve for bending, burning (typically seen as discoloration or pitting on the valve face), and wear on the valve stem. Measure the valve stem diameter using a micrometer. Compare your measurements to the factory specifications. Replace any valves that are damaged or worn beyond the service limit.
   • Valve Seat Inspection: Inspect the valve seats for pitting, cracks, and wear. If the valve seats are damaged, they may need to be re-cut or replaced by a machine shop.
   • Valve Spring Inspection: Check the valve springs for cracks and fatigue. Measure the free length of each spring and compare it to the factory specifications. Replace any springs that are weak or damaged.
   • Rocker Arm and Camshaft Inspection: Examine the rocker arms and camshaft lobes for wear, pitting, and scoring. Pay close attention to the areas that contact each other. If the rocker arms or camshaft are significantly worn, they should be replaced.
3. Cleaning:
   • Thorough Cleaning: Clean all components thoroughly with parts cleaner and a wire brush. Remove all traces of carbon deposits and old oil.
   • Cleaning the Head: Pay special attention to cleaning the coolant and oil passages in the head. Use pipe cleaners or specialized brushes to remove any debris.
4. Valve Lapping:
   • Purpose: Valve lapping ensures a tight seal between the valve and valve seat.
   • Procedure: Apply a small amount of lapping compound to the valve face. Insert the valve into the head. Use a valve lapping tool (a suction cup on a stick) to rotate the valve against the valve seat. Lift the valve and rotate it slightly every few turns. Repeat the process until you have a uniform, matte finish on both the valve face and valve seat. Clean the valve and valve seat thoroughly to remove all traces of lapping compound.
5. Assembly:
   • Install New Valve Stem Seals: Lubricate the new valve stem seals with clean engine oil and install them using a valve stem seal installation tool.
   • Install Valves: Lubricate the valve stems with clean engine oil and insert the valves into the head.
   • Install Valve Springs, Retainers, and Keepers: Use the valve spring compressor to compress the valve spring. Install the valve spring retainer and then carefully install the valve keepers. Make sure the keepers are properly seated in the valve stem.
   • Install Camshaft: Lubricate the camshaft journals and lobes with assembly lube. Carefully install the camshaft into the head.
   • Install Camshaft Bearing Caps: Install the camshaft bearing caps in their original positions and orientations. Torque the bolts to the factory specifications in a criss-cross pattern.
   • Install Rocker Arm Assembly: Lubricate the rocker arms and lash adjusters with assembly lube. Install the rocker arm assembly.
   • Adjust Valve Lash: Adjust the valve lash according to the factory specifications. This is critical for proper engine operation. Incorrect valve lash can lead to poor performance, excessive valve train noise, and even engine damage.
   • Install Valve Cover: Install the valve cover with a new gasket.

Common Issues and Maintenance Concerns

• Valve Stem Seal Failure: Worn or damaged valve stem seals can lead to oil consumption and smoking from the exhaust.
• Warped Cylinder Head: Overheating can cause the cylinder head to warp, leading to coolant leaks and compression loss.
• Valve Seat Recession: Over time, the valve seats can wear down, causing the valves to sink into the head. This can lead to reduced valve clearance and poor engine performance.
• Cracked Cylinder Head: Extreme temperatures or detonation can cause the cylinder head to crack.
• Timing Chain Issues: While not directly related to the head itself, a stretched or worn timing chain can affect valve timing, impacting engine performance. Inspect the timing chain and guides during the head rebuild.

Do's and Don'ts / Best Practices

• DO use a factory service manual or a reliable online resource for torque specifications and other technical information.
• DO label and organize all components during disassembly. This will make reassembly much easier.
• DO use new gaskets and seals.
• DO lubricate all moving parts with clean engine oil or assembly lube during reassembly.
• DO use a torque wrench to tighten all bolts to the factory specifications.
• DO check valve clearances after reassembly.
• DON'T reuse head bolts. KA24DE head bolts are torque-to-yield and should be replaced with new ones.
• DON'T overtighten bolts. This can damage the threads or warp the head.
• DON'T use excessive force when removing or installing components.
• DON'T forget to clean all components thoroughly before reassembly.
• DON'T ignore signs of wear or damage during the inspection process.

Conclusion

Rebuilding a KA24DE cylinder head is a challenging but rewarding project. By following this guide and taking your time, you can restore your engine's performance and reliability. If you're unsure about any aspect of the process, it's always best to consult with a qualified mechanic. A machine shop can also be invaluable for tasks like valve seat cutting, head resurfacing, and pressure testing. With careful attention to detail and proper technique, you can confidently tackle this rebuild and keep your KA24DE running strong for years to come. Remember: Safety first! Always wear appropriate safety glasses and gloves when working on your engine.
