The KA24DE engine, a stalwart powerplant found in numerous Nissan vehicles from the late 1980s to the early 2000s, is a familiar name to enthusiasts. While the engine itself is well-documented, its accompanying manual transmissions often receive less attention, despite being crucial to the driving experience. This article delves into the intricacies of identifying and understanding the manual transmissions commonly paired with the KA24DE, focusing on their design, variations, and key characteristics.

Identifying the KA24DE Manual Transmission

Unfortunately, Nissan, unlike some other manufacturers, didn't explicitly stamp a "model name" on the transmission casing itself that is easily decipherable by the average user. This necessitates a more observational approach to identification, relying on several key factors.

Vehicle Application

The most reliable method begins with identifying the vehicle the transmission is *supposed* to be from. The KA24DE saw widespread use in several models:

  • 240SX (S13 and S14 Chassis): This is arguably the most common application and the one people most associate with the KA24DE. The S13 ran from 1989-1994, and the S14 from 1995-1998 (in North America). These vehicles are rear-wheel drive (RWD).
  • Nissan D21 Hardbody Pickup: These trucks (RWD or 4WD) also utilized the KA24DE. They have a different transmission due to the pickup's intended use as a work vehicle.
  • Nissan Altima (First Generation): The early Altima (FWD) also featured the KA24DE, but its transmission is *completely different* from the RWD transmissions and is irrelevant to the RWD performance car conversation.

Knowing the vehicle origin narrows down the possibilities considerably. However, it's crucial to remember that swaps and modifications are common, especially in the 240SX community. Therefore, relying solely on the vehicle *it's currently in* can be misleading.

Physical Characteristics

Once you know the potential vehicle of origin, examine the transmission itself. Several physical characteristics provide crucial clues:

  • Bellhousing Bolt Pattern: The bellhousing is the part of the transmission that bolts to the engine. While all KA24DE transmissions share a similar bolt pattern *to the engine*, they will NOT bolt up to other engines without adapters. Comparing the bolt pattern to diagrams of KA24DE engines will confirm its compatibility.
  • Case Material and Construction: Generally, the KA24DE transmissions will have aluminum alloy cases, but the specific design and ribbing can differ. Look for unique features or markings.
  • Shift Linkage Type: Is it a direct linkage (shifter bolts directly to the transmission) or a remote linkage (uses rods and levers)? The 240SX transmissions typically use a direct linkage, contributing to a more precise feel.
  • Output Flange: The shape and bolt pattern of the output flange (where the driveshaft connects) can also be indicative. RWD transmissions will have a different flange compared to FWD transmissions.

Internal Gear Ratios (A More Advanced Approach)

Determining the gear ratios *can* distinguish between some versions, but it requires more involved methods. The most reliable approach is to:

  1. Visually confirm the transmission is designed to be with the KA24DE.
  2. Jack up the car and put it on jack stands, making sure it is supported properly and safely.
  3. Mark the driveshaft and the transmission output shaft.
  4. Put the car in first gear.
  5. Rotate the output shaft and count how many times the driveshaft spins.
  6. Repeat for all other gears.

This process is time-consuming and requires some mechanical knowledge. Once you have the gear ratios, you can compare them to known specifications for different Nissan transmissions. Keep in mind that gear ratios can be changed aftermarket.

Common KA24DE Transmission Variants

While a definitive "model name" remains elusive, we can categorize the KA24DE manual transmissions based on their application and known characteristics:

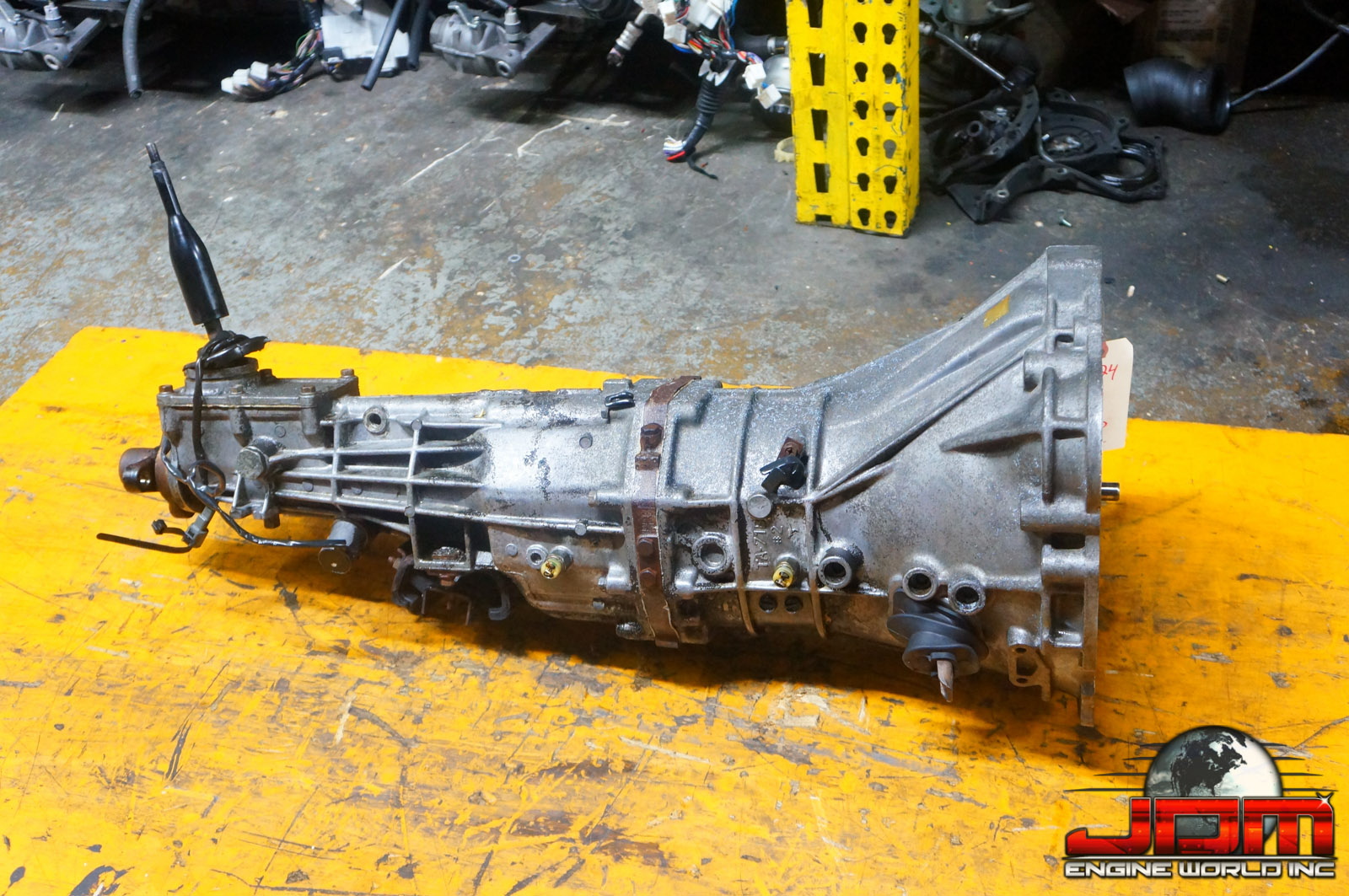

240SX (S13 & S14) Transmission: The "FS5W71C" (Likely)

Although Nissan doesn't officially label it as such *on the unit itself*, the transmission used in the 240SX with the KA24DE is believed to be a variant of the FS5W71C transmission family. This is a 5-speed manual known for its relatively compact size and durability. However, it is important to note that the 240SX transmission is considered to be one of the weaker transmissions and prone to failure if abused. The early S13 KA24E (single cam) transmission differs from the S13 and S14 KA24DE transmission.

The FS5W71C designation, while not explicitly stamped, is a widely accepted industry term for this type of transmission found in the 240sx.

Key Characteristics:

  • RWD configuration.
  • Direct shift linkage.
  • Relatively short gear ratios, designed for sporty driving.
  • Aluminum alloy case.

Hardbody Truck Transmission: Heavy Duty and Different Ratios

The KA24DE-equipped Hardbody trucks utilized a heavier-duty transmission designed for hauling and off-road use. This transmission has different gear ratios than the 240sx and is meant for trucks that need to pull a heavy load and go off road, the 240sx transmission is meant to be quick and nimble.

Key Characteristics:

  • RWD or 4WD configuration.
  • Remote shift linkage (typically).
  • Taller gear ratios, optimized for torque and towing.
  • More robust construction compared to the 240SX transmission.

First Generation Altima Transmission: A FWD Departure

This transmission is entirely different from the RWD versions and shares virtually no components. It's designed for front-wheel drive applications and will not be compatible with RWD vehicles.

Key Characteristics:

  • FWD configuration.
  • Transaxle design (integrates the transmission and differential).
  • Different bellhousing pattern and internal construction.

Interchangeability and Swaps

The 240SX transmissions are generally interchangeable between S13 and S14 models, *provided you use the correct driveshaft and shifter linkage*. However, swapping transmissions between different KA24DE applications (e.g., truck to 240SX) is significantly more complex and usually requires custom modifications due to differences in gear ratios, shift linkages, and driveshaft connections. While not impossible, it is only recommended for experienced mechanics or fabricators.

Conclusion

Identifying the specific KA24DE manual transmission can be challenging due to the lack of a readily available "model name" stamped on the unit. By carefully considering the vehicle of origin, examining the physical characteristics of the transmission, and potentially determining the gear ratios, you can narrow down the possibilities and gain a better understanding of its properties. The 240sx transmission, while arguably the most desirable in terms of sporting performance, is also the most likely to fail if abused. The truck transmission, on the other hand, is much stronger, but may not be best suited for a performance application due to its taller gear ratios.

Ultimately, understanding these nuances allows enthusiasts to make informed decisions regarding maintenance, upgrades, and potential swaps, ensuring they get the most out of their KA24DE-powered vehicles. Remember to always consult reputable sources and professional mechanics when undertaking any major transmission work. The information provided here is a guide and does not substitute professional expertise.
