Nissan Frontier Airbag Module Location

Understanding the location of your Nissan Frontier airbag module is crucial for various reasons, from troubleshooting airbag warning lights to performing maintenance or repairs. This article provides a comprehensive guide to help you locate the airbag module in your Nissan Frontier, offering valuable insights and considerations along the way.

Why Knowing the Airbag Module Location Matters

The airbag module, also known as the Supplemental Restraint System (SRS) module or the Airbag Control Unit (ACU), is the central processing unit for your vehicle's airbag system. It monitors sensors throughout the vehicle and determines when to deploy the airbags in the event of a collision. Knowing its location is important for:

Troubleshooting Airbag Warning Lights: If your airbag warning light is illuminated, it could indicate a problem with the airbag system. Knowing the location of the module allows you (or a qualified technician) to access it for diagnostic testing.
Resetting the Airbag Module: After an airbag deployment (or even a minor impact), the airbag module may need to be reset. Locating the module is the first step in this process. Note: Airbag system repairs and resets should always be performed by qualified professionals.
Replacing the Airbag Module: In some cases, the airbag module may be faulty and require replacement. Knowing its location makes the replacement process more straightforward.
Accessing Diagnostic Information: Technicians often need to access the airbag module to retrieve diagnostic trouble codes (DTCs) related to the SRS system.

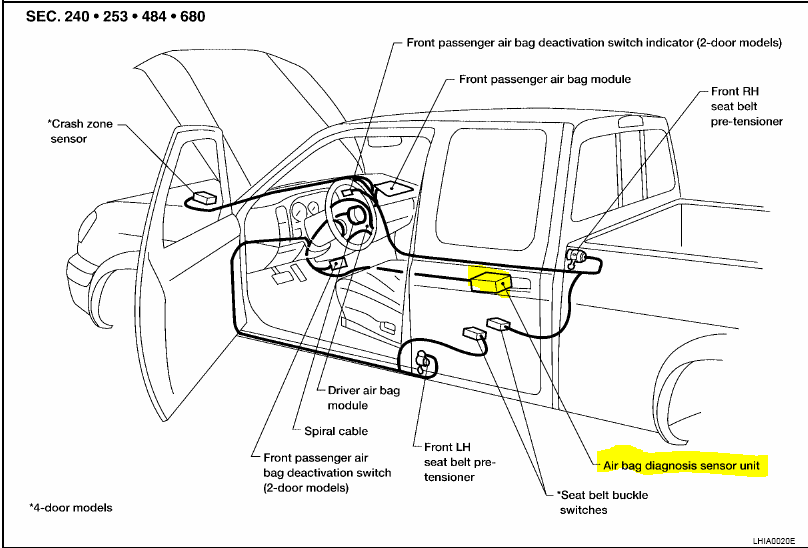

General Location of the Nissan Frontier Airbag Module

While the precise location can vary slightly depending on the specific year and trim level of your Nissan Frontier, the airbag module is typically located in the center of the vehicle, underneath the dashboard. It's generally situated either:

Underneath the Center Console: This is a common location. You'll usually need to remove parts of the center console (e.g., the gear shift surround, storage compartments) to gain access.
Behind the Dashboard (Center Area): In some models, the module might be tucked away behind the central portion of the dashboard, requiring partial dashboard disassembly.

It's essential to consult your Nissan Frontier's service manual or a reliable online repair database for the most accurate location specific to your vehicle's year and trim. These resources provide detailed diagrams and instructions.

Step-by-Step Guide to Locating the Airbag Module (General Approach)

Disclaimer: Working with airbag systems can be dangerous. Airbags can deploy unexpectedly, causing serious injury. If you are not comfortable working with electrical systems or airbag components, always consult a qualified automotive technician. Disconnect the negative terminal of the battery before attempting any work on the airbag system.

Gather Necessary Tools: You'll likely need a set of screwdrivers (Phillips and flathead), sockets, a ratchet, and potentially trim removal tools to avoid damaging interior panels.
Disconnect the Negative Battery Terminal: This is a crucial safety step to prevent accidental airbag deployment. Disconnect the negative (-) terminal and wait at least 10 minutes before proceeding. This allows any residual electricity in the system to dissipate.
Consult Your Vehicle's Service Manual: Your service manual will provide the most accurate and detailed instructions for your specific Nissan Frontier model.
Remove the Center Console (If Applicable): If the module is located under the center console, you'll need to remove it. This usually involves removing screws, bolts, and possibly unclipping some trim pieces. Be careful not to force anything; if it doesn't come apart easily, check for hidden fasteners.
Remove Dashboard Panels (If Applicable): If the module is behind the dashboard, you may need to remove dashboard panels. Again, refer to your service manual for specific instructions. Use trim removal tools to avoid scratching or breaking the plastic.
Locate the Airbag Module: The airbag module is typically a small, metal box with several wiring connectors attached to it. It is often labeled with warnings about the airbag system.
Document the Wiring Connections: Before disconnecting any wiring, take pictures or make notes of the wiring connections. This will ensure you reconnect everything correctly later.
Disconnect the Wiring Connectors: Carefully disconnect the wiring connectors from the airbag module. There may be retaining clips that need to be released.

Specific Model Year Considerations

As mentioned earlier, the exact location of the airbag module can vary based on the model year of your Nissan Frontier. Here's a general overview:

First Generation Nissan Frontier (1998-2004)

In these models, the airbag module is most commonly found under the center console, towards the front of the console. You'll likely need to remove the gear shift surround and possibly some storage compartments to access it.

Second Generation Nissan Frontier (2005-2021)

The location in these models remains primarily under the center console. However, the specific access procedure might differ. Consult your service manual for precise instructions. Some models may require more extensive disassembly of the center console.

Third Generation Nissan Frontier (2022-Present)

While the general location under the center console is likely to remain, the internal layout and mounting might have changed. Always refer to the specific service manual for the 2022 and newer models. Technological advancements might have also influenced the module's design and connectivity.

Safety Precautions When Working with Airbag Systems

Safety is paramount when dealing with airbag systems. Here are some crucial precautions:

Always Disconnect the Negative Battery Terminal: As emphasized before, this is non-negotiable. Waiting at least 10 minutes ensures that any residual electricity dissipates.
Avoid Static Electricity: Static electricity can trigger airbag deployment. Ground yourself properly by touching a grounded metal object before touching any airbag components.
Handle Airbag Components Carefully: Avoid dropping or jarring airbag modules or inflators.
Never Probe Airbag Connectors with a Multimeter: This can accidentally trigger the airbag.
Store Removed Airbag Components Properly: If you remove an airbag module or inflator, store it in a safe place, away from heat, sparks, and potential impact. Follow all disposal guidelines for airbag components; they are considered hazardous materials.
Seek Professional Help When Needed: If you are uncomfortable with any part of the process, or if you encounter any difficulties, consult a qualified automotive technician. Airbag systems are complex and potentially dangerous.

After Locating the Module: Next Steps

Once you've located the airbag module, you can proceed with your intended task. This might involve:

Diagnostic Testing: Using a scan tool that is compatible with your Nissan Frontier's airbag system, you can retrieve diagnostic trouble codes (DTCs) that can help pinpoint the source of the problem.
Resetting the Airbag Module: Some scan tools have the ability to reset the airbag module after repairs have been made. Always follow the manufacturer's instructions and guidelines.
Replacement: If the module is faulty, you can replace it with a new or remanufactured module. Programming may be required after replacement to ensure compatibility with your vehicle.

Important Note: Replacing the airbag module may require programming or coding to match your vehicle's VIN (Vehicle Identification Number). This typically requires specialized equipment and software, and it's best left to a qualified technician.

Conclusion

Locating the Nissan Frontier airbag module is a necessary step for troubleshooting, repairing, or replacing components of the SRS system. By following this guide and consulting your vehicle's service manual, you can safely and effectively locate the module in your specific Nissan Frontier model. However, always remember the inherent risks involved in working with airbag systems and prioritize safety. If you are unsure about any aspect of the process, seek the assistance of a qualified automotive technician. Proper maintenance and understanding of your vehicle's safety systems are crucial for ensuring your safety and the safety of others on the road. Remember, the information provided here is for informational purposes only and should not be considered a substitute for professional automotive advice.
