Nissan Frontier Fog Lights

Alright, let's talk about fog lights on your Nissan Frontier. Whether you're dealing with a burned-out bulb, considering an upgrade, or just curious about how the system works, this article will give you a solid understanding. We'll cover everything from basic operation to common issues and potential modifications. Think of this as your one-stop shop for Frontier fog light knowledge.

Fog Light Fundamentals: Seeing Through the Mist

First things first: what *are* fog lights and why are they different from headlights? Unlike headlights, which are designed to project a beam of light far down the road, fog lights are designed to illuminate the road below the fog. They achieve this through a combination of:

• Low Mounting Position: Being placed low to the ground helps the light beam stay under the fog layer.
• Wide, Flat Beam: The beam pattern is wide and flat, spreading light horizontally across the road surface rather than projecting it upwards into the fog.
• Color Temperature (Usually): Many fog lights use a yellow or amber tint. The theory is that these warmer colors are less likely to reflect back into the driver's eyes from the water droplets in the fog. While the science behind the color argument is debated, it's a traditional characteristic of fog lights.

On your Nissan Frontier, the factory fog lights are typically integrated into the front bumper. The exact location and design will vary depending on the model year and trim level. They are typically controlled by a switch on the steering column stalk or dashboard. Now, let's dive into the specifics.

Electrical System: Powering the Illumination

Understanding the electrical circuit is crucial for troubleshooting and modifications. The basic fog light circuit on a Frontier consists of:

• Power Source: The fog light circuit draws power from the vehicle's battery.
• Fuse: A fuse protects the circuit from overloads. The fuse location and amperage rating will be specified in your owner's manual or on the fuse box cover. Always check the fuse first when troubleshooting fog light issues. A blown fuse is a very common culprit.
• Relay: A relay acts as an electrical switch, allowing a low-current signal from the switch to control a high-current circuit powering the fog lights. This protects the switch from damage. If you hear a "clicking" sound from the relay when you activate the fog light switch, that usually means the relay is working, but it doesn't guarantee the contacts inside are good.
• Switch: The fog light switch, usually located on the steering column or dashboard, activates the relay.
• Wiring: The wiring connects all the components of the circuit. Inspect the wiring for damage, corrosion, or loose connections.
• Fog Lights: The fog light assemblies themselves, containing the bulbs and reflectors.
• Ground: A good ground connection is essential for completing the circuit. The fog lights will have a dedicated ground wire that is connected to the vehicle's chassis.

Troubleshooting Tip: Use a multimeter to check for voltage at different points in the circuit. Start by checking for voltage at the fog light bulb connector when the switch is activated. If there's no voltage, work your way back through the circuit, checking the fuse, relay, switch, and wiring.

Bulb Types and Replacements

The bulb type used in your Frontier's fog lights will depend on the model year and trim. Common types include halogen bulbs, and in newer models, possibly LED bulbs. Consult your owner's manual or check the bulb itself for the specific bulb number (e.g., H11, 9006, etc.).

Replacing a fog light bulb is generally a straightforward process. Here's a general outline:

1. Safety First: Disconnect the negative battery terminal to prevent electrical shocks.
2. Access the Bulb: This may involve removing the fog light assembly from the bumper or accessing it from behind the bumper. Refer to your vehicle's service manual for specific instructions. Some bumpers may require partial removal or accessing through the wheel well.
3. Remove the Old Bulb: Disconnect the electrical connector from the bulb. Depending on the bulb type, you may need to rotate it slightly to release it from the housing.
4. Install the New Bulb: Insert the new bulb into the housing and secure it in place. Reconnect the electrical connector. Be careful not to touch the glass of a halogen bulb with your bare hands, as the oils from your skin can shorten its lifespan. If you do, clean it with rubbing alcohol before installation.
5. Test the Bulb: Reconnect the battery and turn on the fog lights to ensure the new bulb is working.
6. Reassemble: Reinstall the fog light assembly if you removed it.

Important Note: Always use the correct bulb type for your vehicle. Using the wrong bulb can damage the fog light assembly or the electrical system.

Upgrades and Modifications

Many Frontier owners choose to upgrade or modify their fog lights for improved performance or aesthetics. Here are a few common options:

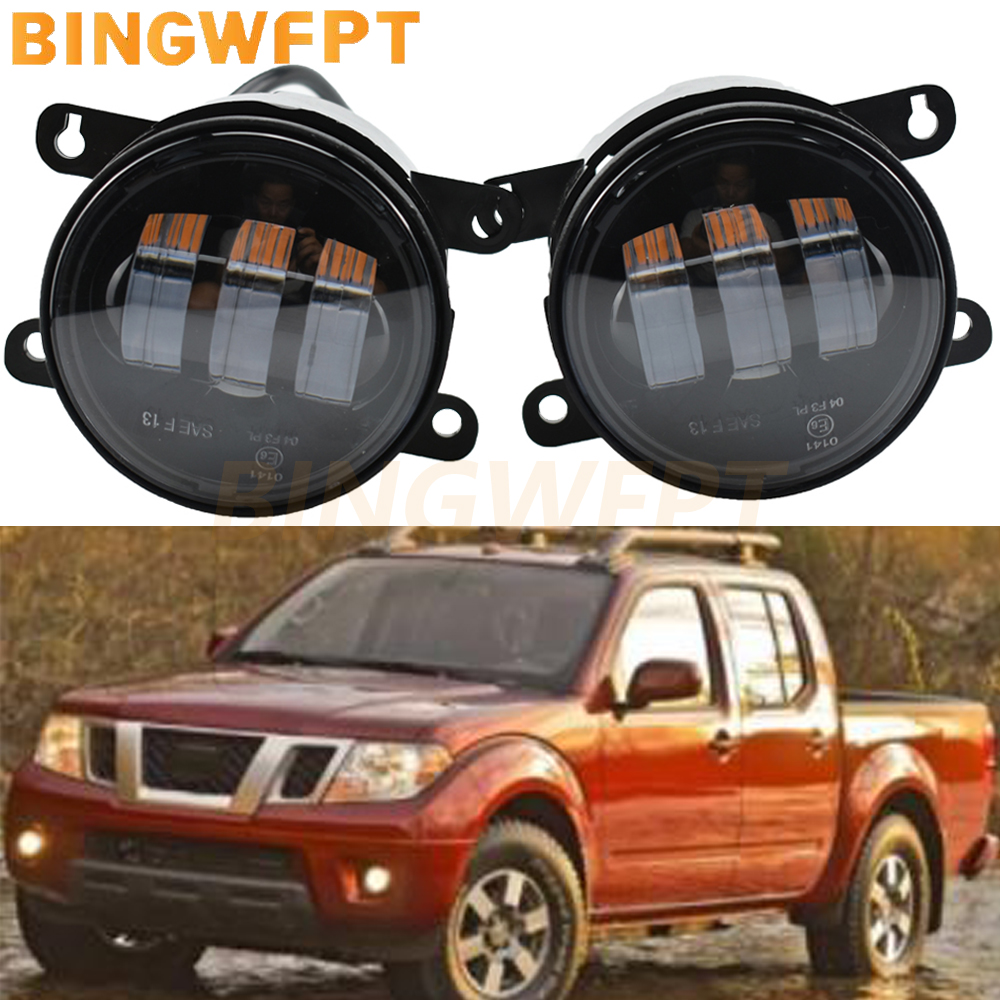

LED Fog Lights

LED fog lights offer several advantages over halogen bulbs, including:

• Brighter Output: LEDs typically produce more light output for the same amount of power.
• Longer Lifespan: LEDs last significantly longer than halogen bulbs.
• Lower Power Consumption: LEDs draw less power, reducing the strain on the vehicle's electrical system.
• Instant On/Off: LEDs illuminate instantly, unlike halogen bulbs that take a fraction of a second to warm up.

When choosing LED fog lights, make sure they are DOT (Department of Transportation) approved and designed for automotive use. Look for LEDs with a built-in resistor to prevent "bulb out" warnings on the dashboard. Some vehicles are sensitive to the lower resistance of LEDs and may trigger these warnings. These are often called "CAN bus" compatible LEDs.

HID (High-Intensity Discharge) Fog Lights

HID fog lights are another option for increasing light output. They produce a very bright, white light. However, HID conversions can be more complex than LED conversions, as they require a ballast to regulate the voltage. Also, in many areas, HID conversions for fog lights are not legal because they can produce excessive glare to other drivers.

Important Note: Be mindful of legality when upgrading your fog lights. Some jurisdictions have regulations regarding the color, brightness, and beam pattern of fog lights. Ensure that your upgrades comply with local laws.

Replacing the Entire Fog Light Assembly

If your fog light assemblies are damaged, faded, or you're looking for a different style, you can replace the entire assembly. Many aftermarket options are available, including those with integrated LED daytime running lights (DRLs) or unique styling. When choosing a replacement assembly, make sure it is compatible with your Frontier's model year and trim level. Consider the quality of the materials and construction, as cheaper assemblies may not last as long or perform as well.

Wiring Harness Upgrades

For high-power fog lights (like auxiliary lights), upgrading the wiring harness is highly recommended. The factory wiring may not be sufficient to handle the increased current draw, which can lead to voltage drop and overheating. An upgraded harness will typically include heavier gauge wiring, a dedicated relay, and a fuse.

Common Problems and Solutions

Here are some common problems you might encounter with your Frontier's fog lights and how to address them:

• Fog Lights Not Working:
  • Check the Fuse: The most common cause. Replace if blown.
  • Check the Relay: Test the relay by swapping it with a known good relay (if available) or using a multimeter to check for continuity.
  • Check the Switch: Use a multimeter to check for continuity in the switch when it is activated.
  • Check the Wiring: Inspect the wiring for damage, corrosion, or loose connections.
  • Check the Ground: Ensure that the fog light ground wires are securely connected to the chassis.
  • Bulb: As simple as it sounds, check if the bulb needs replaced!
• Fog Lights Dim:
  • Voltage Drop: This can be caused by undersized wiring, corroded connections, or a weak battery.
  • Grounding Issues: A poor ground connection can also cause dim lights.
  • Old Bulbs: As bulbs age, they produce less light.
• "Bulb Out" Warning:
  • Faulty Bulb: The bulb may be defective, even if it appears to be working.
  • LED Compatibility: If you've installed LED bulbs, they may not be compatible with the vehicle's electrical system. Use LEDs with built-in resistors or install external resistors.
  • Wiring Issues: A break in the wiring can also trigger a "bulb out" warning.

By understanding the fundamentals of your Nissan Frontier's fog light system, you'll be well-equipped to troubleshoot problems, perform maintenance, and even upgrade to improve your visibility and the overall look of your truck. Remember to always consult your vehicle's service manual for specific instructions and safety precautions.
