Nissan Maxima 2009 Headlight

The 2009 Nissan Maxima represented a significant step forward in Nissan's design language, and its headlight system was no exception. More than just a housing for a bulb, the headlight assembly is a carefully engineered system designed to provide optimal illumination, comply with safety regulations, and contribute to the vehicle's overall aesthetic. Let's delve into the technical aspects of the 2009 Maxima's headlight system.

Headlight Assembly Overview

The headlight assembly itself is a complex module, typically composed of the following key components:

Housing: The outer shell of the headlight, usually made of a durable polycarbonate plastic. This material is chosen for its impact resistance, ability to be molded into complex shapes, and UV resistance to prevent yellowing over time.
Lens: The clear (or slightly textured) cover that protects the internal components and helps to focus the light beam. The 2009 Maxima generally used a polycarbonate lens. The shape of the lens is carefully calculated to distribute light in a specific pattern, meeting legal requirements for beam spread and intensity.
Reflector: A highly polished, curved surface that reflects light from the bulb forward, amplifying its intensity and shaping the beam. The reflector is typically made of metal coated with a reflective material like aluminum.
Bulb: The light source itself. The 2009 Maxima typically used halogen bulbs for both low and high beams, although some trims may have offered HID (High-Intensity Discharge) options.
Adjusters: Mechanisms that allow for precise aiming of the headlight beam. These adjusters control both vertical and horizontal alignment, ensuring proper illumination of the road without blinding oncoming traffic.
Seals: Rubber or foam gaskets used to prevent moisture and dust from entering the headlight assembly. These seals are crucial for maintaining optimal performance and preventing premature bulb failure due to corrosion.

Light Source: Halogen vs. HID

The 2009 Maxima primarily utilized halogen bulbs, but HID headlights were available as an option on some trims. Let's examine the differences:

Halogen Bulbs

Halogen bulbs work on the principle of incandescence. A thin tungsten filament is heated to a high temperature by an electric current, causing it to emit light. The filament is surrounded by a halogen gas (typically iodine or bromine) which helps to regenerate the tungsten and prevent it from evaporating too quickly, extending the bulb's lifespan.

Advantages of halogen bulbs include:

Cost-effectiveness: Halogen bulbs are relatively inexpensive compared to other lighting technologies.
Ease of replacement: Replacing a halogen bulb is a straightforward process that can usually be done by the vehicle owner.
Instant-on: Halogen bulbs reach full brightness almost instantaneously.

Disadvantages of halogen bulbs include:

Lower efficiency: Halogen bulbs convert a relatively small percentage of electrical energy into light, with the rest being dissipated as heat.
Shorter lifespan: Halogen bulbs typically have a shorter lifespan compared to HID or LED alternatives.

HID (High-Intensity Discharge) Bulbs

HID bulbs, also known as Xenon bulbs, produce light by creating an electric arc between two electrodes in a tube filled with xenon gas and metal halides. This arc excites the gas, causing it to emit a bright, white light.

Advantages of HID bulbs include:

Higher efficiency: HID bulbs are significantly more efficient than halogen bulbs, producing more light for the same amount of energy.
Brighter light output: HID bulbs produce a much brighter light, improving visibility, especially at night.
Longer lifespan: HID bulbs have a significantly longer lifespan compared to halogen bulbs.

Disadvantages of HID bulbs include:

Higher cost: HID bulbs and the associated components (ballasts) are more expensive than halogen bulbs.
Complexity: HID systems require a ballast to regulate the voltage and current to the bulb. This adds complexity to the system.
Warm-up time: HID bulbs take a few seconds to reach full brightness.

Reflector Design and Beam Shaping

The reflector plays a critical role in shaping the light beam emitted by the bulb. The 2009 Maxima utilizes a parabolic reflector, a curved surface designed to focus the light into a parallel beam. The shape of the reflector is precisely calculated to ensure that the light is directed where it is needed most – onto the road ahead.

The reflector's surface is coated with a highly reflective material, typically aluminum, to maximize the amount of light reflected forward. The quality of the reflective coating is crucial for maintaining optimal headlight performance. Over time, the coating can degrade due to heat and exposure to the elements, reducing its reflectivity and diminishing the brightness of the headlights.

The lens also contributes to beam shaping. The 2009 Maxima uses a clear lens with specific grooves or patterns designed to further control the distribution of light. These features help to create a wider and more even beam pattern, reducing glare for oncoming traffic and improving visibility for the driver.

Aiming and Adjustment

Proper headlight aiming is essential for safe driving. Misaligned headlights can either blind oncoming drivers or fail to adequately illuminate the road ahead. The 2009 Maxima's headlight assemblies are equipped with adjusters that allow for precise aiming of the beam.

There are typically two adjusters per headlight: one for vertical adjustment and one for horizontal adjustment. These adjusters usually consist of screws that move the reflector up/down and left/right, respectively. The aiming procedure involves projecting the headlight beam onto a screen or wall at a specified distance and adjusting the screws until the beam is properly aligned with the target markings.

It is crucial to consult the vehicle's service manual or a qualified technician for specific aiming instructions. Improper aiming can result in reduced visibility and increased risk of accidents.

Troubleshooting Common Headlight Issues

Several issues can affect the performance of the 2009 Maxima's headlight system. Here are some common problems and potential solutions:

Dim headlights: This could be caused by aging bulbs, a corroded reflector, or a faulty electrical connection. Replacing the bulbs or cleaning the reflector may resolve the issue. If the problem persists, check the wiring and connectors for corrosion or damage.
One headlight not working: This could be due to a blown bulb, a faulty fuse, or a broken wire. Start by checking the bulb and fuse. If both are good, use a multimeter to check for voltage at the bulb socket. If there is no voltage, trace the wiring back to the fuse box, looking for any breaks or shorts.
Headlight flickers: This could be caused by a loose electrical connection or a failing ballast (in the case of HID headlights). Check all connections for tightness and corrosion. If the problem persists, the ballast may need to be replaced.
Condensation inside the headlight: This indicates a breach in the headlight assembly's seals. Moisture can damage the bulb and corrode the reflector. The seals need to be replaced, or the entire headlight assembly may need to be replaced.

Upgrading the Headlight System

While the 2009 Maxima's headlight system was adequate for its time, there are several options for upgrading its performance. These include:

Replacing halogen bulbs with LED bulbs: LED bulbs offer improved brightness, efficiency, and lifespan compared to halogen bulbs. However, it is essential to choose LED bulbs that are compatible with the vehicle's electrical system and designed for use in reflector housings. Using the wrong type of LED bulb can result in poor beam patterns and increased glare.

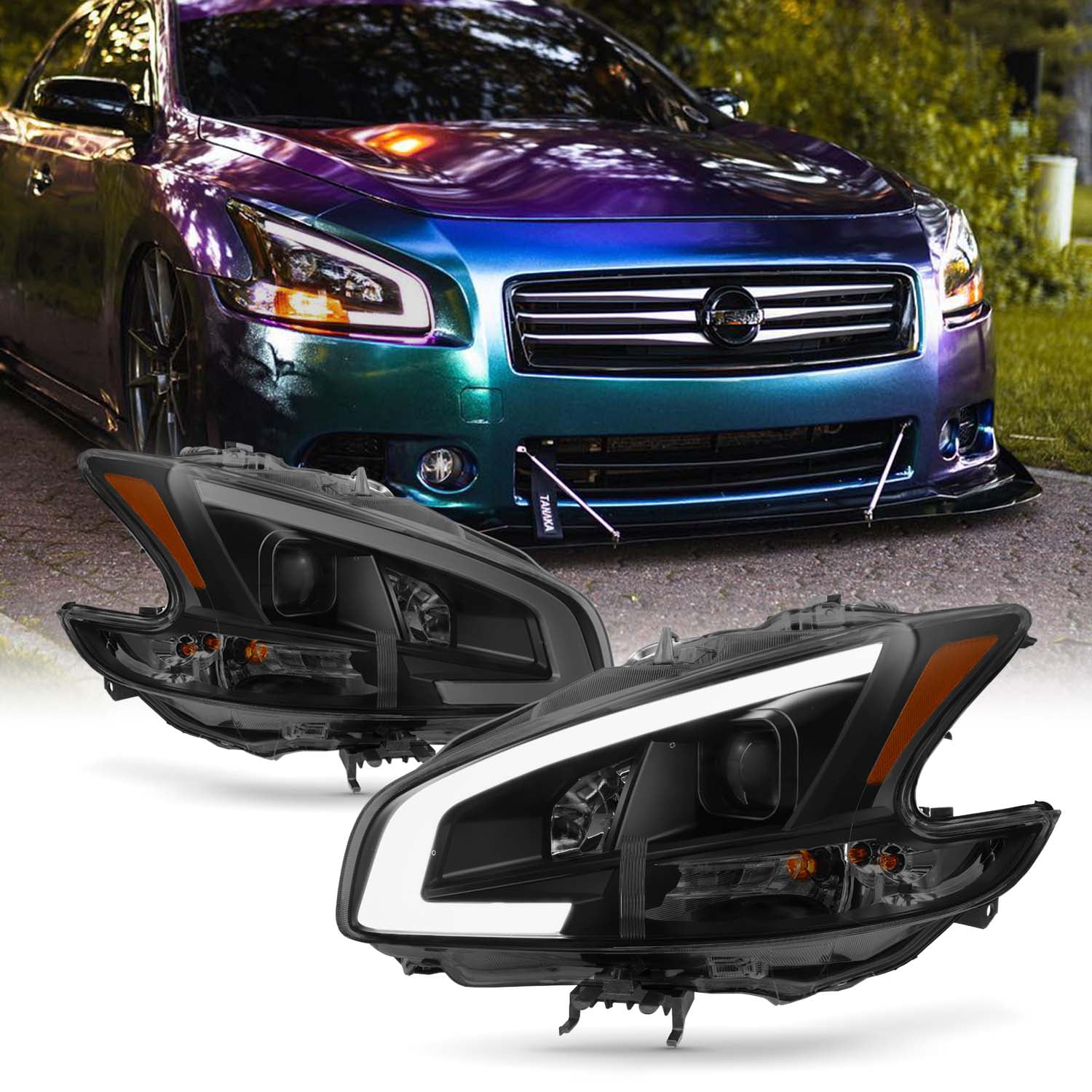

Retrofitting HID projectors: This involves replacing the entire headlight assembly with a custom-built unit that incorporates HID projectors. Projectors provide a more focused and controlled beam pattern compared to reflectors, resulting in improved visibility and reduced glare. This is a complex and expensive modification but can significantly improve headlight performance.
Adding auxiliary lighting: This involves installing additional driving lights or fog lights to supplement the headlights. Auxiliary lighting can improve visibility in adverse weather conditions or on dark, unlit roads.

Before making any modifications to the headlight system, it is essential to research local regulations and ensure that the modifications comply with all applicable laws. Illegal headlight modifications can result in fines and vehicle inspection failures.

In conclusion, the 2009 Nissan Maxima's headlight system, whether equipped with halogen or HID bulbs, is a carefully engineered system designed to provide optimal illumination and safety. Understanding the components and principles behind its operation can help owners maintain and troubleshoot their headlights effectively and make informed decisions about potential upgrades.
