Nissan Rogue How To Open Gas Tank

Welcome, fellow gearheads! Today, we're diving into something seemingly simple but potentially frustrating: opening the gas tank on a Nissan Rogue. While most modern vehicles aim for user-friendliness, sometimes things go sideways. Knowing the system's mechanics, electrical controls, and potential pitfalls can save you time, money, and a whole lot of aggravation. We'll break down the gas tank door operation on a typical modern Rogue, covering components, diagrams, and troubleshooting, ensuring you're well-equipped to handle any refueling hiccup.
Why Understanding the Fuel Door Matters
You might be thinking, "Why do I need a detailed explanation for a fuel door?" Well, several scenarios make this knowledge invaluable:
Repair and Maintenance: From replacing a faulty actuator to fixing a damaged hinge, understanding the system's layout is crucial.
Troubleshooting: Stuck fuel door? Knowing the components allows for systematic diagnosis and resolution.
Learning: Expanding your automotive knowledge empowers you to tackle more complex repairs in the future.
Modifications: Perhaps you're considering aftermarket enhancements or adding custom fuel system components; this provides a solid base understanding.
Key Specs and Main Parts of the Nissan Rogue Fuel Door System
Let's break down the typical components involved in the modern Nissan Rogue fuel door opening mechanism. While specifics might vary slightly depending on the year and trim level, the core principles remain consistent.

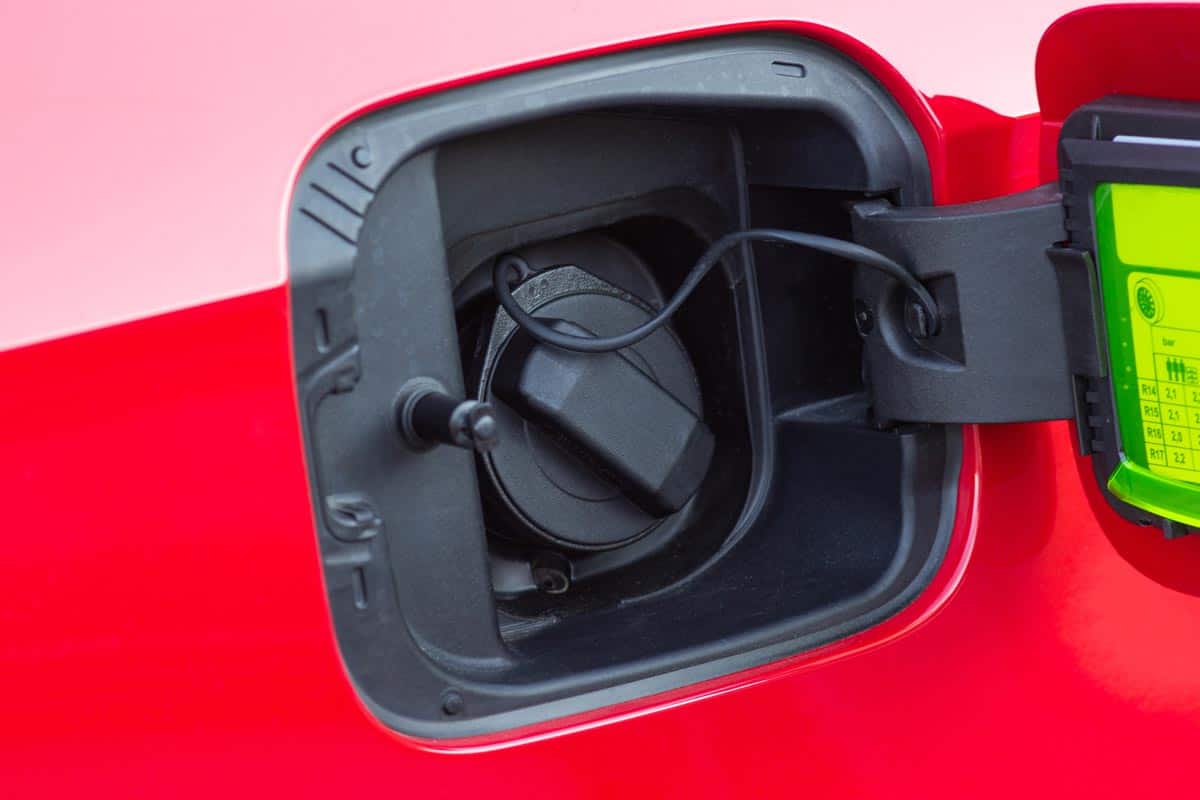

- Fuel Door (Flap): The obvious one! Usually made of sheet metal or plastic, painted to match the vehicle.
- Hinge: Connects the fuel door to the car's body.
- Fuel Door Actuator: An electric solenoid that releases the fuel door latch. This is the most common culprit when the fuel door refuses to open.
- Latch Mechanism: A spring-loaded latch that secures the fuel door in the closed position.
- Fuel Filler Neck: The pipe into which you insert the fuel nozzle.
- Release Button/Switch: Located inside the car, usually on the driver's side floor or dashboard. This activates the actuator.
- Wiring Harness: Connects the release button/switch to the actuator and the car's electrical system.
- Fuel Door Emergency Release (Manual Override): Usually located inside the trunk or cargo area, behind an access panel. It's a cable you pull to mechanically release the door.
- Body Control Module (BCM): A computer that controls various electronic functions in the car, including the fuel door actuator.
- Fuel Cap: Seals the fuel filler neck to prevent fuel evaporation and vapor leaks.
The Fuel Door Actuator is a critical component. This small electric motor moves a plunger or lever that physically disengages the latch, allowing you to open the fuel door. Actuators often fail due to corrosion, wear and tear, or electrical issues. Another important part is the Body Control Module (BCM). It can sometimes be involved in issues if it is not sending the signal to open the fuel door.
Understanding Electrical Diagram Symbols
Let's decipher some common symbols you might encounter in a Nissan Rogue electrical diagram related to the fuel door.
- Solid Lines: Represent wires or conductors carrying electrical current. A thicker line usually indicates a wire with a higher current capacity.
- Dashed Lines: Often represent ground connections or signal wires with low current.
- Circles: Can represent various components, depending on what's inside them. Often used for connectors or splices.
- Rectangles: Commonly represent switches, relays, or electronic modules (like the BCM).
- Resistor Symbol (Zig-zag line): Represents a resistor, which limits the flow of current.
- Diode Symbol (Triangle pointing to a line): Allows current to flow in only one direction.
- Ground Symbol (Downward pointing lines): Indicates a connection to the vehicle's chassis, providing a return path for the electrical current.
- Actuator Symbol (Coil with a plunger): Represents the fuel door actuator, the solenoid that releases the door.
- Colors: Wires are often color-coded. Refer to the specific diagram's legend for color meanings (e.g., Red = +12V, Black = Ground).
Understanding these basic symbols is key to tracing the circuit, identifying components, and pinpointing potential faults. The diagram will also show you the location of fuses and relays that control the power to the fuel door actuator. You can also use the diagram to trace the wiring to the BCM.
How the Fuel Door System Works
Here's a simplified explanation of how the fuel door system operates on a typical modern Nissan Rogue:
- Activation: You press the fuel door release button inside the car.
- Signal Transmission: The button sends an electrical signal to the BCM.
- BCM Processing: The BCM receives the signal and, if conditions are met (e.g., the car is not in motion), sends a command to the fuel door actuator.
- Actuator Engagement: The fuel door actuator receives the command from the BCM and activates. The solenoid inside the actuator pulls a plunger or lever.
- Latch Release: The plunger or lever pushed by the actuator disengages the latch mechanism, releasing the fuel door.
- Opening: The spring-loaded hinge pushes the fuel door open slightly, allowing you to manually open it the rest of the way.
Real-World Use: Basic Troubleshooting
Here are some troubleshooting tips if your Nissan Rogue's fuel door refuses to open:
- Check the Fuel Door Release Button/Switch: Ensure it's not damaged or stuck. Try pressing it multiple times.
- Listen for the Actuator: When you press the release button, listen closely near the fuel door for a clicking or whirring sound. If you hear it, the actuator is likely receiving power but might be failing mechanically.
- Check the Fuse: Consult your owner's manual or a fuse diagram to locate the fuse for the fuel door actuator. A blown fuse is a common cause.
- Try the Emergency Release: Locate the manual emergency release (usually in the trunk). Pull it firmly. If this works, it suggests a problem with the actuator or electrical system.
- Inspect the Actuator Wiring: Check the wiring harness connected to the actuator for any signs of damage, corrosion, or loose connections.
- Check the Latch Mechanism: Sometimes the latch can become sticky. Try gently prying the fuel door open while someone else presses the release button.
- Check the BCM: If the fuse is good, and the actuator doesn't make noise, you will need a multi-meter to test the BCM wire connection. Consult the repair manual for detailed testing procedures.
If these basic checks don't resolve the issue, further diagnosis with a multimeter and a detailed wiring diagram is recommended. You may need to consult a qualified mechanic for more advanced troubleshooting, especially if the problem lies within the BCM or complex electrical circuits.
Safety Considerations
Working with automotive electrical systems involves inherent risks. Keep these points in mind:
- Disconnect the Battery: Before working on any electrical components, disconnect the negative terminal of the battery to prevent accidental short circuits.
- Avoid Fuel Spillage: When working near the fuel tank or fuel lines, be extremely careful to avoid spills. Fuel is highly flammable.
- Ventilation: Work in a well-ventilated area to avoid inhaling fuel vapors.
- Electrical Safety: Use a multimeter to check for voltage and continuity. Avoid touching exposed wires.
- Wear Safety Glasses: Protect your eyes from debris or sparks.
The fuel system can be dangerous. When working with the electrical system, the BCM and the Fuel Door Actuator, especially when testing for voltage, use extreme caution. Short circuits can damage electrical components, or even cause a fire. Always consult a professional mechanic if you are not comfortable working with electrical systems.
