Vvel Control Module 370z

Alright, let's talk about the VVEL control module in your 370Z. It's a crucial component, often overlooked but absolutely vital to the performance and efficiency of your engine. We're going to dive deep into what it does, how it works, potential problems, and what you can do to troubleshoot and even upgrade it.

What is VVEL and Why Does It Matter?

First, let's get the basics down. VVEL stands for Variable Valve Event and Lift. This system, unique to Nissan's VQ series engines (like the VQ37VHR in your 370Z), offers a significant advantage over traditional cam-driven valve actuation. Instead of relying solely on the fixed profiles of camshaft lobes to determine valve lift and duration, VVEL allows for continuous adjustment of these parameters.

Think of it like this: with a traditional engine, the intake valves are like a door that opens and closes the same way every time, regardless of how much air the engine needs. VVEL, on the other hand, is like a door that can open wider or narrower, and stay open longer or shorter, depending on the engine's needs. This precise control results in:

Improved Fuel Efficiency: By precisely controlling the amount of air entering the cylinders, VVEL optimizes combustion, leading to better fuel economy.
Increased Power: At higher RPMs, VVEL allows for maximum valve lift and duration, increasing airflow and boosting horsepower.
Enhanced Throttle Response: VVEL can react quickly to changes in throttle input, providing a more responsive and engaging driving experience.
Reduced Emissions: Optimized combustion also reduces harmful emissions.

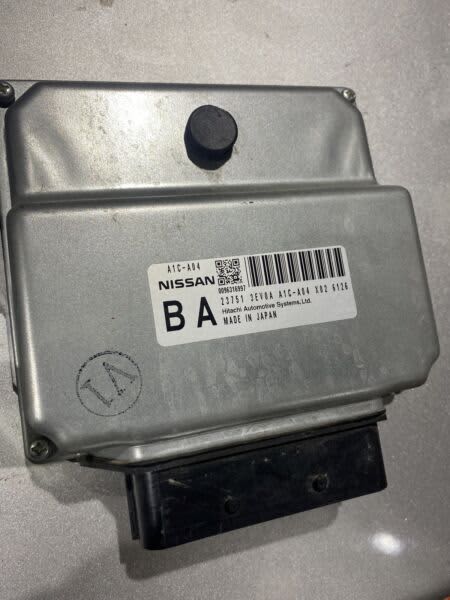

The VVEL Control Module: The Brains of the Operation

Now, where does the VVEL control module fit into all this? It's the electronic control unit (ECU) dedicated to managing the VVEL system. It's essentially the brain that processes sensor data, calculates the optimal valve lift and duration, and sends commands to the VVEL actuators.

Here's a breakdown of its key functions:

Receiving Sensor Data: The VVEL control module receives information from various sensors, including:
- Crankshaft Position Sensor (CKP): Provides information about engine speed and position.
- Camshaft Position Sensors (CMP): Provides information about camshaft position, critical for VVEL operation.
- Throttle Position Sensor (TPS): Indicates the driver's throttle input.
- Mass Air Flow Sensor (MAF): Measures the amount of air entering the engine.
- Engine Coolant Temperature Sensor (ECT): Provides information about engine temperature.
Calculating Valve Lift and Duration: Based on the sensor data, the module uses complex algorithms to determine the optimal valve lift and duration for each cylinder. This calculation takes into account factors like engine speed, load, and temperature.
Controlling VVEL Actuators: The module sends signals to the VVEL actuators, which are small electric motors that precisely adjust the position of the control shafts. These shafts, in turn, control the rocker arms that actuate the intake valves. The VVEL actuator converts the electrical signal into the precise amount of adjustment needed on the control shaft.
Diagnostic Monitoring: The module constantly monitors the VVEL system for faults. If a problem is detected, it will store a diagnostic trouble code (DTC) in the vehicle's ECU and may illuminate the check engine light.

The VVEL control module works in close coordination with the main engine control unit (ECU). While the VVEL module focuses specifically on valve lift and duration, the main ECU handles other engine management functions like fuel injection and ignition timing. They communicate with each other to ensure optimal engine performance.

Potential Problems and Troubleshooting

Like any electronic component, the VVEL control module can fail. Here are some common problems and how to troubleshoot them:

Faulty Sensors: If any of the sensors providing input to the VVEL module are faulty, it can lead to incorrect valve lift and duration, resulting in poor performance, rough idling, or even stalling. Use a scan tool to check for DTCs related to the crankshaft, camshaft, throttle position, or mass air flow sensors. Always start by verifying the integrity of the sensor signals before assuming the VVEL module itself is the problem.
VVEL Actuator Failure: The VVEL actuators themselves can fail. This can be due to electrical problems within the motor, mechanical wear and tear, or contamination. A failing actuator will often trigger a DTC specifically related to the VVEL system, such as a code indicating a problem with the actuator circuit or position sensor. Use a multimeter to test the actuator's resistance and voltage.
Wiring Issues: Damaged or corroded wiring can disrupt communication between the sensors, the VVEL module, and the actuators. Inspect the wiring harness for any signs of damage. Use a wiring diagram to trace the circuits and check for continuity using a multimeter.
VVEL Control Module Failure: This is the least common scenario, but it can happen. If the module itself fails, it may not be able to process sensor data or control the actuators correctly. This can lead to a variety of symptoms, including poor performance, rough idling, stalling, and the illumination of the check engine light. Replacing the VVEL control module often requires programming or flashing to ensure it's compatible with your vehicle.

Troubleshooting Steps:

Read the DTCs: Use a scan tool to retrieve any diagnostic trouble codes stored in the ECU. This is the first step in diagnosing any problem with the VVEL system.
Inspect Wiring and Connectors: Carefully inspect the wiring harness and connectors for any signs of damage, corrosion, or loose connections.
Test Sensors: Use a multimeter to test the sensors providing input to the VVEL module. Compare the readings to the manufacturer's specifications.
Test Actuators: Use a multimeter to test the VVEL actuators. Check their resistance and voltage. You might also be able to actuate them using a scan tool that supports bidirectional control.
Check for Vacuum Leaks: Vacuum leaks can affect engine performance and can sometimes mimic VVEL-related problems. Use a smoke tester to check for vacuum leaks.

Upgrading the VVEL System

While the factory VVEL system is quite capable, there are some upgrades available for those seeking even more performance. These typically involve:

Aftermarket VVEL Actuators: Some manufacturers offer upgraded VVEL actuators that are designed to be more durable and responsive than the factory units. These can be beneficial for high-performance applications.
ECU Tuning: Tuning the ECU can optimize the VVEL system for specific modifications, such as aftermarket intake or exhaust systems. A qualified tuner can adjust the valve lift and duration maps to maximize power and torque.
Modified Control Shafts: While less common, some tuners offer modified control shafts that alter the valve lift characteristics. This is a more advanced modification that should only be performed by experienced professionals.

Important Note: Modifying the VVEL system can be complex and may require specialized knowledge and equipment. It's crucial to consult with a qualified tuner or mechanic before making any modifications. Incorrect modifications can damage your engine.

Final Thoughts

The VVEL control module is a sophisticated piece of technology that plays a vital role in the performance and efficiency of your 370Z. By understanding how it works, you can better diagnose and troubleshoot potential problems. Remember to always start with the basics, such as checking for DTCs and inspecting wiring, before assuming the module itself is the problem. And if you're considering upgrading the VVEL system, be sure to consult with a qualified professional to ensure that the modifications are done correctly and safely. Happy wrenching!
