What To Do When Your Nissan Intelligent Key Warning Light Comes On?

The Nissan Intelligent Key system, a convenience we've all grown to appreciate, can sometimes throw us a curveball: the dreaded warning light. This article dives deep into what that light means, how the system functions, common issues, and, most importantly, what you can do to troubleshoot the problem yourself.

The Intelligent Key System: A Primer

Before we troubleshoot, let’s understand the foundation. The Nissan Intelligent Key system, also known as a Passive Keyless Entry (PKE) system, is more than just push-button start. It's a sophisticated network that enables keyless entry, ignition, and even certain security features.

How it Works: Core Components

At its heart, the system relies on these core components:

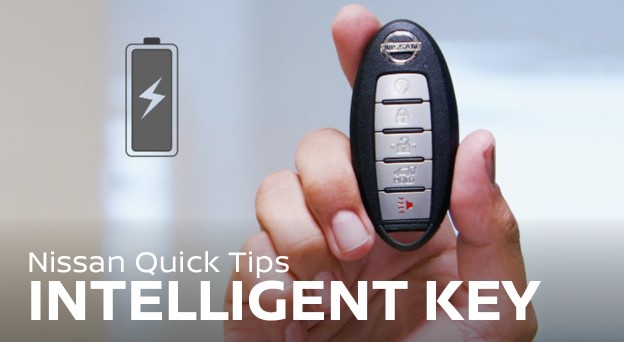

• The Intelligent Key Fob: This isn’t just a remote. It contains a microchip, a miniature radio transmitter/receiver (transceiver), and a battery. The chip stores a unique identification code.
• Vehicle Antennas: Multiple antennas are strategically placed around the vehicle (doors, trunk, dashboard). These antennas emit low-frequency radio waves.
• Keyless Entry Control Module (KECM): This is the "brain" of the system. It receives signals from the antennas, verifies the key's ID, and authorizes door unlocking, ignition, etc. It's typically connected to the vehicle's Body Control Module (BCM).
• Engine Control Unit (ECU): The ECU is responsible for managing engine operations. The Intelligent Key system interfaces with the ECU to enable starting.
• Steering Lock Unit: An electronic steering lock prevents the vehicle from being steered without an authorized key present.
• Immobilizer System: Works in conjunction with the KECM and ECU to prevent unauthorized starting of the car. This is a vital anti-theft feature.

The Communication Process

Here's a simplified breakdown of how the system works during a typical start:

1. Proximity Detection: When you approach the vehicle, the antennas continuously transmit low-frequency radio waves.
2. Key Activation: The Intelligent Key, sensing these waves, "wakes up."
3. ID Transmission: The key transmits its unique ID code back to the vehicle via radio frequency.
4. Verification: The KECM receives the signal and compares the received ID against its stored list of authorized keys. This involves complex cryptographic algorithms.
5. Authorization: If the ID matches, the KECM authorizes the door unlock (if requested) and enables the ignition system.
6. Engine Start: When you press the start button, the KECM signals the ECU to allow the engine to start. The immobilizer is deactivated simultaneously.

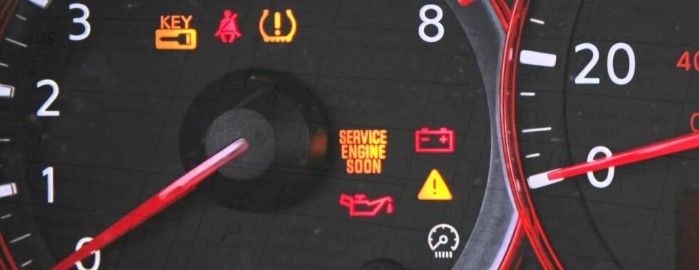

The warning light illuminates when the KECM detects an issue within this communication chain. This issue can range from a simple low battery in the key fob to a more complex system malfunction.

Decoding the Warning Light: Common Issues

The Intelligent Key warning light isn't always a death sentence for your system. Here are some common causes, ranging from simple fixes to more involved troubleshooting:

• Low Key Fob Battery: This is the most frequent culprit. The radio transceiver needs sufficient power to transmit the ID signal effectively. Weak batteries dramatically reduce signal strength. Symptoms include intermittent starting issues or difficulty unlocking doors remotely. Replacing the battery is straightforward, usually requiring a small screwdriver and a new CR2032 coin cell battery.
• Key Fob Interference: Radio frequency interference (RFI) can disrupt the signal between the key fob and the vehicle. Common sources of RFI include:
  • Strong electromagnetic fields: Near broadcasting towers, high-voltage power lines, or certain industrial equipment.
  • Other electronic devices: Cell phones, laptops, or even other key fobs can sometimes interfere.
  Try moving the key fob to a different location, away from potential sources of interference, and see if the problem resolves.
• Key Fob Damage: Dropping the key fob can damage the internal components, particularly the antenna or the microchip. Visually inspect the key fob for cracks or other signs of damage. If damage is evident, the key fob may need to be replaced or repaired.
• Vehicle Battery Issues: A weak vehicle battery can affect the entire electrical system, including the Intelligent Key system. Ensure the vehicle battery is properly charged and in good condition. A failing battery can cause voltage drops that affect the KECM's ability to function correctly.
• KECM Malfunction: The KECM itself can fail. This is a more serious issue and often requires professional diagnosis and repair. Symptoms may include complete failure of the Intelligent Key system, inability to start the vehicle, or erratic behavior.
• Antenna Problems: Damage to one or more of the vehicle's antennas can reduce the system's range or prevent it from detecting the key fob. Inspect the antennas for physical damage or loose connections. You can usually locate these antennas in the service manual for your specific Nissan model.
• Immobilizer System Fault: Although rare, a fault in the immobilizer system can prevent the engine from starting, even if the key is recognized. This is usually indicated by a separate immobilizer warning light.
• BCM/ECU Issues: In some cases, a problem with the Body Control Module (BCM) or Engine Control Unit (ECU) can indirectly affect the Intelligent Key system. These modules communicate extensively, and a malfunction in one can cascade into problems with others.

Troubleshooting Steps: A DIY Approach

Before heading to the dealership, try these troubleshooting steps:

1. Replace the Key Fob Battery: As mentioned, this is the first and easiest step. Ensure you use the correct battery type (CR2032) and install it properly.
2. Try the Emergency Start Procedure: Refer to your owner's manual for the emergency starting procedure. This typically involves holding the key fob close to the start button while pressing it. This bypasses the normal proximity detection and relies on direct RF communication. Success here can point to a weak battery or antenna issue.
3. Check for Interference: Move away from potential sources of RFI and try again.
4. Inspect the Key Fob: Look for any signs of physical damage.
5. Check the Vehicle Battery: Use a multimeter to check the battery voltage. It should be at least 12.6 volts with the engine off. Have the battery load tested to ensure it can handle the electrical load.
6. Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to check for any DTCs related to the Intelligent Key system, KECM, immobilizer, or BCM. Common codes include B2601 (Key ID Not Programmed), B2603 (Key Signal Malfunction), and B2606 (Antenna Circuit Malfunction). Even if you don't understand the codes, writing them down will be valuable information for a mechanic.
7. Check Fuses: Locate the fuse box(es) (usually under the dashboard or in the engine compartment) and check the fuses related to the keyless entry system, immobilizer, and ECU. Refer to your owner's manual for the fuse layout.

Do’s and Don’ts / Best Practices

• DO replace the key fob battery regularly, even if the warning light hasn't appeared yet. Prevention is better than cure.
• DO keep your key fobs away from extreme temperatures and moisture.
• DO store your spare key fob in a secure location, away from the primary key fob.
• DO consult your owner's manual for specific instructions and troubleshooting steps for your Nissan model.
• DON'T attempt to disassemble the KECM or other electronic components without proper training and equipment. You risk damaging them further.
• DON'T use excessive force when inserting the key fob into the emergency start slot (if equipped).
• DON'T ignore the warning light. Addressing the issue early can prevent a more serious problem later.

Conclusion

The Nissan Intelligent Key system is a marvel of modern automotive technology, but like any complex system, it can experience issues. By understanding how the system works, recognizing common problems, and following these troubleshooting steps, you can often resolve the issue yourself and avoid a costly trip to the mechanic. However, if you've exhausted these steps and the warning light persists, or if you're uncomfortable working with the vehicle's electrical system, it's best to seek professional help from a qualified mechanic or Nissan dealership. They have the specialized tools and diagnostic equipment to accurately pinpoint the problem and perform the necessary repairs. Remember, safety and reliability are paramount, so don't hesitate to seek professional assistance when needed.
