When Your Cars Extra Eyes Get Cloudy - Pre Collision Assist Not Available Sensor Blocked

Modern vehicles are packed with advanced driver-assistance systems (ADAS) designed to enhance safety and convenience. One increasingly common feature is Pre-Collision Assist (PCA), often relying on sensors that act as your car's "extra eyes." When these "eyes" get cloudy – literally or figuratively – you might encounter the dreaded "Pre-Collision Assist Not Available Sensor Blocked" warning. This article will delve into the reasons behind this message, exploring the technology, common problems, troubleshooting steps, and best practices for maintaining your PCA system.

Background: The Evolution of Pre-Collision Assist

PCA isn't just one monolithic feature; it's a suite of technologies working together to mitigate or prevent collisions. Early iterations of PCA focused primarily on forward collision warning, alerting the driver to potentially hazardous situations. Today's systems are far more sophisticated, often incorporating automatic emergency braking (AEB), pedestrian/cyclist detection, and even evasive steering assist. These advancements rely on a complex interplay of sensors, processing units, and actuator systems.

Key Components

At the heart of PCA is the sensor suite. The specific sensors employed vary depending on the vehicle manufacturer and model year, but common types include:

• Radar: Short for Radio Detection and Ranging, radar sensors emit radio waves and analyze the reflected signals to determine the distance, speed, and direction of objects in front of the vehicle. Radar is particularly effective in adverse weather conditions like rain, fog, and snow.
• Cameras: High-resolution cameras capture visual information, which is then processed by sophisticated algorithms to identify objects like vehicles, pedestrians, lane markings, and traffic signs. Camera-based systems excel at object recognition and classification.
• Ultrasonic Sensors: Often used for parking assist and low-speed maneuvers, ultrasonic sensors emit high-frequency sound waves and measure the time it takes for them to bounce back, providing information about the proximity of nearby objects.

These sensors feed data into an Electronic Control Unit (ECU) – a dedicated computer that analyzes the information and makes decisions based on pre-programmed algorithms. If the ECU detects a potential collision, it will first provide warnings to the driver. If the driver doesn't respond adequately, the system can initiate braking autonomously to reduce the severity of the impact or, ideally, prevent the collision altogether.

Technical Breakdown: How PCA Works

Let's break down the process in more detail, focusing on a typical radar-based PCA system:

1. Signal Emission: The radar sensor, usually located behind the front grille or bumper, emits a pulsed radio wave signal. The frequency of this signal is typically in the 76-77 GHz range, allowing for high resolution and accurate distance measurements.
2. Signal Reflection: When the radio wave encounters an object, a portion of the signal is reflected back towards the sensor. The amount of reflected energy depends on the object's size, shape, and material.
3. Signal Reception and Processing: The radar sensor receives the reflected signal and analyzes its characteristics. Key parameters include:
   • Time Delay: The time it takes for the signal to travel to the object and back is directly proportional to the distance. The ECU calculates the distance using the speed of light.
   • Frequency Shift (Doppler Effect): If the object is moving relative to the vehicle, the frequency of the reflected signal will be slightly different from the emitted signal. This frequency shift, known as the Doppler effect, allows the ECU to determine the object's speed and direction.
   • Signal Amplitude: The strength of the reflected signal provides information about the object's size and reflectivity.
4. Object Tracking and Classification: The ECU uses the processed radar data, along with information from other sensors (like cameras), to track the movement of objects in the vehicle's path. Sophisticated algorithms are used to classify these objects as vehicles, pedestrians, cyclists, or other obstacles.
5. Collision Risk Assessment: Based on the object's distance, speed, and trajectory, the ECU calculates the time to collision (TTC). If the TTC falls below a certain threshold, the system determines that a collision is likely.
6. Warning and Intervention: If a collision is deemed imminent, the PCA system will first issue a warning to the driver, typically through visual and audible alerts. If the driver doesn't respond, the system may initiate automatic emergency braking (AEB) to reduce the vehicle's speed or bring it to a complete stop. Some systems also offer evasive steering assist, which helps the driver steer around the obstacle.

Common Issues and Maintenance Concerns

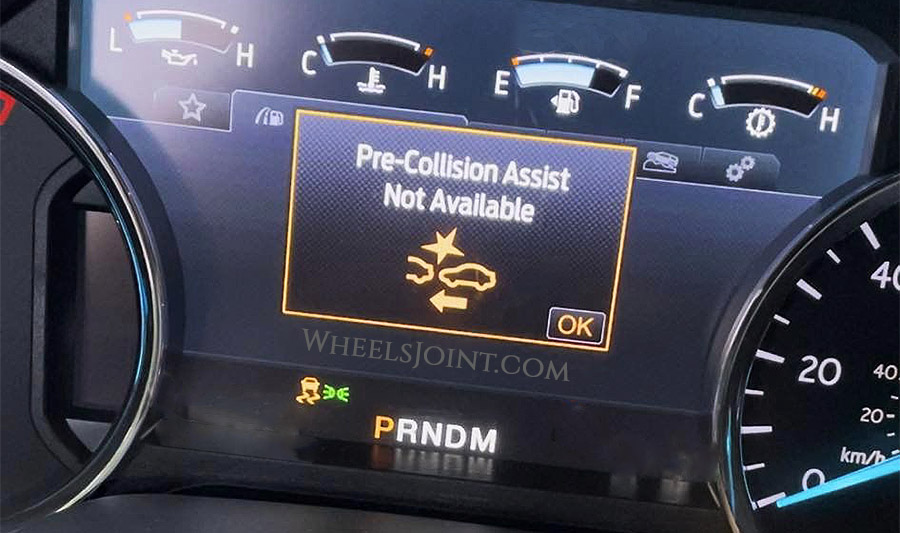

The "Pre-Collision Assist Not Available Sensor Blocked" message is a common indicator of a problem with the PCA system. The root cause can range from simple obstructions to more complex hardware failures.

Common Causes:

• Obstructions: This is the most common culprit. Dirt, snow, ice, mud, or even a bug splattered on the sensor can interfere with its ability to function properly.
• Sensor Misalignment: After a collision, even a minor one, the sensors can become misaligned. This can prevent them from accurately detecting objects. Also, aftermarket modifications (e.g., lift kits, aftermarket bumpers) can cause misalignment.
• Sensor Damage: Physical damage to the sensor itself, such as cracks or dents, can impair its performance.
• Wiring Issues: Corroded or damaged wiring can disrupt the signal between the sensors and the ECU.
• Software Glitches: Sometimes, a software bug can trigger the error message.
• Low Battery Voltage: A weak battery can sometimes cause the PCA system to malfunction, as these systems often have stringent voltage requirements.
• Aftermarket Accessories: Some aftermarket accessories, such as non-OEM grille guards, can interfere with the radar sensor's field of view.

Maintenance Concerns:

• Regular Cleaning: Keep the sensors clean and free from obstructions. Use a soft cloth and mild detergent to clean the sensor surfaces. Avoid using abrasive cleaners, which can damage the sensors.
• Sensor Alignment Checks: After any collision, or if you suspect that the sensors are misaligned, have them checked by a qualified technician. Sensor recalibration is often required after a collision repair.
• Wiring Inspection: Periodically inspect the wiring harnesses for any signs of damage or corrosion.
• Software Updates: Ensure that your vehicle's software is up to date. Software updates often include bug fixes and performance improvements for the PCA system.

Do's and Don'ts / Best Practices

Do's:

• Clean the sensors regularly. This is the first and easiest step to troubleshoot the "Sensor Blocked" message.
• Check for physical damage to the sensors. Look for cracks, dents, or other signs of damage.
• Ensure your battery is in good condition. A weak battery can cause all sorts of electrical gremlins.
• Consult your owner's manual. It contains specific information about your vehicle's PCA system and troubleshooting tips.
• Consider an OBD-II scanner. Scanning your car's computer can reveal more specific error codes related to the PCA system, helping you pinpoint the problem.

Don'ts:

• Use abrasive cleaners on the sensors. This can damage the sensitive surfaces.
• Ignore the warning message. The PCA system is designed to enhance safety, so ignoring a malfunction can put you and others at risk.
• Attempt to repair the sensors yourself. Sensor repair requires specialized equipment and expertise. Improper repair can render the system useless or even dangerous.
• Install aftermarket accessories that could obstruct the sensors. Always check compatibility before installing any accessories.
• Assume the system is infallible. PCA is a valuable safety aid, but it's not a substitute for attentive driving. Always remain vigilant and aware of your surroundings.

Conclusion

The "Pre-Collision Assist Not Available Sensor Blocked" message is a signal that your car's "extra eyes" need attention. While the issue can sometimes be resolved with a simple cleaning, more complex problems may require professional diagnosis and repair. By understanding the technology behind PCA, common issues, and best practices for maintenance, you can keep your system functioning optimally and enhance your safety on the road. Always prioritize safety and consult a qualified technician for any PCA-related issues that you cannot resolve yourself. Ignoring these warnings can compromise your safety and the safety of others.
