How To Activate New Tpms Sensor Without Tool

So, your TPMS light is on after getting new tires or replacing a faulty sensor, but you don't have a fancy TPMS tool? No sweat! It's a common issue, and while a tool makes things easier, there are a few tricks you can try to get that light off. We'll explore methods for activating your new TPMS sensor without specialized equipment. Getting your TPMS working correctly is crucial. It's not just about annoying lights on your dash; it directly impacts your safety and fuel efficiency. Let's dive in!

Symptoms of a TPMS Issue After Sensor Replacement

It's important to recognize the signs that your TPMS sensors aren't communicating properly after installation. You might experience one or more of these:

• Solid TPMS warning light: This usually means there's a problem with one or more sensors or the system itself.
• Flashing TPMS warning light: This often indicates a sensor malfunction or a problem with the TPMS receiver. It could also mean the system is struggling to read the new sensor ID's.
• Incorrect tire pressure readings: The dashboard display shows wildly inaccurate pressures for one or more tires, or displays "--" instead of a pressure reading.
• Delayed readings: The tire pressure readings take a very long time to appear on the dashboard after starting the car.
• TPMS light comes on after replacing tires or sensors: This is the most common scenario we're addressing here.
• "Service TPMS System" message: Some vehicles display a specific message indicating a problem with the TPMS.

The Root Cause: Why Your New Sensors Aren't Talking

The issue usually boils down to the fact that your vehicle's computer (the ECU or BCM) hasn't learned the unique identification codes of the new TPMS sensors. Think of it like this: each sensor has a digital fingerprint, and your car needs to know those fingerprints to recognize them. There are a few reasons why this "learning" process might not happen automatically:

• Sensor compatibility: The new sensors might not be compatible with your specific vehicle make, model, and year. Always double-check compatibility before purchasing sensors.

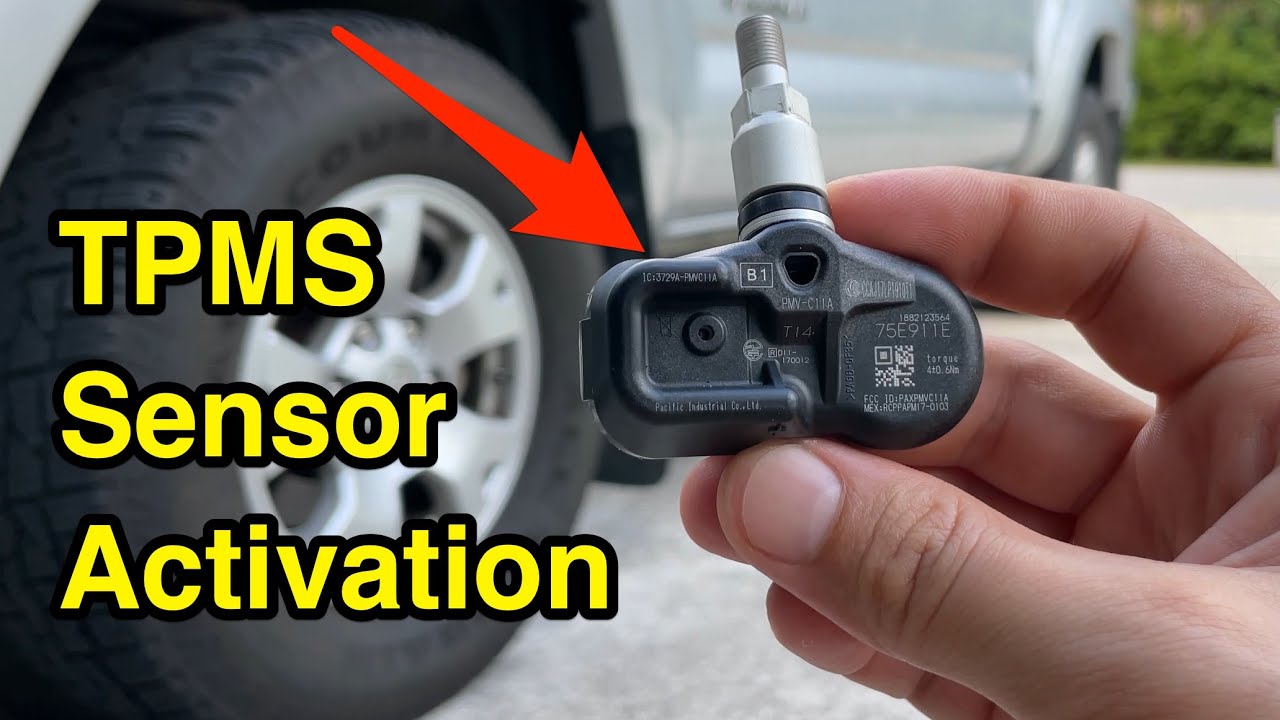

• Sensor activation: Some sensors require a special tool to "wake them up" before they can transmit data. This is especially true for aftermarket sensors.
• Sensor programming: Some sensors are blank and need to be programmed with your vehicle's specific information before installation. Universal sensors often fall into this category.
• Learning procedure not followed: Many vehicles have a specific procedure that needs to be followed to initiate the TPMS learning process. This could involve driving a certain distance at a certain speed, or performing a sequence of actions with the ignition key and buttons.
• Faulty new sensor: Though rare, it's possible that one of the new sensors is defective right out of the box.
• Underlying system issue: If the problem persists despite trying various methods, there may be an underlying issue with the TPMS receiver or wiring in your vehicle.

What Happens If You Ignore the TPMS Light?

Ignoring the TPMS light might seem harmless, but it can lead to several problems:

• Compromised Safety: Underinflated tires can lead to poor handling, increased braking distances, and a higher risk of tire blowouts.
• Reduced Fuel Efficiency: Underinflated tires increase rolling resistance, which means your engine has to work harder, resulting in lower gas mileage.
• Uneven Tire Wear: Improper inflation causes tires to wear unevenly, shortening their lifespan and requiring more frequent replacements.
• Potential for Tire Damage: Running on underinflated tires can damage the tire's sidewalls and internal structure.
• Failing Inspection: In some areas, a malfunctioning TPMS can cause your vehicle to fail its safety inspection.

Recommended Fixes: Activating TPMS Sensors Without a Tool

Here are some methods you can try to activate your new TPMS sensors without a specialized tool. Keep in mind that these methods are not guaranteed to work on all vehicles, and you should always consult your owner's manual for specific instructions.

1. The Driving Method (Most Common)

This is the most common and simplest method. The idea is to drive your vehicle at a sustained speed, usually between 20-50 mph, for a specific period, typically 10-20 minutes. This can trigger the TPMS system to automatically learn the new sensor IDs.

1. Inflate all tires to the correct pressure as indicated on the door jamb sticker (not the tire sidewall).
2. Start your vehicle.
3. Drive at a consistent speed (20-50 mph) for 10-20 minutes. Avoid sudden stops or accelerations.
4. Keep an eye on the TPMS light. It may turn off during the drive or shortly after.

2. The Inflation/Deflation Method

This method involves slightly overinflating and then deflating each tire in a specific sequence. It works best when your car is stationary.

1. Inflate all tires to 3 PSI above the recommended pressure.
2. Deflate each tire, one at a time, by about 5 PSI.
3. Start with the driver's side front tire, then move to the passenger's side front, then the passenger's side rear, and finally the driver's side rear. This order is important!
4. Reinflate all tires to the correct pressure.
5. Drive the vehicle for a short distance to allow the system to recognize the sensors.

3. The Learning/Relearn Button (If Applicable)

Some vehicles have a dedicated "TPMS Relearn" button. The location of this button varies depending on the vehicle make and model, but it's often found under the steering wheel, in the glove compartment, or near the fuse box. Consult your owner's manual to locate the button (if your vehicle has one).

1. Inflate all tires to the correct pressure.
2. Turn the ignition key to the "ON" position (do not start the engine).
3. Press and hold the TPMS Relearn button until the TPMS light flashes or a message appears on the dashboard.
4. Start the engine and drive the vehicle for a short distance to complete the learning process.

4. The Ignition Cycle Method (Specific to Some Ford Vehicles)

This method is commonly used on Ford vehicles and involves cycling the ignition and using the hazard light button.

1. Inflate all tires to the correct pressure.
2. Turn the ignition key to the "OFF" position.
3. Turn the ignition key to the "ON" position (do not start the engine).
4. Press the hazard light button six times in rapid succession. The horn should sound, indicating that the TPMS relearn mode has been activated.
5. Starting with the driver's side front tire, deflate the tire until the horn sounds.
6. Repeat this process for the passenger's side front, passenger's side rear, and driver's side rear tires, in that order.
7. After the last tire, the horn should sound again, indicating that the TPMS relearn process is complete.
8. Reinflate all tires to the correct pressure.

Cost Estimates and Shop Advice

If none of these methods work, you might need to visit a tire shop or dealership. They can use a TPMS tool to manually program the sensor IDs into your vehicle's computer. The cost for this service typically ranges from $25 to $75 per tire, depending on the shop and the complexity of the programming.

Before taking your vehicle to a shop, make sure to:

• Check sensor compatibility: Verify that the new sensors are compatible with your vehicle.
• Provide sensor IDs: If you have the sensor IDs, provide them to the technician. This can speed up the programming process.
• Ask about warranty: Inquire about the warranty on the new sensors and the programming service.

Credibility and Further Research

Many online forums and communities dedicated to specific vehicle makes and models discuss TPMS issues and solutions. You can often find valuable information and tips specific to your vehicle. Additionally, search for Technical Service Bulletins (TSBs) related to TPMS problems for your vehicle. TSBs are issued by manufacturers to address common issues and provide repair procedures. For example, a common issue with some older GM vehicles (around 2007-2014) involves corrosion on the TPMS receiver connector, leading to communication problems. While this isn't a sensor issue, it highlights the importance of checking for other potential causes. You can find TSB information on websites like the National Highway Traffic Safety Administration (NHTSA) website by searching your vehicle's year, make, and model.

Remember, patience is key. Sometimes it takes a few tries for the system to learn the new sensors. If you've exhausted all the DIY methods, it's best to seek professional help to ensure your TPMS system is functioning correctly.
