How To Add Refrigerant To Auto Ac

Adding refrigerant to your car's AC system can seem daunting, but with the right tools and knowledge, it's a manageable DIY project. This guide will walk you through the process step-by-step, helping you understand when and how to safely and effectively recharge your AC.

Why Knowing How to Add Refrigerant Matters

A properly functioning air conditioning system is essential for comfortable driving, especially during hot weather. Low refrigerant levels are a common cause of weak or non-existent AC. Understanding how to add refrigerant yourself can save you money on expensive mechanic bills and allow you to quickly restore your AC's cooling power. Furthermore, recognizing the signs of a refrigerant leak and understanding how to address them can prevent further damage to your AC system components, such as the compressor, which can be very costly to replace. However, it's crucial to approach this task with caution, as improper handling of refrigerants can be harmful to both your health and the environment.

Recognizing the Symptoms of Low Refrigerant

Before you even think about adding refrigerant, it's important to accurately diagnose the problem. Look for these common symptoms:

• Weak or Warm Air: This is the most obvious sign. If your AC is blowing warm air instead of cold, low refrigerant is a likely culprit.
• AC Compressor Not Engaging: The AC compressor is responsible for circulating the refrigerant. If it's not engaging (you might hear a clicking sound or nothing at all), it could be due to low refrigerant levels. Many systems have a low-pressure switch that prevents the compressor from running when the refrigerant is too low to protect the compressor from damage.
• Visible Leaks: Inspect the AC components (hoses, compressor, condenser) for signs of leaks. These might appear as oily residue or dirt accumulation around fittings. Refrigerant itself is typically colorless, but when it leaks, it often carries traces of oil from the compressor.
• Hissing Sound: A hissing sound coming from the AC vents could indicate a refrigerant leak.

Important Note: These symptoms can also be caused by other AC system problems, such as a faulty compressor, a clogged condenser, or a malfunctioning blend door actuator. If you're unsure, it's always best to consult a qualified mechanic for a proper diagnosis.

Choosing the Right Refrigerant and Tools

Selecting the correct refrigerant and tools is crucial for a successful and safe recharge. Using the wrong refrigerant can damage your AC system and potentially create a dangerous situation.

Identifying the Correct Refrigerant Type

The first step is to determine what type of refrigerant your car uses. Most vehicles manufactured before 1995 used R-12, also known as Freon. However, R-12 is now phased out due to its ozone-depleting properties. Cars manufactured after 1995 typically use R-134a. Newer vehicles (generally post-2014) may use R-1234yf, which is a more environmentally friendly refrigerant. Always check your car's owner's manual or look for a sticker under the hood near the AC compressor to identify the correct refrigerant type. Using the wrong refrigerant can cause serious damage to your AC system.

Gathering the Necessary Tools

Here's a list of the tools you'll need:

• Refrigerant Recharge Kit: These kits typically include a can of refrigerant with a hose and gauge. Make sure the kit is compatible with your vehicle's refrigerant type.
• Gloves: Protect your hands from potential refrigerant leaks.
• Safety Glasses: Protect your eyes from refrigerant splashes.

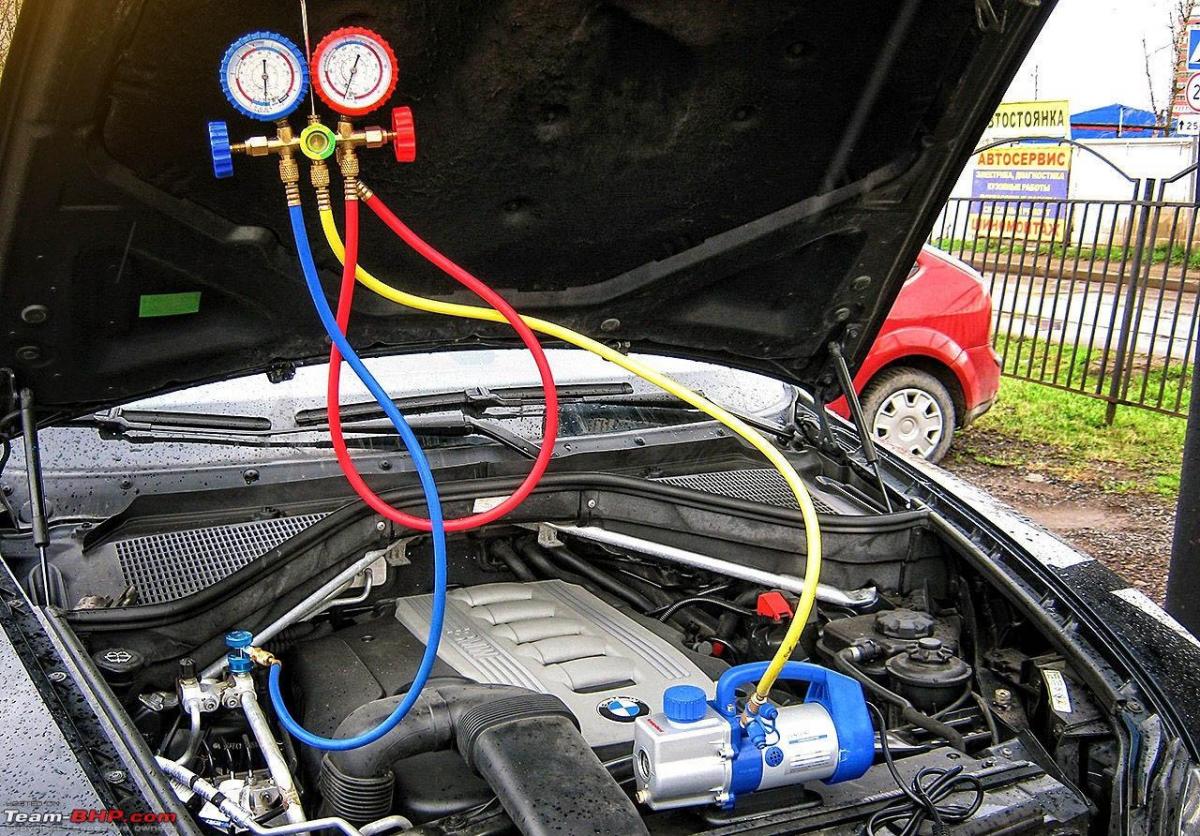

• AC Manifold Gauge Set (Optional): While not essential, a manifold gauge set provides more accurate pressure readings and allows you to monitor both the high and low sides of the AC system. This is particularly helpful for diagnosing more complex AC problems.
• Wrench Set: You might need wrenches to access the low-pressure port.

Where to Purchase Refrigerant and Tools

You can purchase refrigerant recharge kits and tools at most auto parts stores, online retailers (like Amazon), and some hardware stores. Be sure to buy from reputable sources to ensure you're getting high-quality products.

Step-by-Step Guide to Adding Refrigerant

Now that you have the right refrigerant and tools, follow these steps to safely and effectively recharge your AC system:

1. Prepare Your Vehicle: Park your car in a well-ventilated area. Turn on the engine and set the AC to the highest setting with the fan on maximum. Open all the windows to prevent pressure buildup.
2. Locate the Low-Pressure Port: The low-pressure port is typically located on the larger of the two AC lines coming from the compressor. It often has a cap marked with an "L" or "Low." Consult your vehicle's service manual if you're unsure of its location.

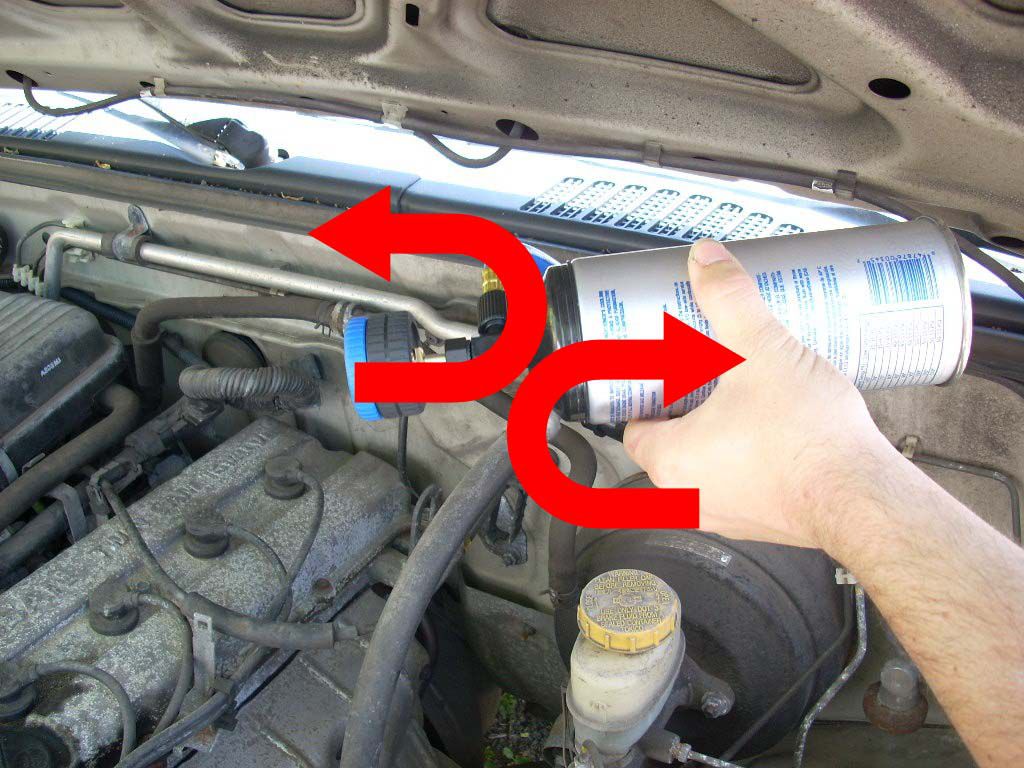

3. Connect the Recharge Hose: Remove the cap from the low-pressure port. Connect the recharge hose from the kit to the port. The connector is usually a quick-connect type, so it should snap into place.

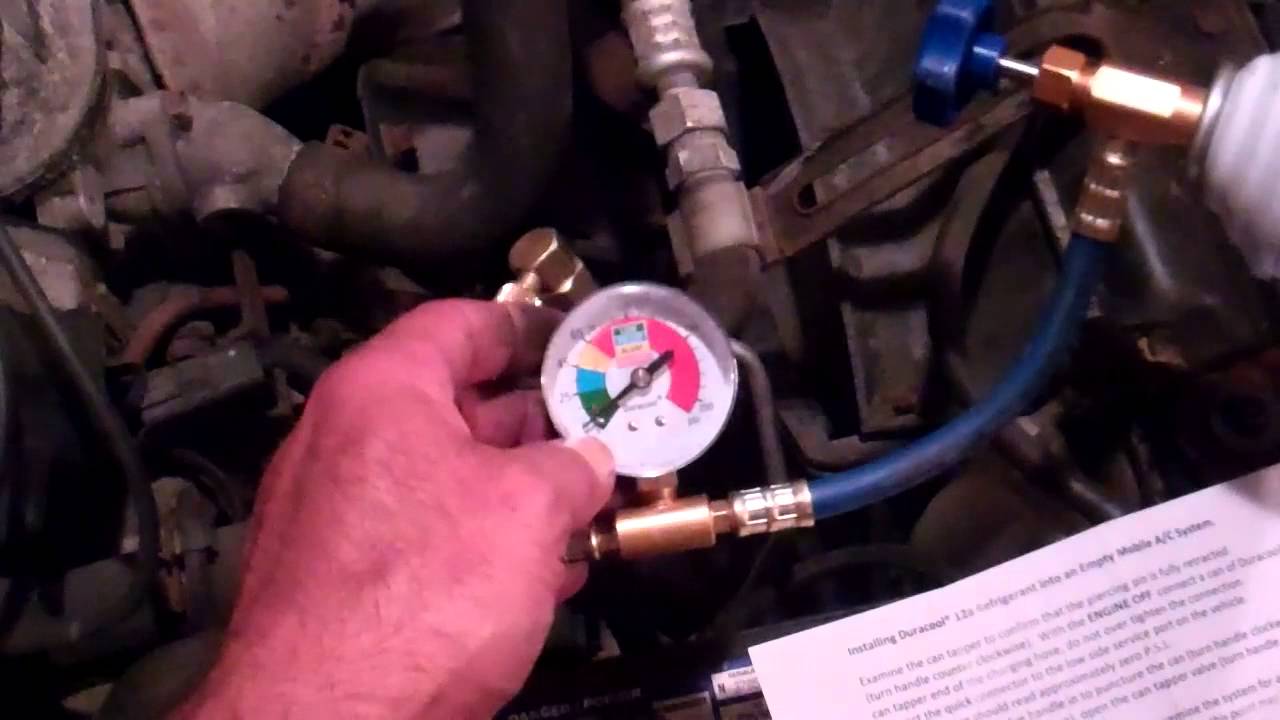

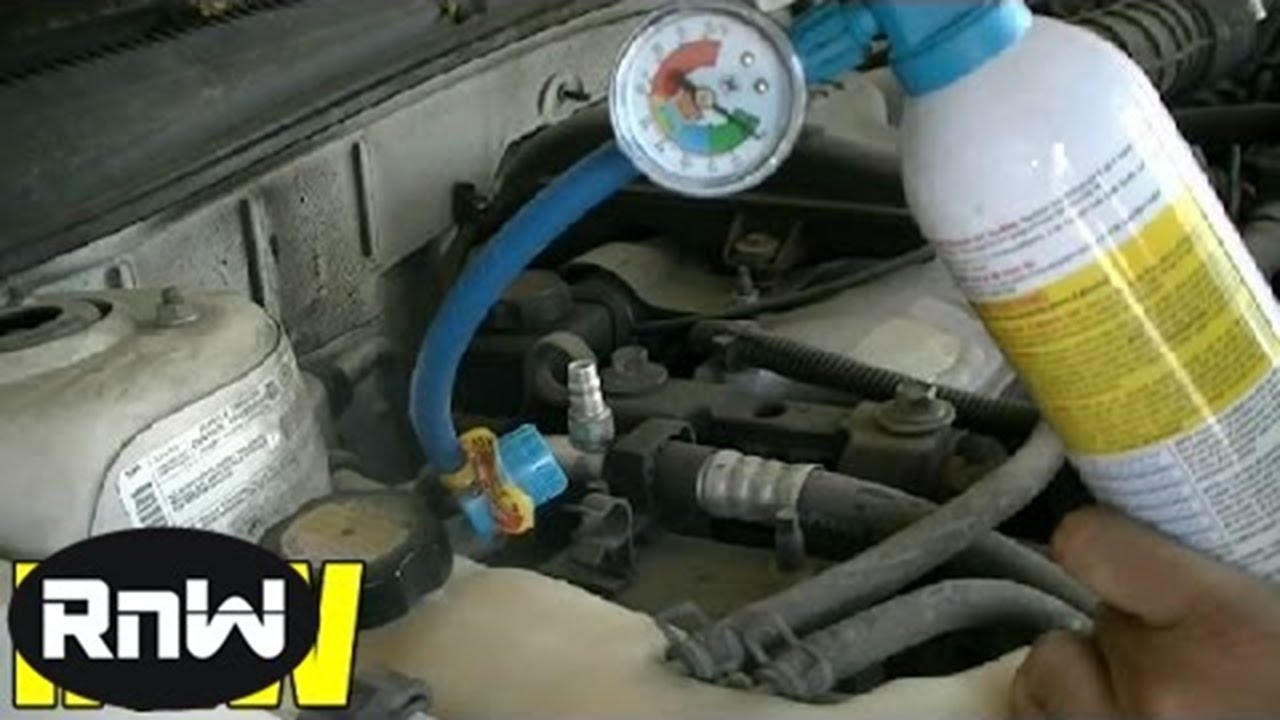

4. Read the Gauge: Check the pressure reading on the gauge. The ideal pressure range varies depending on the ambient temperature and the type of refrigerant. Refer to the instructions included with your recharge kit or a refrigerant pressure chart for specific guidelines.

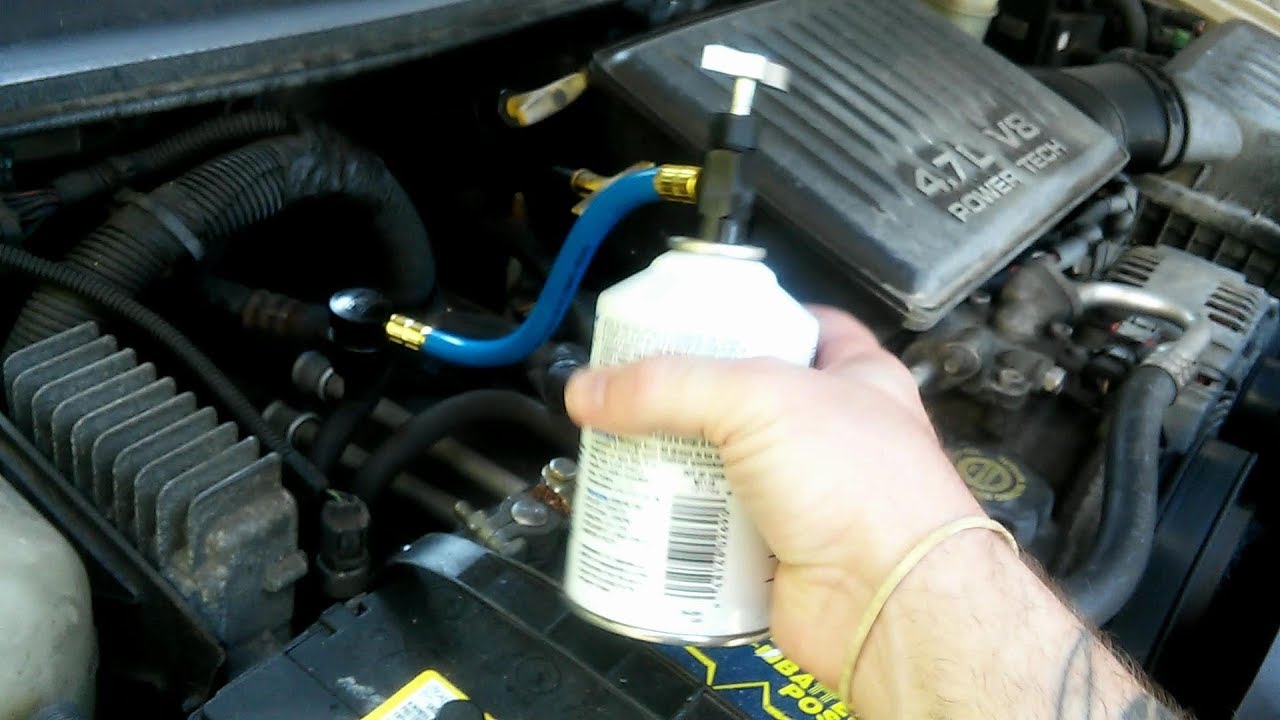

5. Add Refrigerant: If the pressure is low, slowly add refrigerant by squeezing the trigger on the can (if using a recharge kit) or opening the valve on the manifold gauge set (if using a manifold gauge set). Shake the can periodically to ensure proper refrigerant flow.
6. Monitor the Pressure: Continuously monitor the pressure gauge while adding refrigerant. Be careful not to overcharge the system, as this can damage the compressor. Add refrigerant in short bursts and check the pressure after each burst.
7. Check the Air Temperature: After adding refrigerant, check the temperature of the air coming from the AC vents. It should be noticeably colder.
8. Disconnect the Hose: Once the pressure is within the recommended range and the air is cold, disconnect the recharge hose from the low-pressure port and replace the cap.
9. Test the AC System: Let the AC run for a few minutes to ensure it's working properly. Check the air temperature again and listen for any unusual noises.

Safety Precautions

• Wear safety glasses and gloves at all times to protect yourself from refrigerant splashes.
• Work in a well-ventilated area to avoid inhaling refrigerant fumes.
• Do not overcharge the system, as this can damage the compressor.
• Dispose of empty refrigerant cans properly according to local regulations.
• If you're unsure about any step, consult a qualified mechanic.

Real-World Owner Experiences

Many car owners have successfully recharged their AC systems using DIY kits. Some common experiences include:

Frequently Asked Questions (FAQs)

Here are some common questions about adding refrigerant to your car's AC system:

Q: How often should I add refrigerant to my car's AC?

A: Ideally, your AC system should not need frequent recharging. If you find yourself adding refrigerant regularly, it likely indicates a leak that needs to be addressed by a professional. Small top-ups may be needed every few years, but constant refilling points to a problem.

Q: Can I use a universal refrigerant recharge kit?

A: While universal kits exist, it's always best to use a kit specifically designed for your vehicle's refrigerant type (R-134a or R-1234yf). Using the wrong refrigerant can damage your AC system.

Q: What if my AC still doesn't work after adding refrigerant?

A: If adding refrigerant doesn't solve the problem, there may be other issues with your AC system, such as a faulty compressor, a clogged condenser, or a malfunctioning blend door actuator. A professional diagnosis is recommended.

Q: Is it safe to add refrigerant myself?

A: Yes, it's generally safe to add refrigerant yourself if you follow the instructions carefully and take the necessary safety precautions. However, if you're uncomfortable working on your car's AC system, it's always best to consult a qualified mechanic.

Q: How do I dispose of empty refrigerant cans?

A: Empty refrigerant cans should be disposed of properly according to local regulations. Many auto parts stores and recycling centers will accept them for disposal. Do not puncture or incinerate refrigerant cans.

Q: My AC is blowing cold, but not as cold as it used to be. Should I add refrigerant?

A: It's possible that your AC system is slightly low on refrigerant. However, before adding any, check the pressure reading on the low-pressure port. If the pressure is within the recommended range, adding more refrigerant may not be necessary and could potentially overcharge the system. Other factors, such as a dirty cabin air filter, can also affect cooling performance.
