How To Adjust A Fuel Pressure Regulator

Achieving optimal engine performance is a delicate balancing act, and one of the key players in this symphony is the fuel pressure regulator. Too little fuel, and your engine starves, leading to sluggish performance or even complete failure. Too much, and you risk flooding, poor fuel economy, and potential damage to catalytic converters. Adjusting a fuel pressure regulator isn't about arbitrarily twisting a screw; it's about understanding how fuel delivery impacts engine health and performance, and fine-tuning that delivery to meet specific needs.

Let's say you've just installed a performance aftermarket fuel pump to support a newly installed turbocharger. The original fuel pressure regulator, designed for the factory fuel pump's output, is now overwhelmed. The increased fuel flow from the new pump is causing excessive fuel pressure, leading to a rich-running condition. The engine feels sluggish and inefficient, and the exhaust smells strongly of fuel. In this scenario, adjusting the fuel pressure regulator becomes crucial to bring the fuel system back into harmony. The process might seem daunting, but with a bit of knowledge and care, it's a task any mechanically inclined individual can tackle.

Understanding Fuel Pressure Regulation

Imagine a garden hose connected to a tap. The water pressure in the hose represents the fuel pressure in your car's fuel system. The tap controls the water flow, and the fuel pump does the same for the fuel in your vehicle. Now, picture a device on the hose that allows excess water to bleed off, maintaining a constant pressure. That's essentially how a fuel pressure regulator works.

The fuel pressure regulator's primary job is to maintain a consistent fuel pressure differential across the fuel injectors. This differential is the difference between the fuel pressure in the fuel rail and the intake manifold pressure. Maintaining a constant differential ensures that the injectors deliver a consistent amount of fuel for a given injector pulse width (the amount of time the injector is open).

How it Works Mechanically

Most fuel pressure regulators use a diaphragm, a spring, and a valve. The fuel rail pressure acts on one side of the diaphragm, while the spring and intake manifold vacuum (in vacuum-referenced regulators) act on the other. Here's a breakdown:

Fuel Pressure: Fuel from the fuel pump flows into the regulator and exerts pressure on the diaphragm.
Spring: The spring provides a resisting force against the fuel pressure. The spring's tension determines the base fuel pressure.
Vacuum Reference (if applicable): Many regulators are vacuum-referenced, meaning they are connected to the intake manifold. When the engine is at idle or under light load, the intake manifold vacuum pulls on the diaphragm, reducing the fuel pressure. This is important because at low engine loads, the engine needs less fuel. Conversely, under heavy load, there is less vacuum, and the fuel pressure increases.
Valve: When the fuel pressure exceeds the spring's tension (and the vacuum influence, if applicable), the diaphragm moves, opening a valve. This valve allows excess fuel to return to the fuel tank. When the fuel pressure drops, the spring pushes the diaphragm back, closing the valve and maintaining the desired pressure.

Adjusting the Fuel Pressure Regulator: The Process

Before diving in, it's crucial to have the right tools and a clear understanding of your engine's specifications. Here's a step-by-step guide:

Safety First: Work in a well-ventilated area. Disconnect the negative battery terminal to prevent accidental sparks. Have a fire extinguisher nearby. Fuel is flammable; exercise extreme caution.

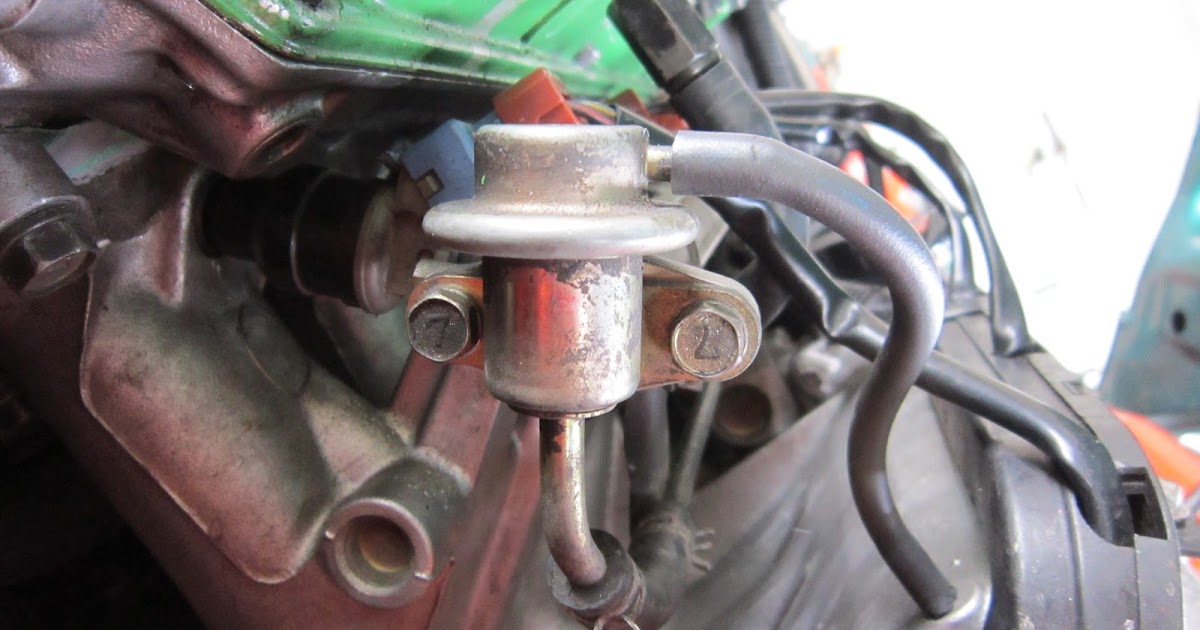

Locate the Fuel Pressure Regulator: It's typically found on the fuel rail, near the fuel injectors. Consult your vehicle's service manual for its exact location.
Gather Your Tools: You'll need a fuel pressure gauge, a wrench or socket that fits the regulator's adjustment screw (if adjustable), and potentially a screwdriver. A vacuum gauge might also be helpful.
Connect the Fuel Pressure Gauge: Many fuel rails have a test port for connecting a fuel pressure gauge. If not, you might need to install an adapter between the fuel rail and the fuel line. Follow the gauge manufacturer's instructions carefully.
Start the Engine (Carefully): With the fuel pressure gauge connected, start the engine and let it idle. Observe the fuel pressure reading.
Adjust the Fuel Pressure:

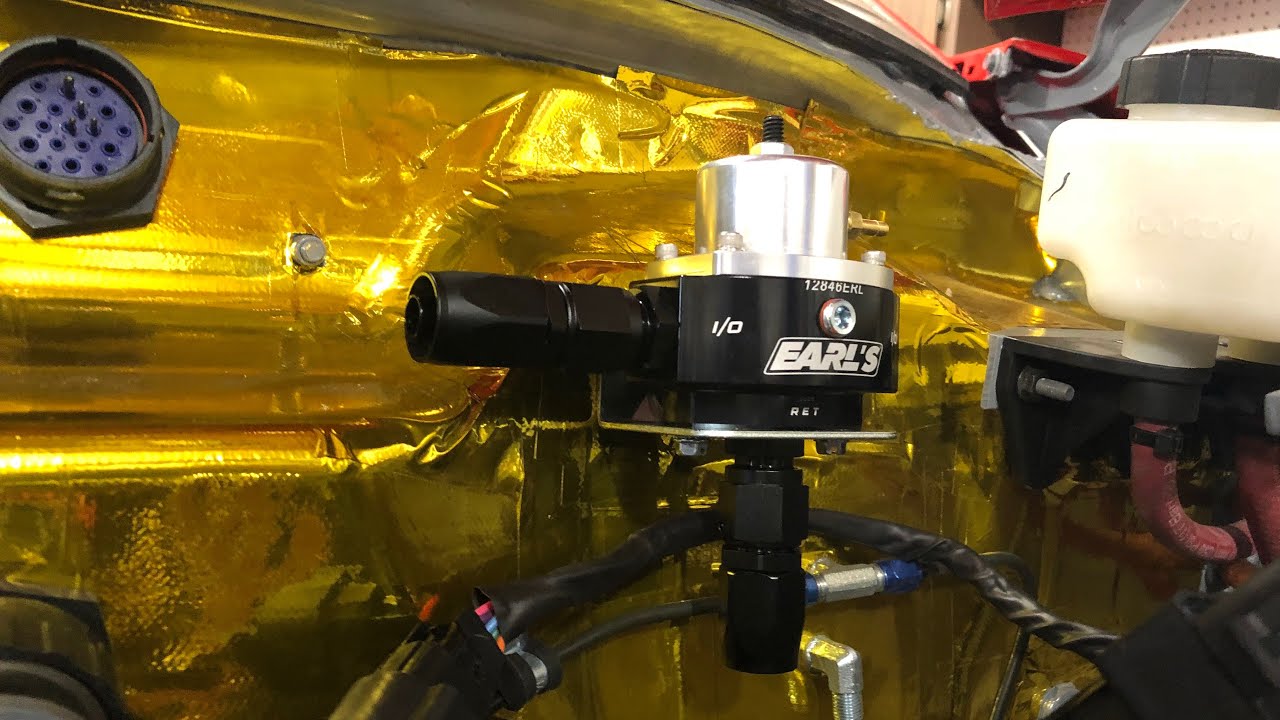

- Adjustable Regulators: If your regulator has an adjustment screw, loosen the lock nut (if present) and turn the screw to increase or decrease the fuel pressure. Turning it clockwise usually increases the pressure, while counter-clockwise decreases it. Make small adjustments and observe the gauge after each adjustment.
- Non-Adjustable Regulators: If your regulator is non-adjustable, you'll need to replace it with an adjustable one if you need to alter the fuel pressure.
Check with and without Vacuum: If your regulator is vacuum-referenced, disconnect the vacuum line while the engine is idling. The fuel pressure should increase when the vacuum line is disconnected. Reconnect the vacuum line after taking your reading. Compare it with the spec pressure to see if everything is correct.
Verify and Fine-Tune: Once you've reached the desired fuel pressure at idle, rev the engine slightly and observe the gauge. The fuel pressure should remain relatively stable. If it fluctuates wildly, there might be an issue with the fuel pump, filter, or regulator itself.
Secure the Adjustment: After achieving the correct pressure, tighten the lock nut on the adjustment screw (if present) to secure it.
Test Drive: Take the vehicle for a test drive and monitor its performance. Pay attention to any signs of fuel starvation (hesitation, stumbling) or over-fueling (poor fuel economy, strong fuel smell).

Pros and Cons of Adjustable Fuel Pressure Regulators

Pros:

Fine-tuning: Allow for precise adjustment of fuel pressure to optimize engine performance.
Compatibility: Can be used to compensate for modifications like larger fuel injectors or aftermarket fuel pumps.
Troubleshooting: Useful for diagnosing fuel system problems.

Cons:

Complexity: Require careful adjustment and monitoring to avoid damaging the engine.
Potential for Misadjustment: Incorrect adjustment can lead to poor performance or engine damage.
Cost: Typically more expensive than non-adjustable regulators.

Use Cases and Manufacturer Examples

Use Cases:

Engine Swaps: When installing a different engine that requires a different fuel pressure.
Forced Induction (Turbocharging/Supercharging): To provide the extra fuel needed for increased air intake.
High-Performance Applications: For optimizing fuel delivery in racing or performance vehicles.
Injector Upgrades: When changing to injectors with a different flow rate.

Manufacturer Examples:

Aeromotive: Known for high-quality, adjustable fuel pressure regulators designed for racing and performance applications.
Holley: Offers a range of fuel pressure regulators suitable for various engine types and performance levels.
MSD: Provides adjustable fuel pressure regulators designed to work seamlessly with their ignition and fuel injection systems.

Real-World Insights and Recommendations

While adjusting the fuel pressure regulator can optimize performance, it's crucial to remember that it's just one piece of the puzzle. Before making adjustments, ensure that other components like the fuel filter, fuel pump, and injectors are in good working order. Clogging can greatly affect your readings, and may damage your engine in the long run.

Furthermore, avoid blindly cranking up the fuel pressure in the hope of gaining more power. This can lead to over-fueling, which can damage catalytic converters, wash down cylinder walls, and dilute the engine oil. Always adjust the fuel pressure based on data, such as readings from a wideband oxygen sensor or feedback from a dyno. It's ideal to use a wideband O2 sensor and monitor your AFR (Air Fuel Ratio). This helps you to know that you are properly fueling your engine based on your adjustments.

Finally, if you're unsure about any aspect of fuel pressure regulator adjustment, it's always best to consult with a qualified mechanic. They have the experience and tools to diagnose and resolve fuel system issues safely and effectively. Remember, a little knowledge can be powerful, but expertise is invaluable when dealing with complex engine systems.
