How To Adjust Clutch Engagement Point

Adjusting the clutch engagement point might sound intimidating, but it's a task that can significantly improve your driving experience, especially in manual transmission vehicles. A properly adjusted clutch allows for smoother shifts, reduced wear on drivetrain components, and optimized power delivery. Many enthusiasts undertake this adjustment themselves. This article will guide you through the process, providing the necessary technical knowledge and practical steps.

Background: The Clutch System

Before diving into the adjustment, it's crucial to understand the fundamentals of the clutch system. The clutch is a mechanical device that connects and disconnects the engine's power from the transmission. This allows the engine to run while the wheels are not turning (e.g., when idling or shifting gears). Let's break down the key components:

Flywheel: A heavy rotating disc attached to the crankshaft of the engine. It stores rotational energy and provides a friction surface for the clutch disc.
Clutch Disc (Friction Disc): A circular plate with friction material (similar to brake pads) that is splined to the transmission's input shaft. When engaged, it presses against the flywheel, transmitting power to the transmission.
Pressure Plate: A spring-loaded mechanism that presses the clutch disc against the flywheel. It's responsible for engaging the clutch.
Release Bearing (Throw-Out Bearing): A bearing that presses against the pressure plate fingers to disengage the clutch.
Clutch Fork (or Lever): A lever that pivots to move the release bearing.
Clutch Master Cylinder & Slave Cylinder (Hydraulic Systems): These cylinders, connected by a hydraulic line, translate the pedal movement into force to actuate the clutch fork. Some older vehicles use a cable linkage instead.

Technical Breakdown: How Clutch Engagement Works

The engagement point is the position of the clutch pedal where the engine begins to transfer power to the transmission. Ideally, this point should be predictable and comfortable for the driver. When you press the clutch pedal, the following sequence occurs:

Your foot pushes the clutch pedal, which in turn actuates the clutch master cylinder (in hydraulic systems) or pulls the clutch cable.
The master cylinder sends hydraulic pressure to the slave cylinder (or the cable directly moves the fork).
The slave cylinder pushes on the clutch fork, which moves the release bearing.
The release bearing presses against the fingers of the pressure plate, causing it to release its grip on the clutch disc.
The clutch disc is now free from the flywheel, disconnecting the engine from the transmission.

Conversely, when you release the clutch pedal, the pressure on the release bearing is reduced, and the pressure plate clamps the clutch disc against the flywheel, re-establishing the connection between the engine and the transmission. The engagement point is the precise moment when this connection begins to transmit power. A high engagement point means the clutch engages closer to the top of the pedal travel, while a low engagement point means it engages closer to the floor.

Adjusting the engagement point usually involves adjusting the linkage between the clutch pedal and the clutch mechanism. This can be done mechanically (with a cable) or hydraulically. The goal is to ensure that the correct amount of travel is available to fully disengage the clutch and that the engagement occurs at a comfortable and controllable point in the pedal's range of motion.

Hydraulic Clutch Adjustment

Hydraulic clutches are generally self-adjusting to compensate for clutch disc wear. However, sometimes adjustments are necessary, especially after replacing components or if air has entered the system. Adjustment often involves adjusting the pushrod length at the master cylinder or the slave cylinder. Here's a generalized approach:

Locate Adjustment Point: The adjustment point is typically on the pushrod connecting the master cylinder to the clutch pedal, or on the pushrod of the slave cylinder where it contacts the clutch fork. Consult your vehicle's service manual for the exact location.
Loosen Lock Nut: There will typically be a lock nut securing the adjustment. Loosen this nut carefully.
Adjust Pushrod Length: Turning the pushrod changes its length. Shortening the pushrod typically raises the engagement point (closer to the top of the pedal travel). Lengthening the pushrod lowers the engagement point (closer to the floor). Make small adjustments and test the clutch engagement after each adjustment.
Tighten Lock Nut: Once you're satisfied with the engagement point, tighten the lock nut securely, but avoid overtightening, which can damage the threads.
Bleed the System: If the clutch feels spongy or the engagement is inconsistent, bleeding the hydraulic system might be necessary to remove air bubbles. This involves opening a bleeder valve on the slave cylinder while someone presses the clutch pedal.

Cable Clutch Adjustment

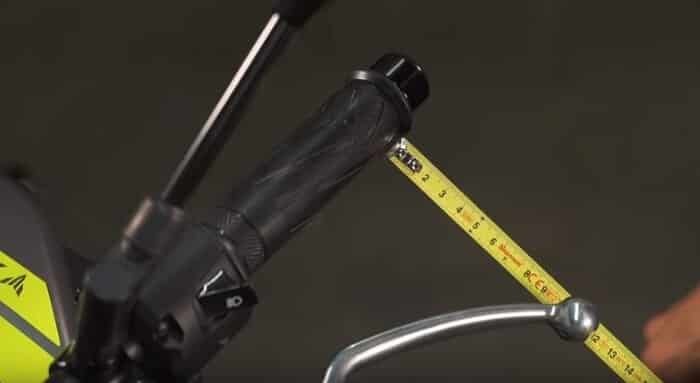

Cable-operated clutches are more common in older vehicles. The adjustment process is more direct, involving tightening or loosening the cable to change the pedal's free play. Free play refers to the amount of pedal travel before the release bearing starts to push against the pressure plate fingers.

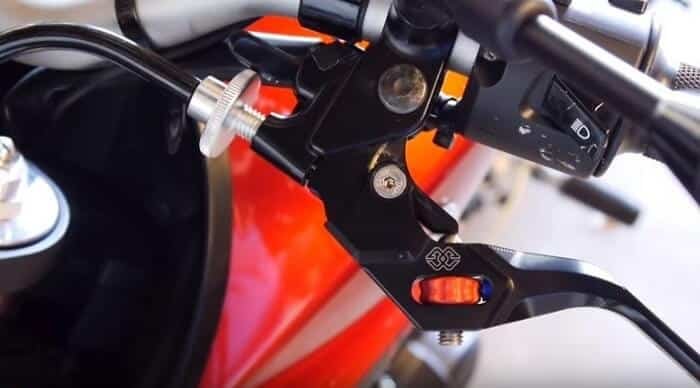

Locate Adjustment Point: The adjustment point is usually located on the cable itself, near the clutch fork or the pedal. It often consists of a threaded adjuster with a lock nut.
Loosen Lock Nut: Loosen the lock nut on the cable adjuster.
Adjust Cable Tension: Turning the adjuster either tightens or loosens the cable. Tightening the cable typically raises the engagement point, reducing free play. Loosening the cable lowers the engagement point, increasing free play. Refer to your vehicle's specifications for the correct amount of free play. Too little free play can cause clutch slippage and premature wear.
Tighten Lock Nut: Once you've achieved the desired free play and engagement point, tighten the lock nut securely.

Common Issues and Maintenance Concerns

Clutch Slippage: This occurs when the clutch disc cannot effectively grip the flywheel, causing the engine to rev higher than the vehicle's speed. It can be caused by a worn clutch disc, improper adjustment (too little free play in cable clutches), or contamination of the clutch disc with oil or grease.
Clutch Drag: This happens when the clutch disc doesn't fully disengage from the flywheel, making it difficult to shift gears, especially into first or reverse. It can be caused by excessive free play, a bent or damaged clutch fork, or air in the hydraulic system.
Spongy Clutch Pedal: This indicates air in the hydraulic system. Bleeding the system is necessary.
Hard to Shift: Can be caused by numerous issues, including clutch drag, worn synchronizers in the transmission, or low transmission fluid.
Worn Clutch Disc: Over time, the friction material on the clutch disc wears down, eventually requiring replacement.
Hydraulic Leaks: Leaks in the master or slave cylinder can lead to loss of clutch pressure and difficulty engaging or disengaging the clutch.

Do's and Don'ts / Best Practices

DO consult your vehicle's service manual for specific adjustment procedures and torque specifications.
DO make small adjustments and test the clutch engagement after each adjustment.
DO use penetrating oil on corroded adjusters before attempting to loosen them.
DO replace worn or damaged clutch components (e.g., clutch disc, pressure plate, release bearing) as needed.
DO bleed the hydraulic system if you suspect air is present.
DON'T overtighten any fasteners.
DON'T drive with a slipping clutch, as this can cause rapid wear and damage to the flywheel.
DON'T neglect regular maintenance, such as checking clutch fluid levels (in hydraulic systems) and lubricating the clutch cable (in cable systems).
DON'T adjust the clutch to compensate for a worn-out clutch disc. Replacement is the proper solution.
Best Practice: After any clutch work, it's beneficial to perform a "clutch adaptation" (if supported by the vehicle's computer) using a diagnostic scan tool. This helps the engine control unit (ECU) learn the new clutch parameters for optimal performance.

Conclusion

Adjusting your clutch engagement point can significantly enhance your driving experience. By understanding the components of the clutch system and following the steps outlined in this article, you can confidently perform this task yourself. However, remember to consult your vehicle's service manual for specific instructions and torque specifications. If you encounter any difficulties or are unsure about any aspect of the adjustment, it's always best to consult a qualified mechanic. Regular clutch maintenance and timely repairs will ensure smooth shifting and prolong the life of your drivetrain.
