How To Adjust Fuel Pressure Regulator

Adjusting your fuel pressure regulator might sound intimidating, but with a bit of understanding and the right tools, it's a task many experienced DIYers can tackle. Whether you're chasing optimal performance after installing aftermarket fuel injectors, diagnosing fuel delivery problems, or simply want to fine-tune your engine, properly setting fuel pressure is crucial. This guide will walk you through the process, covering the necessary background, technical aspects, and best practices to ensure a successful adjustment.

Fuel Injection Systems: A Quick Overview

To understand why adjusting the fuel pressure regulator is important, let's briefly review how a fuel injection system works. Most modern vehicles use electronic fuel injection (EFI), which relies on several key components to deliver the precise amount of fuel needed for efficient combustion. These include:

Fuel Tank and Pump: The fuel pump, usually located inside the fuel tank, draws fuel and sends it under pressure to the engine.
Fuel Filter: This component removes contaminants from the fuel to protect the injectors.
Fuel Rail: A distribution manifold that supplies fuel to each injector.
Fuel Injectors: Electrically controlled valves that spray fuel into the intake manifold (in multi-port injection or MPI systems) or directly into the cylinder (in direct injection systems). The duration the injector is open, controlled by the ECU, determines the amount of fuel delivered.
Fuel Pressure Regulator (FPR): This is the heart of our discussion. It maintains a constant fuel pressure in the fuel rail, ensuring consistent fuel delivery from the injectors.
Engine Control Unit (ECU): The brain of the operation. The ECU monitors various engine parameters (e.g., engine speed, throttle position, air flow) and adjusts the injector pulse width (the duration for which the injector is open) to achieve the desired air-fuel ratio (AFR).

The Fuel Pressure Regulator: How It Works

The fuel pressure regulator's primary function is to maintain a consistent pressure differential between the fuel in the fuel rail and the pressure in the intake manifold (or atmosphere, depending on the regulator type). This ensures that the injectors deliver a predictable amount of fuel for a given injector pulse width.

Types of Fuel Pressure Regulators

There are primarily two types of fuel pressure regulators:

Manifold Referenced (Vacuum Referenced): These are the most common type found in modern vehicles. They use a vacuum line connected to the intake manifold. As manifold vacuum changes (e.g., during idle or acceleration), the regulator adjusts the fuel pressure accordingly. This ensures that the differential pressure across the injector remains constant. For example, if the base fuel pressure (without vacuum) is 40 PSI and the manifold vacuum is -10 PSI (relative to atmospheric), the fuel pressure will drop to 30 PSI to maintain a 40 PSI differential. The goal is to keep the same pressure "pushing" the fuel out of the injector.
Non-Manifold Referenced (Static): These regulators maintain a fixed fuel pressure regardless of manifold vacuum. They are often used in racing applications or on engines without significant vacuum changes.

Technical Breakdown

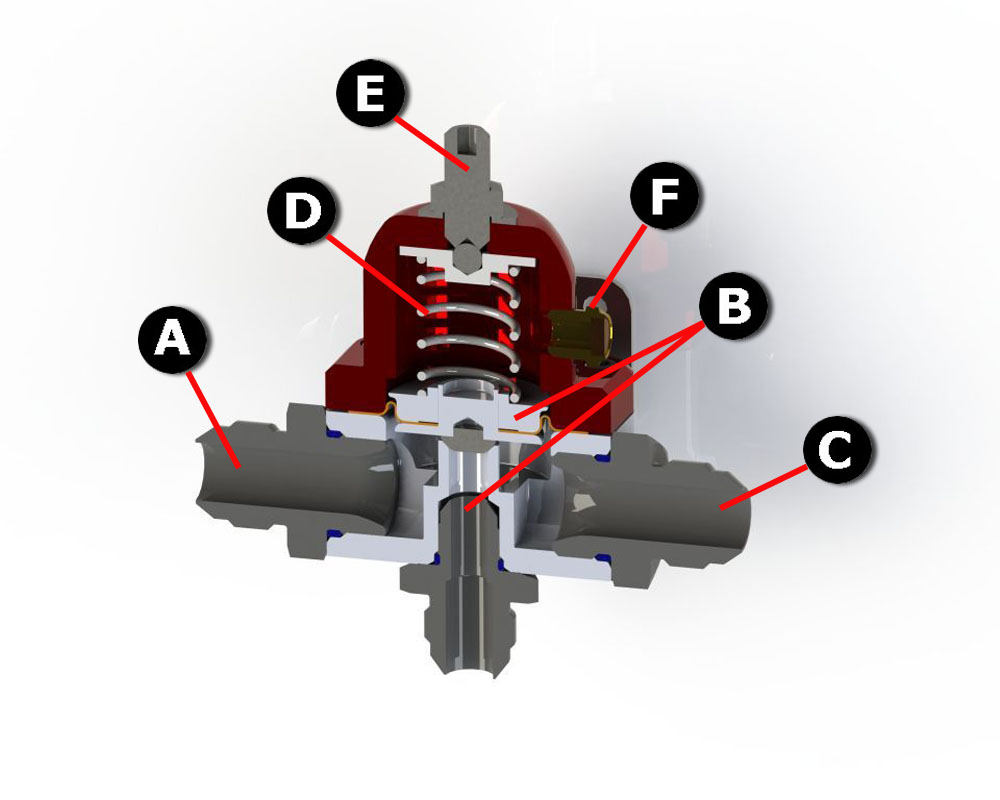

Inside a typical manifold-referenced fuel pressure regulator, you'll find:

Diaphragm: A flexible membrane that separates the fuel side from the vacuum side.
Spring: A calibrated spring that exerts pressure on the diaphragm, determining the base fuel pressure.
Valve: Connected to the diaphragm, the valve opens and closes to control the flow of fuel back to the fuel tank (or through the return line).
Vacuum Port: Connects to the intake manifold, allowing manifold vacuum to influence the diaphragm.

Here's how it works in practice:

The fuel pump delivers fuel to the fuel rail at a high pressure.
The fuel pressure in the fuel rail exerts pressure on one side of the diaphragm.
The spring exerts opposing pressure on the other side of the diaphragm.
Manifold vacuum (if applicable) also influences the diaphragm.
When the fuel pressure exceeds the combined pressure of the spring and manifold vacuum, the valve opens, allowing excess fuel to flow back to the fuel tank.
The regulator continuously adjusts the valve opening to maintain the desired fuel pressure.

Adjusting the Fuel Pressure Regulator: Step-by-Step

Safety First! Always disconnect the negative terminal of your battery before working on the fuel system. Work in a well-ventilated area and have a fire extinguisher nearby. Gasoline is highly flammable. Wear safety glasses and gloves.

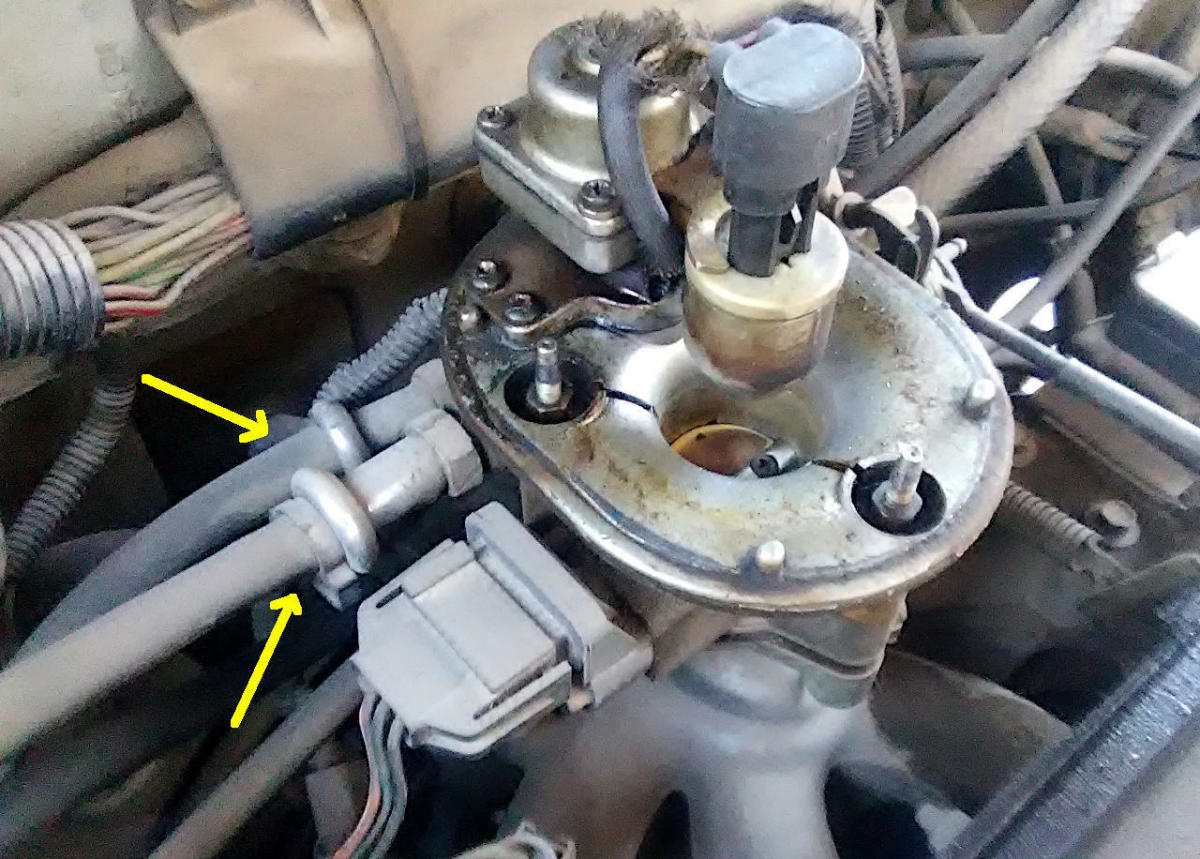

Locate the Fuel Pressure Regulator: It's typically found on the fuel rail, often near the end. Consult your vehicle's service manual if you're unsure of its location.
Identify the Adjustment Mechanism: Many aftermarket regulators have an adjustment screw or knob. Some OEM regulators are not adjustable. Trying to adjust a non-adjustable regulator can damage it.
Install a Fuel Pressure Gauge: This is essential. You can install a permanent gauge or use a temporary gauge connected to a test port on the fuel rail. Know where the fuel pressure test port is and verify proper gauge fitment before pressurizing fuel.
Prepare for Adjustment: Start the engine and allow it to reach normal operating temperature. If you have a manifold-referenced regulator, disconnect the vacuum line to the regulator and plug the vacuum line. This will give you the base fuel pressure reading.
Adjust the Fuel Pressure: Use a screwdriver or wrench to turn the adjustment screw or knob. Turning it clockwise typically increases fuel pressure, while turning it counter-clockwise decreases fuel pressure. Make small adjustments and observe the fuel pressure gauge until you reach the desired pressure.
Reconnect the Vacuum Line (if applicable): Once you've set the base fuel pressure, reconnect the vacuum line to the regulator. Observe the fuel pressure drop as vacuum is applied. The amount of drop should be consistent with the vacuum level.
Verify and Fine-Tune: Blip the throttle to ensure the fuel pressure responds correctly. If necessary, make further small adjustments to achieve the optimal fuel pressure across the RPM range. Road test the vehicle and use a wideband oxygen sensor to monitor air/fuel ratio and ensure it's within the desired range.

Common Issues and Maintenance Concerns

Fuel Leaks: Check for fuel leaks around the regulator, fuel rail, and fuel lines. Leaks can be caused by damaged O-rings, loose fittings, or corrosion. Replace any damaged components immediately.
Diaphragm Failure: Over time, the diaphragm can become brittle or cracked, leading to fuel pressure fluctuations or leaks. A faulty diaphragm will often result in fuel entering the vacuum line. Inspect the vacuum line for signs of fuel.
Clogged Fuel Filter: A clogged fuel filter restricts fuel flow, which can affect fuel pressure. Replace the fuel filter regularly according to your vehicle's maintenance schedule.
Faulty Fuel Pump: A weak or failing fuel pump may not be able to deliver sufficient fuel pressure, regardless of the regulator setting.
Incorrect Adjustment: Incorrectly adjusting the fuel pressure can lead to poor engine performance, increased fuel consumption, and even engine damage. Always follow the manufacturer's specifications or consult with a qualified mechanic.
Vacuum Line Issues: Check the vacuum line connected to the regulator for cracks, leaks, or kinks. A damaged vacuum line can cause incorrect fuel pressure readings and affect engine performance.

Do's and Don'ts / Best Practices

Do's:

Use a Fuel Pressure Gauge: This is non-negotiable. You can't accurately adjust fuel pressure without a gauge.
Consult Your Vehicle's Service Manual: Refer to your vehicle's service manual for the recommended fuel pressure specification.
Make Small Adjustments: Avoid making large adjustments at once. Small, incremental changes are more effective.
Check for Leaks: After making any adjustments, thoroughly inspect the fuel system for leaks.
Monitor Air/Fuel Ratio: Use a wideband oxygen sensor to monitor the air/fuel ratio after adjusting fuel pressure, especially if you have modified your engine.
Use Quality Parts: When replacing any fuel system components, use high-quality parts from reputable manufacturers.

Don'ts:

Adjust Without a Gauge: Never attempt to adjust fuel pressure without a fuel pressure gauge.
Ignore Leaks: Never ignore fuel leaks. Address them immediately.
Overtighten Fittings: Overtightening fuel line fittings can damage them and cause leaks.
Use Excessive Force: Avoid using excessive force when adjusting the regulator.
Adjust a Non-Adjustable Regulator: Some OEM regulators are not designed to be adjusted. Attempting to adjust them can damage the regulator.
Neglect Regular Maintenance: Regularly replace the fuel filter and inspect the fuel system for any signs of wear or damage.

Conclusion

Adjusting your fuel pressure regulator can be a rewarding task that unlocks the full potential of your engine, diagnoses performance issues, or prepares your car for modifications. However, it's crucial to approach this task with a thorough understanding of the fuel injection system and the fuel pressure regulator's function. By following the steps outlined in this guide, adhering to best practices, and prioritizing safety, you can confidently adjust your fuel pressure regulator and achieve optimal engine performance. If you're ever unsure or uncomfortable with any aspect of this process, it's always best to consult with a qualified mechanic. A dyno tune from a professional can also help optimize fuel delivery for your specific engine and modifications.
