How To Adjust Idle Air Control Valve

Is your engine idling rough, stalling unexpectedly, or surging erratically when stopped? These frustrating issues can often be traced back to a malfunctioning or improperly adjusted Idle Air Control (IAC) valve. Let's dive into how to diagnose and potentially fix this common problem, ensuring your engine runs smoothly and efficiently.

Understanding the Problem: The Importance of a Properly Functioning IAC Valve

The IAC valve is a crucial component in your vehicle's fuel injection system. Its primary role is to regulate the amount of air that bypasses the throttle plate when the throttle is closed. This bypassed air maintains a stable and consistent idle speed, preventing stalling and ensuring smooth transitions between driving and idling. A faulty or misadjusted IAC valve disrupts this delicate balance, leading to a range of driveability problems.

Symptoms of a Faulty or Misadjusted IAC Valve

Recognizing the symptoms of an IAC valve issue is the first step towards resolving it. Here are some common signs to watch out for:

Rough Idle: The engine vibrates or feels unsteady while idling.
Stalling: The engine shuts off unexpectedly, especially when coming to a stop.
High Idle: The engine idles at a speed significantly higher than normal.
Erratic Idle: The idle speed fluctuates up and down without any apparent reason.
Hesitation or Stumbling: The engine hesitates or stumbles upon initial acceleration.
Difficulty Starting: The engine may take longer than usual to start, especially in cold weather.
Check Engine Light: The check engine light may illuminate, accompanied by diagnostic trouble codes (DTCs) related to the IAC valve or idle speed control system. Common codes include P0505 (IAC system malfunction), P0506 (Idle Air Control System RPM Lower Than Expected), and P0507 (Idle Air Control System RPM Higher Than Expected).
Poor Fuel Economy: An improperly functioning IAC can affect the air-fuel mixture, leading to decreased fuel efficiency.
Stalling when using accessories: The engine may stall when accessories like the air conditioner or power steering are engaged, which puts an additional load on the engine.

Root Cause: Why Does the IAC Valve Malfunction?

Several factors can contribute to IAC valve problems:

Carbon Buildup: Over time, carbon deposits can accumulate inside the IAC valve, restricting its movement and affecting its ability to regulate airflow. This is a very common issue.
Electrical Malfunction: The IAC valve is controlled by the engine control unit (ECU) via electrical signals. Wiring problems, connector corrosion, or a faulty IAC motor can disrupt this communication, leading to malfunction.
Mechanical Failure: The internal components of the IAC valve, such as the pintle or plunger, can wear out or break, preventing it from operating correctly.
Vacuum Leaks: Vacuum leaks in the intake manifold or vacuum hoses can disrupt the idle speed, causing the IAC valve to compensate excessively or incorrectly. Always check for vacuum leaks before suspecting the IAC valve itself.
ECU Issues: In rare cases, the ECU itself may be faulty, sending incorrect signals to the IAC valve. However, this is less likely than other causes.

Ignoring the Problem: The Consequences of Delay

Ignoring a faulty IAC valve can lead to several negative consequences:

Increased Wear and Tear: Continuous rough idling and stalling put unnecessary stress on the engine, potentially shortening its lifespan.
Safety Hazards: Stalling in traffic can create dangerous situations.
Catalytic Converter Damage: An improperly running engine can overload the catalytic converter, leading to premature failure.
Decreased Fuel Economy: As mentioned earlier, a faulty IAC valve can negatively impact fuel efficiency, costing you money at the pump.
More Extensive Repairs: Prolonged neglect of the issue can lead to additional problems in the fuel injection system or other engine components.

Recommended Fixes: Cleaning and Adjustment

The appropriate fix for an IAC valve issue depends on the underlying cause. Here's a breakdown of the most common solutions:

Cleaning the IAC Valve: This is often the first and most effective step.
- Disconnect the IAC valve: Disconnect the electrical connector from the IAC valve.
- Remove the IAC valve: Carefully remove the IAC valve from the throttle body. It's usually held in place by two or three screws.
- Clean the IAC valve: Use a throttle body cleaner or carburetor cleaner to thoroughly clean the IAC valve. Pay close attention to the pintle or plunger, making sure to remove all carbon deposits. Use a soft brush or cotton swab to help remove stubborn deposits.
- Clean the IAC valve port: Also, clean the IAC valve port on the throttle body.
- Reinstall the IAC valve: Reinstall the IAC valve and reconnect the electrical connector.
Adjusting the Base Idle Speed: After cleaning (or replacing) the IAC valve, you may need to adjust the base idle speed. This procedure varies depending on the vehicle make and model, and some vehicles require a scan tool to reset the IAC valve position. Consult your vehicle's service manual for specific instructions. Typically, you will disconnect the IAC valve and use an idle speed adjustment screw (if present) on the throttle body to set a base idle speed. Once the IAC valve is reconnected, the computer will then take over and fine-tune the idle.

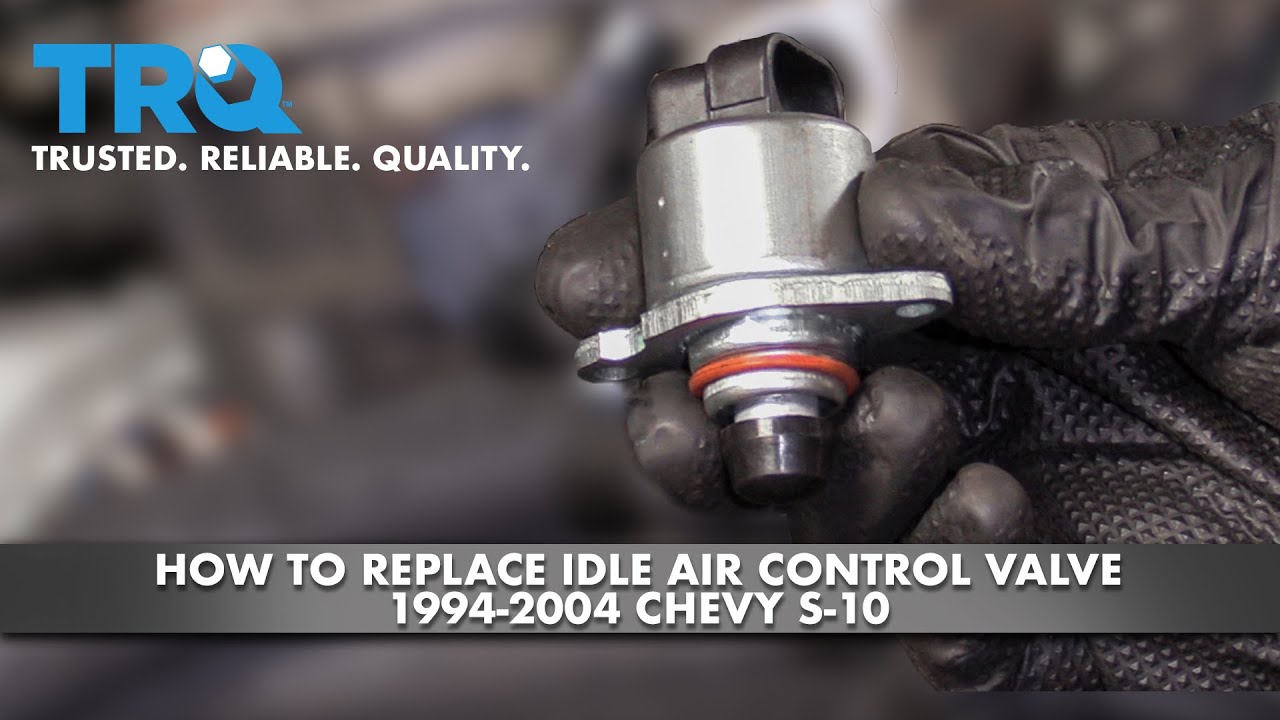

Replacing the IAC Valve: If cleaning and adjustment don't resolve the problem, the IAC valve may be faulty and require replacement. Always use a high-quality replacement part from a reputable manufacturer.
Checking for Vacuum Leaks: Use a vacuum gauge or propane enrichment method to identify any vacuum leaks in the intake manifold or vacuum hoses. Repair or replace any leaking components.
Inspecting Wiring and Connectors: Carefully inspect the wiring and connectors associated with the IAC valve for any signs of damage, corrosion, or loose connections. Repair or replace any damaged components.
Consulting a Professional: If you're not comfortable performing these repairs yourself, or if the problem persists after attempting these fixes, it's best to consult a qualified mechanic. They have the expertise and diagnostic tools to accurately diagnose and resolve the issue.

Cost Estimates and Shop Advice

The cost of repairing an IAC valve issue can vary depending on the specific problem and the extent of the repair:

Cleaning the IAC Valve: If you do it yourself, the cost is minimal, typically only the price of a can of throttle body cleaner (around $10-$20). A shop might charge around $50-$150 for this service.
Replacing the IAC Valve: The cost of an IAC valve can range from $50 to $200, depending on the vehicle make and model and the brand of the replacement part. Labor costs for replacing the IAC valve typically range from $50 to $150.
Diagnosing and Repairing Vacuum Leaks: The cost of diagnosing and repairing vacuum leaks can vary widely depending on the location and severity of the leak. It could range from $50 for a simple hose replacement to several hundred dollars for more complex repairs.

Shop Advice: When seeking professional help, be sure to choose a reputable mechanic with experience in diagnosing and repairing fuel injection systems. Ask for a detailed estimate before authorizing any repairs. Also, inquire about the warranty on the parts and labor.

Credibility and Common Failure Points

IAC valve problems are a well-documented issue in the automotive industry. Many vehicles experience IAC valve issues between 80,000 and 150,000 miles. While there aren't specific, widespread Technical Service Bulletins (TSBs) that universally address IAC valve failures across all makes and models, manufacturers often issue TSBs related to idle speed control problems that may indirectly point to IAC valve issues. Online automotive forums and communities are filled with discussions about IAC valve problems and solutions, providing a wealth of anecdotal evidence and shared experiences. A quick search for "[Your Vehicle Make and Model] IAC Valve Problems" will likely yield numerous threads and discussions.

Example: Some older Ford models (e.g., Mustangs, Explorers) with the 5.0L engine are particularly known for IAC valve issues due to carbon buildup. Regular cleaning can often prevent the need for replacement.

By understanding the function of the IAC valve, recognizing the symptoms of a problem, and following the recommended troubleshooting steps, you can often resolve idle speed issues and keep your engine running smoothly and efficiently. Remember to consult your vehicle's service manual for specific instructions and always prioritize safety when working on your vehicle.
