How To Adjust Idle Control Valve

Ever noticed your car idling roughly, stalling unexpectedly, or revving too high when you’re at a standstill? Chances are, the culprit could be a malfunctioning or improperly adjusted Idle Control Valve (ICV). While modern vehicles rely heavily on sophisticated engine management systems, the humble ICV still plays a critical role in maintaining smooth and efficient engine operation. This guide delves into the intricacies of the ICV, providing an in-depth look at its function, mechanics, adjustment procedures, and troubleshooting tips.

The Idle Problem: More Than Just Annoyance

Imagine this: You're approaching a stoplight, foot off the accelerator, and as the car slows to a halt, the engine sputters and dies. Or, conversely, you're parked, and the engine is stubbornly revving at 1500 RPM, burning unnecessary fuel and emitting excessive emissions. These scenarios, while frustrating, highlight the importance of a properly functioning idle control system. In the early days of carbureted engines, idle speed was mechanically adjusted via a simple screw controlling the throttle plate's resting position. However, modern fuel-injected engines demand a more sophisticated approach, accounting for varying engine loads, temperatures, and operating conditions. This is where the ICV comes into play.

How the ICV Works: A Deep Dive

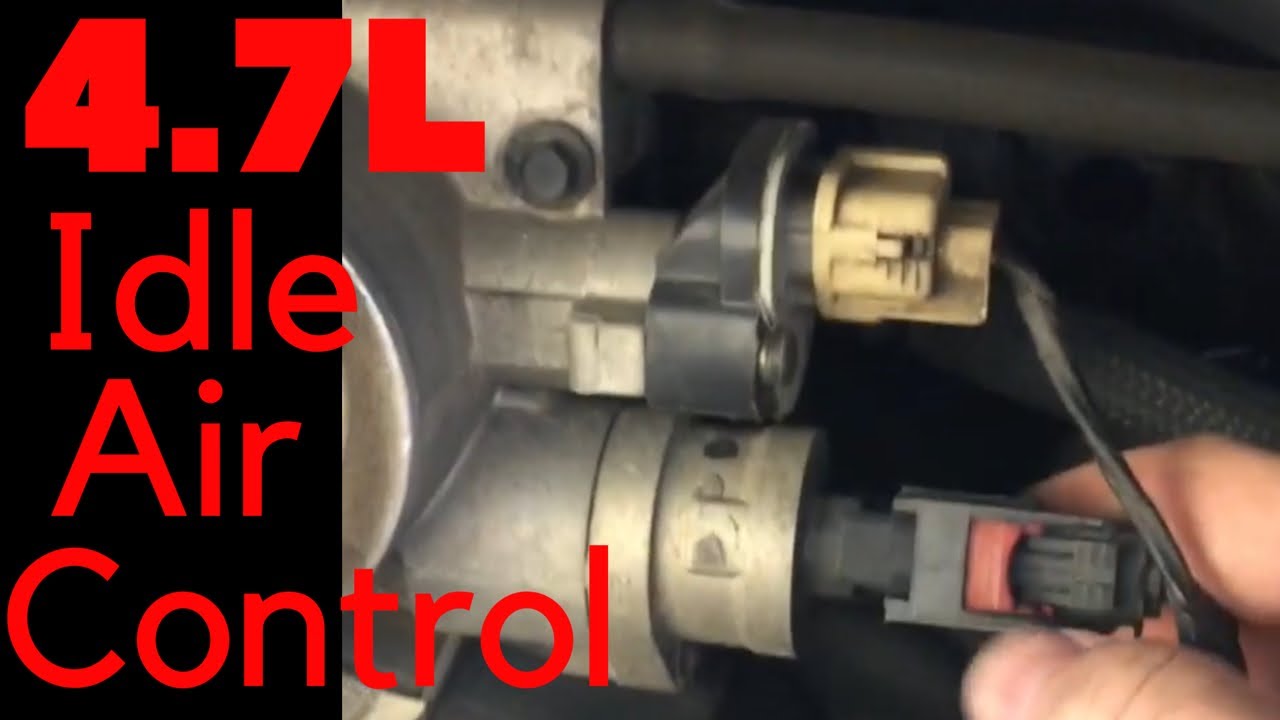

The ICV, also known as an Idle Air Control (IAC) valve or Idle Speed Control (ISC) valve, is an electromechanical device responsible for regulating the amount of air bypassing the closed throttle plate during idle. Think of it as a tiny air regulator that fine-tunes the engine's breathing when you're not actively pressing the accelerator. The engine control unit (ECU) constantly monitors engine speed (RPM), coolant temperature, manifold absolute pressure (MAP), and other parameters. Based on this data, the ECU sends a signal to the ICV to open or close, allowing more or less air to bypass the throttle plate and enter the intake manifold. This, in turn, directly impacts the engine's idle speed.

Mechanical Components and Operation

Different types of ICVs exist, but the most common designs utilize a rotary valve, a stepper motor, or a solenoid valve. Let's examine each:

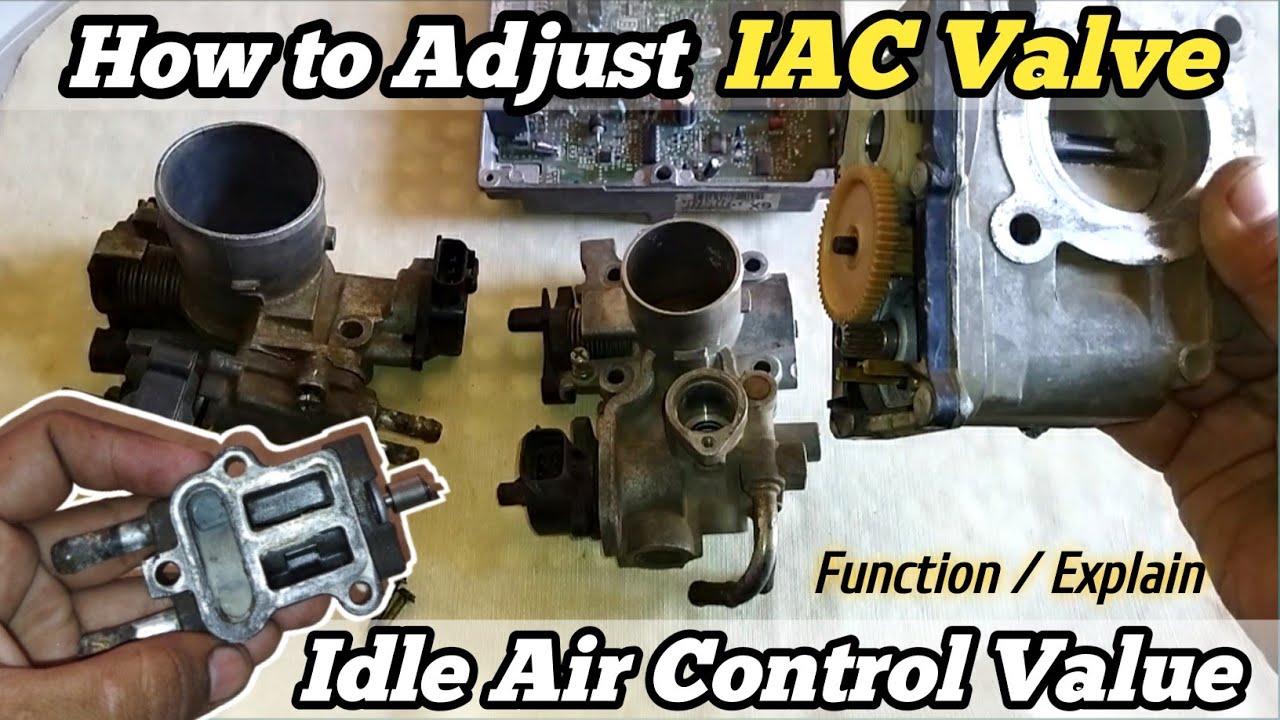

• Rotary Valve ICV: These valves typically consist of a rotating drum or disc with a precisely machined opening. An electric motor rotates the drum, varying the size of the opening and thus the amount of air allowed to pass. The ECU controls the motor's position, ensuring precise idle speed regulation.

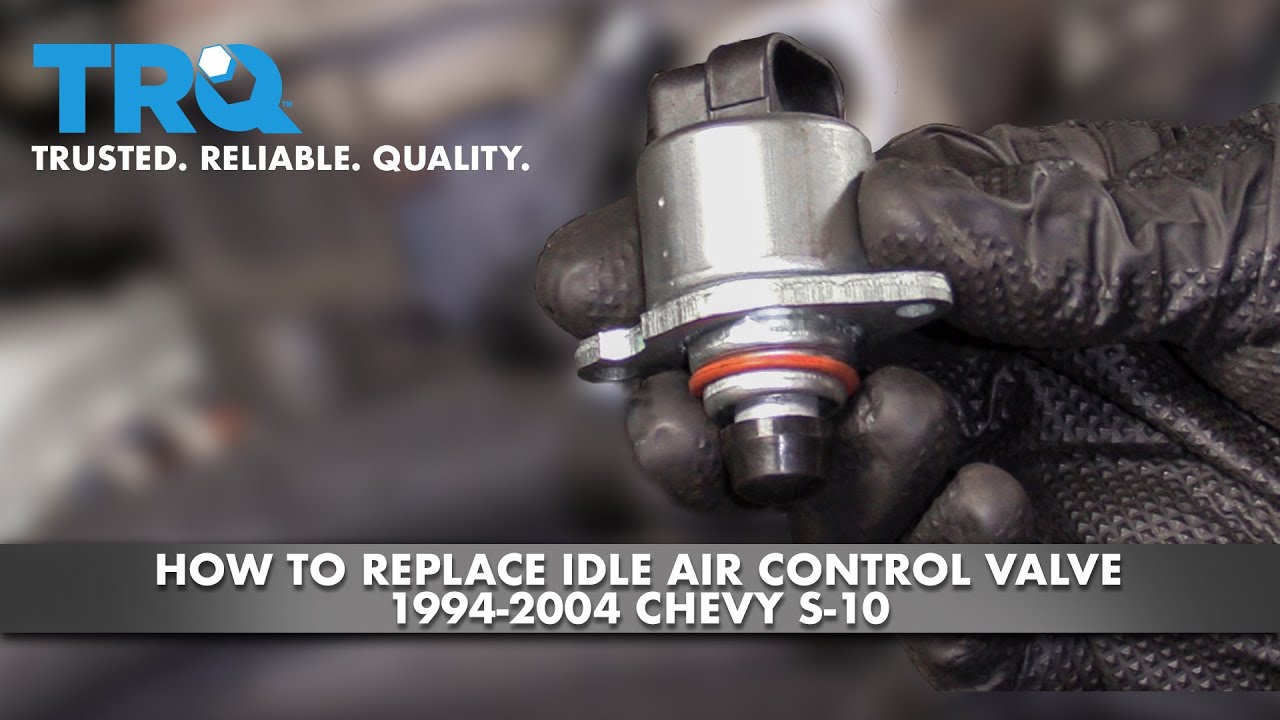

• Stepper Motor ICV: Stepper motors provide incremental and highly accurate movements. In this type of ICV, the stepper motor controls a plunger or valve that regulates the airflow. Each "step" of the motor corresponds to a specific change in airflow, allowing for fine-tuning of the idle speed. These are commonly found in older fuel injection systems.
• Solenoid Valve ICV: These valves utilize an electromagnet (solenoid) to open and close an air passage. The ECU pulses the solenoid, rapidly opening and closing the valve to control the amount of air flowing through the bypass. The pulse width modulation (PWM) technique allows for precise control of the average airflow.

Regardless of the specific design, the underlying principle remains the same: the ICV provides a controllable path for air to bypass the closed throttle plate, allowing the ECU to maintain a stable and consistent idle speed. The system continuously adapts to changing conditions, such as the engagement of the air conditioning compressor or the addition of electrical load, ensuring the engine doesn't stall or rev excessively.

Pros and Cons of ICV Systems

Like any automotive technology, ICV systems have their advantages and disadvantages:

Pros:

• Improved Idle Stability: Maintains a consistent idle speed regardless of engine load or temperature.
• Reduced Stalling: Prevents engine stalling during sudden load changes, such as engaging the air conditioning.
• Enhanced Fuel Efficiency: Prevents excessive fuel consumption due to high idle speeds.
• Lower Emissions: Contributes to reduced emissions by maintaining optimal combustion at idle.

Cons:

• Potential for Failure: ICVs are susceptible to clogging with carbon buildup, electrical faults, or mechanical wear.
• Complexity: Adds complexity to the engine management system compared to simple mechanical idle adjustments.
• Cost: Replacement ICVs can be relatively expensive, depending on the vehicle make and model.
• Diagnostic Challenges: Diagnosing ICV problems can sometimes be difficult, requiring specialized diagnostic tools and knowledge.

Use Cases and Manufacturer Examples

ICV systems are widely used across a vast range of vehicles with electronic fuel injection. Here are a few examples:

• Bosch: A major supplier of ICVs to numerous European manufacturers like BMW, Mercedes-Benz, and Volkswagen. Their systems often employ rotary or solenoid valve designs known for their reliability and precision.
• Denso: A prominent supplier to Japanese automakers like Toyota, Honda, and Nissan. Their ICV systems often utilize stepper motor designs, offering precise idle speed control.
• Delphi: A key supplier to General Motors and other American manufacturers. Their ICV systems are designed to be robust and durable, capable of withstanding harsh operating conditions.

Each manufacturer may implement slight variations in design and control strategies, but the fundamental principle of using an ICV to regulate idle speed remains consistent.

Adjusting or Replacing the ICV: A Practical Guide

While many modern ICVs are designed to be self-calibrating, situations arise where adjustment or replacement becomes necessary. Signs of a faulty ICV include erratic idle speed, stalling, or a consistently high idle. Before attempting any adjustments, it's crucial to consult your vehicle's service manual for specific instructions and precautions. Incorrect adjustments can lead to further problems and potentially damage the engine.

Troubleshooting Steps:

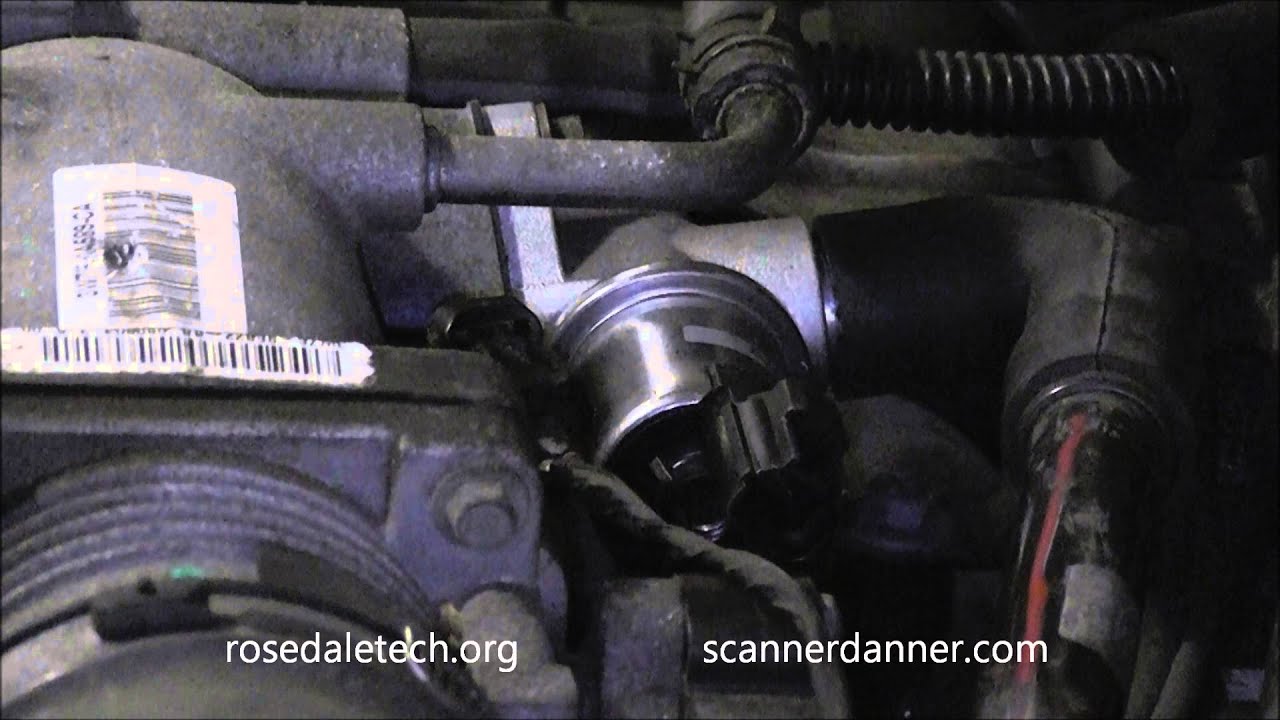

1. Visual Inspection: Check for any obvious signs of damage or corrosion on the ICV and its wiring harness.
2. Cleaning: In many cases, a dirty ICV can cause problems. Carefully remove the ICV and clean it with a suitable solvent specifically designed for cleaning throttle bodies and carburetors. Avoid using harsh chemicals that could damage the valve's internal components.
3. Electrical Testing: Use a multimeter to check the ICV's resistance and continuity. Compare your readings to the specifications in your vehicle's service manual.
4. ECU Scan: Use an OBD-II scanner to check for any diagnostic trouble codes (DTCs) related to the ICV circuit. Common codes include P0505 (Idle Control System Malfunction) and related variations.

Adjustment Procedures (When Applicable):

Note: Not all ICVs are adjustable. Consult your vehicle's service manual.

1. Warm-up the Engine: Ensure the engine is at its normal operating temperature before making any adjustments.

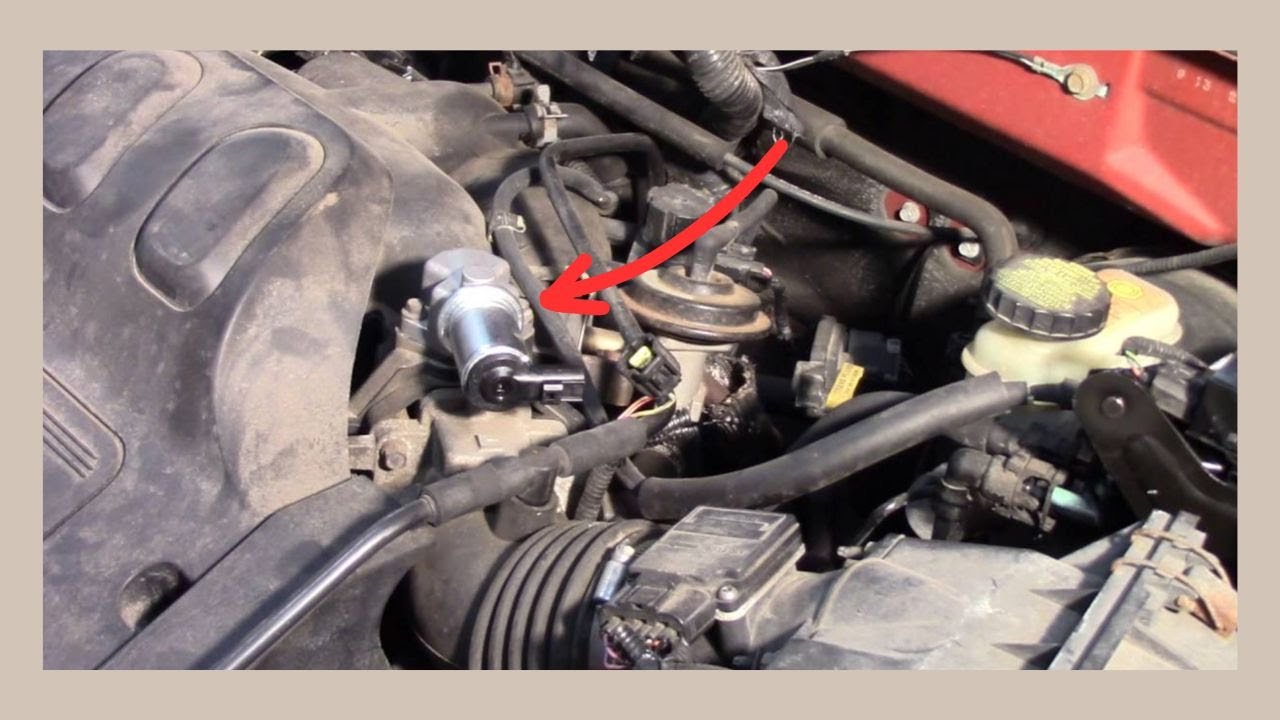

2. Locate the Adjustment Screw (if present): Some older ICVs may have a physical adjustment screw. This screw typically controls the valve's resting position.
3. Monitor Idle Speed: Use a tachometer or an OBD-II scanner to monitor the engine's idle speed.
4. Adjust the Screw (if present): Slowly turn the adjustment screw until the idle speed reaches the specified RPM. Refer to your vehicle's service manual for the correct idle speed specification.
5. ECU Reset (if necessary): After making adjustments, some vehicles may require an ECU reset to "learn" the new idle settings. This can often be done by disconnecting the battery for a short period.

Replacement:

If cleaning and adjustment fail to resolve the issue, the ICV may need to be replaced. Ensure you purchase a replacement ICV that is specifically designed for your vehicle's make, model, and year. Follow the manufacturer's instructions for proper installation and calibration.

Real-World Insights and Recommendations

Based on practical experience, prevention is often the best approach when it comes to ICV issues. Regular maintenance, such as cleaning the throttle body and using high-quality fuel, can help prevent carbon buildup and extend the life of the ICV. When diagnosing idle problems, always consider other potential causes, such as vacuum leaks, faulty oxygen sensors, or a malfunctioning mass airflow (MAF) sensor. A systematic approach to troubleshooting will help you identify the root cause of the problem and avoid unnecessary repairs. Finally, if you're not comfortable working on your vehicle's engine management system, it's always best to consult a qualified mechanic. Attempting to repair or adjust the ICV without proper knowledge and tools could potentially lead to further damage and costly repairs.

Modern automotive systems are complex. While understanding the function of the ICV is beneficial, remember to always consult professional resources and prioritize safety and accuracy in any repair or maintenance work.
