How To Adjust Speedometer For Bigger Tires
The speedometer, a trusty gauge displaying our vehicle's velocity, relies on a carefully calibrated system. But what happens when we deviate from the factory settings, say, by installing larger tires? Suddenly, that familiar needle starts lying to us. We're not actually going as slow as it indicates. This discrepancy arises because larger tires cover more ground with each rotation, throwing off the speedometer's calculations. Let's delve into the mechanics and explore how to rectify this situation.
The Problem: A Speedometer in Disagreement
Imagine this: You've just upgraded your off-road vehicle with a set of beefy, oversized tires. They look fantastic, provide superior grip, and increase ground clearance. However, on your first drive, you notice something is off. Your speedometer reads 60 mph, but your GPS app tells you you're actually traveling at 65 mph. This isn't merely an annoyance; it has significant implications. Your odometer is underreporting mileage, affecting resale value and maintenance schedules. Your vehicle's computer, relying on the incorrect speed data, might also mismanage fuel injection, transmission shift points, and anti-lock braking systems (ABS).
A Relatable Analogy: The Bicycle Wheel
Think of a bicycle. Each rotation of the wheel covers a certain distance. If you replace the standard wheel with a larger one, each rotation now covers more ground. If the speedometer mechanism is still calibrated for the smaller wheel, it will underestimate your speed because it's counting fewer rotations per minute than are actually needed to give an accurate reading. The same principle applies to your car or truck.
How Speedometers Work: A Mechanical Overview
Speedometers come in two primary flavors: mechanical and electronic. While the specific implementation varies between makes and models, the underlying principles remain the same.
Mechanical Speedometers: The Spinning Cable
Older vehicles typically employ mechanical speedometers. These systems utilize a cable connected to the transmission or transaxle. As the vehicle moves, the transmission's output shaft spins the speedometer cable. This cable runs to the speedometer head, where it drives a magnet. The spinning magnet creates a magnetic field, which exerts a force on a metal cup or drum attached to the speedometer needle. A hairspring opposes this magnetic force, creating a balance point that corresponds to the vehicle's speed. The faster the cable spins, the stronger the magnetic field, the further the needle deflects, and the higher the indicated speed.
The key to understanding the speedometer's calibration lies in the gear ratio within the transmission or transfer case that drives the speedometer cable. This gear ratio is carefully chosen to match the vehicle's factory tire size. Changing the tire size without adjusting this gear ratio introduces the error we discussed earlier.
Electronic Speedometers: Pulses and Processors
Modern vehicles predominantly use electronic speedometers. These systems rely on a sensor, often located on the transmission or wheel hub, to generate a series of electrical pulses. The frequency of these pulses is directly proportional to the vehicle's speed. These pulses are then sent to the vehicle's powertrain control module (PCM) or body control module (BCM). The PCM/BCM processes the pulse data and sends a signal to the speedometer gauge, which displays the vehicle's speed. The odometer, also controlled by the PCM/BCM, counts these pulses to record the total mileage.
In electronic systems, the speedometer calibration is typically handled by software within the PCM/BCM. The module is programmed with the correct tire size and axle ratio. When you change tire sizes, you need to reprogram the PCM/BCM to accurately interpret the sensor signals.
Adjusting the Speedometer: Methods and Considerations
The method for correcting your speedometer depends on the type of speedometer system your vehicle uses.
Mechanical Speedometer Adjustments
Correcting a mechanical speedometer involves changing the drive gear in the transmission or transfer case. This gear is responsible for spinning the speedometer cable at the correct rate. By selecting a drive gear with a different number of teeth, you can compensate for the change in tire size. Finding the correct gear often involves consulting charts or calculators that factor in the original and new tire sizes, as well as the axle ratio.
Pros: Relatively simple for experienced mechanics, no complex electronics required.
Cons: Requires accessing the transmission or transfer case, can be messy, limited adjustment range.
Use Cases: Older vehicles without electronic speedometers, vehicles with aftermarket transmissions or transfer cases.
Example: Swapping the drive gear on a vintage Jeep after installing larger off-road tires.
Electronic Speedometer Adjustments
Adjusting an electronic speedometer typically involves reprogramming the PCM/BCM. This can be achieved using a variety of methods:

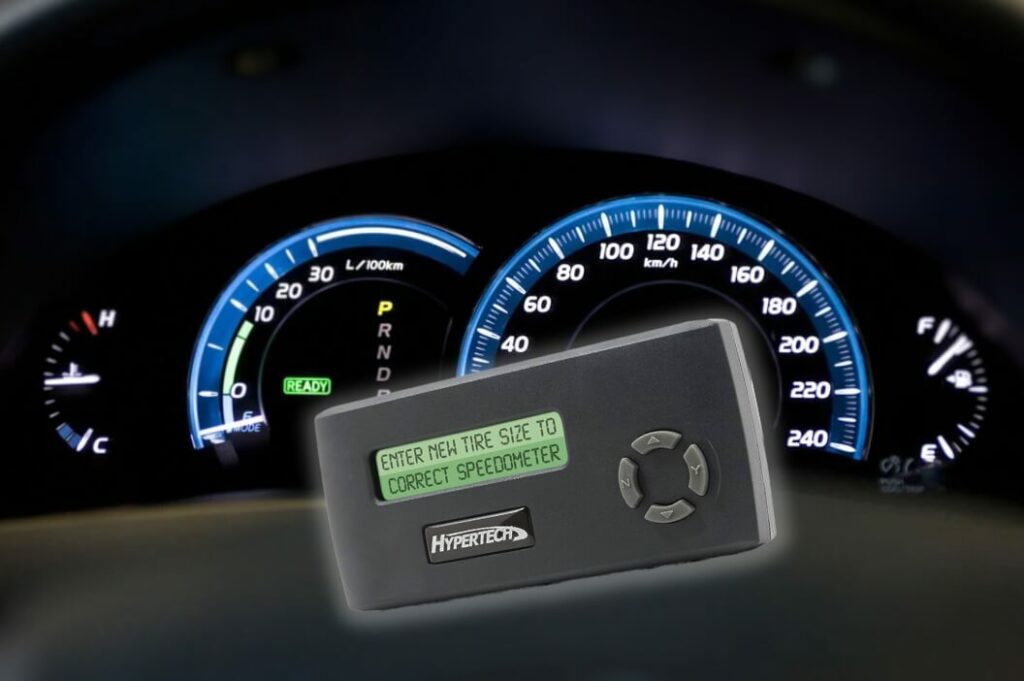

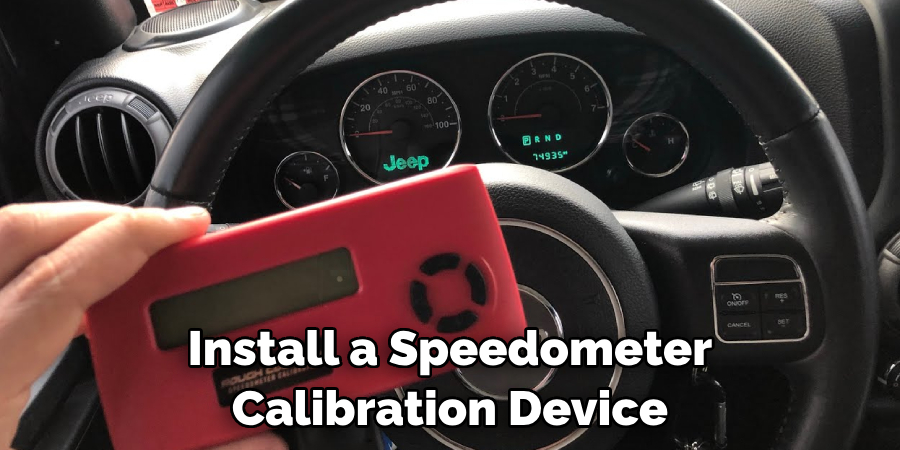

- Handheld Programmers: These devices plug into the vehicle's OBD-II port and allow you to change the tire size setting in the PCM/BCM. Many programmers also offer other features, such as performance tuning and diagnostic code reading.
- Professional Scan Tools: Automotive repair shops use advanced scan tools that can access and modify the PCM/BCM settings. This is often the most reliable option, as these tools can perform more complex calibrations and diagnostics.
- Dealer Reprogramming: Your vehicle's manufacturer may offer a reprogramming service to correct the speedometer after a tire size change. This is typically the most expensive option but ensures that the PCM/BCM is updated with the latest software and calibrations.
Pros: More precise adjustments, often offers additional features, can be performed without physically modifying the vehicle.
Cons: Requires specialized tools and knowledge, potential for damaging the PCM/BCM if not performed correctly.
Use Cases: Modern vehicles with electronic speedometers, vehicles with complex engine and transmission control systems.
Example: Reprogramming the PCM on a late-model Ford truck after installing larger tires using a handheld tuner.
Considerations and Caveats
Before making any adjustments to your speedometer, consider the following:
- Axle Ratio: Changing your axle ratio also affects speedometer accuracy. If you have changed your axle ratio, you will need to factor this into your speedometer correction calculations.
- Tire Wear: As your tires wear down, their diameter decreases, which can subtly affect speedometer accuracy.
- Legal Regulations: Some jurisdictions have regulations regarding speedometer accuracy. Ensure that your adjustments comply with local laws.
- Potential Side Effects: Recalibrating the PCM/BCM can affect other vehicle systems, such as the transmission shift points and fuel economy. Monitor your vehicle's performance after making any adjustments.
Manufacturer Examples: Many manufacturers offer tire size adjustment options within their diagnostic software. For instance, Ford's IDS (Integrated Diagnostic System) allows technicians to recalibrate the PCM for different tire sizes. Similarly, GM's Tech2 and GDS2 scan tools provide similar functionality. Aftermarket companies like Hypertech and Superchips specialize in handheld programmers specifically designed for speedometer calibration.
Conclusion: Accuracy and Responsibility
Adjusting your speedometer after installing larger tires is crucial for maintaining accuracy, ensuring safety, and preventing potential issues with your vehicle's systems. While mechanical adjustments require a more hands-on approach, electronic recalibration offers greater precision and flexibility. Regardless of the method you choose, it's essential to thoroughly research and understand the implications of your adjustments. If you're not comfortable performing the work yourself, seek the assistance of a qualified mechanic. Investing the time and effort to properly calibrate your speedometer will pay dividends in the long run, providing you with accurate information and ensuring the optimal performance of your vehicle.
