How To Adjust Tps Without Multimeter

The dreaded check engine light illuminates, and a quick scan reveals a culprit: the Throttle Position Sensor, or TPS. A properly functioning TPS is crucial for optimal engine performance, fuel efficiency, and smooth drivability. While a multimeter is the generally recommended tool for precise TPS adjustment, what do you do if you find yourself in a situation where you don't have one readily available? Can you adjust a TPS without relying on electronic measurements? The answer is a qualified yes, but it requires understanding the system, patience, and a willingness to potentially make several attempts.

The Scenario: "Limp Mode" on the Trail

Imagine this: You're deep in a remote off-road trail in your trusty Jeep Cherokee. Miles from civilization, your engine suddenly goes into what feels like a "limp mode". Power is drastically reduced, the transmission shifts erratically, and the check engine light mocks you from the dashboard. After some initial checks, you suspect the TPS. Maybe it got knocked loose on a particularly bumpy section, or perhaps it’s simply failed. You have basic tools, but your multimeter is back at base camp. You need to get the Jeep running well enough to limp back to safety. This is where the "no-multimeter" TPS adjustment comes into play, but understand this is a compromise, not a precise fix.

Understanding the TPS: A Mechanical Explanation

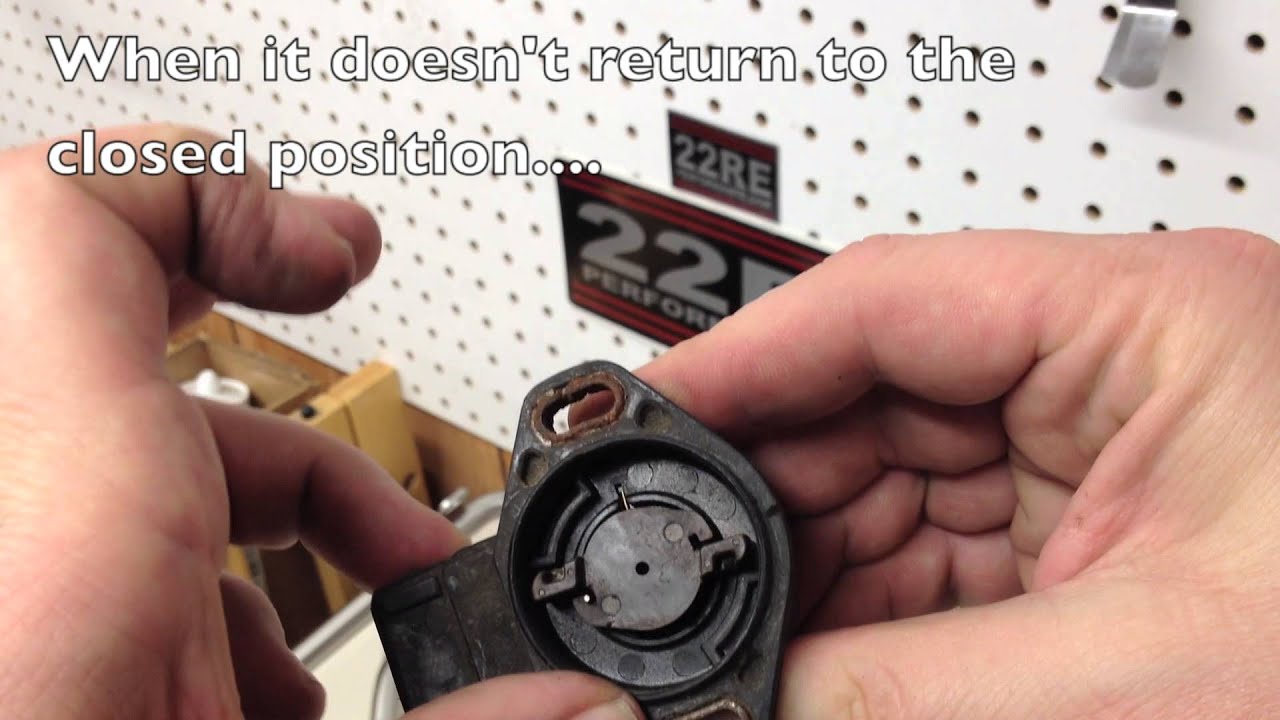

The TPS is fundamentally a variable resistor, also known as a potentiometer. It's physically linked to the throttle plate of your engine's throttle body. As you press the accelerator pedal, the throttle plate opens, allowing more air to enter the engine. Simultaneously, this movement rotates the TPS's internal wiper arm across a resistive track. This alters the resistance value "read" by the engine control unit (ECU). The ECU interprets this resistance (voltage when measured with a multimeter) as the throttle position – from closed (idle) to wide-open throttle (WOT). Based on this information, along with data from other sensors like the mass airflow sensor (MAF) or manifold absolute pressure sensor (MAP), the ECU determines the correct amount of fuel to inject, the ignition timing, and other critical engine parameters.

Think of it like a volume knob on a stereo. As you turn the knob (throttle), the resistance changes, controlling the volume (air intake). The TPS is, in essence, telling the ECU how far the "volume knob" is turned.

The Mechanical Linkage and Adjustment

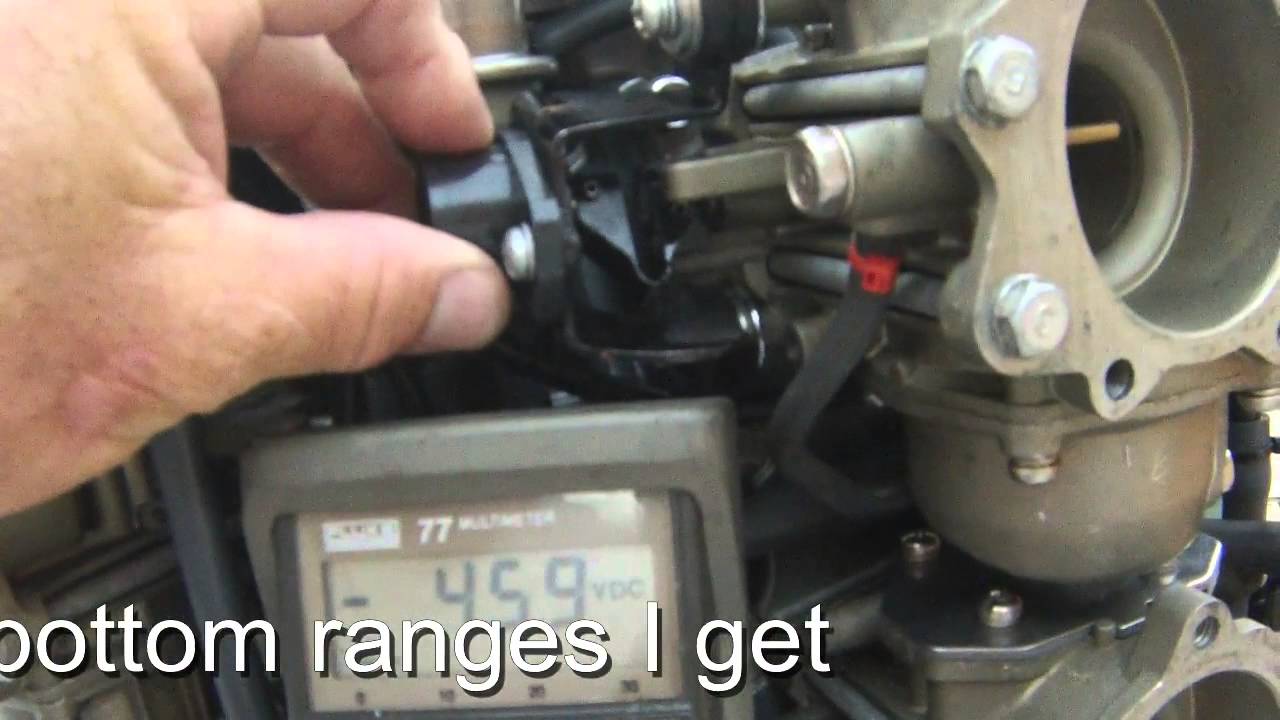

Most TPS units are mounted to the throttle body with screws allowing for slight rotational adjustment. This adjustment changes the *starting* point of the resistance reading when the throttle is closed (idle). Fine-tuning this starting point is the key to adjusting the TPS without a multimeter. When the TPS is misadjusted, the ECU receives incorrect throttle position information. For instance, if the TPS is set too high, the ECU might think the throttle is slightly open even when it’s closed, leading to a high idle, poor fuel economy, or transmission shifting problems. Conversely, if set too low, the ECU might not provide enough fuel at low speeds, resulting in stalling or hesitation.

The "Trial-and-Error" Adjustment Method

This method relies on careful observation and iterative adjustments. It's less precise than using a multimeter but can be effective in getting you back on the road.

1. Safety First: Ensure the engine is cool, the parking brake is engaged, and the vehicle is in park or neutral. Disconnect the negative battery terminal for a few minutes to reset the ECU. This allows it to "re-learn" the new TPS setting.
2. Loosen the TPS Screws: Carefully loosen the two mounting screws holding the TPS to the throttle body. They should be loose enough to allow you to rotate the sensor slightly. Be very careful not to overtighten them during reinstallation, as the plastic housing can break.
3. Initial Adjustment: Start by setting the TPS in what you believe is its original position (if you noted it before loosening the screws). A good starting point is often in the middle of its adjustment range.
4. Start the Engine: Reconnect the negative battery terminal and start the engine. Pay close attention to the idle speed. Is it too high, too low, or about right?
5. Fine-Tune:
   • High Idle: If the idle is too high, slightly rotate the TPS counter-clockwise (usually). This reduces the voltage signal to the ECU, signaling a more closed throttle position.
   • Low Idle or Stalling: If the idle is too low or the engine stalls, slightly rotate the TPS clockwise (usually). This increases the voltage signal to the ECU, signaling a more open throttle position.
6. Iterate: Make small adjustments and allow the engine to idle for a few seconds after each adjustment to allow the ECU to adapt. Monitor the engine's response.
7. Test Drive (Carefully): Once you've achieved a stable, reasonably correct idle, carefully test drive the vehicle in a safe area. Pay attention to acceleration, shifting, and overall smoothness. Note any hesitation, surging, or other abnormal behavior.
8. Repeat if Necessary: If you experience problems during the test drive, return to step 5 and continue making small adjustments until the engine runs smoothly.
9. Tighten Screws: Once you are satisfied with the engine's performance, tighten the TPS mounting screws. Be careful not to overtighten them.

Pros and Cons of the "No-Multimeter" Method

• Pros:
  • Allows for adjustment in the field when a multimeter is unavailable.
  • Can potentially restore drivability in emergency situations.
  • Helps you understand the relationship between the TPS and engine behavior.
• Cons:
  • Significantly less precise than using a multimeter.
  • Relies on subjective observation, which can be inaccurate.
  • May not completely resolve underlying issues if the TPS is faulty.
  • Risk of over-adjusting and potentially damaging the TPS or throttle body.
  • It's a temporary solution at best.

Use Cases and Manufacturer Examples

This "no-multimeter" adjustment method is most applicable in older vehicles, especially those where precise TPS voltage specifications are difficult to obtain or where the TPS design allows for relatively coarse adjustment. Examples include older Jeep Cherokees (XJ), some older Toyota pickups, and certain older domestic vehicles. On newer vehicles with more sophisticated engine management systems, this method is less likely to be successful and may even cause further problems. Modern vehicles often have "drive-by-wire" systems where the throttle position is controlled electronically, and the TPS is integrated into the throttle body assembly. In these systems, attempting to manually adjust the TPS is generally not possible or advisable.

In some older Jeeps, for instance, the TPS is notoriously sensitive, and even a slight adjustment can significantly impact engine performance. Owners often resort to the trial-and-error method described above to get the engine running smoothly, especially after replacing the TPS.

Real-World Insights and Recommendations

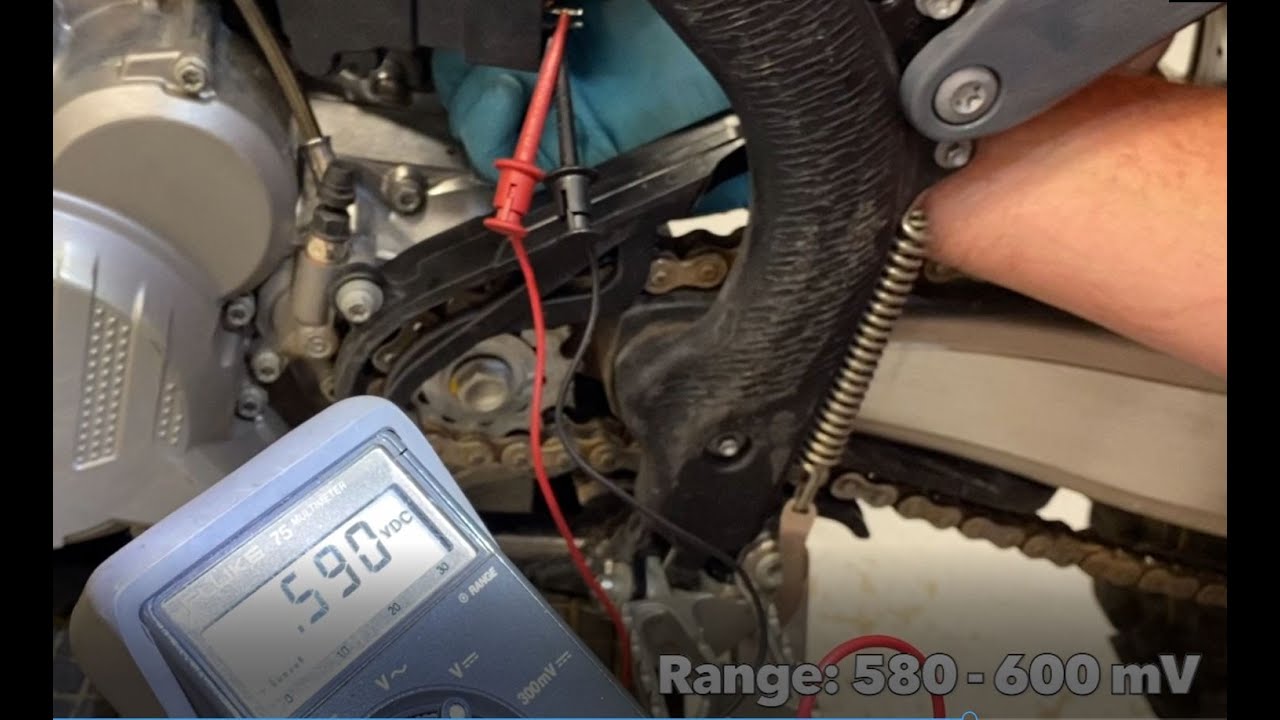

While the "no-multimeter" TPS adjustment can be a lifesaver in a pinch, it should always be considered a temporary fix. As soon as possible, you should use a multimeter to verify the TPS voltage at idle and wide-open throttle, comparing it to the manufacturer's specifications. A properly calibrated TPS is essential for optimal engine performance and fuel economy. Furthermore, if you find yourself frequently needing to adjust the TPS, it may indicate an underlying problem, such as a worn TPS, a faulty throttle body, or vacuum leaks. Address these issues to prevent future problems.

If your car uses a throttle cable, inspect it for wear and tear. A stretched cable will give you poor performance and may necessitate TPS adjustment to compensate. If your car has a "drive-by-wire" system, do not attempt this procedure, and take your vehicle to a qualified mechanic.

Finally, remember that a diagnostic scan tool is your best friend for diagnosing and troubleshooting engine problems. A scan tool can provide valuable information about TPS readings and other sensor data, helping you pinpoint the root cause of the problem.
