How To Adjust Windshield Washer Nozzle

Dealing with poorly aimed windshield washer fluid? It's a common frustration! When your washer fluid sprays too low, too high, or not at all on the windshield, it significantly hinders your visibility, especially in adverse weather conditions. Adjusting your windshield washer nozzles is a simple task that can dramatically improve your driving safety. This article will guide you through diagnosing the problem, understanding the cause, and implementing effective solutions to get your washer fluid spraying right where you need it.

Symptoms of Misaligned Windshield Washer Nozzles

Identifying the specific symptoms is the first step to solving this problem. Here's a breakdown of common signs that your windshield washer nozzles need adjustment:

Fluid spraying too low: The washer fluid lands on the hood of the car or the lower part of the windshield, failing to effectively clean the upper section.
Fluid spraying too high: The spray shoots over the roof of the car or well above the windshield, missing the target area entirely.
Uneven spray pattern: Some nozzles spray correctly while others are misdirected, resulting in an incomplete cleaning.
Weak or no spray: The fluid dribbles out weakly, or there's no spray at all, even though the washer fluid reservoir is full.
Spray directed to one side: The fluid only sprays towards the driver or passenger side, leaving the opposite side untouched.
Streaking or smearing: Even after using the windshield wipers, streaks and smears remain because the fluid isn't being distributed effectively.

Root Cause: Why Nozzles Go Out of Alignment

Several factors can contribute to misaligned windshield washer nozzles. Understanding these causes will help you prevent future issues:

Accidental bumps or impacts: Minor fender benders, car washes, or even accidental bumps while cleaning the car can knock the nozzles out of alignment.
Wear and tear: Over time, the nozzles themselves can deteriorate or become clogged, leading to changes in the spray pattern.
Clogging: Mineral deposits from hard water, soap residue, or debris can clog the nozzles, restricting the flow and altering the spray direction.
Freezing temperatures: In colder climates, water in the washer fluid lines can freeze and expand, potentially damaging or dislodging the nozzles.
Vibration: Constant vehicle vibration can gradually loosen the nozzles over time, causing them to shift position.
Poor initial installation: In some cases, the nozzles may not have been properly aligned during the manufacturing process or during a previous repair.

What Happens If You Ignore Misaligned Nozzles?

Ignoring misaligned windshield washer nozzles may seem like a minor inconvenience, but it can have significant consequences for your driving safety:

Reduced visibility: A dirty or streaked windshield severely limits your visibility, especially during rain, snow, or dusty conditions. This increases the risk of accidents.
Increased eye strain: Struggling to see through a dirty windshield can cause eye strain and fatigue, making it more difficult to concentrate on driving.
Delayed reaction time: Poor visibility can delay your reaction time in critical situations, potentially leading to collisions.
Damage to windshield wipers: Running windshield wipers on a dry or poorly cleaned windshield can cause premature wear and tear, requiring you to replace them more frequently.
Ticket or warning: In some jurisdictions, driving with obstructed vision is illegal and can result in a ticket or warning from law enforcement.

Recommended Fixes: Adjusting Your Windshield Washer Nozzles

The good news is that adjusting windshield washer nozzles is usually a straightforward process you can do yourself with a few simple tools. Here's a step-by-step guide:

Method 1: Using a Needle or Pin

Gather your tools: You'll need a small needle, a pin, or a paperclip. Safety glasses are also recommended to protect your eyes from splashing washer fluid.

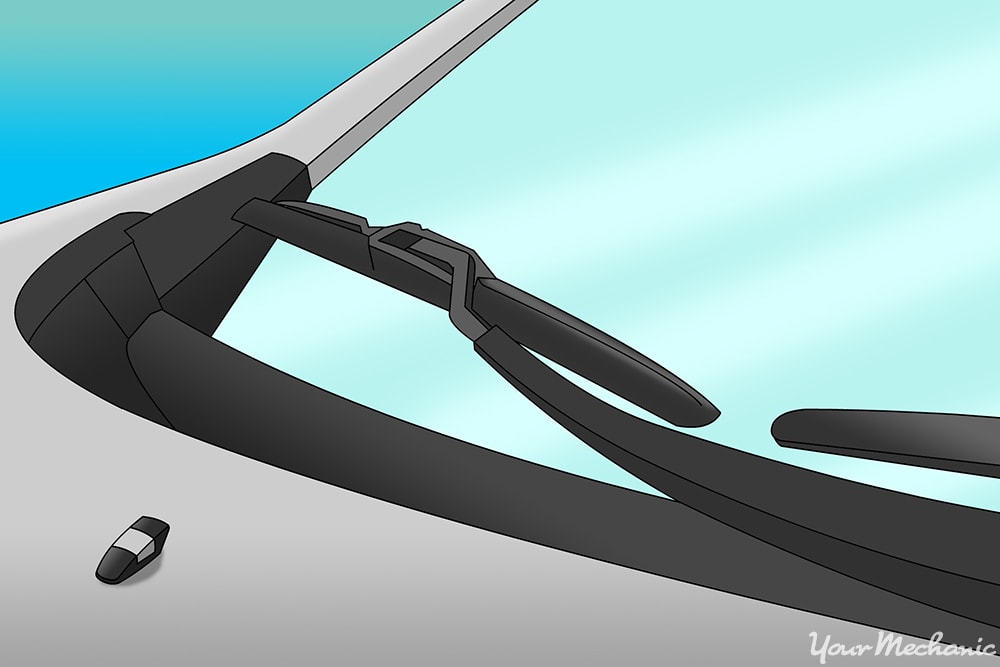

Locate the nozzles: Identify the windshield washer nozzles, usually located on the hood or near the base of the windshield.

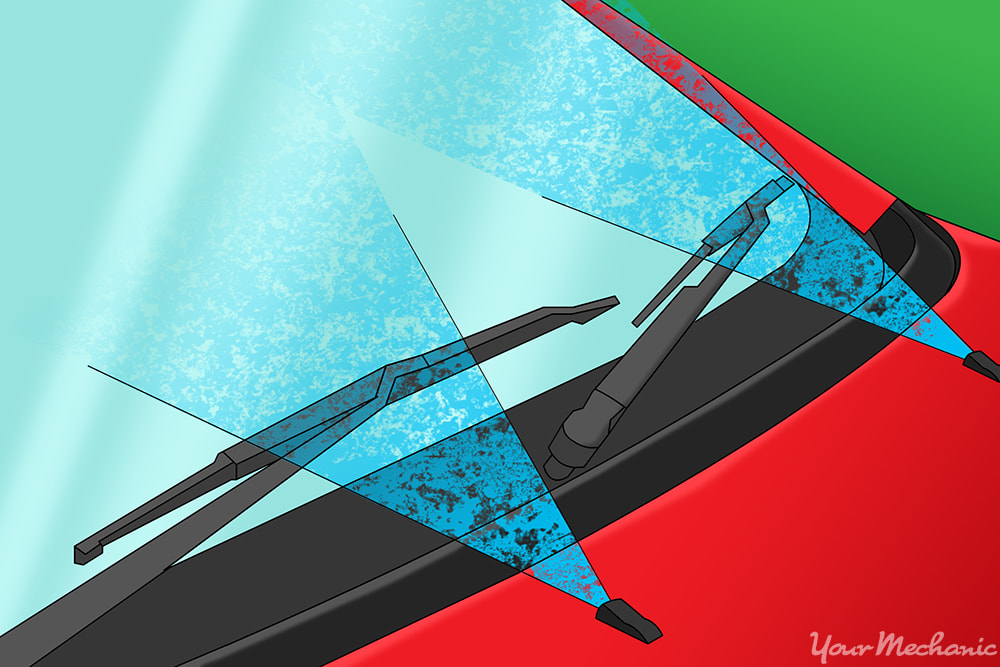

Observe the spray pattern: Activate the windshield washer and carefully observe where the fluid is spraying. This will help you determine which nozzles need adjustment and in which direction.
Insert the needle: Gently insert the needle or pin into the nozzle opening. You should feel a slight resistance.

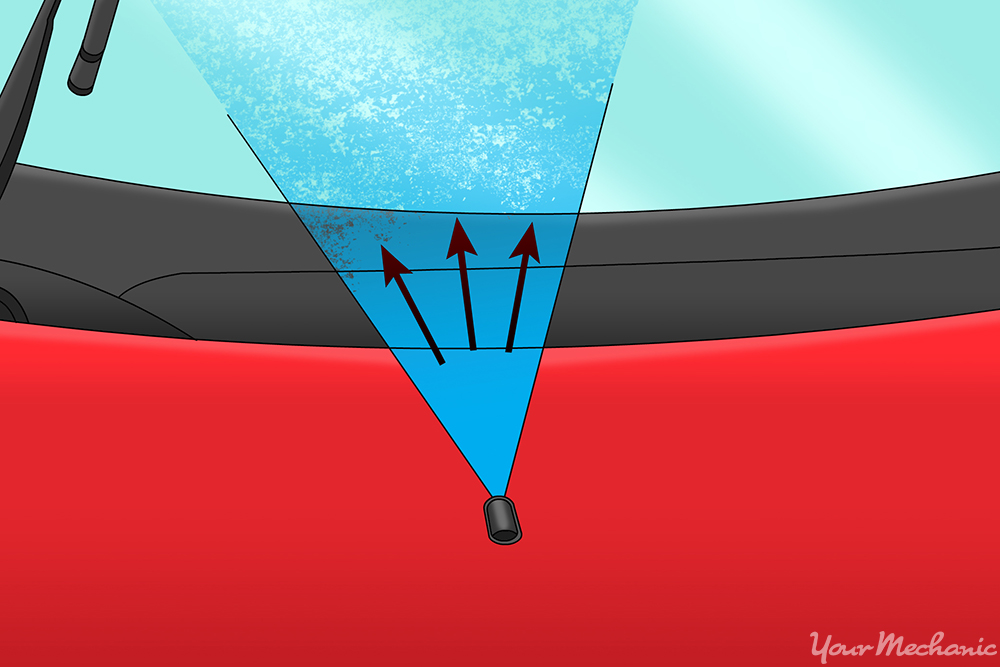

Adjust the direction: Carefully angle the needle to adjust the nozzle's direction. A slight movement can make a big difference. For example, if the spray is too low, gently push the needle upwards. If it's too far to the left, gently move the needle to the right.
Test the spray: Activate the windshield washer again to check the new spray pattern. Repeat steps 4 and 5 until the spray is directed correctly.
Repeat for all nozzles: Repeat the adjustment process for all the nozzles that need correction.

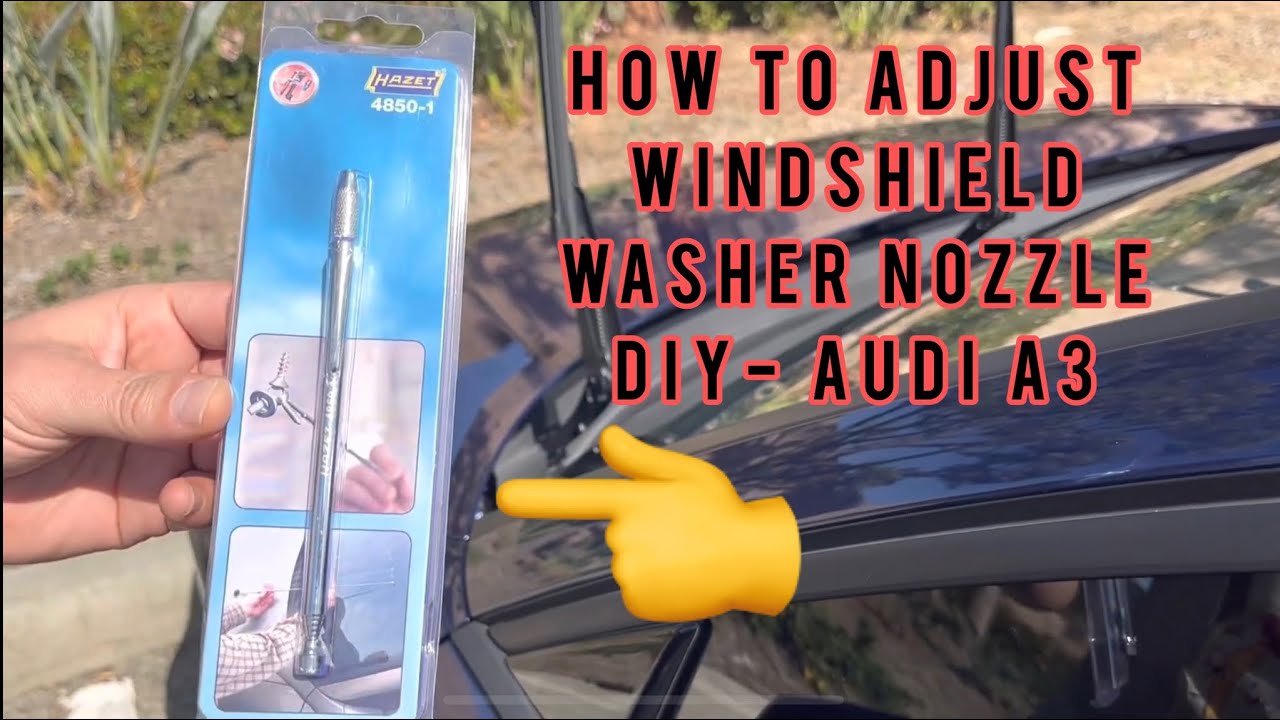

Method 2: Using a Specialized Tool (Optional)

For more precise adjustments, consider using a specialized windshield washer nozzle adjustment tool. These tools are available at most auto parts stores and provide a more comfortable and controlled way to manipulate the nozzles.

Purchase a nozzle adjustment tool: Look for a tool specifically designed for adjusting windshield washer nozzles.
Follow the tool's instructions: Each tool may have slightly different instructions, so be sure to read them carefully before proceeding.
Insert the tool: Insert the tool into the nozzle opening.
Adjust the direction: Use the tool's handle or adjustment mechanism to carefully adjust the nozzle's direction.
Test and repeat: Test the spray pattern and repeat the adjustment process until the spray is directed correctly.

Important Considerations:

Clogged nozzles: If the nozzles are clogged, try cleaning them with a small brush or compressed air before attempting to adjust them. You can also try soaking a cotton swab in white vinegar and gently cleaning the nozzle opening.

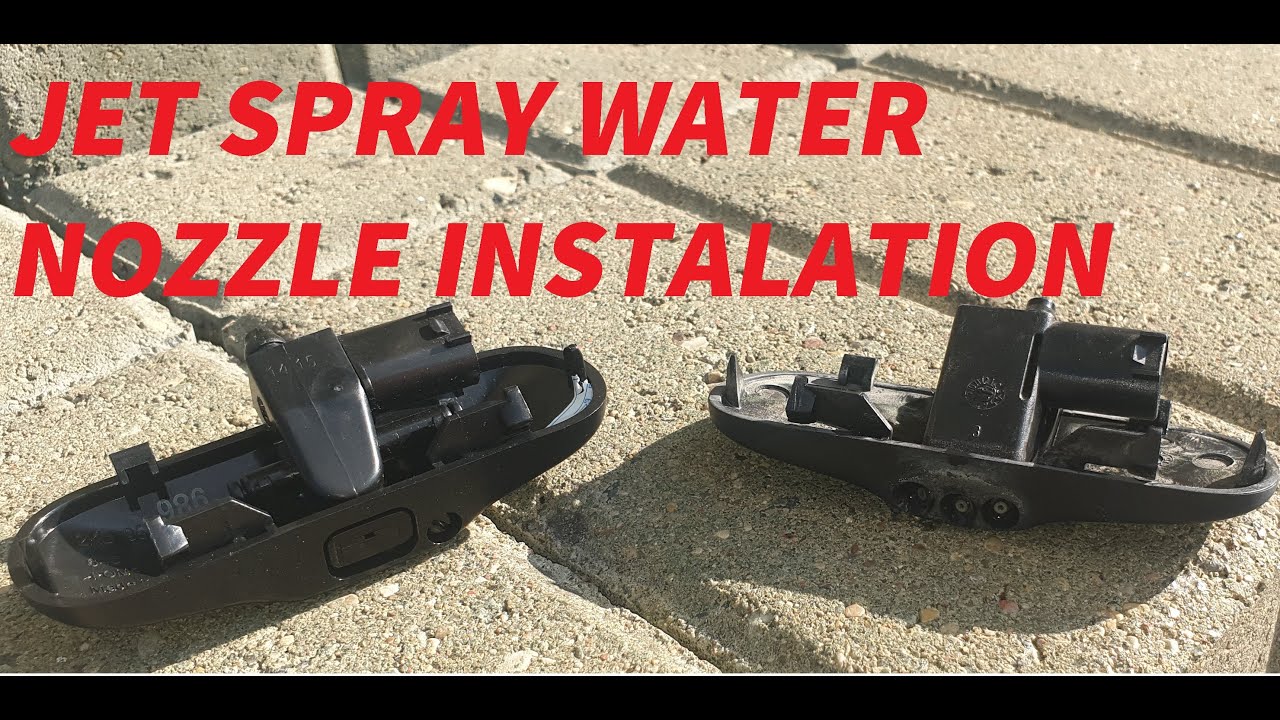

Broken nozzles: If a nozzle is cracked or broken, it will need to be replaced. Replacements are typically inexpensive and easy to install.
Washer fluid level: Ensure the windshield washer fluid reservoir is full before making any adjustments. A low fluid level can affect the spray pattern.
Check for kinks or leaks: Inspect the washer fluid lines for any kinks, leaks, or damage. Replace any damaged lines to ensure proper fluid delivery.

Cost Estimates and Shop Advice

Adjusting windshield washer nozzles is generally a free DIY task. However, if you're uncomfortable performing the adjustment yourself, or if the nozzles are damaged and need replacement, you can take your vehicle to a professional mechanic.

DIY adjustment: Free (assuming you have a needle or pin).
Nozzle replacement: Nozzle replacements typically range from $10 to $50 per nozzle, depending on the vehicle make and model. Labor costs for a mechanic to replace the nozzles would likely add another $50 to $100.
Professional adjustment: Some shops may offer windshield washer nozzle adjustment as part of a general service or inspection. Expect to pay around $30 to $60 for this service.

Shop Advice: When choosing a mechanic, look for a reputable shop with positive customer reviews and experienced technicians. Be sure to ask for a written estimate before authorizing any repairs or replacements.

Credibility: TSBs and Community Data

While there isn't a universal Technical Service Bulletin (TSB) specifically for misaligned windshield washer nozzles, many manufacturers issue TSBs related to windshield washer systems, including issues with pump failures, clogged lines, and nozzle replacements. Searching online forums and owner communities for your specific vehicle make and model can provide valuable insights into common problems and solutions related to windshield washer nozzles.

For example, some forums might highlight specific years or models that are prone to nozzle clogging due to a particular type of washer fluid recommended by the manufacturer. Others might describe the best techniques for cleaning or adjusting nozzles on a specific vehicle.

By combining this information with the advice in this article, you can effectively diagnose and resolve most windshield washer nozzle issues, ensuring clear visibility and safer driving conditions.
