How To Break In A Clutch

Proper clutch break-in is absolutely critical to the longevity and performance of any new clutch, whether it's a stock replacement or a high-performance aftermarket unit. Many enthusiasts, even those with considerable wrenching experience, underestimate the importance of this process. Skipping or rushing the break-in can lead to premature wear, slippage, chatter, and ultimately, a significantly shortened lifespan for your new clutch. This article will provide a comprehensive guide to correctly breaking in a clutch, ensuring optimal performance and maximizing your investment.

Understanding the Clutch System

Before diving into the break-in procedure, let's briefly review the fundamental components and their roles within the clutch system. The clutch assembly is the crucial link between the engine and the transmission in a manual transmission vehicle. Its primary function is to engage and disengage engine power to the transmission, allowing for smooth gear changes and preventing the engine from stalling when the vehicle comes to a stop.

Key Components:

Flywheel: A heavy, rotating disc bolted to the end of the crankshaft. It provides a friction surface for the clutch disc and helps to smooth out engine pulsations.
Clutch Disc (Friction Disc): A circular plate with friction material (similar to brake pads) on both sides. It's splined to the transmission input shaft. When engaged, it is pressed against the flywheel and pressure plate to transfer engine power.

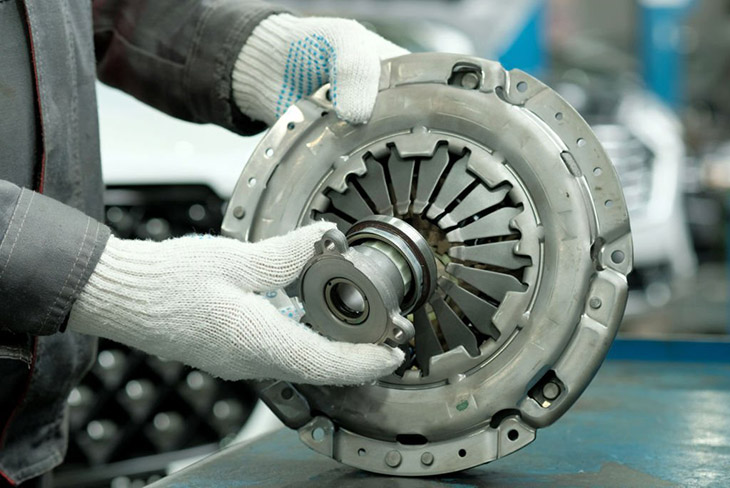

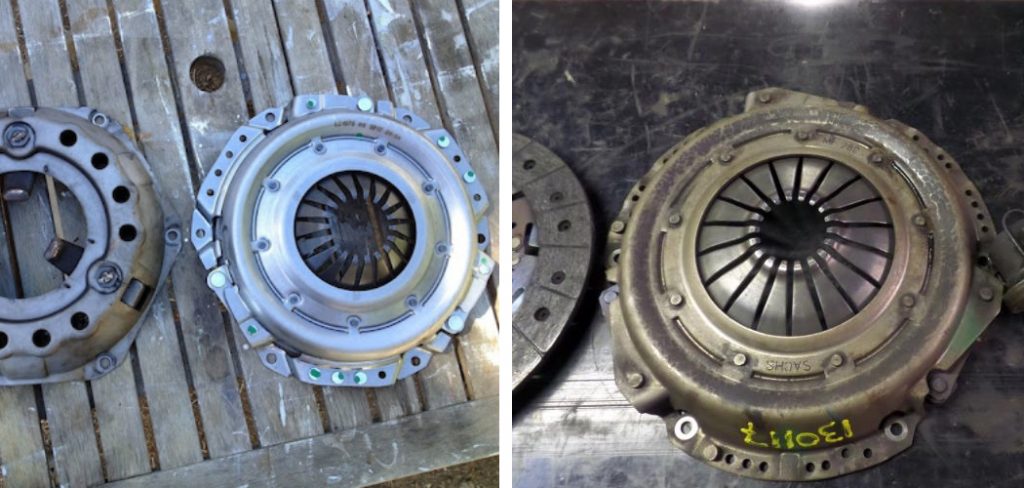

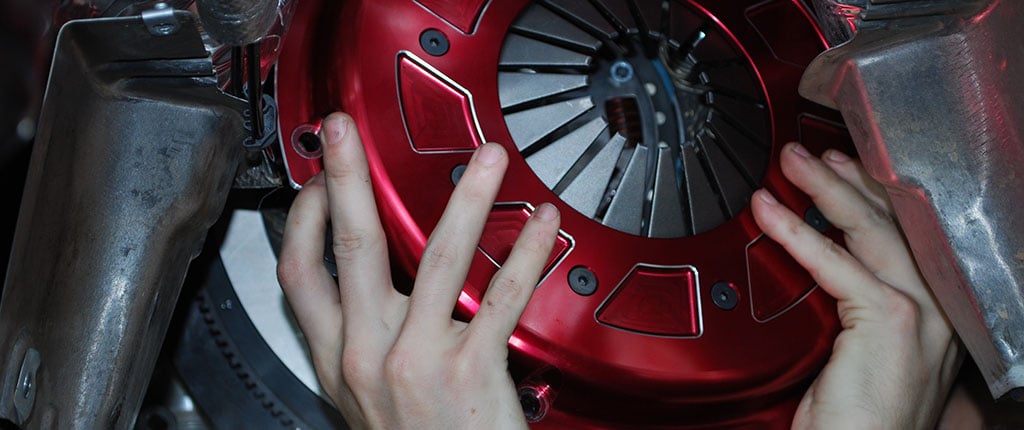

Pressure Plate: A spring-loaded mechanism that applies pressure to the clutch disc, forcing it against the flywheel. This creates the friction needed to transmit torque. Common types are diaphragm spring and coil spring pressure plates.
Throwout Bearing (Release Bearing): A bearing that presses against the pressure plate's release fingers when the clutch pedal is depressed. This disengages the clutch.
Clutch Fork (or Arm): A lever that pivots to move the throwout bearing. It's actuated by the clutch cable or hydraulic system.
Master Cylinder & Slave Cylinder (Hydraulic Clutch Systems): The master cylinder is connected to the clutch pedal and when the pedal is depressed, it pushes hydraulic fluid through a line to the slave cylinder. The slave cylinder then moves the clutch fork.

The Technical Breakdown: How a Clutch Works

The clutch operates based on the principle of friction. When the clutch pedal is released (engaged position), the pressure plate clamps the clutch disc firmly against the flywheel. The friction between these surfaces transmits the engine's rotational force (torque) to the transmission input shaft, allowing the wheels to turn. When the clutch pedal is depressed (disengaged position), the throwout bearing pushes on the pressure plate's release fingers. This relieves the clamping force, allowing the clutch disc to spin freely without transferring power. This action allows the driver to shift gears or come to a stop without stalling the engine.

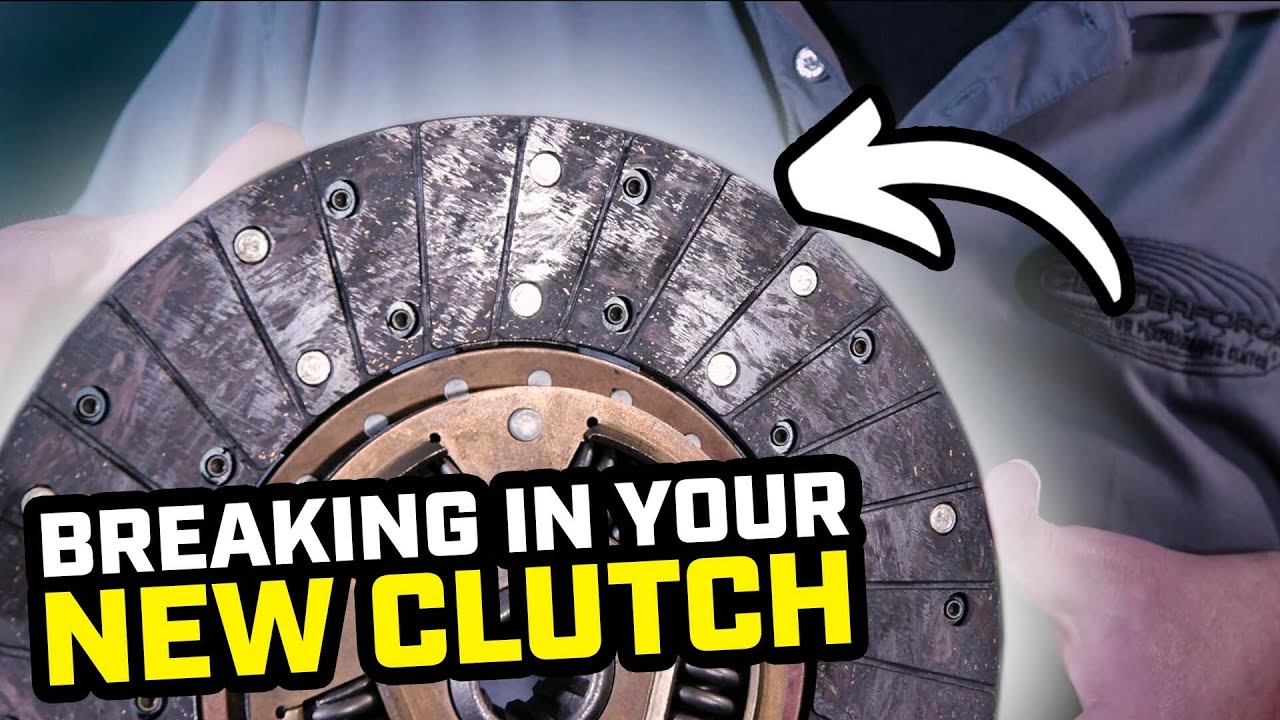

A new clutch disc has a layer of "fresh" friction material. This material, while designed for high friction, is not perfectly mated to the flywheel and pressure plate surfaces when first installed. The break-in process allows these surfaces to gradually "wear in" or conform to each other. This creates a larger, more consistent contact area, leading to better friction, smoother engagement, and improved heat dissipation.

During the break-in, the resin used in the manufacturing of the clutch disc friction material needs to be properly burned off. This resin is essentially a binding agent that helps hold the friction material together. Prematurely subjecting the clutch to high torque loads before this resin is burned off can cause glazing, where the surface of the disc becomes hard and smooth, significantly reducing its coefficient of friction. Overheating due to aggressive driving can also cause hot spots and uneven wear.

Common Issues and Maintenance Concerns

A properly broken-in clutch is less susceptible to several common problems:

Clutch Slippage: Occurs when the clutch disc cannot maintain adequate friction against the flywheel and pressure plate, resulting in a loss of power transfer. This is often caused by glazing, overheating, or insufficient clamping force.
Clutch Chatter: A shuddering or jerky sensation during clutch engagement. This can be caused by uneven wear, hot spots, or contamination of the friction surfaces.
Premature Wear: Aggressive driving or improper break-in can significantly accelerate wear on the clutch disc, flywheel, and pressure plate, requiring earlier replacement.
Clutch Drag: This is when the clutch disc doesn't fully disengage from the flywheel when the pedal is depressed. This can make shifting difficult and cause grinding noises.
Hydraulic System Issues (If Applicable): Check for leaks, proper fluid level, and smooth pedal feel. Bleed the system if necessary to remove air bubbles.

Regular maintenance includes checking for proper clutch pedal free play, ensuring smooth cable operation (if applicable), and periodically inspecting the hydraulic system for leaks. Avoid "riding" the clutch (resting your foot on the pedal) as this causes unnecessary wear on the throwout bearing and clutch disc.

Do's and Don'ts / Best Practices for Clutch Break-In

The following guidelines outline the recommended break-in procedure. This process may vary slightly depending on the specific clutch manufacturer's recommendations, so always consult the installation instructions provided with your new clutch.

Do's:

Start with Easy Driving: For the first 500-1000 miles (800-1600 kilometers), drive normally with moderate acceleration and deceleration. Avoid aggressive launches, high-RPM shifts, and towing heavy loads.
Vary Engine Speed: During the break-in period, try to vary your engine speed and avoid prolonged periods of cruising at a constant RPM. This helps to distribute heat and wear evenly across the clutch disc.
Smooth Shifting: Practice smooth and deliberate shifting techniques. Avoid slamming gears or dropping the clutch pedal abruptly.
Minimize Slippage: Avoid excessive clutch slippage, such as prolonged slipping while starting on a steep hill.
Use Engine Braking: Moderate engine braking can help seat the clutch disc against the flywheel.
Allow for Cooling: After a period of driving, allow the clutch to cool down completely before subjecting it to heavy loads or aggressive driving.
Listen for Unusual Noises: Pay attention to any unusual noises, such as squealing, chattering, or grinding, coming from the clutch area. These could indicate a problem.
Check for Fluid Leaks (Hydraulic Systems): Regularly inspect the master cylinder and slave cylinder for any signs of leaks.

Don'ts:

Don't Engage in Aggressive Driving: Absolutely avoid drag racing, burnouts, or other forms of abusive driving during the break-in period.
Don't Tow Heavy Loads: Towing puts excessive strain on the clutch and should be avoided during break-in.
Don't Ride the Clutch: Avoid resting your foot on the clutch pedal while driving, as this causes premature wear on the throwout bearing and clutch disc.
Don't Slip the Clutch Excessively: Minimize the amount of time you spend slipping the clutch during take-offs.
Don't Ignore Unusual Noises: If you hear any unusual noises coming from the clutch area, investigate the problem promptly.

Specific Recommendations:

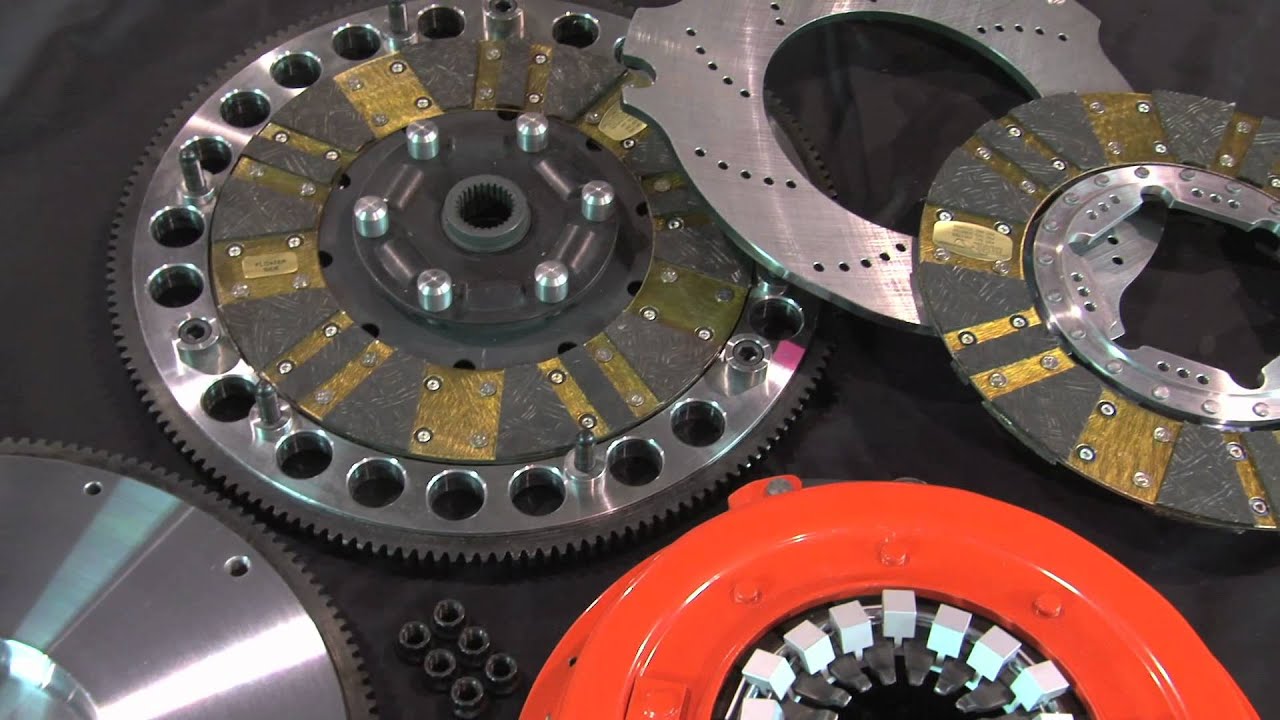

For a performance clutch, often constructed with more aggressive friction materials (e.g., ceramic, metallic), the break-in process may be even more critical and can sometimes involve a specific number of engagement/disengagement cycles. Refer to the manufacturer's instructions for specific recommendations. Some manufacturers even recommend a specific driving pattern to follow. These clutches can be less forgiving than stock clutches, making proper break-in essential for their longevity and optimal performance.

Conclusion

Breaking in a new clutch is an essential step for ensuring its long-term performance and reliability. By following the guidelines outlined in this article, you can help your new clutch achieve optimal friction, reduce the risk of premature wear, and avoid common problems such as slippage and chatter. While the temptation to unleash the full power of your vehicle may be strong, patience and careful driving during the break-in period will pay dividends in the long run. Always prioritize the manufacturer's recommendations and adapt your driving style accordingly. Taking the time to properly break in your clutch is a small investment that will save you time, money, and frustration down the road.
