How To Build Fiberglass Subwoofer Box

So, you want to build a fiberglass subwoofer enclosure for your ride? Excellent! Factory-built boxes are often a compromise – they may not fit your space perfectly, or they might not be optimized for the specific subwoofer you've chosen. Building your own fiberglass enclosure allows you to maximize your bass response, create a seamless integration into your vehicle's interior, and, let's be honest, show off some serious DIY skills. This article will guide you through the process, assuming you have some basic understanding of automotive modifications and using tools. We'll cover everything from planning to finishing, ensuring you end up with a professional-sounding and aesthetically pleasing result.

Why Fiberglass for Subwoofer Enclosures?

Before we dive into the construction process, let's quickly discuss why fiberglass is a popular choice for subwoofer enclosures. The core reason boils down to formability and rigidity. Unlike wood, fiberglass can be molded into complex shapes, allowing you to take advantage of every nook and cranny in your vehicle's trunk or cabin. This results in a larger internal volume, which is crucial for achieving optimal low-frequency response. Furthermore, once cured, fiberglass becomes incredibly stiff, minimizing unwanted vibrations and resonances that can muddy the sound. Think of it this way: a wobbly enclosure wastes energy and distorts the bass. Fiberglass, done right, is strong and silent.

The Foundation: Understanding Subwoofer Enclosure Theory

Before you start slinging resin, it's crucial to understand the basics of subwoofer enclosure design. The internal volume of the enclosure is the most critical factor, as it directly affects the subwoofer's performance. Different subwoofers require different internal volumes to operate optimally. Consult the subwoofer's Thiele/Small parameters, specifically Vas (Equivalent Volume of Air Suspension) and Qts (Total Q Factor), to determine the ideal enclosure volume. Many manufacturers provide recommended box volumes for sealed and ported enclosures. Online calculators can also help you determine the optimal volume based on your subwoofer's specifications.

Speaking of sealed vs. ported, that's another decision you'll need to make. A sealed enclosure provides a tighter, more accurate bass response but may not be as loud as a ported enclosure for the same amplifier power. A ported enclosure (also known as a vented enclosure) uses a tuned port to increase output at specific frequencies, resulting in a louder and more efficient system. However, ported enclosures are more complex to design and build, as the port's dimensions directly impact the tuning frequency. For your first fiberglass project, a sealed enclosure is generally recommended due to its simpler construction and more forgiving nature.

Building Your Fiberglass Subwoofer Enclosure: A Step-by-Step Guide

1. Planning and Preparation: The Blueprint for Success

This is arguably the most crucial step. Measure the available space in your vehicle meticulously. Consider any obstructions, such as spare tire wells, trunk hinges, or other components. Create a detailed sketch or use 3D modeling software to visualize the enclosure's shape and dimensions. Remember to factor in the subwoofer's mounting depth and any necessary clearances.

Next, gather your materials. You'll need:

• Masking tape: Lots of it! Protects your vehicle's interior.
• Aluminum foil or plastic sheeting: To create a release barrier.
• Fleece or non-stretch fabric: This forms the initial shape of the enclosure. Microfleece is a popular choice.
• Fiberglass resin: Choose a marine-grade resin for durability.
• Fiberglass mat or cloth: Reinforces the resin. Chopped strand mat is easier for complex shapes, while woven cloth provides greater strength.
• Hardener (catalyst): Mixes with the resin to initiate the curing process.
• Mixing cups and sticks: For accurately measuring and mixing resin and hardener.
• Brushes or rollers: For applying resin. Cheap chip brushes are ideal.
• Sandpaper (various grits): For smoothing and finishing.
• Body filler (bondo): To fill imperfections.
• Subwoofer terminal cup: For connecting speaker wires.
• Speaker wire: To connect the subwoofer to the amplifier.
• Fasteners: Screws or bolts to secure the subwoofer to the enclosure.
• Safety gear: Respirator, gloves, and eye protection are essential when working with fiberglass resin.

2. Creating the Mold: Shaping Your Vision

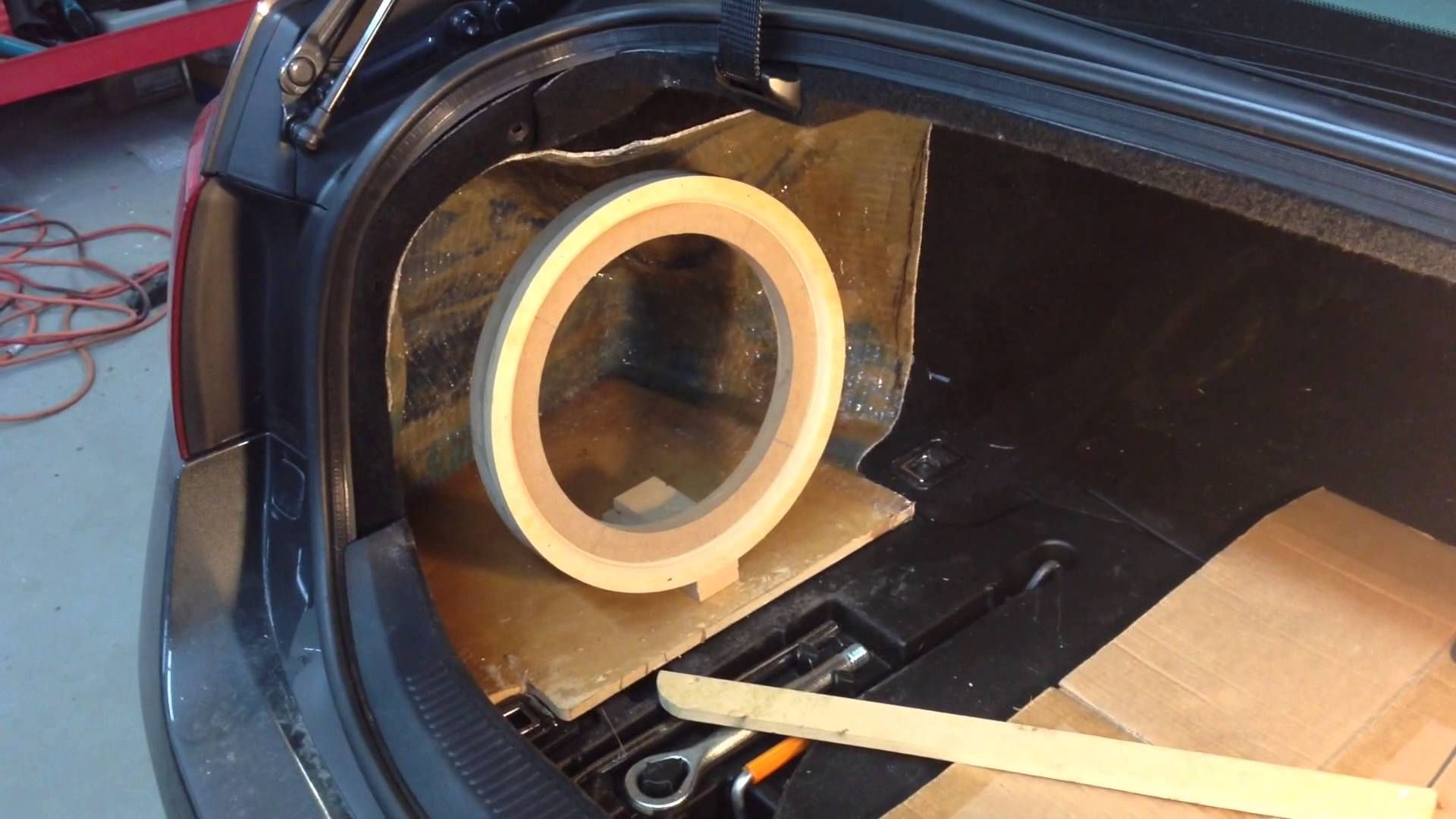

The mold is the foundation of your fiberglass enclosure. Start by thoroughly masking off the area where the enclosure will be located. Use multiple layers of masking tape to protect the vehicle's paint and interior. Next, cover the taped area with aluminum foil or plastic sheeting. This will prevent the fiberglass from sticking to the vehicle.

Now, stretch the fleece or fabric over the area, creating the desired shape of the enclosure. Secure the fabric in place with staples or tape. It's okay if the fabric isn't perfectly smooth at this stage; the resin will harden it into the final shape. The key is to establish the overall contours of the enclosure.

3. Laying the Fiberglass: Building Strength and Structure

This is where the magic happens. Working in a well-ventilated area, mix the fiberglass resin with the hardener according to the manufacturer's instructions. Accurate mixing is crucial for proper curing. Apply a thin layer of resin to the fabric, saturating it completely. Then, apply the fiberglass mat or cloth, pressing it firmly into the resin. Add more resin to fully wet out the fiberglass. Repeat this process, layering the fiberglass until you achieve the desired thickness. 3-4 layers are usually sufficient for a subwoofer enclosure.

Allow the fiberglass to cure completely. This may take several hours or even overnight, depending on the resin and temperature. Once cured, the fiberglass will be hard and rigid. Carefully remove the mold from the vehicle. It may require some prying and persuasion.

4. Finishing and Refinement: Achieving a Professional Look

Now that you have the basic fiberglass shell, it's time to refine the shape and smooth out any imperfections. Use sandpaper to smooth the surface and remove any rough edges. Apply body filler (bondo) to fill any dents, voids, or uneven areas. Sand the body filler smooth once it has cured.

Cut out the hole for the subwoofer using a jigsaw or rotary tool. Test-fit the subwoofer to ensure it fits properly. Install the subwoofer terminal cup and wire the subwoofer.

Finally, paint or carpet the enclosure to match your vehicle's interior. Apply multiple coats of paint or use a high-quality carpet adhesive. Once the paint or carpet is dry, install the subwoofer and secure it with screws or bolts. You now have a custom-built fiberglass subwoofer enclosure that not only sounds great but also looks like it belongs in your vehicle.

Common Issues and Maintenance Concerns

• Resin not curing properly: This is usually caused by incorrect mixing ratios or insufficient hardener. Always follow the manufacturer's instructions carefully.
• Air bubbles in the fiberglass: Work the resin thoroughly into the fiberglass to remove air bubbles. You can also use a bubble roller to help remove trapped air.
• Cracks in the fiberglass: Cracks can occur if the fiberglass is too thin or if the enclosure is subjected to excessive stress. Reinforce the weak areas with additional layers of fiberglass.
• Resin odors: Fiberglass resin can have a strong odor. Work in a well-ventilated area and wear a respirator to minimize exposure.

Do's and Don'ts / Best Practices

Do's:

• Do wear proper safety gear, including a respirator, gloves, and eye protection.
• Do work in a well-ventilated area.
• Do use high-quality materials.
• Do measure accurately and plan carefully.
• Do take your time and be patient.

Don'ts:

• Don't rush the process.
• Don't skimp on safety gear.
• Don't use excessive amounts of resin.
• Don't work in direct sunlight or extreme temperatures.
• Don't be afraid to ask for help if you get stuck.

Conclusion

Building a fiberglass subwoofer enclosure is a challenging but rewarding project. It requires patience, attention to detail, and a willingness to learn. However, the results are well worth the effort. A custom-built fiberglass enclosure can provide superior sound quality, a perfect fit, and a unique aesthetic that sets your vehicle apart. If you're an experienced DIYer with a passion for audio, I highly recommend giving it a try. Start with a simple sealed enclosure and gradually work your way up to more complex designs. With the right tools, materials, and techniques, you can create a truly impressive subwoofer system that will impress your friends and neighbors (without disturbing them too much, of course!). Remember to prioritize safety and consult with experienced professionals if you have any questions or concerns. Good luck, and happy building!
