How To Bypass A Fuel Pump Relay

So, your engine's cranking, but refusing to fire. You've checked the basics – battery, spark plugs – and suspicion is now falling on the fuel system. Specifically, the fuel pump. But how do you quickly determine if a faulty fuel pump relay is the culprit, and, more importantly, how can you bypass it to get back on the road (or at least, to the shop)? Let's dive into the mechanics and potential solutions.

The Stuck-in-the-Middle Scenario: Why Bypass?

Imagine a relay as a gatekeeper to the fuel pump. It stands between the battery and the pump itself. When all is well, the gate opens, allowing power to flow and the fuel pump to do its job. But, just like any mechanical or electrical component, relays can fail. Contacts can become corroded, the coil can burn out, or the internal components can simply give up. And when that happens, your fuel pump gets no power, and your engine gets no fuel.

Bypassing the fuel pump relay isn't a long-term fix. It's a diagnostic tool and a *temporary* measure. It allows you to:

• Verify the fuel pump is functional. If bypassing the relay makes the fuel pump run, you know the relay is the problem.
• Move the vehicle in an emergency. Stranded on the side of the road? A temporary bypass might be enough to get you to a safer location or a repair shop.

How the Fuel Pump Relay System Works: A Mechanical Breakdown

The Relay: An Electromechanical Switch

At its core, a fuel pump relay is an electromagnetic switch. It consists of:

• Coil: A wire wrapped around an iron core. When energized with a small current (from the ignition switch or ECU), it creates a magnetic field.
• Contacts: A set of electrical contacts – usually one normally open (NO) and one normally closed (NC). The NO contact is the one that allows power to flow to the fuel pump when the relay is activated.
• Spring: This spring returns the contacts to their default position (NO) when the coil is de-energized.

Here's the sequence of operation:

1. The ignition switch is turned to the "on" position.
2. The engine control unit (ECU) sends a small current to the relay coil. In some vehicles, the ignition switch itself energizes the relay directly.
3. The coil becomes energized, creating a magnetic field.
4. The magnetic field pulls the movable contact arm, closing the NO contact.
5. This completes the circuit between the battery and the fuel pump, supplying it with power.
6. The fuel pump runs, providing fuel to the engine.
7. When the ignition is turned off, the ECU cuts power to the relay coil.
8. The magnetic field collapses, and the spring returns the contacts to their open position, cutting power to the fuel pump.

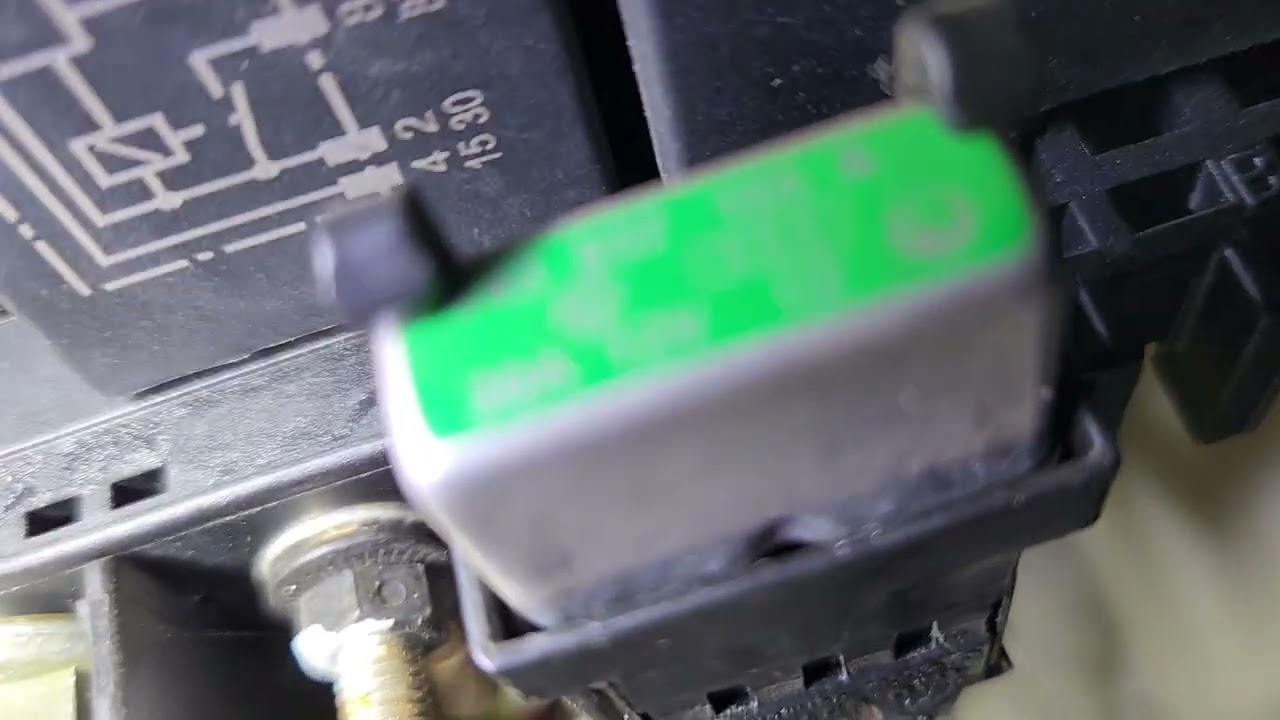

Locating the Fuel Pump Relay

The location of the fuel pump relay varies depending on the make and model of the vehicle. It's usually found in one of these locations:

• Under the hood: In a fuse and relay box near the engine.
• Under the dashboard: In a fuse and relay box inside the cabin.
• In the trunk: Sometimes, especially in older models, you might find it in the trunk near the fuel tank.

Consult your vehicle's owner's manual or a repair manual to find the exact location of the relay. The relay is usually labeled, but if not, you can often identify it by its physical size and shape. It's typically a standard automotive relay.

Bypassing the Fuel Pump Relay: The How-To

Disclaimer: Proceed with caution! Bypassing the fuel pump relay can be dangerous if done incorrectly. Ensure the ignition is OFF before attempting any bypass. This information is provided for educational purposes only. Always consult a qualified mechanic for professional diagnosis and repair.

There are a couple of methods to bypass the relay:

Method 1: The Jumper Wire (Most Common)

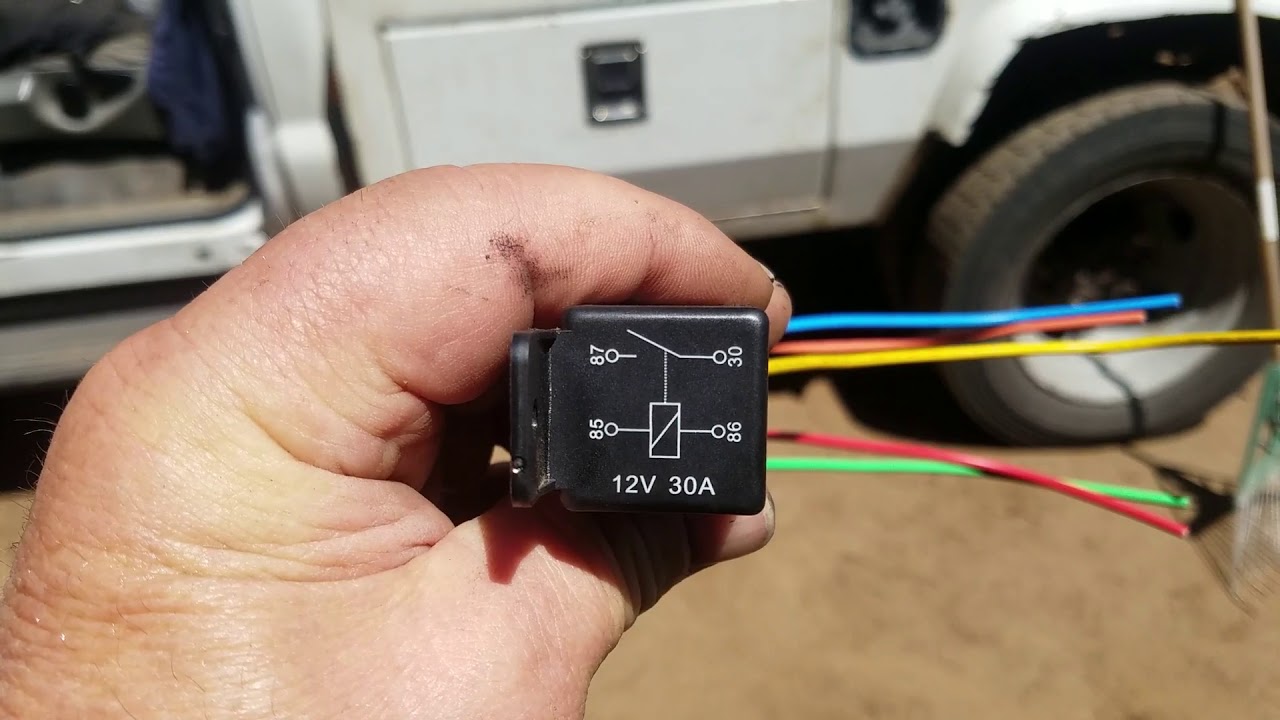

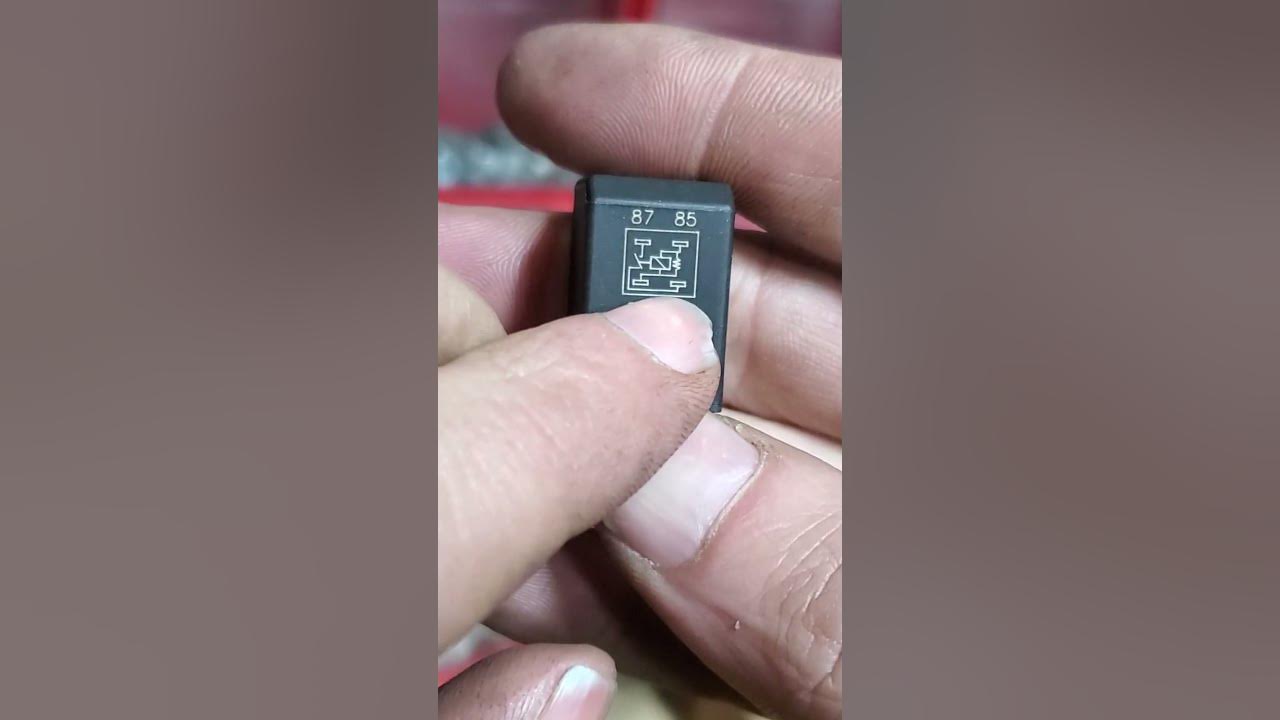

1. Identify the Relay Pins: Remove the fuel pump relay from its socket. Look at the bottom of the relay; you'll see numbers next to each pin (typically 30, 85, 86, and 87). These numbers correspond to specific functions. Find a wiring diagram for your specific vehicle if you're unsure.
2. Locate the Power and Fuel Pump Pins:
   • Pin 30: This is usually the power supply from the battery (often fused).
   • Pin 87: This is the output to the fuel pump.

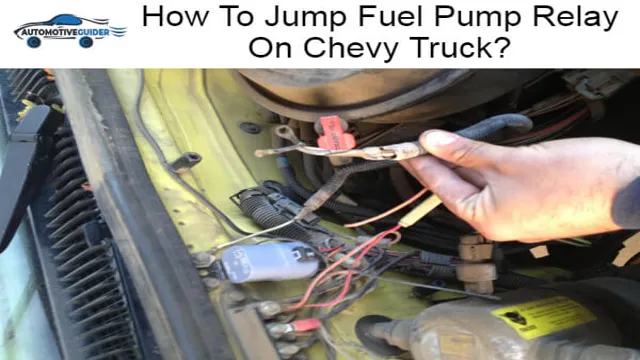

3. Insert the Jumper Wire: Use a short length of insulated wire (12-14 gauge is recommended) with spade connectors. Carefully insert the spade connectors into the pin 30 and pin 87 slots in the relay socket. Do not force them! Ensure a snug and secure connection.
4. Listen for the Fuel Pump: Turn the ignition key to the "on" position (but don't start the engine). You should hear the fuel pump prime (a whirring sound coming from near the fuel tank). If you hear the pump, it's likely the relay is faulty.
5. Remove the Jumper: Once you've confirmed the fuel pump is working, *immediately* remove the jumper wire. Leaving it connected for an extended period can drain the battery or potentially damage the fuel pump.

Method 2: The Neighboring Relay Swap (Sometimes Possible)

Some vehicles use identical relays for multiple functions (e.g., horn, lights, etc.). If the fuel pump relay is the same type as another relay, you can temporarily swap them to see if the fuel pump starts working. This is a quicker and easier method, but only works if you have a compatible relay available.

1. Locate Identical Relays: Identify another relay in the fuse box that is physically identical to the fuel pump relay. Consult your owner's manual to determine the function of each relay.
2. Swap the Relays: With the ignition OFF, carefully remove both relays and swap their positions.
3. Test: Turn the ignition to the "on" position and listen for the fuel pump priming. If the pump runs, the original fuel pump relay is likely faulty.
4. Return Relays: Regardless of the outcome, return the relays to their original positions *after* testing to avoid compromising other vehicle systems (like the horn).

Pros and Cons of Bypassing

Pros:

• Quick Diagnosis: Fast way to determine if the relay is the problem.
• Emergency Mobility: Allows temporary operation to move the vehicle.
• Cost-Effective Initial Check: Avoids immediately replacing the fuel pump unnecessarily.

Cons:

• Safety Risks: Incorrect wiring can damage the fuel system or cause a fire.
• Temporary Solution: It's not a permanent fix; the relay needs to be replaced.
• Potential for Damage: Over-running the fuel pump can cause it to overheat. Never leave the bypass connected longer than necessary.
• Circumvents Safety Features: Bypassing the relay disables any safety interlocks that would normally shut off the fuel pump in an accident.

Real-World Examples and Manufacturer Considerations

Many vehicles have used variations of this relay system for decades. For instance:

• Ford: Older Ford trucks and Mustangs often used a fuel pump relay located in the engine compartment fuse box. These were prone to failure, especially in environments with high humidity.
• GM: General Motors vehicles, especially in the late 90s and early 2000s, sometimes suffered from relay contact corrosion, leading to fuel pump issues.
• Toyota/Lexus: While generally reliable, Toyota vehicles can also experience fuel pump relay failures, particularly in high-mileage applications.

Modern vehicles are increasingly moving towards more sophisticated electronic fuel pump control systems. Some vehicles use a fuel pump control module (FPCM) that regulates fuel pump speed based on engine demand. In these systems, the relay might still be present, but the bypass procedure might be different and potentially more complex. Always consult the vehicle's service manual for specific instructions.

Insights and Recommendations

Bypassing the fuel pump relay is a valuable troubleshooting technique. However, it's crucial to understand the risks involved and to proceed with caution. Always prioritize safety and consult a qualified mechanic for professional diagnosis and repair.

Here are some additional recommendations:

• Use a Fused Jumper: For added safety, use a jumper wire with an inline fuse (e.g., a 10-amp fuse). This will protect the fuel pump from over-current if there's a short circuit.
• Carry Spare Relays: Consider carrying a spare fuel pump relay in your vehicle, especially if you're planning a long trip. Automotive relays are relatively inexpensive and can save you from being stranded.
• Consider Professional Assistance: If you're not comfortable working with electrical systems, don't hesitate to seek professional help. A qualified mechanic can diagnose the problem accurately and perform the necessary repairs safely.

Ultimately, bypassing the fuel pump relay is a short-term solution. Replacing the faulty relay with a new one is essential for restoring the vehicle's fuel system to its proper operating condition and ensuring safe and reliable operation.
