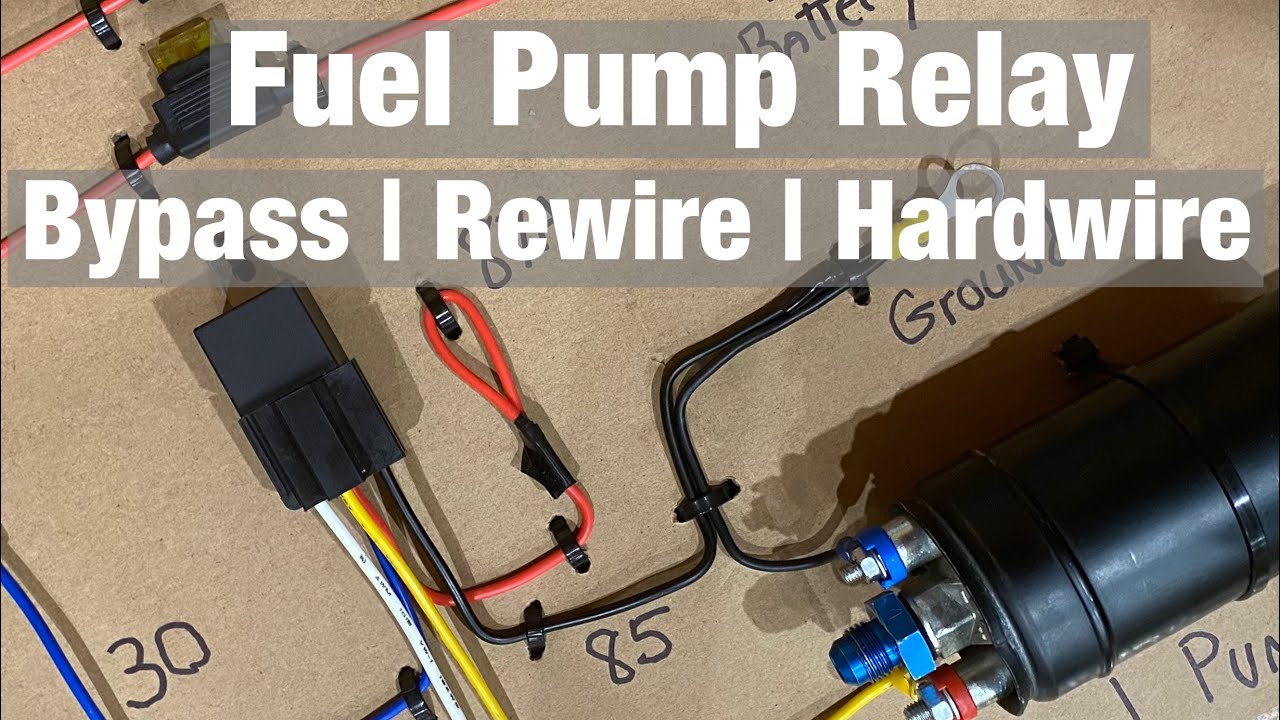

How To Bypass Fuel Pump Relay

Let's talk about bypassing the fuel pump relay. It's a trick every seasoned DIY mechanic should have in their back pocket. Whether you're diagnosing a starting issue, performing a fuel system flush, or dealing with a relay failure on the road, knowing how to manually activate your fuel pump can save you time, money, and a whole lot of frustration.

Why Bother Bypassing?

Think about it: you're stranded, your engine cranks but doesn't start, and you suspect a faulty fuel pump relay. You could call for a tow, wait for roadside assistance, and potentially face a hefty repair bill. Or, you could quickly bypass the relay, confirm your fuel pump is working, and maybe even limp the car home for a proper fix. This method is also incredibly useful when you're working on the fuel system and need to bleed the lines or check fuel pressure without running the engine.

The Internal Combustion Engine and Fuel Delivery: A Quick Recap

To understand the bypass, let's quickly review the basics of fuel delivery. The heart of the system is, of course, the internal combustion engine. This beast needs three key ingredients to run: air, fuel, and spark. We're focusing on the fuel part. In most modern vehicles, an electric fuel pump, usually located inside the fuel tank, draws fuel from the tank and sends it through a fuel filter and then to the fuel rail. The fuel rail is a distribution manifold that supplies pressurized fuel to the fuel injectors. These injectors then spray a precisely metered amount of fuel into the engine's cylinders (either directly or into the intake manifold, depending on the vehicle's fuel injection system) for combustion.

The Electronic Control Unit (ECU), also known as the engine control module (ECM) or powertrain control module (PCM), is the brain of the operation. It monitors various sensors throughout the engine and controls the fuel pump via – you guessed it – the fuel pump relay.

Role of the Fuel Pump Relay

The fuel pump relay is an electromagnetic switch. It's a simple but crucial component. The ECU sends a small signal to the relay, which energizes a coil. This coil then creates a magnetic field, pulling a contact closed. This closed contact completes a higher-current circuit, providing power directly from the battery to the fuel pump. Why not directly connect the ECU to the fuel pump? Because the fuel pump draws a considerable amount of current. Directly routing that much current through the ECU would likely damage its sensitive electronics. The relay acts as an intermediary, allowing the ECU to control a high-current device with a low-current signal.

Bypassing the Fuel Pump Relay: The Technical Breakdown

Now, the good stuff. Here's how to bypass that relay, but always remember to disconnect the negative terminal of your battery when working with electrical components in your car.

Locate the Fuel Pump Relay: This is usually found in the under-hood fuse box or sometimes under the dashboard. Consult your car's repair manual or wiring diagram to pinpoint its exact location. The relay is usually labeled, but if not, you can identify it by looking at the wiring diagram. The fuel pump relay is typically a standard four- or five-pin relay.

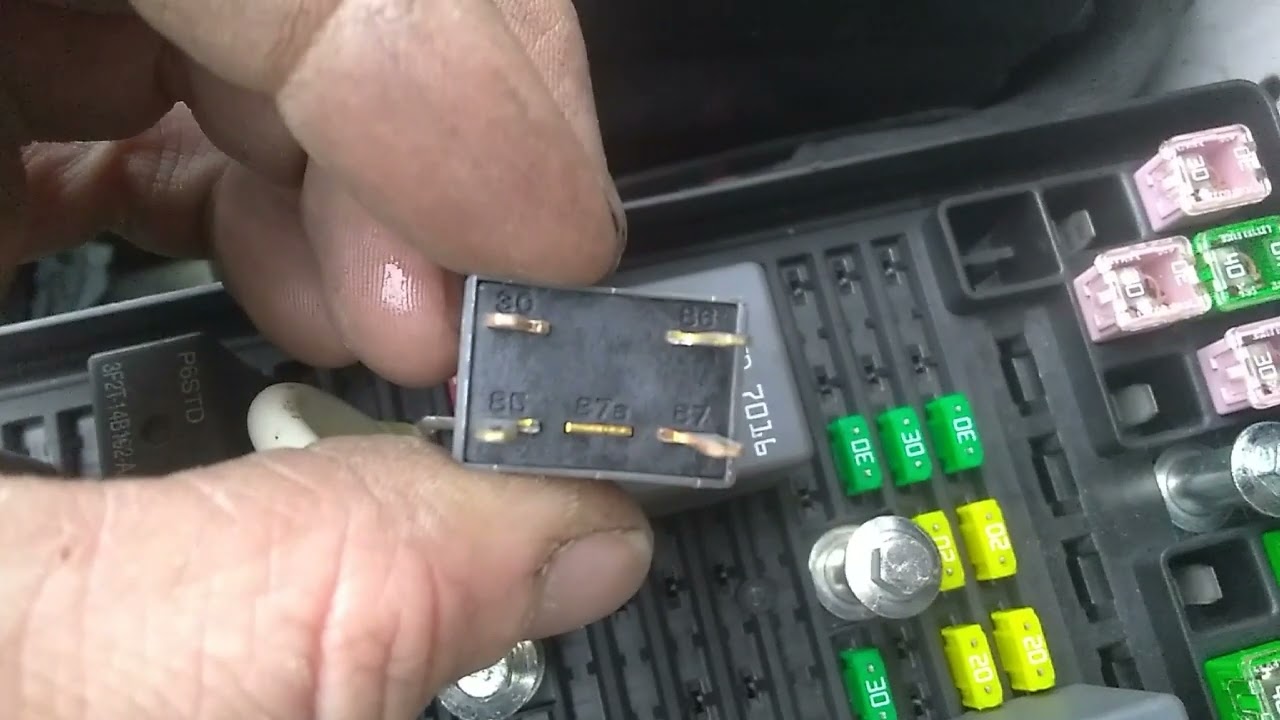

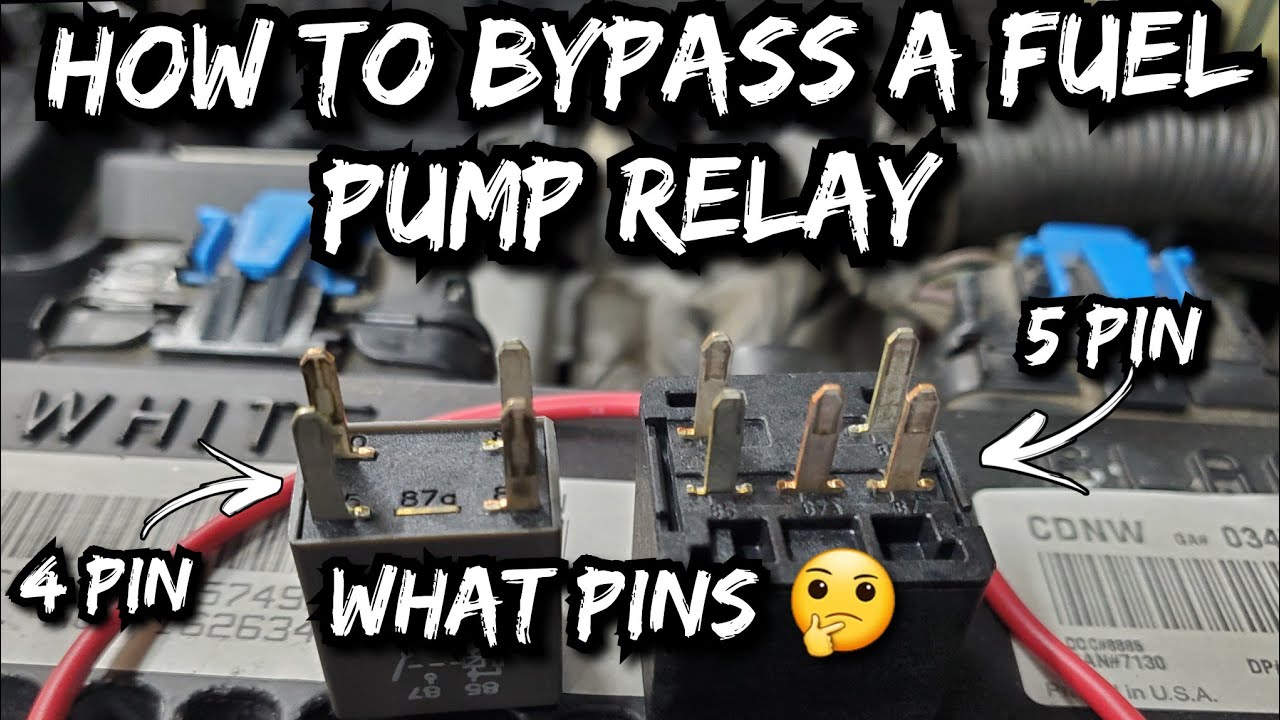

Identify the Relay Pins: Once you've found the relay, examine its terminals. Most relays have a diagram printed on the side that shows the pin layout. Look for these terminals:
- Pin 30 (or 87): This is usually the 12V+ power input, coming directly from the battery (or a fuse that's directly connected to the battery).
- Pin 85 (or 86): This is the ground connection for the relay's coil.
- Pin 86 (or 85): This is the signal input from the ECU. When the ECU wants the fuel pump to run, it sends a small voltage signal to this pin.
- Pin 87: This is the 12V+ output to the fuel pump. When the relay is activated, it connects pin 30 to pin 87, sending power to the pump.
- Pin 87a (Optional): Some relays have a fifth pin, 87a, which is normally connected to pin 30 when the relay is not activated. It's used for more complex switching applications and isn't usually relevant to the fuel pump circuit.
The Bypass Methods: There are a few ways to bypass the relay:

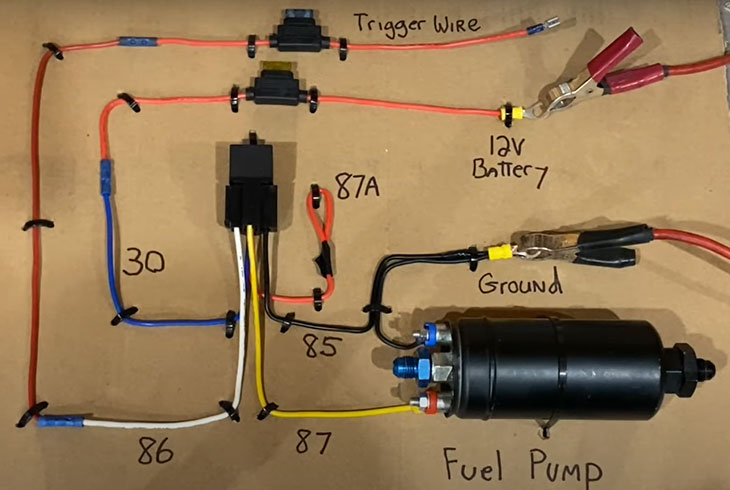

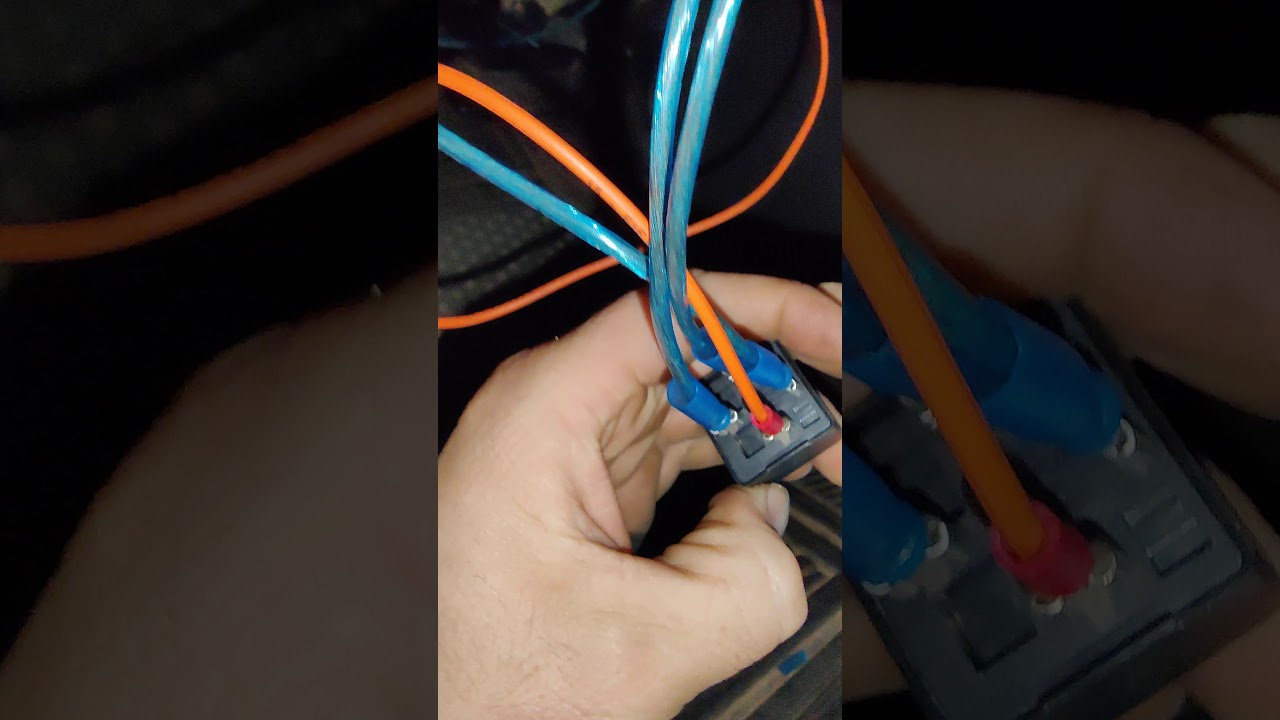

- The Jumper Wire Method (Most Common): This is the classic method. Remove the fuel pump relay from its socket. Using a fused jumper wire (absolutely critical! A 10-15 amp fuse is recommended), connect pin 30 to pin 87 in the relay socket. This directly supplies power to the fuel pump, bypassing the relay altogether. If the fuel pump is working, you should hear it prime (a whirring or buzzing sound) for a few seconds.
- Direct Power to the Fuel Pump (Advanced, Use with Caution): If you can access the fuel pump connector (often under the rear seat, with an access panel), you can directly apply 12V+ to the pump's power wire and ground to the ground wire. This method requires extreme caution. Make sure you know which wires are which before applying power. Incorrect wiring can damage the pump or other components. Also, ensure adequate ventilation, as you’re working directly with fuel lines.
- Using a Scan Tool (If Available): Many OBD-II scan tools have the ability to activate the fuel pump directly. This is the safest and most controlled method, but it requires a compatible scan tool. Consult your scan tool's manual for instructions.
Testing and Diagnosis: Once you've bypassed the relay, listen for the fuel pump to prime. If you hear it, the pump is likely functioning. Now try starting the engine. If it starts and runs, the problem is almost certainly with the fuel pump relay, its wiring, or the ECU's signal to the relay. If it still doesn't start, the problem lies elsewhere (e.g., fuel pump failure, clogged fuel filter, faulty fuel injectors, etc.).

Common Issues and Maintenance Concerns

Fuel pump relays, like any electrical component, can fail over time. Common causes of failure include:

Overheating: Relays generate heat during operation, and excessive heat can damage the internal components.
Corrosion: Moisture and contaminants can corrode the relay's terminals and internal contacts, leading to poor electrical connections.
Physical Damage: Relays can be damaged by physical shock or vibration.
Voltage Spikes: Voltage spikes in the electrical system can damage the relay's coil or other components.

Preventive maintenance can help extend the life of your fuel pump relay. Regularly inspect the relay for signs of corrosion or damage. Consider replacing the relay as part of your routine maintenance schedule (e.g., every 5-7 years). Also, ensure that your vehicle's electrical system is properly maintained to prevent voltage spikes.

Do's and Don'ts / Best Practices

Do's:

Use a Fused Jumper Wire: This is non-negotiable. A fuse protects the circuit from overcurrent, preventing damage to the fuel pump and wiring, and reducing the risk of fire.
Consult Your Vehicle's Wiring Diagram: Don't guess! Make sure you know which pins are which before bypassing the relay. Wiring diagrams are readily available online or in repair manuals.
Work in a Well-Ventilated Area: Fuel fumes are flammable and toxic. Always work in a well-ventilated area when dealing with fuel systems.
Disconnect the Negative Battery Terminal: As mentioned earlier, this minimizes the risk of electrical shorts and prevents accidental activation of the fuel pump.
Wear Safety Glasses: Protect your eyes from fuel splashes and debris.

Don'ts:

Use an Unfused Jumper Wire: This is extremely dangerous and can lead to a fire or damage to the fuel pump.
Guess at Wire Identification: Incorrect wiring can damage the fuel pump, the ECU, or other components.
Smoke or Use Open Flames: Fuel fumes are highly flammable.
Bypass the Relay for Extended Periods: This is a temporary diagnostic measure, not a permanent fix. Running the fuel pump continuously can overheat it and shorten its lifespan.
Ignore Other Potential Problems: Bypassing the relay is just one step in the diagnostic process. If the fuel pump works when bypassed but still doesn't run normally, investigate the relay itself, its wiring, and the ECU's signal to the relay.

Conclusion

Bypassing the fuel pump relay is a valuable troubleshooting technique for experienced DIY mechanics. It allows you to quickly determine if the fuel pump is functioning and helps narrow down the potential causes of a starting problem. However, always prioritize safety and follow best practices. Use a fused jumper wire, consult your vehicle's wiring diagram, and work in a well-ventilated area. If you're not comfortable working with electrical systems or fuel lines, it's best to consult a qualified mechanic.

Remember, bypassing the relay is a temporary diagnostic tool. If you find that the fuel pump relay is faulty, replace it with a new one as soon as possible. A properly functioning fuel delivery system is essential for reliable engine operation.
