How To Bypass Mass Air Flow Sensor

The dreaded check engine light illuminates, your engine stumbles, and a diagnostic scan points to a faulty Mass Air Flow (MAF) sensor. Replacing it is often the recommended (and correct) course of action. But what if you're in a pinch? What if you're curious about how these systems can be circumvented, even temporarily? Let's delve into the controversial and often misunderstood world of bypassing a MAF sensor.

The Problem: A Gasping Engine

Imagine your engine as a runner. To perform optimally, it needs a precise balance of oxygen and fuel. The MAF sensor is like the runner's breathing coach, meticulously measuring the amount of air entering the engine so the engine control unit (ECU) can calculate the appropriate amount of fuel to inject. A faulty MAF sensor throws this balance off. It might underreport the airflow, causing the engine to run lean (too much air, not enough fuel), leading to hesitation, poor acceleration, and potentially overheating. Or, it might overreport, resulting in a rich condition (too much fuel, not enough air), leading to poor fuel economy, black smoke, and potential catalytic converter damage. The goal of any "bypass" is to provide the ECU with a usable, albeit potentially inaccurate, signal or to work around the need for that signal entirely.

Understanding the MAF Sensor System

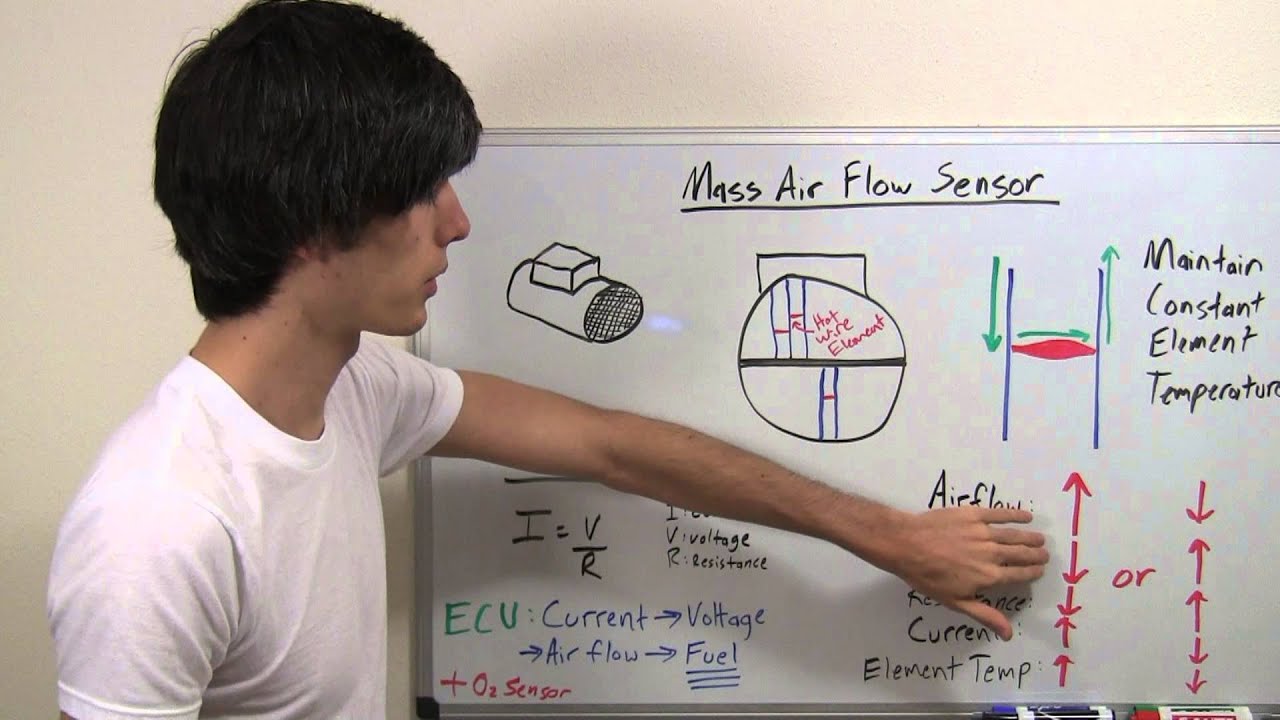

Before attempting any bypass, it's crucial to understand how the MAF sensor actually works. Most modern vehicles employ a hot-wire MAF sensor. This sensor contains a small, heated wire or film element placed in the intake airstream. As air flows across the element, it cools down. The ECU then measures the current required to maintain the element at a constant temperature. The more airflow, the more current is required, and this current reading is translated into a mass airflow reading (grams per second, for example). This reading is sent to the ECU as a voltage signal.

Some older vehicles use a vane-meter MAF sensor. This type uses a spring-loaded vane that deflects in proportion to the airflow. The vane is connected to a potentiometer (a variable resistor), and the ECU reads the resistance value to determine airflow. Vane-meter MAFs are less common now, but the underlying principle remains the same: measure airflow to control fuel delivery.

Mechanical Setup

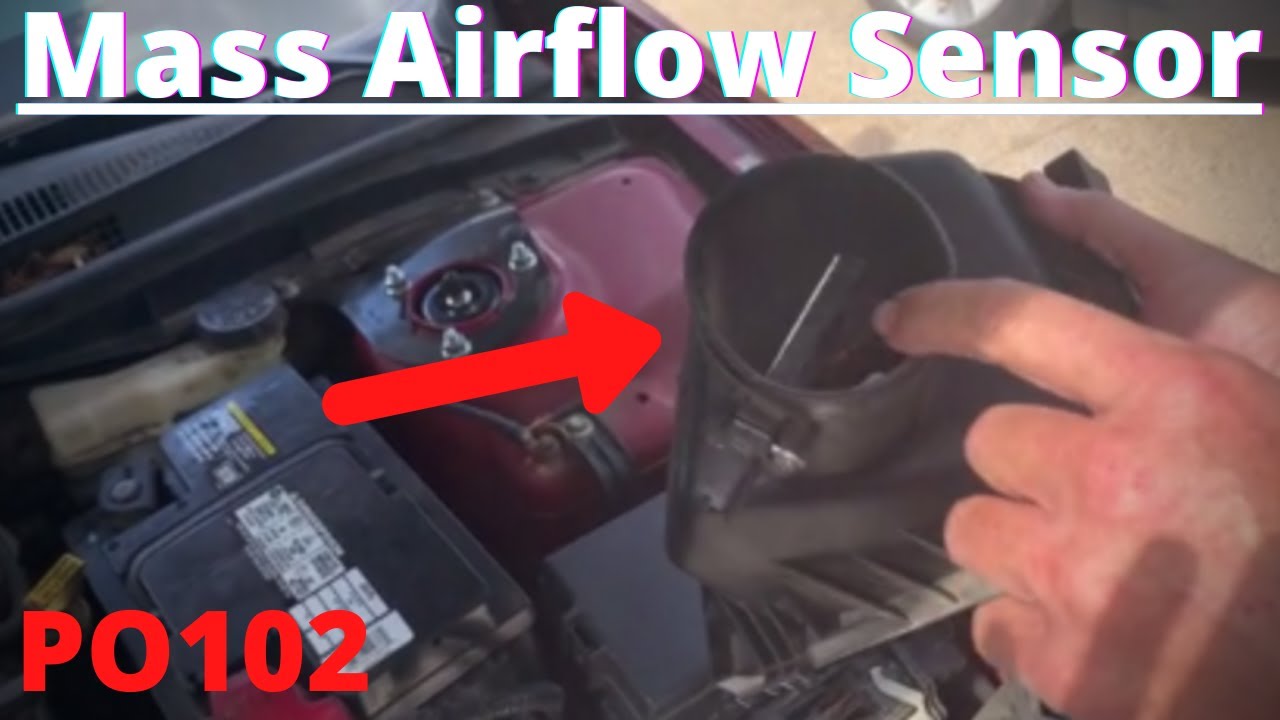

The MAF sensor is usually located in the intake ducting, typically between the air filter and the throttle body. Its position is critical; it needs to be exposed to a relatively smooth, laminar airflow for accurate readings. Air leaks or turbulence upstream of the sensor can significantly affect its performance. It is connected to the ECU through a wiring harness, typically with 4-5 wires. These wires provide power, ground, the signal to the ECU, and sometimes an intake air temperature (IAT) signal, which is integrated into the MAF sensor.

Methods of Bypassing (and Why They're Generally Not Recommended)

Several "bypass" methods exist, ranging from questionable to outright dangerous. None are a true replacement for a properly functioning MAF sensor, and all carry risks. They are, at best, temporary measures to get you out of a bind.

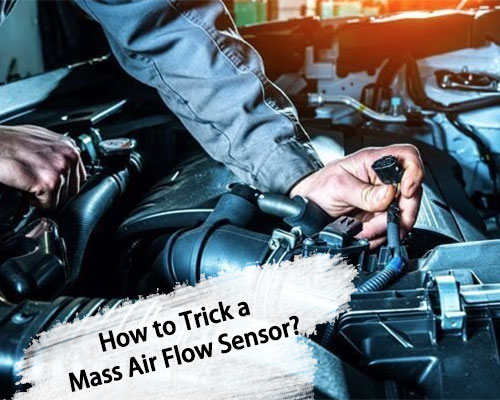

• Disconnecting the MAF Sensor (and Relying on Open-Loop Operation): This is the most common "bypass" method, though it's more accurately described as disabling the sensor. When the MAF sensor is disconnected, the ECU will often default to a pre-programmed "limp mode" or "open-loop" operation. In open-loop, the ECU ignores sensor inputs (including the MAF sensor) and uses a fixed fuel map based on engine speed (RPM) and throttle position.

Pros: Simple to execute. Might allow the engine to run well enough to reach a repair shop.

Cons: Fuel economy will be terrible. Engine performance will be significantly reduced. The engine might run too rich or too lean, potentially causing damage. The check engine light will be on. The car might not pass emissions testing.

• MAF Sensor Cleaner: Although not a "bypass," cleaning the MAF sensor is often the first step in troubleshooting. Over time, the sensor can become contaminated with oil, dirt, and debris, leading to inaccurate readings. Using a specialized MAF sensor cleaner (never carburetor cleaner or brake cleaner) can sometimes restore functionality.

Pros: Simple, inexpensive, and potentially effective.

Cons: Only works if the sensor is simply dirty, not if it's fundamentally damaged.

• MAF Sensor Resistor Modification (Advanced and Highly Discouraged): Some DIYers attempt to modify the signal from the MAF sensor by adding a resistor in the signal wire. The theory is that the resistor will alter the voltage signal sent to the ECU, effectively "tricking" it into thinking there's more or less airflow than there actually is. This is extremely risky and not recommended. The effects of this modification are unpredictable and can easily lead to engine damage.

  Pros: Theoretically, it might allow for fine-tuning of the air-fuel ratio. (Highly unlikely in practice without sophisticated tuning equipment)

  Cons: High risk of engine damage. Requires extensive knowledge of electronics and engine management systems. Likely to void any warranty. Will almost certainly lead to poor performance and fuel economy.

• Speed Density Conversion (Advanced and Requires Extensive Modification): A more sophisticated and permanent "bypass" involves converting the engine management system from a mass airflow system to a speed-density system. Speed-density systems calculate airflow based on engine speed (RPM), manifold absolute pressure (MAP), and air temperature. This conversion requires significant modification to the ECU, wiring harness, and potentially the engine itself. It is generally only done on heavily modified engines where the MAF sensor is a limiting factor.

  Pros: Can improve performance on highly modified engines. Eliminates the MAF sensor as a potential point of failure.

  Cons: Very expensive and time-consuming. Requires extensive knowledge of engine management systems. Can be difficult to tune properly.

Manufacturer Examples and Use Cases

Manufacturers are constantly improving MAF sensor technology to increase accuracy and reliability. For example, Bosch, a major supplier of MAF sensors, uses advanced film technology and sophisticated calibration techniques to ensure precise airflow measurement. However, even the best MAF sensors can fail due to age, contamination, or physical damage.

The most common "use case" for bypassing a MAF sensor is when the sensor fails on the road and a replacement is not immediately available. In this situation, disconnecting the MAF sensor and allowing the ECU to run in open-loop mode might be the only way to limp the vehicle to a repair shop. However, it's important to remember that this is a temporary fix, and the vehicle should be repaired as soon as possible.

Speed density conversions are more commonly seen in aftermarket applications. High-performance engines, especially those with forced induction (turbochargers or superchargers), often outgrow the capacity of the factory MAF sensor. In these cases, a speed density system can provide more accurate airflow measurement and allow for more precise tuning.

Real-World Insights and Recommendations

Bypassing a MAF sensor is generally a bad idea. It's a band-aid solution that can mask underlying problems and potentially lead to more serious engine damage. While disconnecting the MAF sensor might get you out of a temporary bind, it should never be considered a long-term solution.

Recommendations:

1. Proper Diagnosis: Before attempting any bypass, ensure that the MAF sensor is actually the problem. A faulty oxygen sensor, vacuum leak, or other engine issue can mimic the symptoms of a bad MAF sensor. Use a diagnostic scan tool to read trouble codes and sensor data.
2. Cleaning First: If you suspect a dirty MAF sensor, try cleaning it with a specialized MAF sensor cleaner. This is often the simplest and most effective solution.

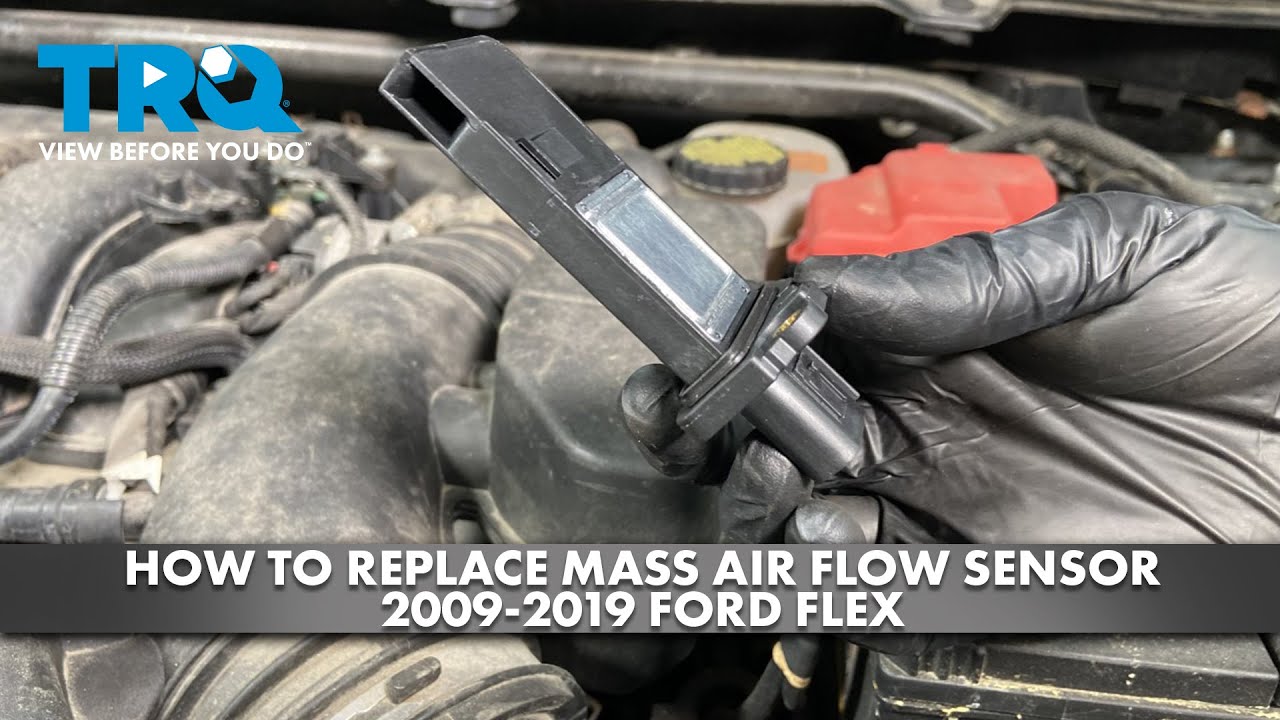

3. Replacement: The best solution is always to replace the faulty MAF sensor with a new, high-quality unit. Use a reputable brand and ensure that the sensor is properly calibrated for your vehicle.
4. Professional Help: If you're unsure about any of these steps, consult a qualified mechanic. They can properly diagnose the problem and recommend the best course of action.

Ultimately, the MAF sensor is a critical component of your engine management system. While understanding how it works and how to "bypass" it in a pinch can be helpful, remember that these techniques are temporary at best and potentially harmful at worst. A properly functioning MAF sensor is essential for optimal engine performance, fuel economy, and emissions control.
