How To Bypass The Fuel Pump Relay

The fuel pump relay is a vital component in your vehicle's electrical system. It's responsible for supplying power to the fuel pump, which in turn delivers fuel to the engine. Without a functioning fuel pump, your car won't start or run properly. In emergency situations, or for diagnostic purposes, you might need to bypass the fuel pump relay. This article explains how to do so safely and effectively.

What Does "Bypassing the Fuel Pump Relay" Actually Mean?

Bypassing the fuel pump relay involves manually providing power to the fuel pump, circumventing the normal electrical circuit. This is typically done by directly connecting a power source to the fuel pump's power wire. It's important to understand that this is a temporary measure and should only be performed when necessary. It's not a long-term solution for a faulty relay.

Why Would You Need to Bypass the Fuel Pump Relay?

Several scenarios might necessitate bypassing the fuel pump relay:

• Suspecting a Faulty Relay: If your car won't start and you suspect the fuel pump relay is the culprit, bypassing it can help you diagnose the problem. If the car starts when you bypass the relay, it strongly suggests the relay is defective.
• Emergency Situations: Imagine being stranded with a car that won't start. If you suspect a relay issue and know how to bypass it safely, it could get you back on the road temporarily until you can get the relay replaced.
• Troubleshooting Electrical Issues: When diagnosing complex electrical problems, bypassing the relay can help isolate whether the fuel pump itself is functioning correctly.
• Priming the Fuel System: After working on the fuel system (e.g., replacing the fuel filter), you might need to prime it. Bypassing the relay can provide a quick way to run the fuel pump and build pressure.

How to Safely Bypass the Fuel Pump Relay: A Step-by-Step Guide

Important Safety Precautions: Before attempting to bypass the fuel pump relay, prioritize safety. Disconnect the negative battery terminal to prevent accidental electrical shorts. Work in a well-ventilated area to avoid inhaling fuel vapors. Keep a fire extinguisher nearby.

1. Locate the Fuel Pump Relay: The fuel pump relay is usually found in the under-hood fuse box or sometimes under the dashboard. Consult your vehicle's owner's manual or a repair manual to identify its precise location. The relay is typically labeled.

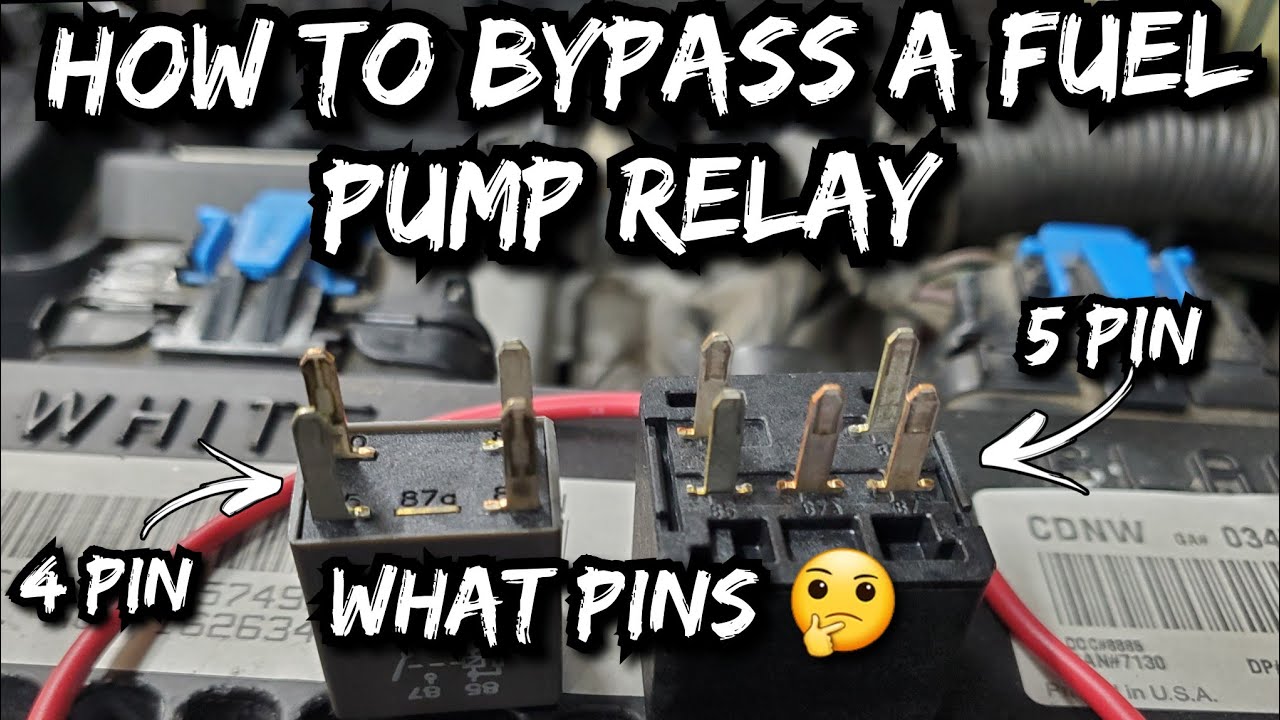

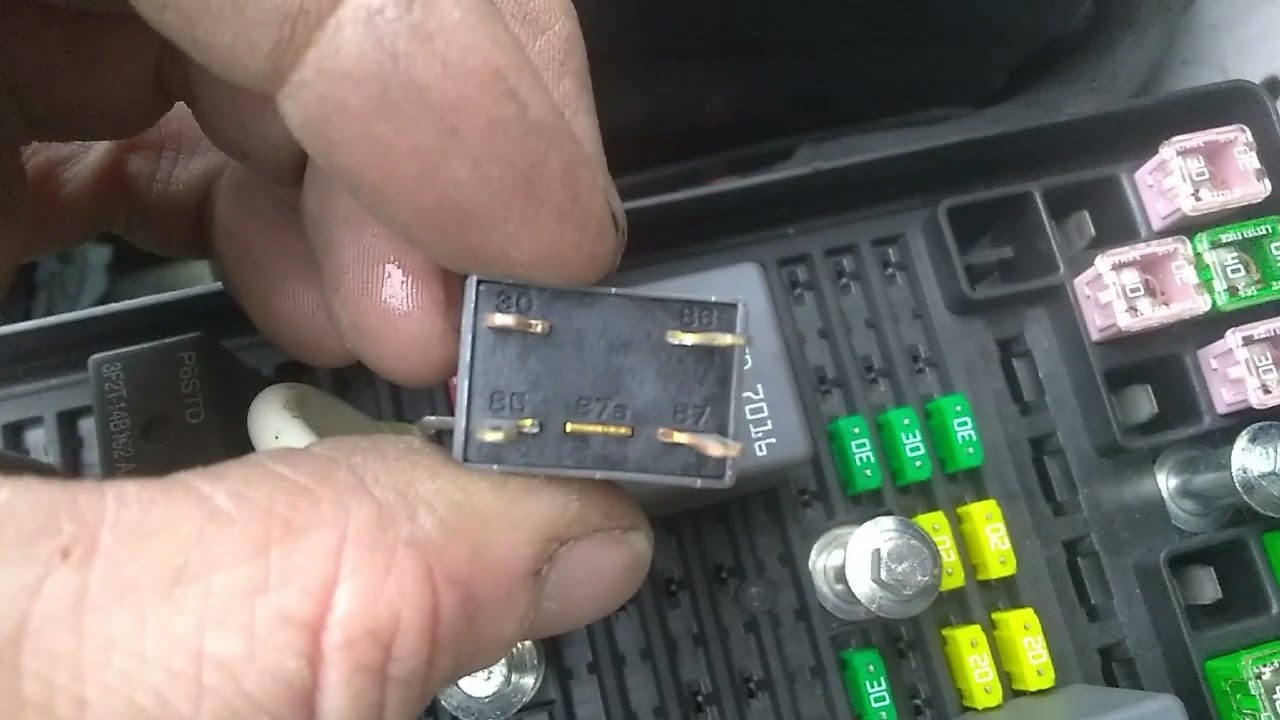

2. Identify the Relay Terminals: Once you've located the relay, you'll need to identify the terminals. Most relays have a diagram printed on the side indicating the function of each terminal. You're looking for the terminal that provides power to the fuel pump and the terminal that receives power from the ignition switch or ECU.
3. Determine the Power Source: You'll need a 12V power source to bypass the relay. This can be another fuse in the fuse box, a jumper wire connected directly to the positive battery terminal (with extreme caution!), or a dedicated 12V power supply. Use a fused jumper wire – a standard jumper wire with an inline fuse – for added safety. A 10- or 15-amp fuse is usually sufficient.

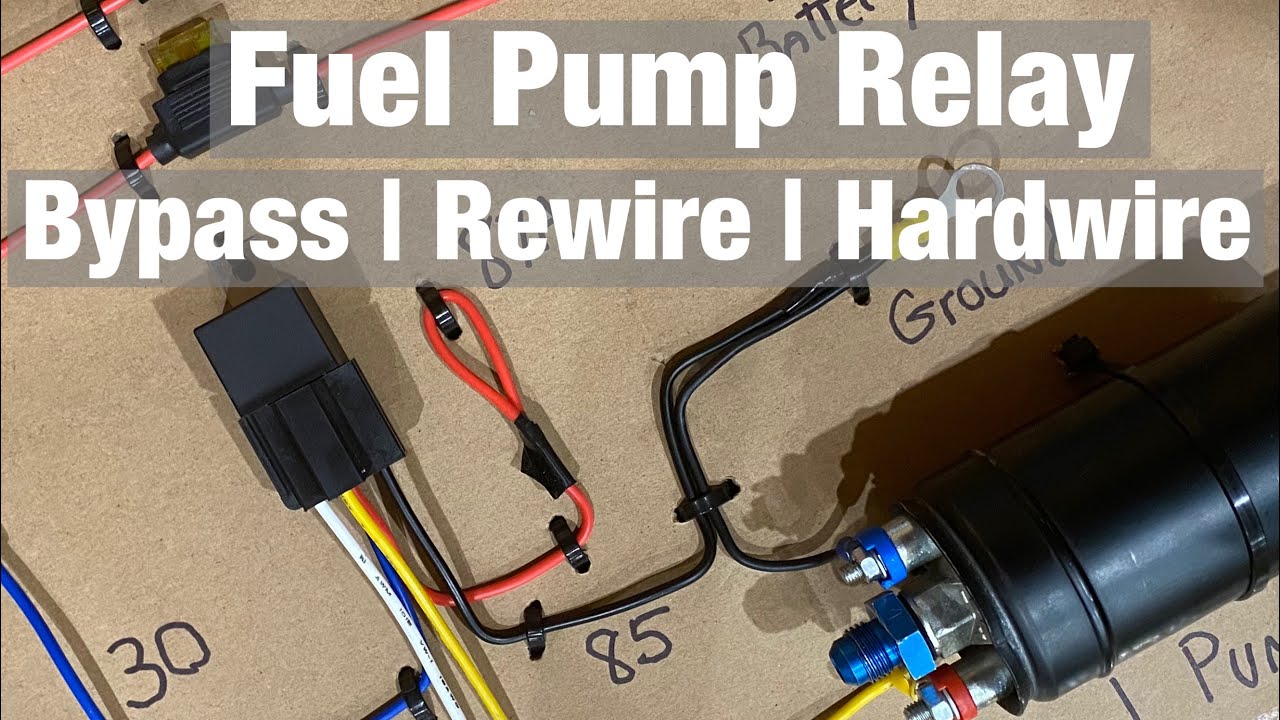

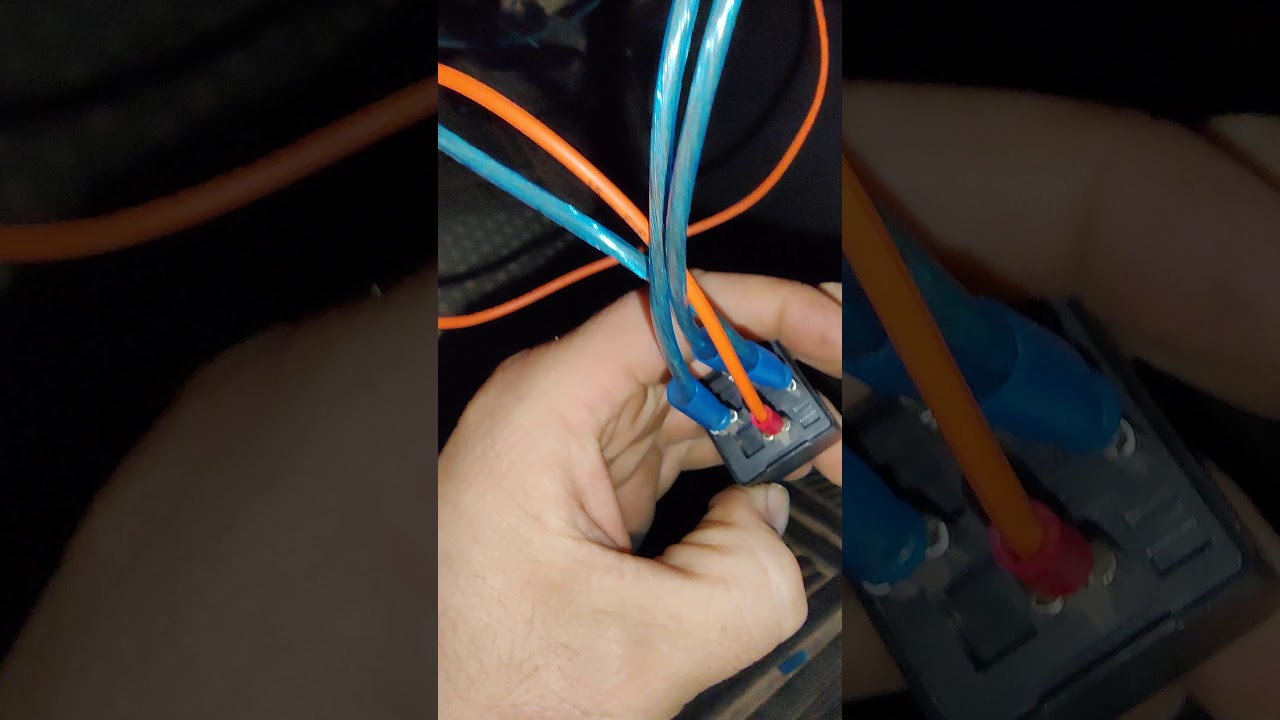

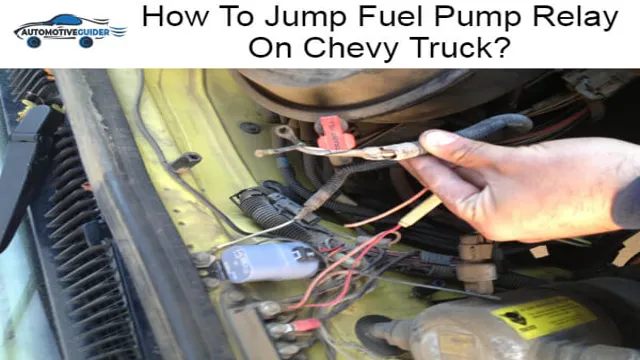

4. Bypassing the Relay (Method 1: Jumper Wire): With the ignition off and the battery disconnected (preferably), carefully insert the fused jumper wire into the appropriate terminals in the relay socket. The jumper wire should connect the terminal that receives power to the terminal that powers the fuel pump.
5. Bypassing the Relay (Method 2: Direct Wire to Fuel Pump): Locate the fuel pump. Typically you will find it close to the fuel tank. Identify the positive and negative wires going into the pump. With the battery disconnected connect a fused jumper wire from the positive terminal of the battery directly to the positive wire on the fuel pump. Ground the negative wire on the pump.
6. Reconnect the Battery (if disconnected) and Test: If you disconnected the battery, reconnect it carefully. Turn the ignition key to the "on" position (but don't start the engine). You should hear the fuel pump running. If the car starts, it confirms that the fuel pump relay is likely the problem.
7. Remove the Jumper Wire: Once you've confirmed the fuel pump is working, immediately remove the jumper wire. Do not leave the jumper wire in place for extended periods. This can overheat the fuel pump and potentially cause damage.

Choosing the Right Method and Tools

The "best" method for bypassing the fuel pump relay depends on your comfort level and available tools. Using a jumper wire in the relay socket (Method 1) is generally considered safer and easier, especially if you're not familiar with automotive wiring. It requires only a simple jumper wire with a fuse. Direct Wire to Fuel Pump, requires a more involved process and the knowledge of how to identify the positive and negative wires on the fuel pump. It can however be easier on some vehicles where the relay is hard to reach. Make sure to use the proper tools; always use a multimeter, a fused jumper wire and the vehicles repair manual.

If you're uncomfortable working with electrical systems, it's always best to consult a qualified mechanic.

Real-World Owner Experiences

Many car owners have successfully bypassed the fuel pump relay to diagnose or temporarily fix starting problems. Here are a few common experiences:

• "My car wouldn't start after sitting for a week. I suspected the fuel pump relay. I bypassed it using a jumper wire, and the car fired right up! I replaced the relay, and it's been running perfectly ever since." – John S., 2012 Honda Civic
• "I was stranded on a backroad when my car died. I remembered reading about bypassing the fuel pump relay. After a bit of troubleshooting, I managed to bypass it, and it got me home. I immediately ordered a new relay." – Sarah M., 2008 Ford F-150
• "I was diagnosing a no-start condition and wanted to rule out the fuel pump. Bypassing the relay allowed me to confirm the fuel pump was working, which helped me narrow down the problem to a faulty crankshaft position sensor." – David L., 2015 Toyota Camry

These experiences highlight the usefulness of this technique for both diagnosis and temporary fixes. However, remember that it's crucial to perform the procedure safely and to address the underlying problem (usually a faulty relay) as soon as possible.

FAQs About Bypassing the Fuel Pump Relay

Is it safe to bypass the fuel pump relay?

Bypassing the fuel pump relay can be safe if done carefully and correctly. Always disconnect the negative battery terminal, use a fused jumper wire, and work in a well-ventilated area. Never leave the jumper wire in place for extended periods. It's crucial to understand the electrical system of your vehicle before attempting this procedure. If you're unsure, consult a professional mechanic.

How long can I drive with the fuel pump relay bypassed?

It's strongly recommended not to drive with the fuel pump relay bypassed for any extended period. Bypassing the relay removes the safety features designed to protect the fuel pump and electrical system. This could lead to overheating, damage to the fuel pump, or even a fire hazard. It is for emergency or diagnostic purposes only.

What are the risks of bypassing the fuel pump relay?

The risks of bypassing the fuel pump relay include:

• Overheating the fuel pump: The relay regulates the voltage to the pump. Bypassing it can cause the pump to run at full voltage continuously, leading to overheating and premature failure.
• Damaging the electrical system: Without the relay's protection, surges in voltage can damage other components in the electrical system.
• Creating a fire hazard: A faulty connection or overheated fuel pump can potentially ignite fuel vapors, creating a fire hazard.

Will bypassing the fuel pump relay damage my car?

If done correctly and briefly for diagnostic purposes, bypassing the fuel pump relay shouldn't cause immediate damage. However, prolonged use or improper connections can lead to the issues listed above. Address the underlying problem (usually a faulty relay) as soon as possible to prevent potential damage.

How do I know if my fuel pump relay is bad?

Common symptoms of a bad fuel pump relay include:

• The car won't start: This is the most common symptom.
• The car starts but stalls shortly after: The engine may initially run on residual fuel pressure but stalls when the pump doesn't receive power.
• Intermittent starting problems: The car may start sometimes but not others.
• No fuel pump noise when the ignition is turned on: You should normally hear a brief whirring sound from the fuel pump when you turn the key to the "on" position.

Where can I buy a new fuel pump relay?

You can purchase a new fuel pump relay at most auto parts stores, both online and in person. Make sure to buy the correct relay for your specific vehicle make and model. Your local auto parts store can assist you with this. Typically they are not expensive and can be quickly replaced.

Disclaimer: This information is provided for educational purposes only. Always consult your vehicle's repair manual or a qualified mechanic before attempting any repairs. The author and publisher are not responsible for any damages or injuries that may result from following these instructions.
