How To Bypass The Mass Airflow Sensor

Let's talk about something a little… unconventional. Bypassing the Mass Airflow (MAF) sensor. Now, before you grab your wrenches and start disconnecting things, let me preface this by saying this isn’t usually a recommended solution for a normally functioning vehicle. However, understanding the reasons *why* someone might consider it, and the *how*, can be valuable knowledge for diagnosing issues and even for very specific performance tuning situations. This article will explore the intricacies of the MAF sensor, why you might consider bypassing it (though often inadvisable), the potential consequences, and safer alternatives.

Background: The Engine's Air Intake System

To understand why bypassing a MAF sensor is a big deal, you first need to understand its crucial role in your engine's air intake system. Modern internal combustion engines rely on a precise air-fuel mixture for efficient combustion. The Engine Control Unit (ECU), the car's "brain," uses a variety of sensors to determine the optimal amount of fuel to inject. One of the most vital of these sensors is the MAF sensor.

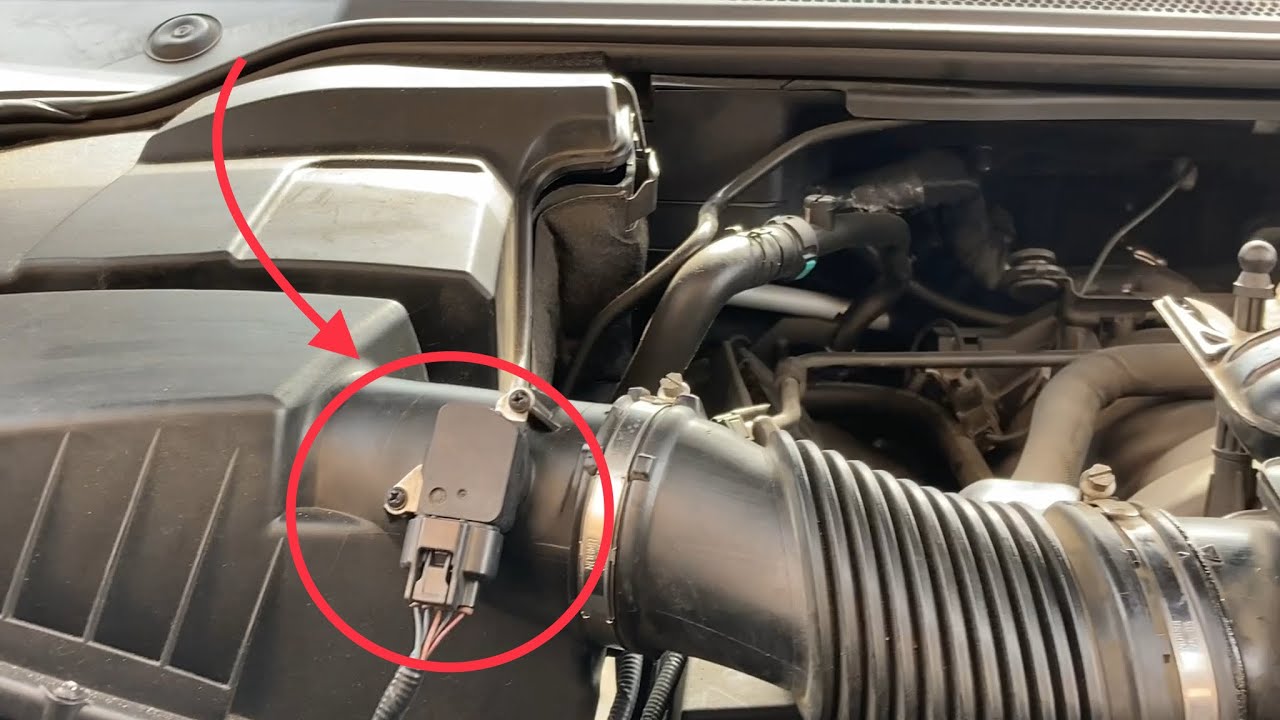

The air intake system starts with the air filter, which cleans the incoming air. This air then flows through the intake tubing and into the engine. Somewhere along this path, usually near the throttle body, sits the MAF sensor. Its job is simple: to measure the mass of air entering the engine. This isn't just about volume; it's about how much air is actually present, taking into account density changes due to temperature and altitude. A car running at sea level, on a cold morning, will require a very different fuel mixture than the same car running at 8,000ft on a hot summer afternoon.

Without accurate air mass information, the ECU can't accurately calculate the correct fuel injection duration, leading to a host of problems, including poor fuel economy, rough idling, and reduced performance. In extreme cases, it can even damage the engine.

Technical Breakdown: How the MAF Sensor Works

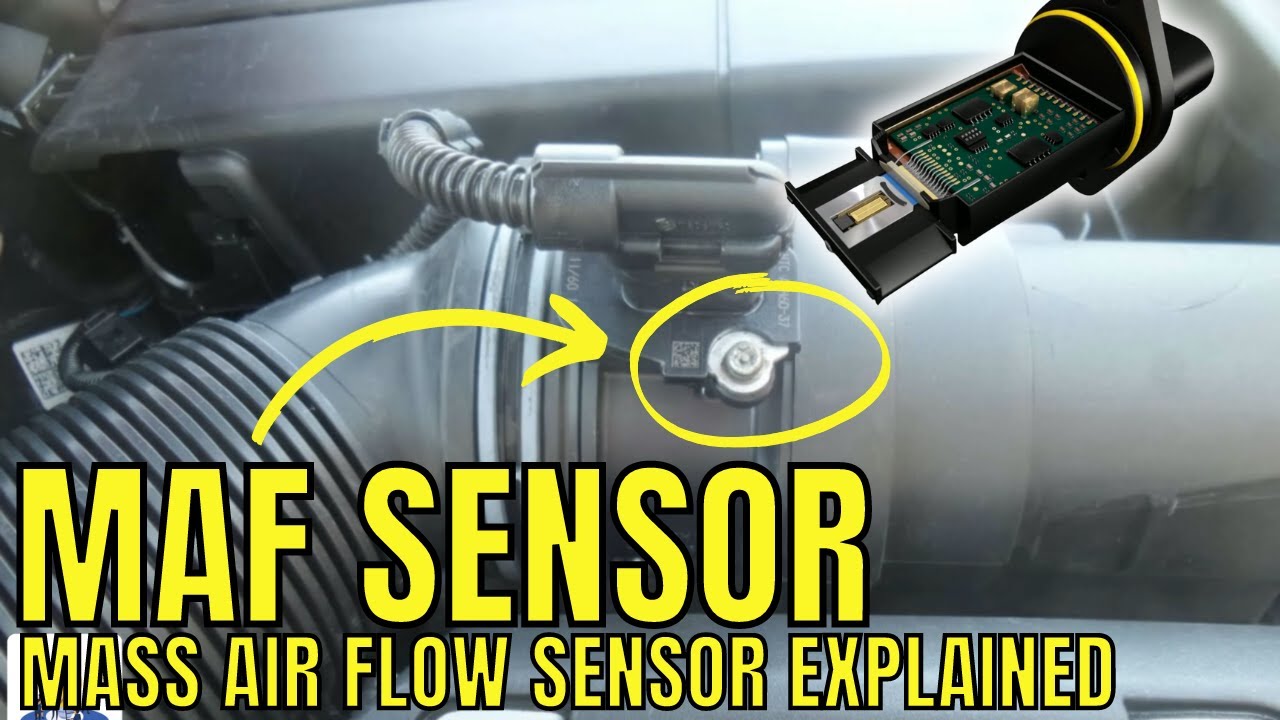

There are two primary types of MAF sensors: hot-wire and hot-film. The hot-wire MAF sensor uses a heated wire (usually platinum) placed in the path of the incoming air. The sensor monitors the current needed to keep the wire at a constant temperature. As more air flows across the wire, more heat is carried away, requiring more current. The ECU interprets this current change as a measure of air mass. The hot-film MAF sensor operates on a similar principle, but it uses a thin film resistor instead of a wire. It's generally more robust and less susceptible to contamination. Some newer vehicles use vane meter type sensors. They use a vane that moves according to the air volume. The ECU interprets the change in voltage and uses it to calculate the air mass.

Regardless of the specific technology, the MAF sensor sends a signal to the ECU, typically a voltage or frequency signal. The ECU then uses this signal, along with inputs from other sensors (like the oxygen sensor, throttle position sensor, and coolant temperature sensor), to calculate the ideal air-fuel ratio (AFR). The ideal AFR for stoichiometric combustion is around 14.7:1 (air to fuel by mass), but the ECU adjusts this ratio based on various factors, such as engine load, temperature, and driving conditions.

So, why bypass it? In most street applications, there is no justifiable reason. However, there are a few edge cases where someone might consider it, although those are often temporary or for diagnostic purposes only:

• MAF Sensor Failure: If the MAF sensor fails and a replacement isn't immediately available, bypassing it might allow the engine to run (though poorly) until a proper repair can be made. This is strictly a temporary measure.
• Diagnostic Purposes: Bypassing the MAF sensor can help diagnose whether it's the source of engine problems. If the engine runs better with the MAF sensor bypassed, it points to a faulty sensor.
• Performance Tuning (Advanced): In certain high-performance applications, particularly those involving forced induction (turbochargers or superchargers), the stock MAF sensor might become a bottleneck, or its range might be exceeded. In these cases, tuners might switch to a "speed density" system, which relies on other sensors (like the MAP sensor, which measures manifold absolute pressure) to estimate air mass. Bypassing the MAF sensor is just one step in a much more complex and expensive tuning procedure.

How to "Bypass" the MAF Sensor (and Why It's Not a True Bypass)

It's important to understand that you can't truly "bypass" the MAF sensor in a modern fuel-injected engine and expect it to run well, or at all. The ECU needs some way to estimate air mass. What people typically refer to as "bypassing" the MAF sensor is essentially forcing the ECU to rely on pre-programmed default values, or other sensor inputs, to estimate air mass.

Here are a few ways people attempt this, along with their limitations:

• Unplugging the MAF Sensor: This is the most common "bypass" method. When the MAF sensor is unplugged, the ECU detects an error and switches to a fail-safe mode. In this mode, it uses pre-programmed default values (often based on throttle position, engine speed, and other sensor inputs) to estimate air mass. The engine will likely run, but it will run poorly. Expect reduced power, poor fuel economy, and potentially rough idling. You will almost certainly have a check engine light.
• MAF Sensor Simulator: These devices send a pre-determined signal to the ECU, mimicking a MAF sensor reading. They can be used to trick the ECU into thinking the MAF sensor is functioning correctly, even if it's not. However, these simulators are often inaccurate and can lead to the same problems as unplugging the MAF sensor.
• Switching to Speed Density (MAP-Based Tuning): This is the most sophisticated (and expensive) method. It involves re-tuning the ECU to rely primarily on the MAP sensor (manifold absolute pressure) to estimate air mass. This requires specialized tuning software, a wideband oxygen sensor, and a thorough understanding of engine management principles. It's not something you can do with a simple screwdriver.

Important Note: Even if you successfully "bypass" the MAF sensor using one of these methods, you are essentially running your engine without proper air-fuel ratio control. This can lead to serious engine damage, especially if the engine runs too lean (too much air, not enough fuel).

Common Issues and Maintenance Concerns with MAF Sensors

MAF sensors are surprisingly delicate. They are susceptible to contamination from dirt, oil, and other debris that can accumulate in the air intake system. A contaminated MAF sensor can provide inaccurate readings, leading to the same symptoms as a faulty sensor.

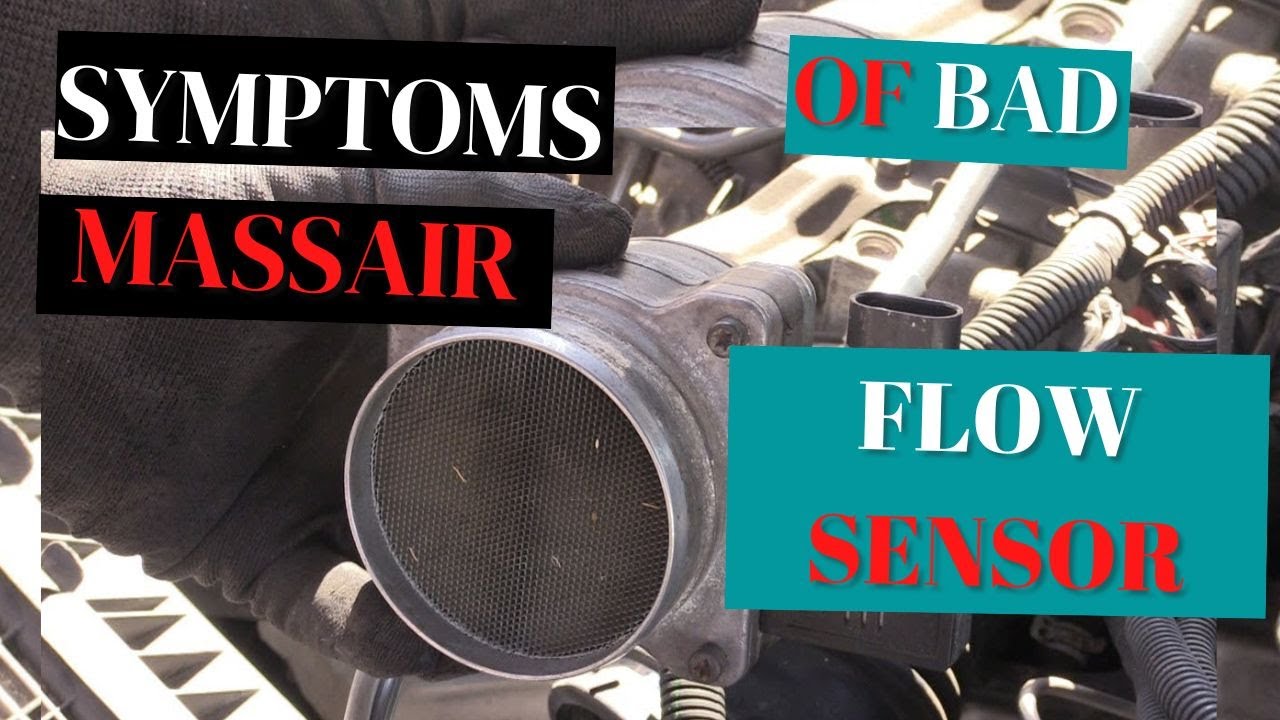

Here are some common signs of a failing MAF sensor:

• Check Engine Light (CEL)
• Poor Fuel Economy
• Rough Idling
• Stalling
• Hesitation During Acceleration
• Reduced Power

Cleaning the MAF Sensor: Before considering bypassing the MAF sensor, try cleaning it. Use a dedicated MAF sensor cleaner (available at most auto parts stores). Do not use carburetor cleaner or brake cleaner, as these can damage the sensor. Carefully remove the MAF sensor from the intake tubing, spray it liberally with the cleaner, and let it air dry completely before reinstalling it. Don't touch the sensor with your fingers.

Regular Maintenance: Ensure your air filter is clean and properly installed. A dirty air filter can restrict airflow and allow more contaminants to reach the MAF sensor. Inspect your intake tubing for leaks or cracks, as these can allow unmetered air to enter the engine, throwing off the MAF sensor readings.

Do's and Don'ts / Best Practices

• DO try cleaning the MAF sensor before considering any other solution.
• DO use a dedicated MAF sensor cleaner.
• DO inspect your air filter and intake tubing regularly.
• DON'T use carburetor cleaner or brake cleaner on the MAF sensor.
• DON'T touch the sensor with your fingers.
• DON'T run your engine for extended periods with the MAF sensor unplugged.
• DON'T attempt to bypass the MAF sensor without understanding the potential consequences.
• DON'T assume that bypassing the MAF sensor is a solution to a performance problem; it's usually a symptom of a deeper issue.
• DO Consult with a qualified mechanic or tuner before making any significant modifications to your engine management system.

Conclusion

While understanding how to "bypass" the MAF sensor can be useful for diagnostic purposes or in very specific tuning scenarios, it's generally not a recommended practice for everyday driving. The risks of running your engine without proper air-fuel ratio control are significant and can lead to costly repairs. If you suspect a problem with your MAF sensor, start with the basics: clean the sensor, inspect your air filter and intake tubing, and consult with a qualified mechanic if the problem persists. Properly diagnosing and addressing the underlying issue is always the best approach. Switching to a speed-density system requires extensive expertise and specialized equipment. Unless you are a seasoned tuner working with a high-performance engine, leave it to the professionals. Your engine (and your wallet) will thank you.
