How To Bypass The O2 Sensor

The oxygen sensor, often called the O2 sensor, is a critical component in modern vehicles. It plays a vital role in ensuring optimal engine performance, fuel efficiency, and emissions control. While tampering with or bypassing the O2 sensor is generally not recommended due to legal and environmental considerations, understanding the technical aspects of how one might attempt it is sometimes necessary for diagnostic purposes or when working on heavily modified vehicles operating in controlled environments (like race tracks). This article delves into the technical details of O2 sensor operation and explores potential methods for bypassing it, emphasizing the associated risks and ethical considerations.

Background: The Engine Management System and the O2 Sensor

To understand O2 sensor bypassing, we first need to grasp its role within the engine management system (EMS), also known as the engine control unit (ECU). The ECU is the "brain" of the engine, responsible for controlling various parameters like fuel injection, ignition timing, and idle speed. It relies on a network of sensors to gather information about the engine's operating conditions.

The O2 sensor is a key feedback component. It's typically located in the exhaust stream, upstream and sometimes downstream of the catalytic converter. Its primary function is to measure the amount of oxygen present in the exhaust gases. This measurement is used to determine the air-fuel ratio (AFR), which is the ratio of air to fuel entering the engine's cylinders. The ideal AFR, known as the stoichiometric ratio, is approximately 14.7:1 for gasoline engines. At this ratio, combustion is most efficient, minimizing emissions of harmful pollutants like hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx).

The ECU uses the O2 sensor's data to make real-time adjustments to the fuel injection system. If the sensor detects a lean condition (excess oxygen, meaning too much air or not enough fuel), the ECU increases fuel delivery. Conversely, if it detects a rich condition (insufficient oxygen, meaning too much fuel or not enough air), the ECU decreases fuel delivery. This continuous feedback loop ensures that the engine operates as close as possible to the stoichiometric AFR, maximizing efficiency and minimizing emissions.

Types of O2 Sensors

There are primarily two types of O2 sensors used in modern vehicles:

Zirconia O2 sensors: These are the most common type. They generate a voltage signal based on the difference in oxygen concentration between the exhaust gas and the ambient air. A high voltage (around 0.9V) indicates a rich mixture, while a low voltage (around 0.1V) indicates a lean mixture.
Titania O2 sensors: These sensors change their electrical resistance based on the oxygen concentration. A low resistance indicates a rich mixture, while a high resistance indicates a lean mixture. Titania sensors are less common than zirconia sensors.
Wideband O2 sensors (Air-Fuel Ratio Sensors): These sensors are more accurate and provide a more linear output than traditional narrowband sensors. They allow the ECU to maintain a more precise AFR, resulting in improved performance and fuel economy. They are often used in performance applications and modern vehicles.

Technical Breakdown: How O2 Sensor Bypassing Works

Bypassing an O2 sensor essentially means tricking the ECU into believing that the engine is operating at the desired AFR, regardless of the actual exhaust gas composition. There are several ways this has been attempted, each with its own complexities and potential consequences:

1. Resistor Modification:

This is a crude and generally ineffective method. It involves placing a resistor in series with the O2 sensor signal wire to manipulate the voltage reading sent to the ECU. The idea is to force the ECU to see a "lean" or "rich" signal, prompting it to adjust fuel delivery accordingly. However, this method is highly unreliable and can easily lead to engine damage. The optimal resistance value depends on the specific vehicle, engine, and O2 sensor type, and it's almost impossible to determine accurately without extensive experimentation. Moreover, this method doesn't account for variations in engine load and operating conditions.

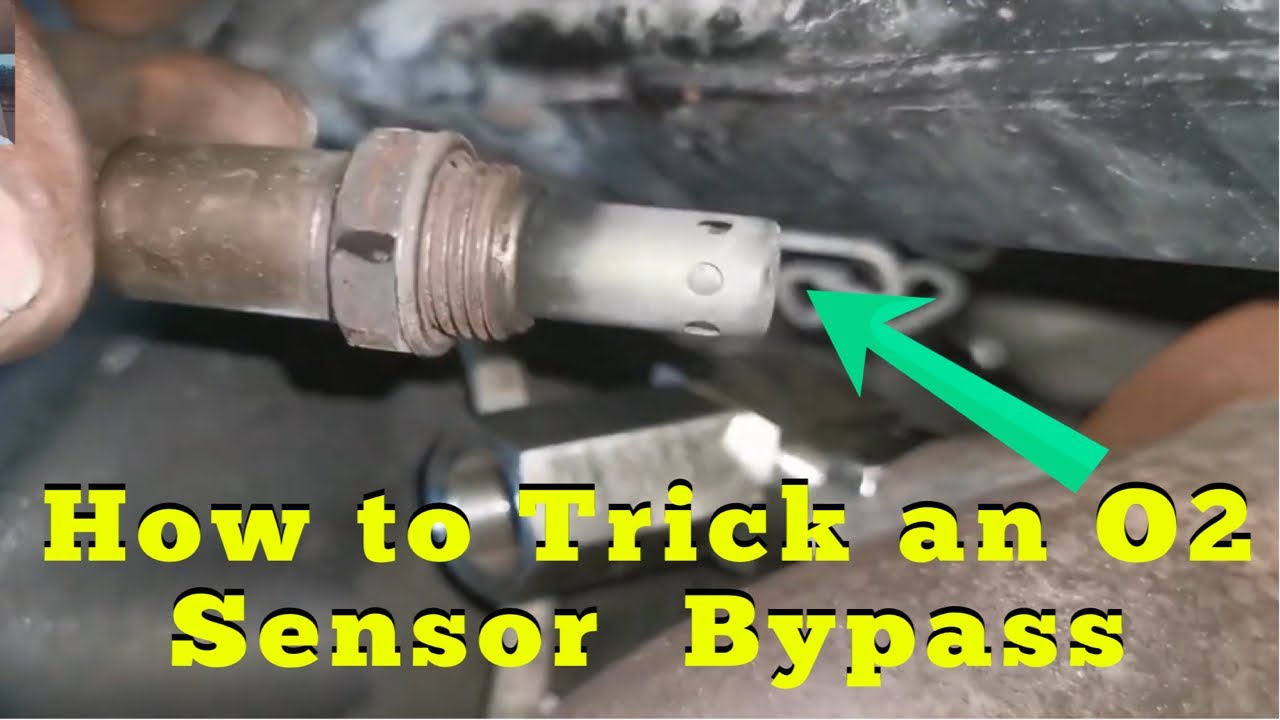

2. Mechanical Spacers ("O2 Sensor Simulators"):

This method is primarily used for downstream O2 sensors (those located after the catalytic converter). The downstream sensor's main job is to monitor the catalytic converter's efficiency. By using a spacer, the sensor is moved further out of the exhaust stream, resulting in a lower reading of pollutants. This fools the ECU into thinking the catalytic converter is working properly, even if it's not. While this might prevent a "catalytic converter efficiency" error code (P0420), it doesn't address the underlying problem and may still lead to increased emissions.

3. Electronic O2 Sensor Simulators:

These are more sophisticated devices that generate a simulated O2 sensor signal and send it to the ECU. Some simulators allow the user to adjust the simulated signal to fine-tune the AFR. They are generally used to eliminate error codes associated with removed or non-functioning catalytic converters, particularly in modified vehicles. While more advanced than resistor modifications, they still rely on pre-programmed or user-defined settings and don't necessarily reflect the actual engine operating conditions. More sophisticated simulators can also simulate the switching frequency and voltage range of a working sensor, making them harder for the ECU to detect.

4. ECU Reprogramming (Tuning):

This is the most comprehensive and recommended (if bypass is absolutely necessary and legal within the vehicle's specific usage) method for bypassing the O2 sensor. It involves modifying the ECU's software to ignore the O2 sensor signal altogether or to adjust the fuel maps based on other sensor inputs. This requires specialized software, hardware, and expertise. ECU reprogramming allows for precise control over the engine's operation and can be used to optimize performance for specific modifications, such as aftermarket exhaust systems or forced induction. However, it's crucial to understand that modifying the ECU can have significant consequences, including voiding the vehicle's warranty and potentially causing engine damage if not done correctly. Furthermore, it's essential to ensure that any modifications comply with local emissions regulations.

Common Issues and Maintenance Concerns

O2 sensors are exposed to harsh conditions, including high temperatures, exhaust gases, and contaminants. Over time, they can become fouled, damaged, or simply wear out. Common symptoms of a failing O2 sensor include:

Poor fuel economy
Rough idling
Reduced engine performance
Check engine light (CEL) illumination

Regular maintenance, such as replacing the O2 sensors at the recommended intervals (typically every 60,000 to 100,000 miles), can help prevent these issues. When replacing O2 sensors, it's important to use the correct type and ensure they are properly installed.

Do's and Don'ts / Best Practices

Don't attempt to bypass the O2 sensor without a thorough understanding of its function and the potential consequences.
Don't use crude methods like resistor modifications, as they are unreliable and can damage your engine.
Do consider ECU reprogramming as the most effective (but also most complex and potentially risky) method if bypassing is absolutely necessary.
Do ensure that any modifications comply with local emissions regulations.
Do consult with a qualified mechanic or tuner before making any changes to your vehicle's engine management system.
Do use a scan tool to monitor O2 sensor activity and AFR before and after making any modifications.
Do prioritize proper O2 sensor maintenance to ensure optimal engine performance and minimize emissions.
Do understand the legal ramifications of tampering with emissions control devices.

Conclusion

While technically possible to bypass the O2 sensor, it's generally strongly discouraged for street-legal vehicles due to legal and environmental concerns. If bypassing is necessary for diagnostic purposes, off-road applications, or heavily modified vehicles operating in controlled environments, ECU reprogramming by a qualified professional is the recommended approach. Remember, tampering with emissions control devices is illegal in many jurisdictions and can have significant environmental consequences. Prioritizing proper O2 sensor maintenance and addressing underlying engine issues is always the best course of action for ensuring optimal performance, fuel efficiency, and emissions control. Understand that modifying or bypassing your O2 sensor may cause issues with your vehicle passing emissions tests. Finally, always remember to consider the potential ramifications, both legal and mechanical, before undertaking any of these actions.
