How To Calibrate Speedometer For Bigger Tires

So, you've upgraded to bigger tires, huh? Looks awesome, no doubt. But that speedometer reading? Probably as accurate as a weather forecast in April. This article will guide you through the process of calibrating your speedometer after fitting larger tires. We’ll cover why it's crucial, how the system works, the calibration methods available, common pitfalls to avoid, and best practices for a successful outcome. Getting this right isn't just about knowing your speed; it impacts your vehicle's computer, fuel economy, and overall safety.

Background: Speedometers and the Drivetrain

Before diving into calibration, let's quickly review the basics. Your speedometer indicates your vehicle's speed, and this information is derived from the rotational speed of your wheels. Initially, speedometers were entirely mechanical, relying on a cable connected directly to the transmission. As the transmission output shaft turned, it spun the cable, which in turn moved the speedometer needle. While simple, this system was susceptible to wear and tear and wasn't very accurate, especially with varying tire sizes.

Modern vehicles predominantly use electronic speedometers. A vehicle speed sensor (VSS) is the heart of this system. The VSS is typically located on the transmission or transaxle and outputs a digital signal representing the rotational speed of the transmission's output shaft. This signal is sent to the powertrain control module (PCM), or engine control unit (ECU), which then translates the signal into a speed reading displayed on your instrument cluster. The PCM also uses this speed information for a variety of other functions, including:

Transmission Shift Points: Automatic transmissions rely on speed information to determine when to shift gears. Incorrect speed readings can lead to harsh shifting, premature wear, and reduced fuel economy.
Cruise Control: The cruise control system uses speed data to maintain a constant speed. An inaccurate speed reading will cause the cruise control to function erratically or not at all.
Anti-lock Braking System (ABS): The ABS system uses wheel speed sensors to detect wheel lockup during braking. While the VSS isn't the primary input for ABS, it can be used as a supplementary data point.
Engine Management: Some engine management systems use vehicle speed as an input for various calculations, such as idle speed control or fuel enrichment during acceleration.

Technical Breakdown: How Tire Size Affects Speedometer Readings

When you install larger tires, you change the rolling circumference of your wheels. The rolling circumference is the distance your vehicle travels in one complete revolution of the tire. A larger tire covers more ground in a single rotation than a smaller tire. However, the VSS is still reading the rotational speed of the transmission output shaft, which hasn't changed. As a result, your speedometer will display a lower speed than your actual speed. For example, if your speedometer reads 60 mph, you might actually be traveling at 65 mph.

The percentage difference between your actual speed and indicated speed can be calculated using the following formula:

Percentage Difference = [(New Tire Diameter - Old Tire Diameter) / Old Tire Diameter] * 100

Let's say you upgraded from a 28-inch tire to a 30-inch tire:

Percentage Difference = [(30 - 28) / 28] * 100 = 7.14%

This means your speedometer will read approximately 7.14% lower than your actual speed. At a displayed speed of 60 mph, your actual speed would be around 64.3 mph.

Calibration Methods: Getting Your Speedometer Back on Track

There are several methods to recalibrate your speedometer after installing larger tires, ranging from relatively simple to more complex. The best method depends on your vehicle's make, model, and year.

1. PCM Reprogramming: The Modern Solution

Many modern vehicles allow you to recalibrate the speedometer by reprogramming the PCM. This usually involves using a specialized scan tool or tuner that can access the PCM's calibration settings. These tools allow you to input the new tire size, and the PCM will adjust the speedometer accordingly.

How it works: The scan tool communicates with the PCM and allows you to modify the tire size parameter. The PCM then adjusts the calculation it uses to convert the VSS signal into a speed reading.

Pros: Most accurate method, doesn't require mechanical modifications.

Cons: Requires a specialized scan tool or tuner, may require professional assistance, some PCMs are locked and cannot be reprogrammed.

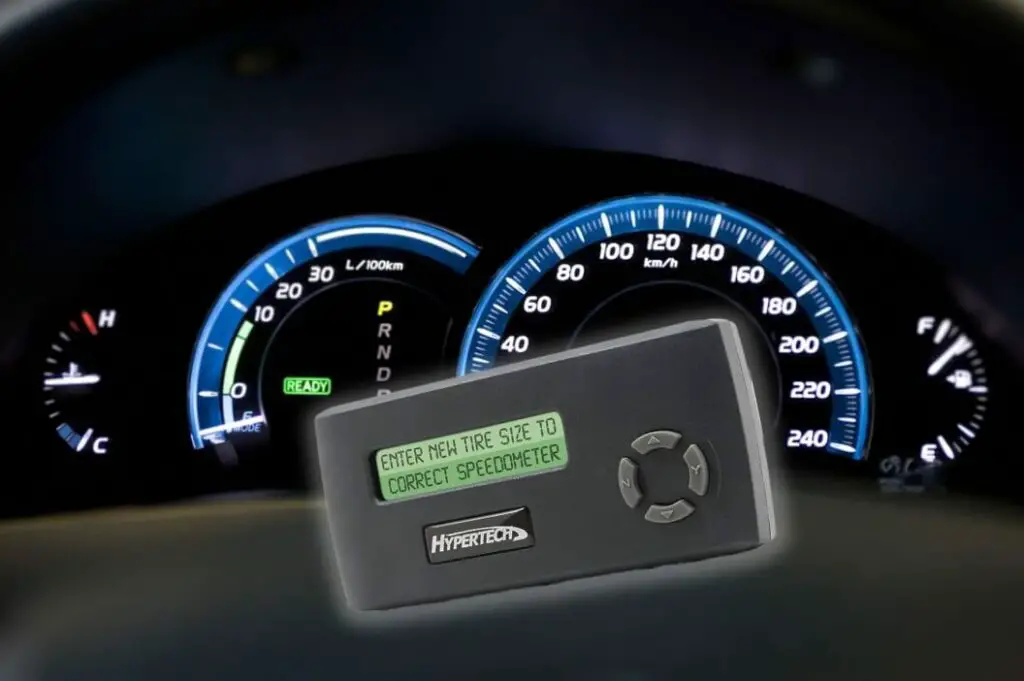

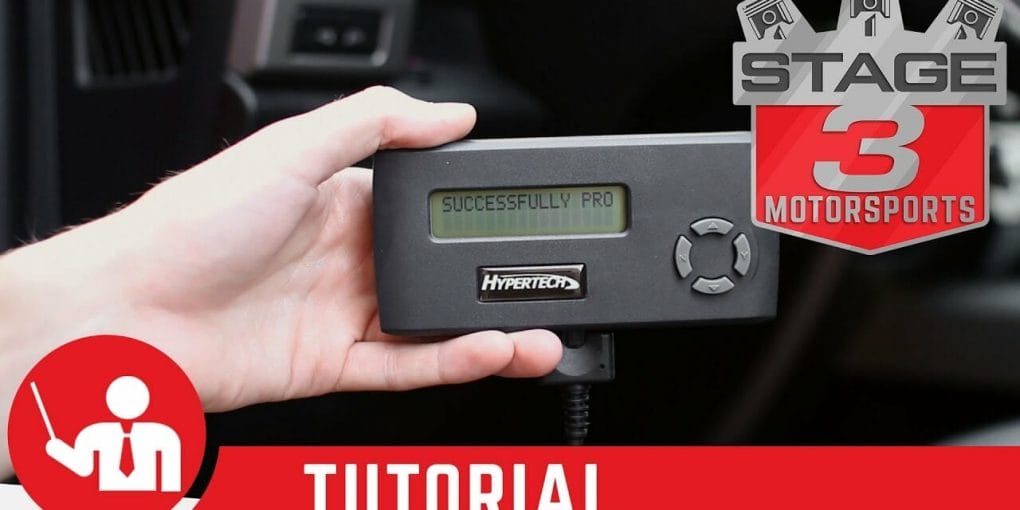

Tools: OBDII scan tool with reprogramming capabilities (e.g., Hypertech Speedometer Calibrator, Diablosport Trinity, SCT X4), laptop with appropriate software, and potentially a vehicle interface module.

2. Speedometer Gear Change: The Traditional Approach

For older vehicles with mechanical speedometers, the most common method is to replace the speedometer gear in the transmission. This gear meshes with another gear on the output shaft, and its rotational speed determines the speed of the speedometer cable.

How it works: By changing the number of teeth on the speedometer gear, you can change the ratio between the transmission output shaft and the speedometer cable. A gear with fewer teeth will result in a higher speedometer reading, and vice versa.

Pros: Relatively inexpensive (gear itself), doesn't require electronic programming.

Cons: Can be difficult to access the speedometer gear, requires some mechanical skills, finding the correct gear may be challenging, not applicable to vehicles with electronic speedometers.

Tools: Socket set, wrenches, screwdrivers, gear puller (potentially), replacement speedometer gear.

3. Signal Converter: An Intermediate Solution

Signal converters are electronic devices that intercept the VSS signal and modify it before it reaches the PCM or instrument cluster. These converters can be programmed to adjust the signal based on the new tire size.

How it works: The converter takes the VSS signal as input, multiplies or divides the frequency of the signal by a specific factor, and then outputs the modified signal. This effectively changes the speedometer reading without altering the PCM's calibration.

Pros: Can be used on vehicles where PCM reprogramming is not possible, relatively easy to install.

Cons: Less accurate than PCM reprogramming, can introduce electrical noise into the system, may not be compatible with all vehicles.

Tools: Signal converter (e.g., Dakota Digital SGI-100BT), wire stripper, crimper, multimeter, wiring diagrams.

Common Issues and Maintenance Concerns

No matter which calibration method you choose, there are some common issues to be aware of:

Inaccurate Tire Size Measurement: Always measure your tires accurately. Don't rely on the sidewall markings, as the actual tire size can vary depending on the tire pressure and load.
Incorrect Gear Selection: Choosing the wrong speedometer gear can lead to inaccurate readings. Use a speedometer gear calculator to determine the correct gear based on your tire size and axle ratio.
Wiring Problems: When installing a signal converter, ensure that the wiring connections are secure and properly insulated. Loose connections can cause intermittent speedometer readings or even damage the PCM.
PCM Compatibility: Not all PCMs can be reprogrammed. Check with your vehicle manufacturer or a qualified technician to determine if your PCM is compatible with reprogramming.
ABS and Traction Control Issues: In some cases, changing the tire size can affect the performance of the ABS and traction control systems. If you experience any issues, consult a qualified technician.

Do's and Don'ts / Best Practices

To ensure a successful speedometer calibration, follow these do's and don'ts:

Do's:

Double-Check Your Work: After calibrating your speedometer, verify its accuracy using a GPS device or a smartphone app.
Research: Thoroughly research the calibration method that is best suited for your vehicle.
Consult a Professional: If you're unsure about any aspect of the calibration process, consult a qualified technician.
Document Everything: Keep detailed records of the calibration process, including the tire size, gear ratio, and any other relevant information.
Use Quality Parts: When replacing the speedometer gear or installing a signal converter, use high-quality parts from reputable manufacturers.

Don'ts:

Ignore the Problem: Driving with an inaccurate speedometer can lead to speeding tickets and other legal issues.
Guess at Tire Size: Always measure your tires accurately.
Attempt to Reprogram a Locked PCM: Attempting to reprogram a locked PCM can damage the unit.
Cut Corners: Take your time and pay attention to detail.
Neglect Wiring: Ensure that all wiring connections are secure and properly insulated.

Conclusion

Calibrating your speedometer after installing larger tires is crucial for maintaining accurate speed readings, ensuring proper transmission function, and maximizing fuel economy. While the specific calibration method will vary depending on your vehicle, understanding the underlying principles and following best practices will help you achieve a successful outcome. For modern vehicles with reprogrammable PCMs, reprogramming is generally the preferred method due to its accuracy and lack of mechanical modifications. However, for older vehicles or those with locked PCMs, a speedometer gear change or signal converter may be necessary. Remember to always double-check your work and consult a professional if you have any doubts. Drive safe, and enjoy those bigger tires!
