How To Change A Fuel Injector

Your car is sputtering, hesitating, and generally behaving like it’s developed a sudden dislike for forward motion. The check engine light is on, mocking you with its steady, unwavering glow. You plug in your OBD-II scanner and the verdict is in: a faulty fuel injector. While a trip to a professional mechanic is always an option, the adventurous (and budget-conscious) can often tackle this repair themselves. But before diving in, let’s understand exactly what we’re dealing with and how to approach replacing a fuel injector.

The Case of the Misfiring Mill: A Fuel Delivery Detective Story

Imagine you’re baking a cake. If one crucial ingredient – say, the sugar – isn't added in the correct amount or isn't distributed evenly throughout the batter, the resulting cake will be uneven, potentially burnt in some areas and raw in others. A fuel injector performs a similar role in your car's engine. It's responsible for precisely metering and spraying fuel into the engine's cylinders at the right moment. When an injector malfunctions, the engine either receives too little fuel (lean condition) or too much (rich condition), leading to a variety of performance issues.

Think of a worn-out nozzle on a garden hose. Instead of a focused, powerful stream, you get a weak, scattered spray. A fuel injector can suffer a similar fate due to wear, carbon buildup, or internal damage. This irregular fuel delivery disrupts the combustion process, causing misfires, rough idling, poor acceleration, and decreased fuel economy. In extreme cases, a severely clogged or non-functional injector can cause significant engine damage.

How Fuel Injection Systems Work: A Deep Dive

At its core, a fuel injection system is a sophisticated network designed to deliver fuel to the engine in the most efficient way possible. It relies on several key components:

Fuel Pump:

The fuel pump, typically located in the fuel tank, draws fuel from the tank and delivers it under pressure to the fuel rail.

Fuel Rail:

The fuel rail is a metal tube that distributes pressurized fuel to each of the fuel injectors. It acts as a reservoir, ensuring a constant supply of fuel is available.

Fuel Injectors:

The fuel injectors themselves are precision electro-mechanical devices. Each injector contains a solenoid valve. When energized by the engine control unit (ECU), the solenoid opens the valve, allowing fuel to spray through a small nozzle into the intake manifold (in port fuel injection systems) or directly into the combustion chamber (in direct injection systems).

Engine Control Unit (ECU):

The ECU is the brain of the fuel injection system. It receives data from various sensors (e.g., oxygen sensor, mass airflow sensor, throttle position sensor) and uses this information to calculate the precise amount of fuel needed for optimal combustion. The ECU then controls the opening and closing of the fuel injectors by sending electrical pulses of varying duration. The longer the pulse, the more fuel is injected.

Fuel Pressure Regulator:

The fuel pressure regulator maintains a constant fuel pressure in the fuel rail, ensuring consistent fuel delivery regardless of engine load or speed.

Modern fuel injection systems are incredibly complex, often incorporating features such as multi-port injection (MPI) and direct injection (DI). MPI systems inject fuel into the intake port of each cylinder, allowing for better air-fuel mixing. DI systems, on the other hand, inject fuel directly into the combustion chamber, enabling higher compression ratios and improved fuel efficiency. Direct injection systems typically operate at much higher pressures than port fuel injection systems.

The Pros and Cons of DIY Fuel Injector Replacement

Replacing a fuel injector yourself offers several potential benefits:

Cost Savings: You'll save on labor costs, which can be a significant portion of the overall repair bill.
Learning Experience: It's a great opportunity to learn more about your car's engine and fuel system.
Control Over Parts: You can choose the brand and quality of the replacement injector.

However, there are also potential drawbacks to consider:

Risk of Damage: Incorrect installation or handling of the fuel system can lead to fuel leaks or engine damage.
Time Commitment: The repair can take several hours, especially if you're not experienced.
Special Tools: You may need specialized tools, such as fuel line disconnect tools or a torque wrench.
Potential for Complications: Identifying the correct injector and ensuring compatibility can be challenging.

Use Cases and Manufacturer Examples

Fuel injector replacement is a common repair across a wide range of vehicles. Here are a few examples:

Low Mileage, Age: Even with low mileage, older vehicles can develop injector problems due to fuel varnish buildup from fuel sitting for extended periods.
High Mileage Vehicles: Injectors in high-mileage vehicles are more prone to wear and tear, leading to reduced performance and fuel efficiency.
Specific Models: Some manufacturers, such as Bosch, Delphi, and Denso, are known for producing reliable injectors. However, certain vehicle models may be prone to injector failures due to design flaws or environmental factors. For example, some early direct injection engines experienced issues with carbon buildup on the injector tips, requiring specialized cleaning or replacement.

Consider a Ford F-150 with the 5.4L Triton engine. These engines were known to have issues with fuel injectors clogging over time. Similarly, certain BMW models with direct injection engines have experienced problems with carbon buildup on the intake valves and injector tips, requiring specialized cleaning or replacement.

Step-by-Step Guide to Fuel Injector Replacement (General Procedure)

Disclaimer: This is a general guide. Always consult your vehicle's repair manual for specific instructions and safety precautions. Working with fuel systems can be dangerous. Take all necessary precautions to avoid fuel leaks and fires. Wear safety glasses and gloves. Disconnect the negative battery cable before starting any work.

Gather Your Supplies: You'll need a new fuel injector (or set of injectors), fuel line disconnect tools (if required), a socket set, a wrench set, a torque wrench, safety glasses, gloves, rags, and a new fuel injector o-ring kit.
Depressurize the Fuel System: Consult your vehicle's repair manual for instructions on how to depressurize the fuel system. This is a crucial step to prevent fuel from spraying when you disconnect the fuel lines. A common method is to remove the fuel pump relay and start the engine until it stalls.

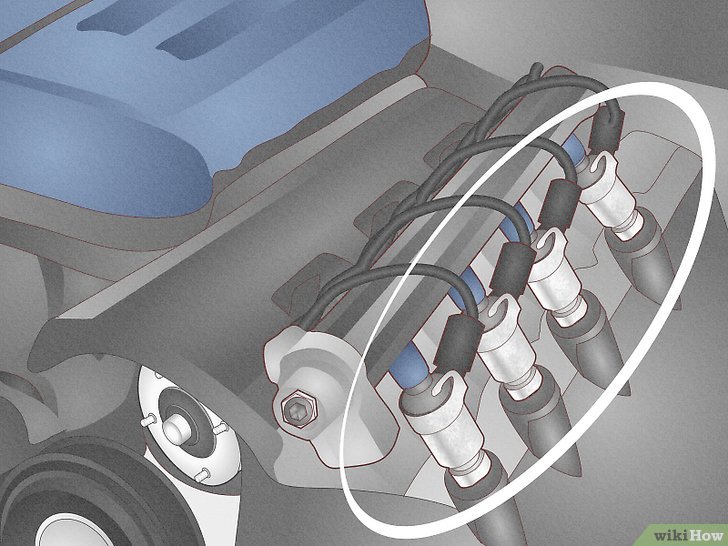

Locate the Fuel Injector(s): Identify the faulty fuel injector. Use an OBD-II scanner to pinpoint the cylinder experiencing misfires. Visual inspection can also help identify leaks or damage.

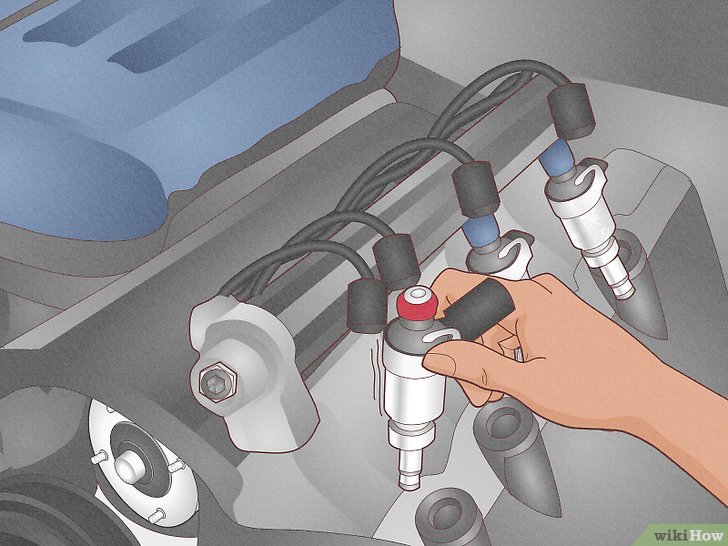

Disconnect Electrical Connector: Carefully disconnect the electrical connector from the fuel injector.
Remove Fuel Rail: Depending on the vehicle, you may need to remove the fuel rail to access the injectors. Disconnect any fuel lines connected to the fuel rail using the appropriate disconnect tools. Unbolt the fuel rail and carefully lift it away from the engine.

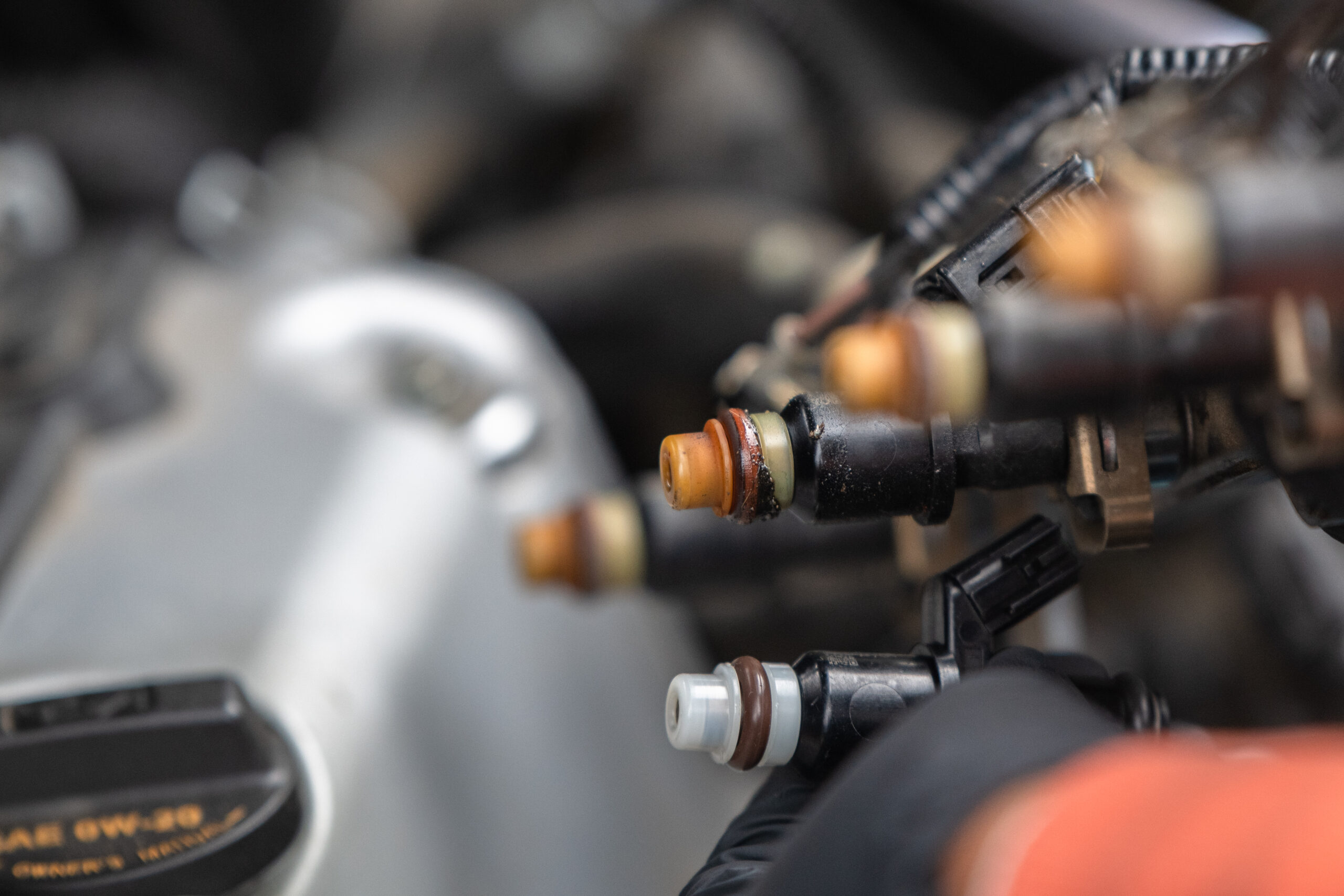

Remove the Fuel Injector: Carefully remove the faulty fuel injector from the fuel rail. It may be held in place by clips or o-rings.

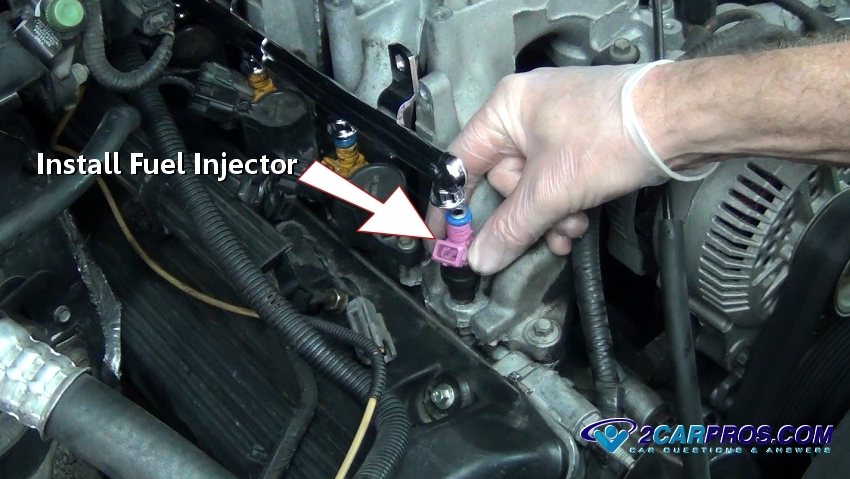

Install the New Fuel Injector: Lubricate the new fuel injector's o-rings with clean engine oil. Install the new injector into the fuel rail, ensuring it is properly seated.
Reinstall the Fuel Rail: Carefully reinstall the fuel rail, making sure it is properly aligned and bolted down to the correct torque specification.
Reconnect Fuel Lines and Electrical Connectors: Reconnect the fuel lines and electrical connectors to the fuel injectors.
Reconnect Battery and Test: Reconnect the negative battery cable. Turn the ignition key to the "on" position (but don't start the engine) to allow the fuel pump to pressurize the fuel system. Check for any fuel leaks. Start the engine and listen for any unusual noises. Use an OBD-II scanner to clear any diagnostic trouble codes.
Verify Repair: Monitor the engine's performance to ensure the misfire is resolved. Check fuel economy and overall engine smoothness.

Real-World Insights and Recommendations

Before tackling a fuel injector replacement, consider these additional points:

Use Quality Parts: Don't skimp on parts. Use reputable brands like Bosch, Delphi, or Denso. Inferior aftermarket injectors can cause more problems than they solve.
Clean the Injectors (Possibly): Before replacing an injector, consider trying a fuel injector cleaner. In some cases, a clogged injector can be cleaned with an additive or by sending the injectors out for professional cleaning. However, if the injector is mechanically damaged, replacement is the only option.
Replace All Injectors (Consider): If one injector has failed due to age and wear, the others are likely not far behind. Consider replacing all the injectors at the same time to avoid future problems. This is especially relevant for older vehicles.
Check for Other Issues: A faulty fuel injector may be a symptom of a larger problem, such as a clogged fuel filter or a failing fuel pump. Investigate these issues before replacing the injector.
Consult a Professional (When Necessary): If you're not comfortable working on the fuel system, or if you encounter any complications, don't hesitate to consult a professional mechanic. Fuel systems are complex and potentially dangerous.

Replacing a fuel injector can be a rewarding DIY project. By understanding how fuel injection systems work, taking the necessary safety precautions, and using quality parts, you can save money and gain valuable experience. However, be realistic about your skill level and don't hesitate to seek professional help when needed. A well-maintained fuel system is essential for optimal engine performance and longevity.
