How To Change A Fuel Sending Unit

Changing a fuel sending unit is a repair often undertaken by car owners facing inaccurate fuel gauge readings. The fuel sending unit, residing within the fuel tank, measures the fuel level and transmits this information to your vehicle's fuel gauge. When this unit fails, you might see fluctuating, consistently low, or simply incorrect fuel levels, leading to unnecessary anxiety and potential run-outs. This article provides a comprehensive guide on how to safely and effectively replace a faulty fuel sending unit.

Why Replacing a Fuel Sending Unit Matters

An accurate fuel gauge is crucial for several reasons beyond just convenience. Here's why addressing a faulty fuel sending unit is important:

• Avoiding Run-outs: The most obvious benefit is preventing you from running out of gas unexpectedly. Relying on a malfunctioning gauge can lead to misjudging your fuel level, leaving you stranded.
• Preventing Fuel Pump Damage: Running your fuel tank consistently low can strain your fuel pump. The fuel pump relies on the surrounding fuel to keep it cool. When the fuel level is consistently low, the pump can overheat and fail prematurely, resulting in a much more expensive repair.
• Accurate Trip Planning: If you rely on your car for road trips or even daily commutes, knowing your fuel level accurately is essential for planning fuel stops and ensuring you reach your destination without issue.
• Diagnostic Clarity: A faulty fuel sending unit can sometimes trigger a check engine light, masking other potential issues. Replacing the unit allows you to accurately diagnose any remaining problems with your vehicle.
• Maintaining Resale Value: While seemingly minor, a functioning fuel gauge contributes to the overall impression of a well-maintained vehicle. Potential buyers are more likely to value a car where all the systems are functioning correctly.

Choosing the Right Fuel Sending Unit

Selecting the correct replacement fuel sending unit is paramount for a successful repair. Here's what to consider:

Vehicle Year, Make, and Model:

This is the most critical factor. Fuel sending units are often specific to a particular year, make, and model of vehicle. Using the wrong unit can result in incorrect readings or a complete failure to function. Always consult your vehicle's owner's manual or a reliable online parts catalog to verify compatibility.

Fuel Tank Size and Type:

Some vehicles have different fuel tank sizes depending on the trim level or options package. Be sure to match the fuel sending unit to your vehicle's specific fuel tank capacity. Also, note whether your fuel tank is metal or plastic, as some sending units are designed specifically for one or the other. Using the wrong type can lead to corrosion or other problems.

OEM vs. Aftermarket:

You have the option of purchasing an Original Equipment Manufacturer (OEM) fuel sending unit directly from your vehicle's manufacturer or an aftermarket unit from a third-party supplier. OEM parts are generally more expensive but are guaranteed to be compatible and meet the manufacturer's quality standards. Aftermarket parts can be more affordable, but quality and compatibility can vary. When choosing an aftermarket unit, research the brand carefully and read reviews to ensure it's a reputable product.

Check the Float:

The fuel sending unit uses a float that rises and falls with the fuel level. Ensure the replacement unit's float is made of a durable material that is resistant to fuel degradation. Some floats are made of plastic, while others are made of metal. Check for any signs of damage or cracking on the float before installation.

Consider the Entire Fuel Pump Module:

In many modern vehicles, the fuel sending unit is integrated into the fuel pump module. Replacing the entire module might be more cost-effective and reliable than replacing the sending unit alone, especially if your vehicle is older or has high mileage. This ensures that all components within the fuel tank are functioning optimally.

Step-by-Step Guide to Replacing a Fuel Sending Unit

Safety First: Before starting any work on your fuel system, disconnect the negative battery cable to prevent electrical sparks. Work in a well-ventilated area away from any open flames or sources of ignition. Keep a fire extinguisher nearby.

1. Gather Your Tools and Supplies: You will need:
   • New fuel sending unit
   • Socket set
   • Wrench set
   • Screwdrivers (Phillips and flathead)
   • Pliers
   • Fuel line disconnect tool (if necessary)
   • Hammer
   • Punch or drift pin
   • Safety glasses
   • Gloves
   • Drain pan
   • Rags or absorbent cloths
   • Penetrating oil (optional)
2. Depressurize the Fuel System: Locate the fuel pump relay (consult your owner's manual for the location) and remove it. Start the engine and let it run until it stalls. This will relieve the pressure in the fuel lines.
3. Access the Fuel Tank: The fuel tank can usually be accessed either from underneath the vehicle or through an access panel in the trunk or rear seat area. Consult your vehicle's repair manual for specific instructions.
   • Underneath the Vehicle: Safely lift and support the vehicle using jack stands. Ensure the vehicle is stable before proceeding.
   • Through Access Panel: Remove the rear seat or trunk lining to expose the access panel.
4. Disconnect Fuel Lines and Electrical Connectors: Carefully disconnect the fuel lines from the fuel pump module or sending unit. Use a fuel line disconnect tool if required. Disconnect the electrical connectors. Be prepared for some fuel spillage. Use rags to absorb any spilled fuel.

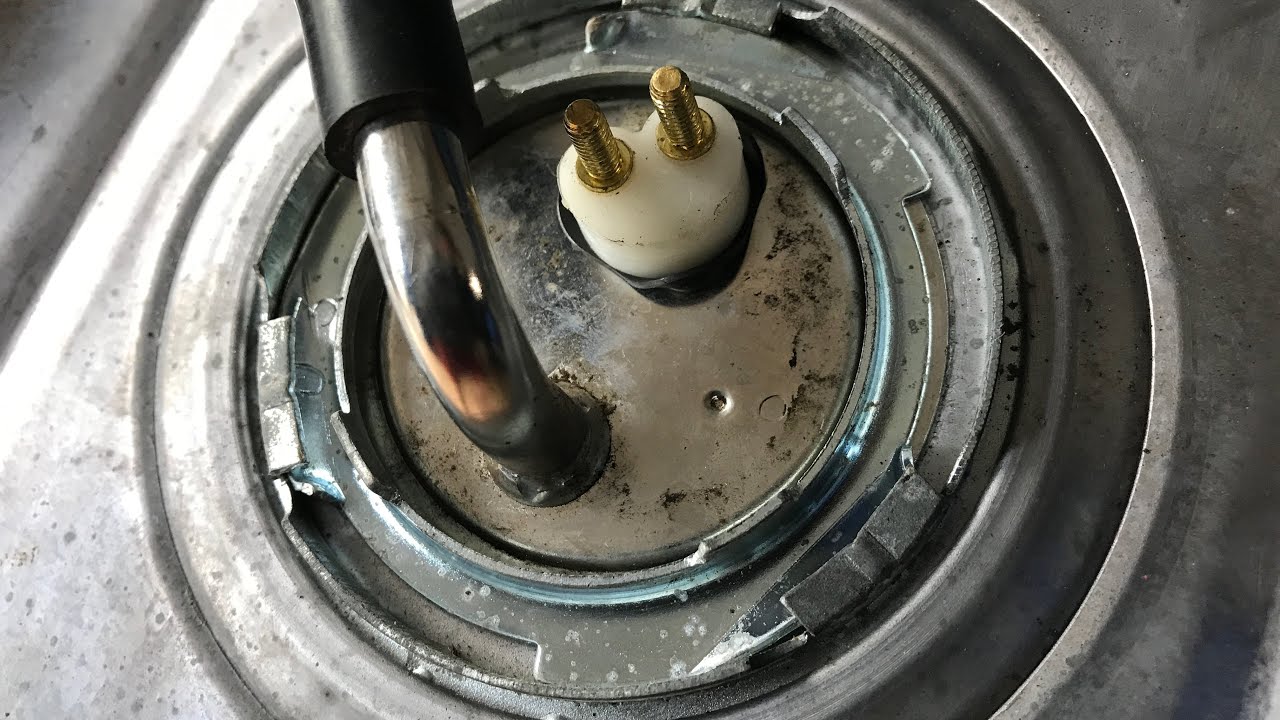

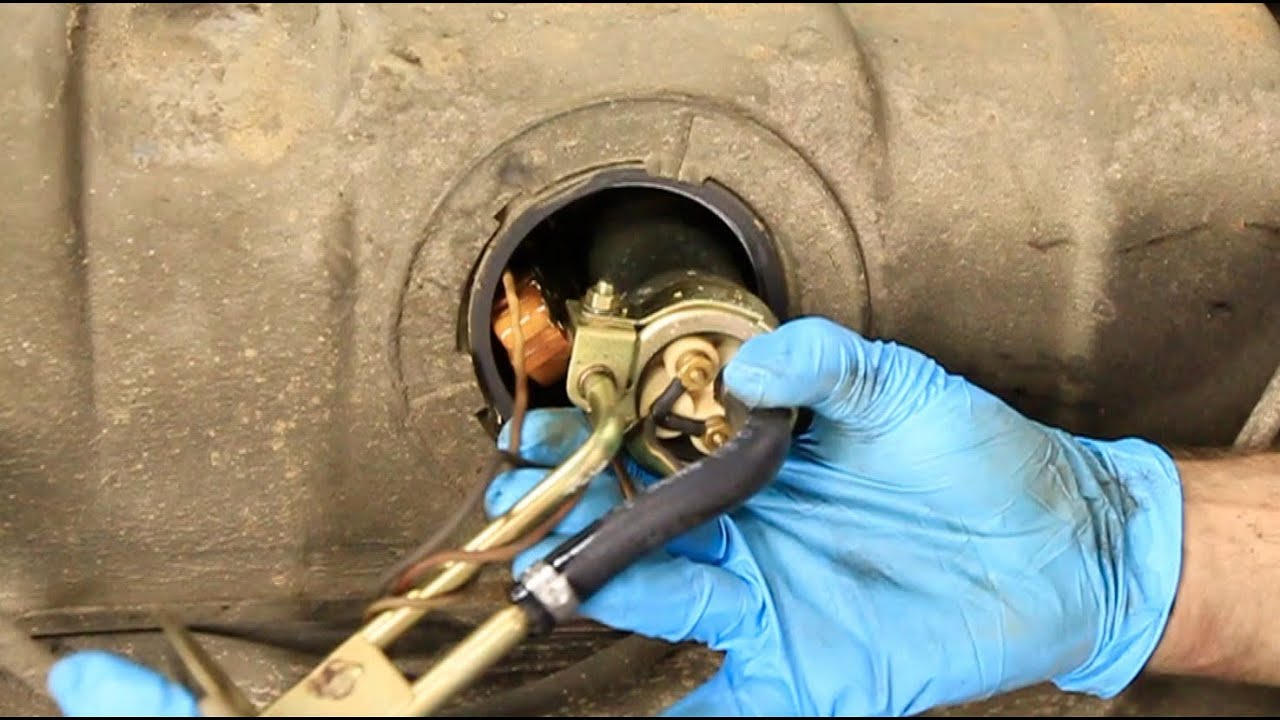

5. Remove the Fuel Pump Module/Sending Unit: Depending on your vehicle, the fuel pump module/sending unit may be held in place by a retaining ring or screws. Use a hammer and punch to gently tap the retaining ring loose (if applicable). Carefully remove the module/sending unit from the fuel tank.
6. Transfer Components (If Necessary): If you are only replacing the sending unit and not the entire fuel pump module, you may need to transfer some components, such as the fuel sock (filter) and any connecting hoses, from the old unit to the new one. Ensure all connections are secure.

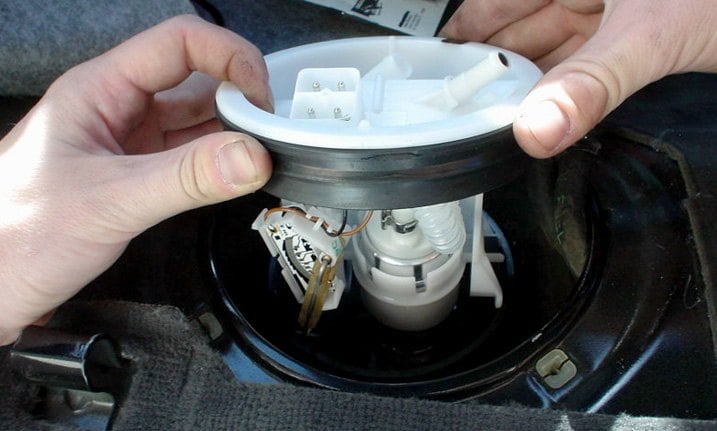

7. Install the New Fuel Sending Unit: Carefully insert the new fuel sending unit or fuel pump module into the fuel tank. Ensure it is properly seated and aligned.
8. Secure the Retaining Ring or Screws: Tighten the retaining ring or screws to secure the module/sending unit in place.
9. Reconnect Fuel Lines and Electrical Connectors: Reconnect the fuel lines and electrical connectors. Ensure all connections are tight and secure.
10. Reinstall the Access Panel or Lower the Vehicle: Reinstall the access panel in the trunk or rear seat area, or carefully lower the vehicle if you accessed the fuel tank from underneath.
11. Reinstall the Fuel Pump Relay: Reinstall the fuel pump relay.
12. Reconnect the Negative Battery Cable: Reconnect the negative battery cable.
13. Test the Fuel Gauge: Turn the ignition key to the "on" position (without starting the engine) and observe the fuel gauge. It should indicate the approximate fuel level in the tank.
14. Start the Engine: Start the engine and check for any fuel leaks. If you detect any leaks, immediately shut off the engine and address the problem.

Real-World Owner Experiences

Many car owners have shared their experiences with replacing fuel sending units, offering valuable insights:

• Common Issue: A recurring theme is the frustration of dealing with inaccurate fuel gauge readings, often leading to unnecessary fuel stops or the anxiety of running out of gas.
• DIY Satisfaction: Many DIYers express satisfaction in successfully replacing the fuel sending unit themselves, saving money on labor costs. However, they emphasize the importance of taking safety precautions and double-checking compatibility.
• Quality Concerns: Some owners have reported issues with aftermarket fuel sending units failing prematurely or providing inaccurate readings. This highlights the importance of choosing a reputable brand or opting for an OEM part.
• Corrosion Issues: In regions with harsh winters and salted roads, corrosion can be a significant factor in fuel sending unit failure. Regularly inspecting the fuel tank and surrounding area can help identify potential problems early on.
• Complexity Varies: Owners report that the difficulty of the job varies depending on the vehicle's design. Some vehicles offer easy access to the fuel tank, while others require more extensive disassembly.

Frequently Asked Questions (FAQs)

Here are some common questions about fuel sending units and their replacement:

Q: How do I know if my fuel sending unit is bad?

A: Common symptoms include a fuel gauge that reads incorrectly (always empty, always full, or fluctuating wildly), a check engine light related to the fuel system, or difficulty starting the engine due to fuel starvation.

Q: Can I drive with a bad fuel sending unit?

A: While you can technically drive with a bad fuel sending unit, it is not recommended. An inaccurate fuel gauge can lead to running out of gas unexpectedly, which can be dangerous. It's best to address the issue as soon as possible.

Q: How much does it cost to replace a fuel sending unit?

A: The cost can vary depending on the vehicle, the type of replacement part (OEM vs. aftermarket), and whether you do the job yourself or hire a mechanic. Expect to pay anywhere from $150 to $500, including parts and labor.

Q: Is it safe to work on a fuel tank?

A: Working on a fuel tank can be dangerous due to the flammability of gasoline. Always take safety precautions, such as disconnecting the battery, working in a well-ventilated area, and keeping a fire extinguisher nearby. If you are not comfortable working on the fuel system, it's best to consult a qualified mechanic.

Q: Can I replace just the fuel sending unit, or do I have to replace the entire fuel pump?

A: In some vehicles, the fuel sending unit is a separate component that can be replaced individually. In other vehicles, it is integrated into the fuel pump module, requiring replacement of the entire unit. Check your vehicle's repair manual for specific information.

Q: How long does it take to replace a fuel sending unit?

A: The time required to replace a fuel sending unit can vary depending on the vehicle and your experience level. Expect the job to take anywhere from 1 to 4 hours.
