How To Change A Quarter Panel

So, you're looking at a damaged quarter panel on your car. Maybe it's a nasty dent from a parking lot mishap, some rust eating away at the metal, or even damage from a more serious collision. Replacing a quarter panel is a fairly involved repair, but if you're reasonably handy, have the right tools, and are willing to put in the time, it's a project you can potentially tackle yourself. The alternative, of course, is taking it to a body shop. We'll cover both options and give you the information you need to make the best decision for your situation. Getting this fixed is important for more than just looks; it protects the structural integrity of your vehicle and prevents further damage from corrosion.

Symptoms of a Damaged Quarter Panel

Here's a breakdown of the common signs that your quarter panel needs attention:

• Visible Dent or Crease: This is the most obvious symptom. Even a small dent can be unsightly and potentially compromise the paint, leading to rust.
• Rust Formation: Rust is a quarter panel's worst enemy. Look for bubbling paint, surface rust, or even holes in the metal. Rust tends to start in areas prone to moisture and debris accumulation, like the lower sections of the panel or around wheel wells.
• Paint Damage: Scratches, chips, or peeling paint expose the metal to the elements and increase the risk of rust.
• Misalignment: After an accident, the quarter panel might not line up properly with the surrounding body panels (door, bumper, etc.). This can cause gaps, rubbing, or difficulty opening/closing doors.
• Water Leaks: A damaged or poorly sealed quarter panel can allow water to enter the vehicle's interior, leading to mold and mildew. Check for dampness in the trunk or rear passenger area.
• Unusual Noises: Sometimes a loose or damaged quarter panel can vibrate, creating rattles or other unusual noises while driving.

Root Cause: What's Damaging My Quarter Panel?

Quarter panels are vulnerable to a variety of damaging forces. Here’s a look at some of the most common culprits:

• Collisions: Accidents, even minor ones, are a primary cause of quarter panel damage. Parking lot incidents, fender benders, and more serious collisions can all result in dents, creases, or even more extensive damage.
• Rust: As mentioned earlier, rust is a major threat. It's caused by oxidation, a chemical reaction between iron, oxygen, and moisture. Road salt, water, and humidity accelerate the rusting process. Vehicles in colder climates, where road salt is used extensively, are particularly susceptible.
• Debris: Rocks, gravel, and other road debris can chip away at the paint and expose the metal to the elements, increasing the risk of rust.
• Vandalism: Unfortunately, intentional damage is also a factor. Keying, scratching, or other acts of vandalism can damage the quarter panel's finish.
• Poor Prior Repairs: If a previous repair wasn’t done properly (e.g., improper welding, inadequate rustproofing), it can weaken the panel and make it more susceptible to future damage.
• Stress Cracks: Over time, the metal in the quarter panel can develop stress cracks, especially around areas of high stress, like the wheel well or where the panel is joined to other body parts.

Consequences of Ignoring Quarter Panel Damage

Ignoring a damaged quarter panel is rarely a good idea. Here's what can happen if you put off repairs:

• Rust Spreads: Rust is like a cancer for your car. If left untreated, it will continue to spread, weakening the metal and potentially affecting other parts of the vehicle. What starts as a small rust spot can eventually turn into a large hole, requiring even more extensive repairs.
• Structural Weakness: The quarter panel contributes to the overall structural integrity of the vehicle. Significant damage can compromise the car's ability to withstand impacts in a collision.
• Water Leaks: Damaged quarter panels can allow water to enter the vehicle, leading to mold, mildew, and electrical problems. Water can damage carpets, upholstery, and electronic components.
• Reduced Resale Value: A damaged quarter panel significantly reduces the car's resale value. Potential buyers will be less willing to pay top dollar for a vehicle with visible body damage.
• Safety Issues: In some cases, a severely damaged quarter panel can create safety hazards. For example, sharp edges or loose panels can pose a risk to pedestrians or other drivers.

Recommended Fixes: Replacing the Quarter Panel

The most common and often best fix for a significantly damaged quarter panel is replacement. Here's a general overview of the process. This is not a complete how-to guide and requires specialized skills and tools. Consider professional repair if you're not comfortable with these steps.

DIY Approach (Requires Experience and Proper Tools)

1. Assessment: Carefully inspect the damage to determine if replacement is truly necessary. Minor dents might be repairable with dent removal techniques.
2. Preparation: Gather the necessary tools and materials:
   • New quarter panel (OEM or aftermarket)
   • Welding equipment (MIG welder recommended)
   • Cutting tools (air saw, cut-off wheel)
   • Grinding tools
   • Body hammers and dollies
   • Body filler and spreaders
   • Sandpaper (various grits)
   • Primer and paint
   • Rust inhibitor
   • Seam sealer
   • Safety glasses, gloves, and respirator

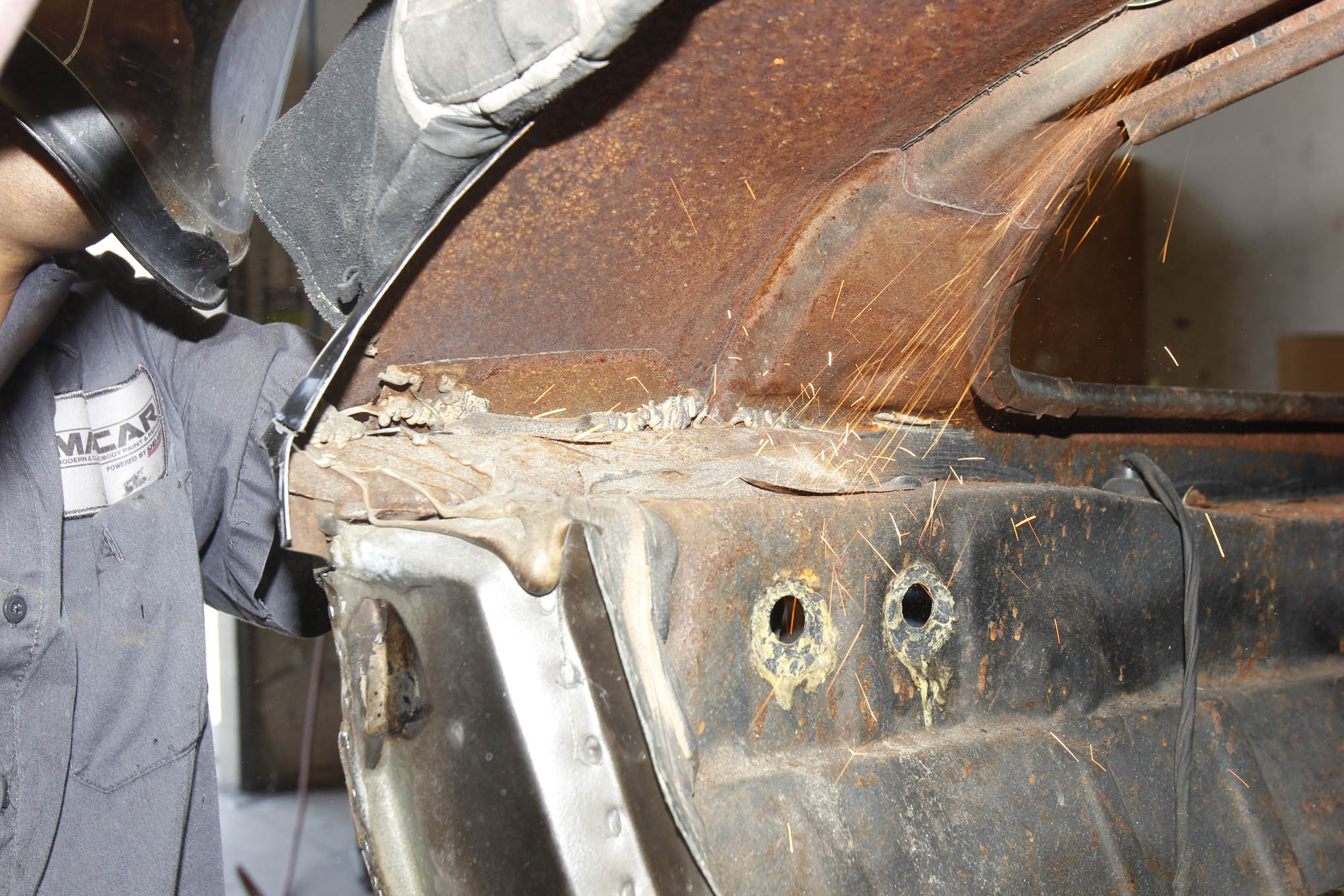

3. Removal of Old Panel: Carefully cut away the old quarter panel using the appropriate cutting tools. Be mindful of surrounding components, like wiring harnesses and fuel lines. Spot weld cutters are essential for removing factory welds.
4. Surface Preparation: Grind down any remaining weld spots and remove any rust or corrosion from the surrounding metal. Apply a rust inhibitor to prevent future rust formation.

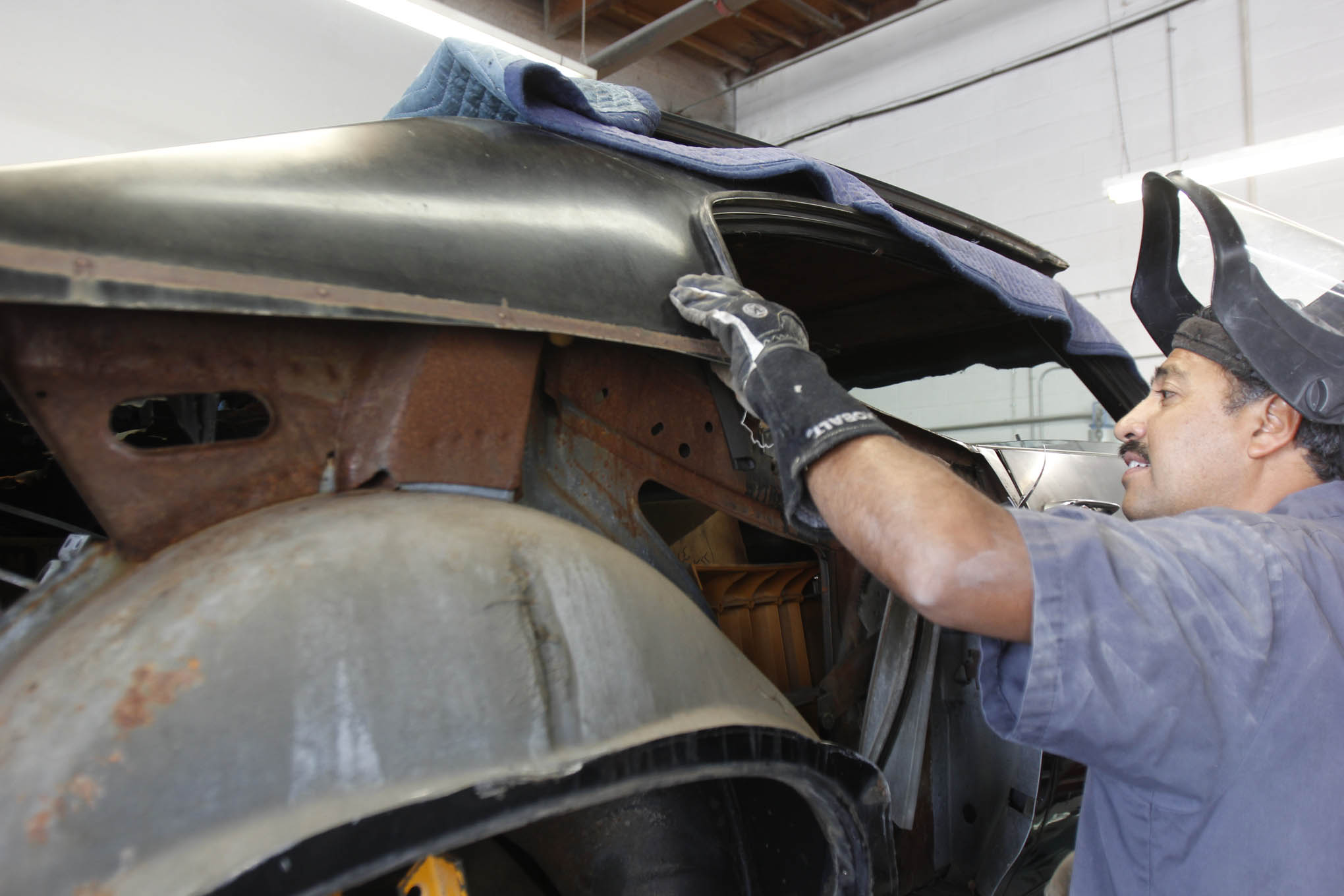

5. Trial Fit: Before welding, trial fit the new quarter panel to ensure proper alignment and fitment. Make any necessary adjustments.

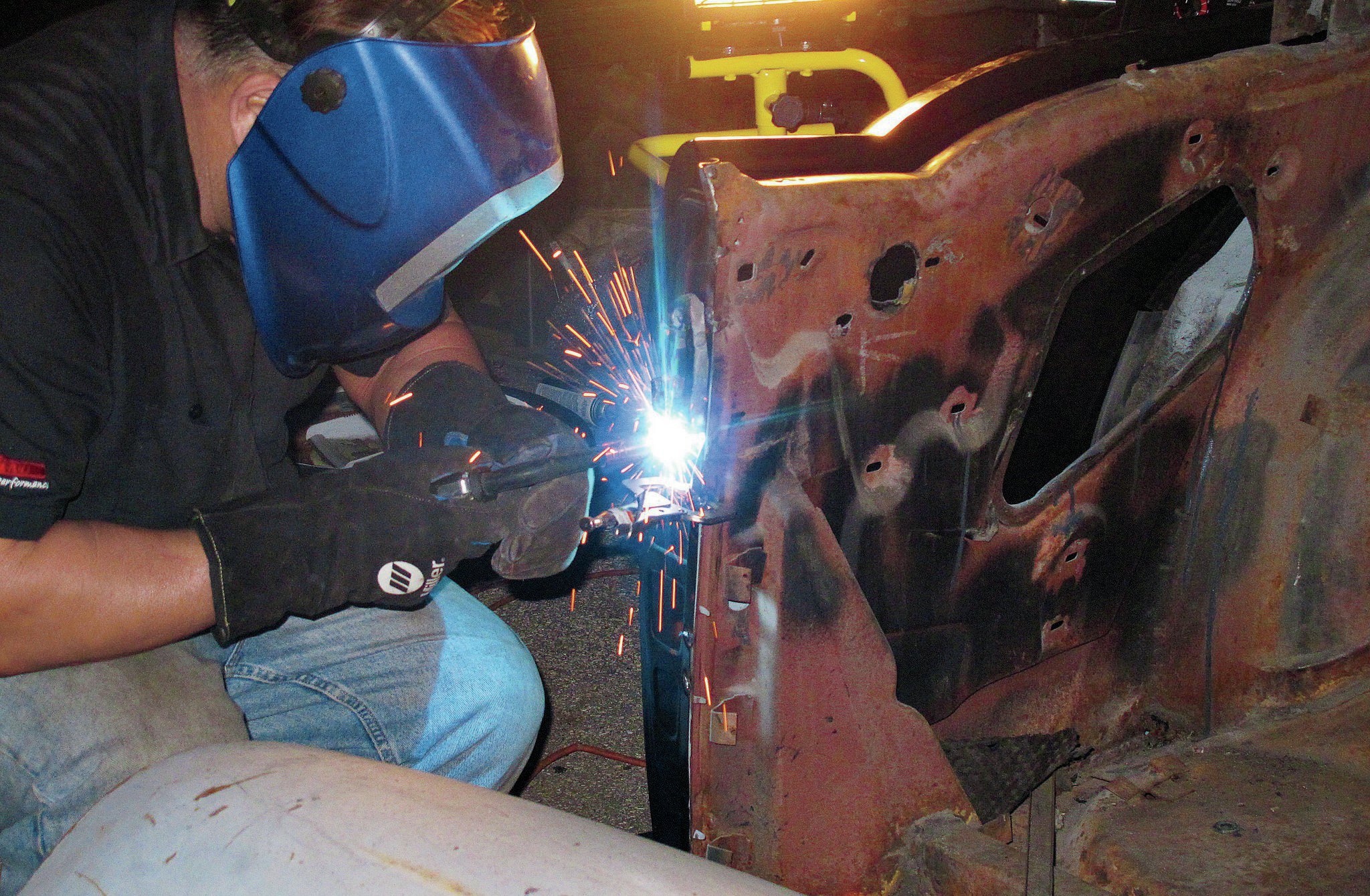

6. Welding: Weld the new quarter panel into place using a MIG welder. Use a series of spot welds to minimize heat distortion. Proper welding technique is crucial for a strong and durable repair. If you're not experienced with welding, seek professional assistance.
7. Grinding and Finishing: Grind down the welds to create a smooth surface. Use body filler to fill any imperfections and smooth out the contours of the panel.
8. Sanding and Priming: Sand the body filler to the desired shape and smoothness. Apply several coats of primer, sanding between each coat.
9. Painting: Apply several coats of paint, matching the vehicle's color. Apply a clear coat for added protection and shine.
10. Sealing: Apply seam sealer to all joints and seams to prevent water intrusion.

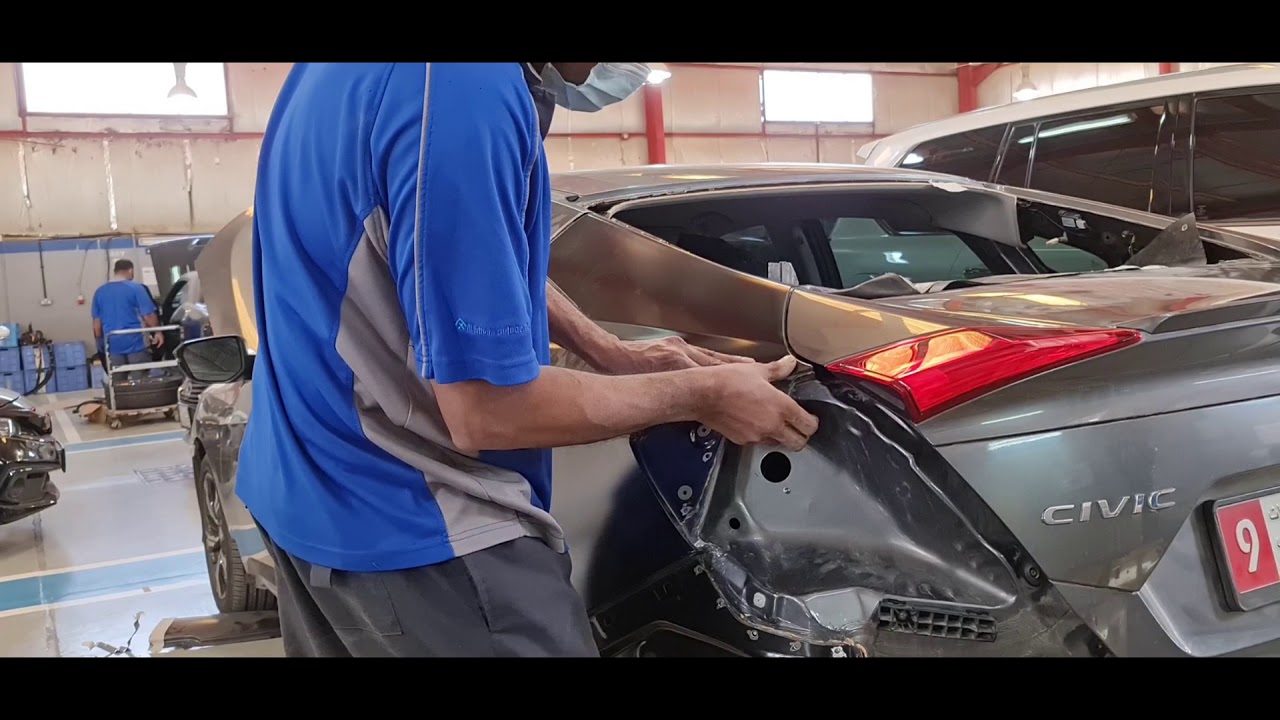

11. Final Assembly: Reinstall any trim pieces, lights, or other components that were removed during the repair.

Professional Repair at a Body Shop

Taking your car to a reputable body shop is often the best option, especially if the damage is extensive or if you lack the necessary skills and tools. Here's what you can expect:

1. Estimate: The body shop will provide you with a detailed estimate of the repair costs, including parts and labor.
2. Insurance Claim (if applicable): If the damage is covered by insurance, the body shop will work with your insurance company to process the claim.
3. Repair Process: The body shop will follow a similar process to the DIY approach, but with professional equipment and expertise. They will ensure that the repair is done correctly and to industry standards.
4. Quality Control: The body shop will perform a thorough quality control check to ensure that the repair is flawless.
5. Warranty: Most body shops offer a warranty on their repairs.

Cost Estimates and Shop Advice

The cost of replacing a quarter panel can vary significantly depending on several factors:

• Vehicle Make and Model: Parts for some vehicles are more expensive than others.
• Type of Quarter Panel: OEM (Original Equipment Manufacturer) parts are generally more expensive than aftermarket parts.
• Extent of Damage: More extensive damage requires more labor and materials, increasing the cost.
• Body Shop Rates: Labor rates vary from shop to shop.
• Paint Matching: Matching the paint perfectly can be challenging and may require additional blending, adding to the cost.
• Location: Prices vary by geographic location.

Estimated Cost Range:

• DIY: $300 - $1000+ (depending on the cost of the quarter panel, materials, and tools you already own)
• Professional Repair: $1000 - $3000+ (or more, depending on the factors listed above)

Shop Advice:

• Get Multiple Estimates: Contact several body shops to get estimates and compare prices.
• Check Reviews: Read online reviews and ask for recommendations from friends or family.
• Ask About Warranty: Make sure the body shop offers a warranty on their repairs.
• Discuss Part Options: Ask the body shop about the pros and cons of using OEM versus aftermarket parts.
• Understand the Process: Ask the body shop to explain the repair process in detail.

Technical Service Bulletins (TSBs) and Common Failure Points

While quarter panel damage isn't typically addressed by specific TSBs (Technical Service Bulletins), it's worth noting that some vehicles are known to be more prone to rust in certain areas, including the quarter panels. Online forums and communities dedicated to your specific car make and model can be valuable resources for identifying common rust spots and potential issues. For example, certain models from the late 90s and early 2000s are notorious for rust around the rear wheel wells, often requiring quarter panel replacement. Be sure to research your vehicle to see if there are any common failure points to be aware of.

Ultimately, deciding whether to DIY or seek professional help depends on your skills, budget, and the extent of the damage. Weigh your options carefully and choose the approach that best suits your needs.
