How To Change Clutch Slave Cylinder

The clutch slave cylinder: a small, often-overlooked component that plays a vital role in the smooth operation of your manual transmission vehicle. When it fails, the consequences can range from a stiff clutch pedal to a complete inability to shift gears. But what exactly is a clutch slave cylinder, and how do you go about replacing it? This guide provides a detailed, technical walkthrough, offering insights for both the curious reader and the aspiring DIY mechanic.

The Impending Doom: Recognizing a Failing Slave Cylinder

Imagine this: You're cruising down the highway, approaching a stop sign. You press the clutch pedal, expecting a smooth, easy disengagement, but instead, you encounter significant resistance. Perhaps the pedal feels spongy, or maybe it sticks to the floor. Worse yet, you find it difficult or even impossible to shift gears. These are classic symptoms of a failing clutch slave cylinder. Before diving into the replacement process, let's understand the underlying issue.

Think of your clutch system like a hydraulic press. The clutch master cylinder, located near the clutch pedal, acts as the pump. When you depress the pedal, it pushes hydraulic fluid through a line to the clutch slave cylinder, which then actuates the clutch release fork, disengaging the clutch. A leak, internal damage to the cylinder, or a buildup of contaminants within the hydraulic system can all compromise the slave cylinder's ability to function properly.

How the Clutch Hydraulic System Works: A Detailed Look

The clutch hydraulic system is a closed loop, filled with brake fluid (typically DOT 3 or DOT 4, depending on the vehicle manufacturer's specification). When the clutch pedal is pressed, the master cylinder piston moves, pressurizing the fluid. This pressure is transmitted through the hydraulic line to the slave cylinder. Inside the slave cylinder, the pressure acts upon a piston. This piston is connected to a pushrod, which in turn presses against the clutch release fork (also known as a throw-out lever). The clutch release fork pivots, pushing the throw-out bearing against the clutch pressure plate. This action lifts the pressure plate away from the clutch disc, interrupting the power flow from the engine to the transmission. When the clutch pedal is released, a return spring in the clutch assembly pushes the pressure plate back against the clutch disc, re-engaging the engine and transmission. The slave cylinder piston retracts, pushing the hydraulic fluid back to the master cylinder. A small reservoir, typically integrated with the master cylinder, provides a supply of fluid to compensate for wear or minor leaks within the system. Without this closed, pressurized system, the mechanical advantage needed to disengage the clutch would be impossible to achieve with reasonable pedal effort.

Components within the System

• Master Cylinder: Converts pedal force into hydraulic pressure.
• Hydraulic Line: Transfers pressurized fluid between the master and slave cylinders.
• Slave Cylinder: Converts hydraulic pressure into mechanical movement to disengage the clutch.
• Clutch Release Fork: A lever that transmits the slave cylinder's force to the throw-out bearing.
• Throw-Out Bearing (Release Bearing): A bearing that presses against the pressure plate fingers.
• Pressure Plate: A spring-loaded mechanism that clamps the clutch disc against the flywheel.
• Clutch Disc: The friction material that transmits power from the engine to the transmission.

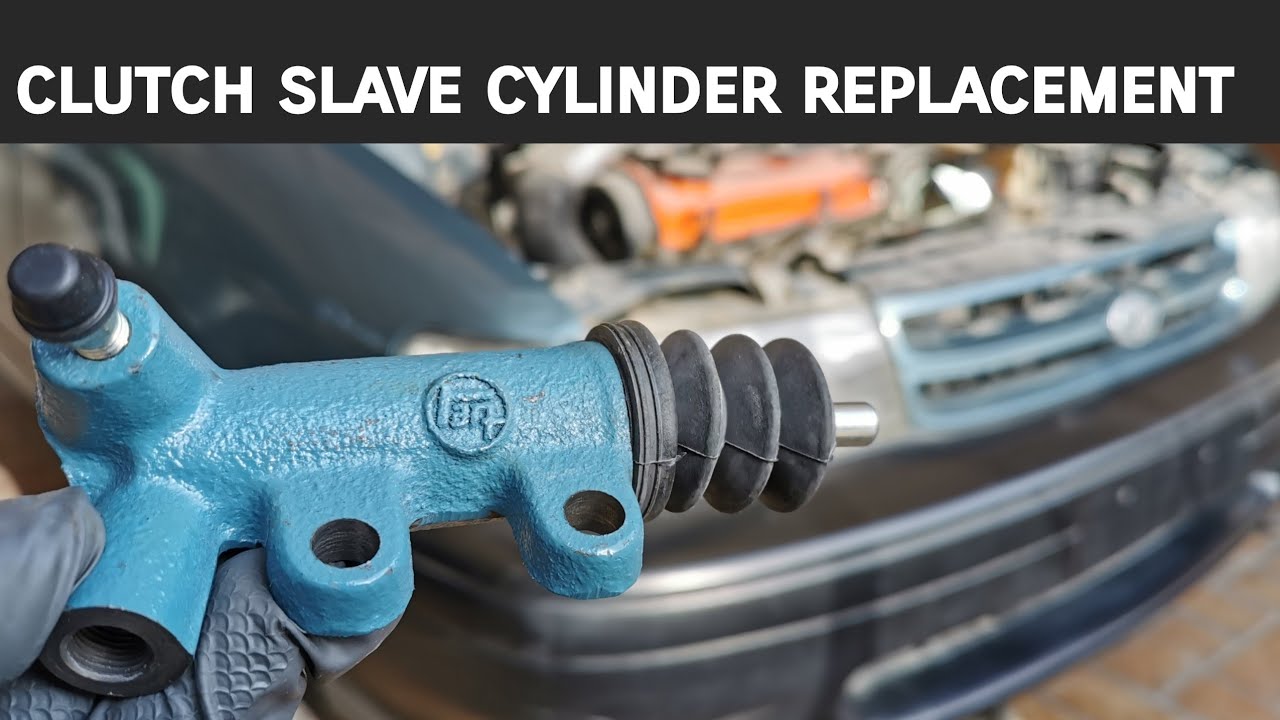

Replacing the Clutch Slave Cylinder: A Step-by-Step Guide

Disclaimer: This procedure requires basic mechanical skills and access to tools. If you are not comfortable performing this work, seek the assistance of a qualified mechanic. Always consult your vehicle's service manual for specific instructions and torque specifications.

1. Gather Your Tools and Supplies:
   • New clutch slave cylinder (verify correct part number)
   • Brake fluid (DOT 3 or DOT 4, as specified by the manufacturer)
   • Wrenches (flare nut wrenches are recommended for hydraulic fittings)
   • Sockets and ratchets
   • Drain pan
   • Bleeder wrench or hose
   • Jack and jack stands
   • Wheel chocks
   • Safety glasses
   • Gloves
   • Penetrating oil (if necessary)
2. Prepare the Vehicle:
   • Park the vehicle on a level surface.
   • Engage the parking brake and chock the rear wheels.
   • Jack up the front of the vehicle and securely support it with jack stands. Never work under a vehicle supported only by a jack.
3. Locate the Slave Cylinder:

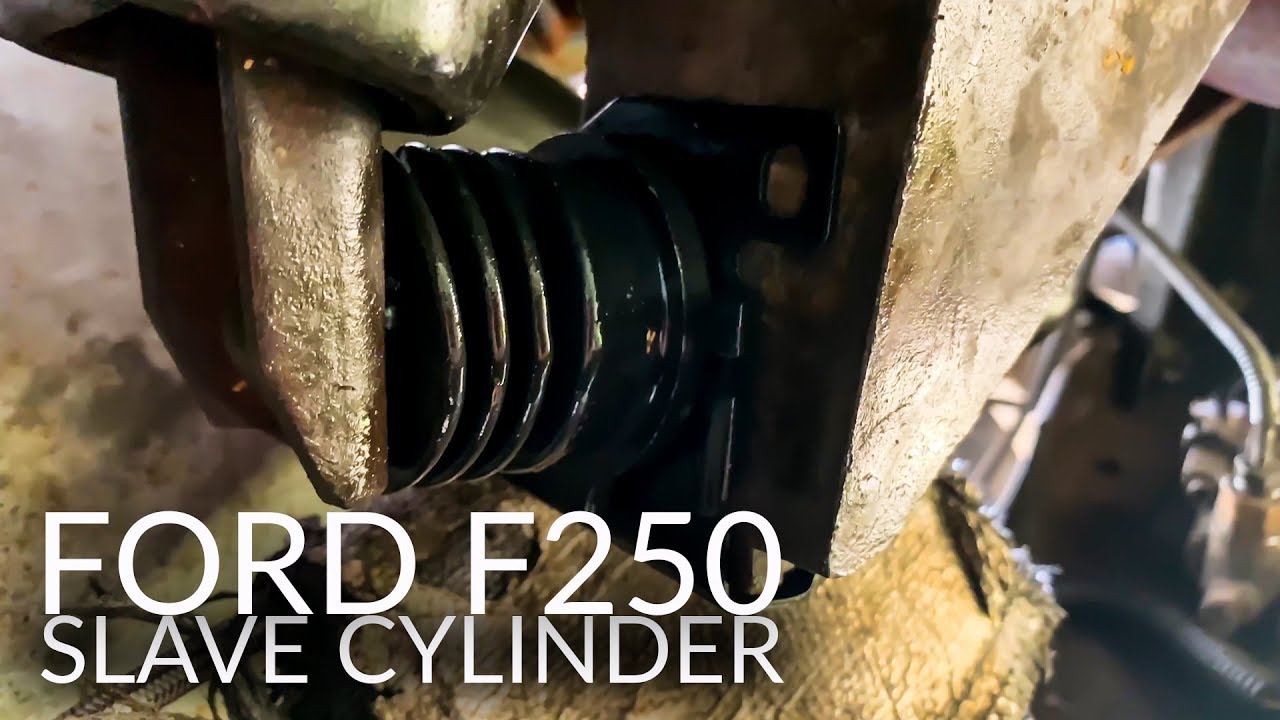

   • The slave cylinder is typically mounted on the transmission housing, near the clutch fork.
   • Refer to your vehicle's service manual for the exact location.
4. Disconnect the Hydraulic Line:
   • Carefully disconnect the hydraulic line from the slave cylinder. Use a flare nut wrench to prevent rounding off the fitting.
   • Have a drain pan ready to catch any leaking brake fluid.
   • If the fitting is seized, apply penetrating oil and allow it to soak for a few minutes before attempting to loosen it.

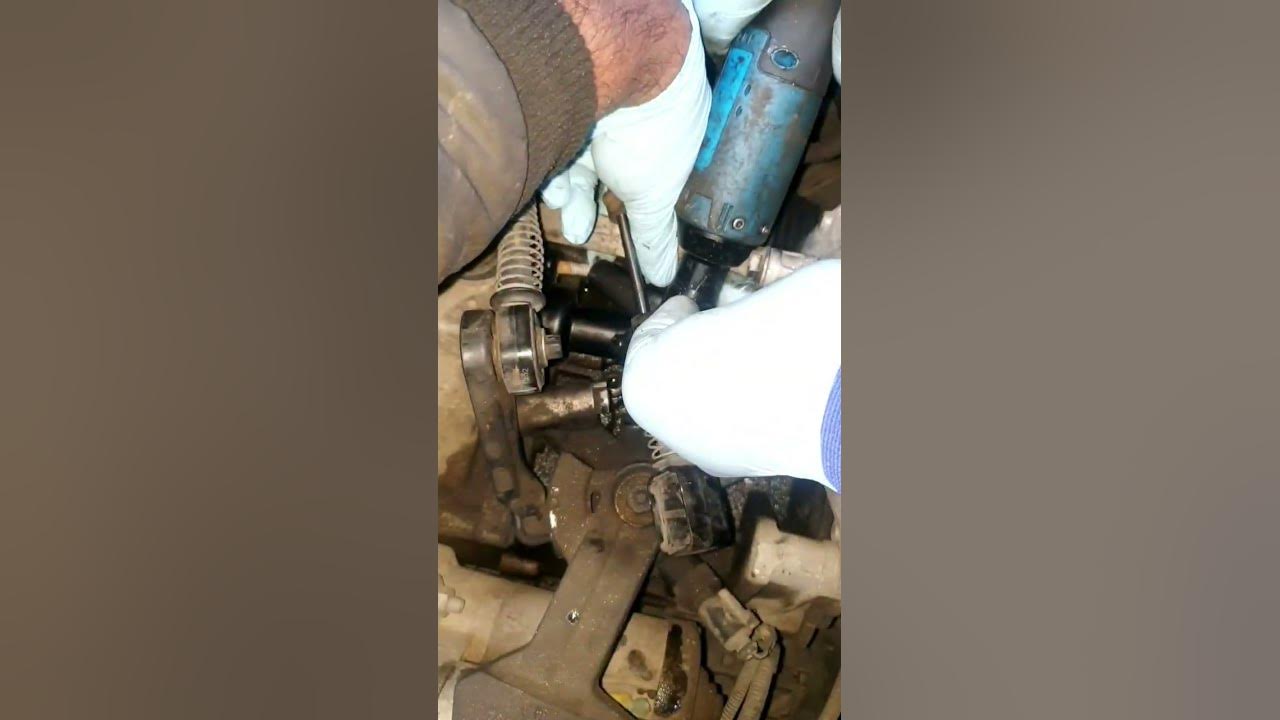

5. Remove the Slave Cylinder Mounting Bolts:
   • Remove the bolts that secure the slave cylinder to the transmission housing.
6. Remove the Old Slave Cylinder:
   • Carefully remove the old slave cylinder.
   • Inspect the pushrod and clutch fork for any signs of wear or damage.
7. Install the New Slave Cylinder:
   • Install the new slave cylinder in the reverse order of removal.
   • Tighten the mounting bolts to the manufacturer's specified torque.
8. Reconnect the Hydraulic Line:
   • Reconnect the hydraulic line to the new slave cylinder.
   • Tighten the fitting securely, but do not overtighten.
9. Bleed the Clutch System:
   • Bleeding the clutch system is essential to remove air bubbles from the hydraulic lines. Air bubbles will prevent the clutch from disengaging properly.
   • Locate the bleeder screw on the slave cylinder.
   • Open the bleeder screw slightly, and have a helper depress the clutch pedal several times.
   • Close the bleeder screw before releasing the clutch pedal.
   • Repeat this process until no air bubbles are present in the fluid that is expelled from the bleeder screw.
   • Keep the master cylinder reservoir filled with brake fluid during the bleeding process to prevent air from entering the system.
10. Test the Clutch Pedal:
    • After bleeding the system, test the clutch pedal for proper feel and engagement.
    • The pedal should feel firm and consistent, and the clutch should disengage smoothly.
    • If the pedal feels spongy or the clutch does not disengage properly, repeat the bleeding process.
11. Lower the Vehicle:
    • Remove the jack stands and lower the vehicle to the ground.
12. Final Check:
    • Take the vehicle for a test drive to ensure that the clutch is functioning properly.
    • Check for any leaks around the slave cylinder and hydraulic line.

Pros and Cons of DIY Slave Cylinder Replacement

Pros:

• Cost Savings: Significant savings compared to having a professional mechanic perform the work.
• Learning Experience: Gain valuable knowledge and skills in automotive repair.
• Personal Satisfaction: The sense of accomplishment that comes from successfully completing a repair yourself.

Cons:

• Time Commitment: Replacing a slave cylinder can take several hours, depending on your skill level and the complexity of the vehicle.
• Potential for Errors: Improper installation or bleeding can lead to further problems.
• Tool Investment: May require purchasing specialized tools, such as flare nut wrenches.

Use Cases and Manufacturer Examples

Clutch slave cylinder failures are common across a wide range of vehicles with manual transmissions. For example, the Honda Civic, known for its sporty driving experience, often sees slave cylinder issues due to the high usage the clutch system endures. Similarly, older Ford Mustangs can experience problems as the original components age and seals degrade. European manufacturers like BMW and Audi, with their intricate hydraulic systems, also face potential slave cylinder malfunctions. These issues are not limited to performance vehicles; even trucks and SUVs with manual transmissions, such as the Toyota Tacoma or Jeep Wrangler, can experience slave cylinder failure, especially those subjected to heavy off-road use.

Different manufacturers use slightly different designs for their slave cylinders. Some utilize a concentric slave cylinder (CSC), which is integrated within the transmission housing around the input shaft. This design offers a more compact packaging but can be more challenging to replace, often requiring transmission removal. Traditional external slave cylinders, as described in the replacement procedure above, are generally easier to access and replace.

Real-World Insights and Recommendations

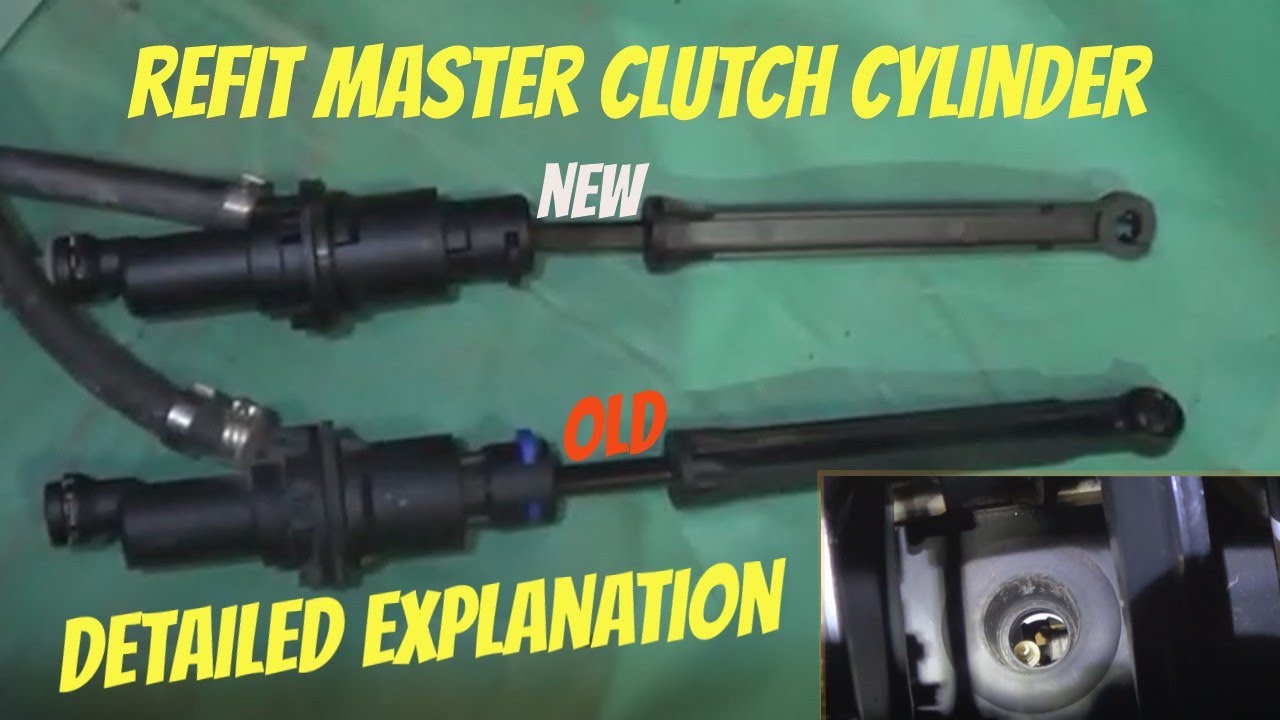

In the real world, some challenges can arise during slave cylinder replacement. Corrosion can seize the hydraulic fittings, making them difficult to disconnect. Using a penetrating oil and allowing it to soak is crucial in these situations. Another common issue is difficulty in bleeding the system. A pressure bleeder or vacuum bleeder can be helpful in removing stubborn air bubbles. Sometimes, the master cylinder can be the root of the problem, pushing contaminated fluid to the slave cylinder. It's prudent to inspect the master cylinder for leaks or damage and consider replacing it simultaneously, especially if the system is heavily contaminated or if the car has high mileage.

When choosing a replacement slave cylinder, consider the quality of the part. Opt for reputable brands known for their durability and reliability. While cheaper alternatives may be tempting, they can often lead to premature failure and additional headaches down the road. Furthermore, always use the correct type of brake fluid specified by the vehicle manufacturer. Using the wrong fluid can damage the seals within the hydraulic system.

Finally, a crucial recommendation: after replacing the slave cylinder, take the time to thoroughly inspect the entire clutch system. Check the condition of the clutch disc, pressure plate, and throw-out bearing. If any of these components show signs of wear or damage, it may be wise to replace them while the transmission is accessible. This will save you time and money in the long run by preventing future failures. By understanding the function of the clutch slave cylinder and following these guidelines, you can confidently tackle this repair and keep your manual transmission vehicle running smoothly.
