How To Change Fuel Sending Unit

Fuel sending units, often overlooked until they malfunction, play a critical role in keeping you informed about your fuel level. A faulty sender can lead to inaccurate readings, leaving you stranded or constantly second-guessing your remaining range. This guide provides a comprehensive walkthrough on how to replace a fuel sending unit, geared towards the intermediate DIY mechanic looking to save money and gain a deeper understanding of their vehicle.

Background: Fuel Systems and the Sending Unit's Role

The automotive fuel system's primary function is to deliver fuel from the tank to the engine in a controlled and reliable manner. This involves several key components: the fuel tank, fuel pump, fuel filter, fuel lines, fuel injectors (or carburetor in older vehicles), and the fuel sending unit. While the fuel pump ensures fuel delivery to the engine, and the fuel injectors precisely meter the fuel for combustion, the fuel sending unit provides the crucial information on how much fuel remains in the tank.

The fuel sending unit is typically located inside the fuel tank. It's usually integrated with the fuel pump assembly as one single unit, but on some older vehicles, it might be a separate component. Its main purpose is simple: to measure the fuel level and relay that information to the fuel gauge on your dashboard. This seemingly simple task relies on a few key principles of electrical resistance.

Technical Breakdown: How the Fuel Sending Unit Works

The Float, Arm, and Variable Resistor

At the heart of the fuel sending unit is a float, typically made of a buoyant material like foam or plastic. This float is attached to a metal arm that pivots on a central point. As the fuel level rises and falls, the float moves up and down, causing the arm to rotate. This mechanical movement is then converted into an electrical signal.

This conversion is achieved using a variable resistor, also known as a potentiometer. The arm of the float is connected to a wiper that moves along the resistor. The resistor is essentially a coil of resistance wire or a resistive strip. As the wiper moves, it changes the amount of resistance in the circuit.

Resistance and Fuel Level

When the fuel tank is full, the float is at its highest position, and the wiper is at one end of the variable resistor. This corresponds to a low resistance. This low resistance allows a larger current to flow through the circuit. This higher current is then interpreted by the fuel gauge as a full tank. Conversely, when the fuel tank is empty, the float is at its lowest position, the wiper is at the other end of the resistor, and the resistance is at its highest. This high resistance restricts the current flow, signaling an empty tank to the fuel gauge.

Wiring and Signal Transmission

The fuel sending unit typically has two wires: a ground wire and a signal wire. The signal wire carries the variable resistance information to the fuel gauge. The fuel gauge itself is essentially a voltmeter calibrated to display fuel level instead of voltage. It reads the voltage drop across the sending unit circuit, which is directly related to the resistance, and thus, the fuel level.

In modern vehicles, the signal from the fuel sending unit may be sent to the Powertrain Control Module (PCM) or other electronic control units (ECUs). The PCM can then use this information for various functions, such as calculating fuel economy and adjusting engine performance. The PCM then sends the fuel level data to the instrument cluster via the Controller Area Network (CAN) bus). This digital data stream allows for more precise and reliable fuel level readings.

Common Issues and Maintenance Concerns

Fuel sending units, being submerged in fuel and subject to constant movement, are prone to several issues:

• Corrosion: Fuel can be corrosive, especially with the presence of ethanol. This can damage the float, arm, and variable resistor, leading to inaccurate readings or complete failure.
• Wear and Tear: The wiper on the variable resistor can wear down over time, causing erratic or inaccurate readings. The pivot point of the float arm can also become worn, affecting its movement.
• Float Damage: The float itself can become damaged or saturated with fuel, causing it to sink and provide incorrect readings.
• Wiring Issues: Corroded or damaged wiring can disrupt the signal between the sending unit and the fuel gauge, leading to inaccurate readings or no reading at all.
• Fuel Contamination: Debris and sediment in the fuel tank can clog the sending unit and interfere with its operation.

Symptoms of a Failing Fuel Sending Unit

The most common symptom of a failing fuel sending unit is an inaccurate fuel gauge. This can manifest in several ways:

• The gauge reads empty even when the tank is full.
• The gauge reads full even when the tank is empty.
• The gauge fluctuates wildly or erratically.
• The gauge reads incorrectly, such as showing half a tank when it's actually nearly empty.
• The fuel light comes on even when there's plenty of fuel in the tank.

Replacing the Fuel Sending Unit: A Step-by-Step Guide

Important Safety Precautions: Working with fuel is inherently dangerous. Always disconnect the negative battery terminal before starting any fuel system work. Work in a well-ventilated area away from any sources of ignition, such as open flames, sparks, or cigarettes. Have a fire extinguisher readily available. Wear safety glasses and gloves to protect yourself from fuel exposure.

1. Gather Your Tools and Supplies:
   • New fuel sending unit (ensure it's the correct part for your vehicle's year, make, and model)
   • New fuel pump strainer/sock (recommended)
   • Socket set and wrenches
   • Screwdrivers (Phillips and flathead)
   • Pliers
   • Fuel line disconnect tool (if required by your vehicle)
   • Hammer and punch (if necessary to remove the fuel pump retaining ring)
   • Multimeter
   • Jack and jack stands
   • Wheel chocks
   • Drain pan
   • Clean rags
   • Penetrating oil
2. Prepare the Vehicle:
   • Park the vehicle on a level surface and engage the parking brake.
   • Chock the rear wheels for added safety.
   • Disconnect the negative battery terminal.
   • Ideally, the fuel tank should be as empty as possible to minimize fuel spillage and fumes. Running the vehicle until the fuel light comes on is a good starting point.
3. Access the Fuel Tank:
   • The fuel tank access method varies depending on the vehicle. Some vehicles have an access panel under the rear seat or in the trunk. Others require dropping the fuel tank.
   • If you need to drop the fuel tank:
     • Jack up the rear of the vehicle and secure it with jack stands.
     • Locate the fuel tank straps.
     • Spray the strap bolts with penetrating oil to loosen them.
     • Carefully support the fuel tank with a jack.
     • Remove the fuel tank straps.
     • Slowly lower the fuel tank, being mindful of any fuel lines or electrical connectors.
4. Disconnect Fuel Lines and Electrical Connectors:
   • Locate the fuel lines connected to the fuel pump/sending unit assembly.
   • Use a fuel line disconnect tool (if required) to disconnect the fuel lines. Be prepared for some fuel spillage. Have a drain pan ready.
   • Disconnect the electrical connector(s) to the fuel pump/sending unit.
5. Remove the Fuel Pump/Sending Unit Assembly:

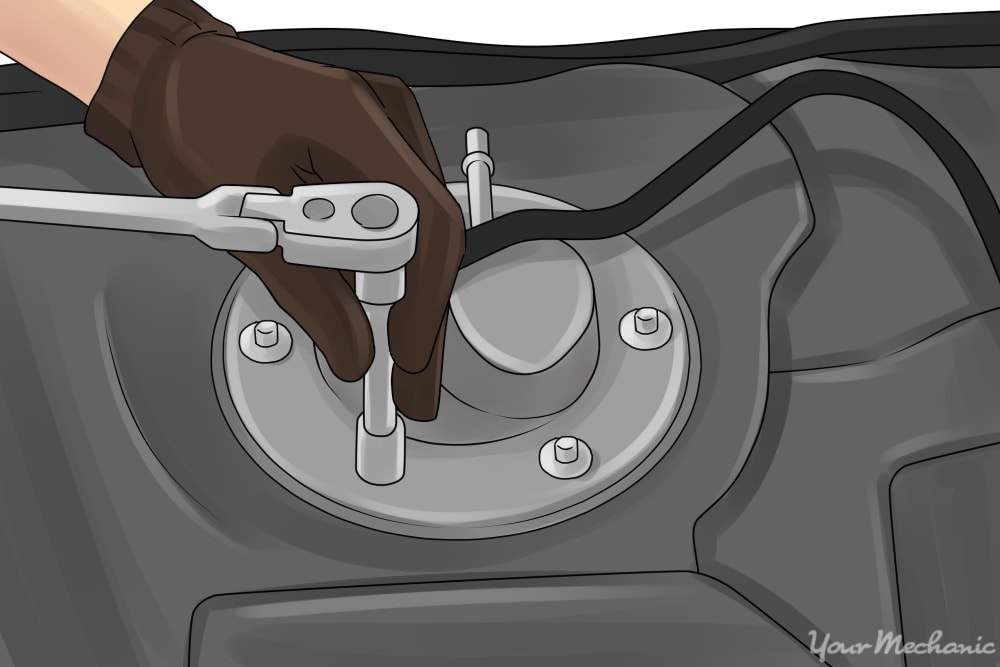

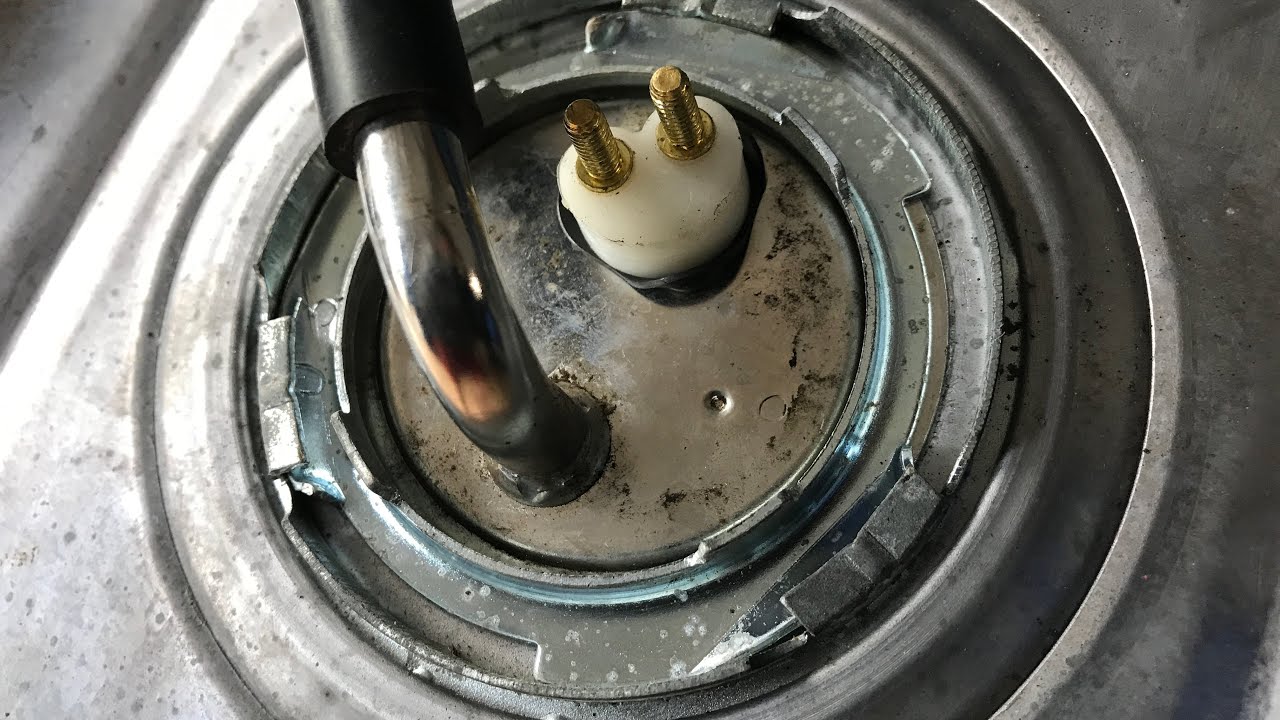

   • The fuel pump/sending unit is typically held in place by a retaining ring.
   • Use a hammer and punch (or a specialized fuel pump retaining ring tool) to carefully loosen the retaining ring.

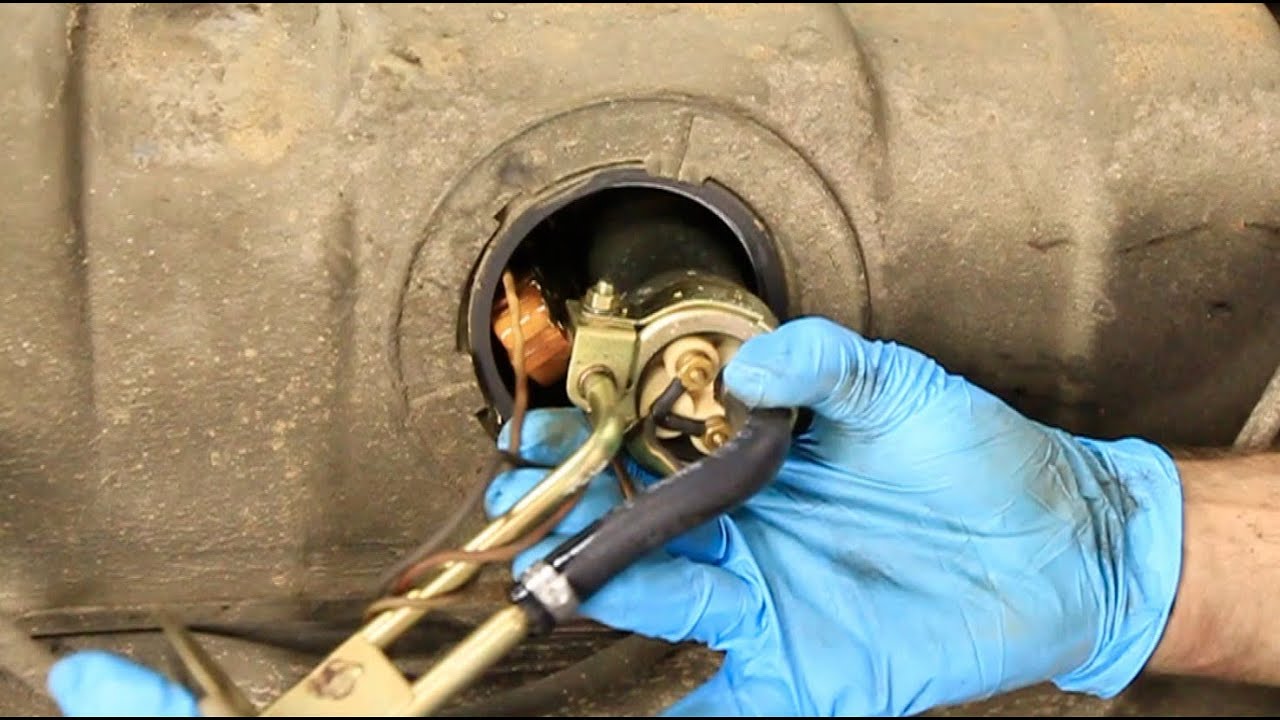

   • Once the retaining ring is loose, carefully remove the fuel pump/sending unit assembly from the fuel tank. Be careful not to bend or damage the float arm.
6. Replace the Fuel Sending Unit:
   • Carefully disassemble the fuel pump/sending unit assembly. This may involve removing clips, screws, or other fasteners.
   • Disconnect the old fuel sending unit from the fuel pump.
   • Install the new fuel sending unit, ensuring that all connections are secure.
   • Install a new fuel pump strainer/sock.
   • Reassemble the fuel pump/sending unit assembly.
7. Reinstall the Fuel Pump/Sending Unit Assembly:
   • Carefully insert the fuel pump/sending unit assembly back into the fuel tank.
   • Align the assembly correctly and secure it with the retaining ring.
   • Tighten the retaining ring securely.
8. Reconnect Fuel Lines and Electrical Connectors:
   • Reconnect the fuel lines to the fuel pump/sending unit. Make sure they are securely connected.
   • Reconnect the electrical connector(s) to the fuel pump/sending unit.
9. Reinstall the Fuel Tank (if removed):
   • Carefully raise the fuel tank back into position using the jack.
   • Secure the fuel tank with the straps.
   • Tighten the strap bolts securely.
   • Remove the jack stands and lower the vehicle.
10. Reconnect the Battery and Test:
    • Reconnect the negative battery terminal.
    • Turn the ignition key to the "on" position (but don't start the engine).
    • Check the fuel gauge to see if it reads correctly.
    • Start the engine and check for any fuel leaks.

Do's and Don'ts / Best Practices

Do's

• Do use the correct fuel sending unit for your vehicle. Verify the part number before installation.
• Do replace the fuel pump strainer/sock when replacing the sending unit.
• Do clean the fuel tank if it contains debris or sediment.
• Do use penetrating oil to loosen any rusted bolts or fasteners.
• Do double-check all connections before starting the engine.
• Do take pictures during disassembly to help with reassembly.

Don'ts

• Don't smoke or use open flames near fuel.
• Don't work in a poorly ventilated area.
• Don't reuse old fuel lines or electrical connectors if they are damaged or corroded.
• Don't overtighten the fuel tank straps.
• Don't force any parts during disassembly or reassembly.
• Don't rely solely on the fuel gauge immediately after replacement; monitor fuel levels carefully for the first few tanks of gas to ensure accuracy.

Testing Before Replacement

Before diving into a replacement, always test the sending unit with a multimeter. You can measure the resistance across the sending unit terminals with the unit removed from the tank, while manually moving the float arm. The resistance should change smoothly and linearly as the arm moves, indicating a functional sending unit. If the resistance is erratic, jumps abruptly, or shows no change, the sending unit is likely faulty. This can save you time and money if the issue lies elsewhere, such as the wiring or the fuel gauge itself.

Conclusion

Replacing a fuel sending unit is a manageable task for the experienced DIY mechanic. By following these steps and adhering to safety precautions, you can save money and gain valuable experience working on your vehicle. However, if you are uncomfortable working with fuel or have any doubts about your abilities, it is always best to consult a qualified mechanic. Remember to always prioritize safety and double-check your work to ensure a successful and reliable repair. It's recommended to purchase a high-quality replacement part from a reputable brand to ensure long-lasting performance and accurate fuel level readings.
