How To Change Instrument Cluster Lights

So, you want to change the instrument cluster lights in your car? That's a fairly common task, often undertaken to refresh the interior, improve visibility, or even personalize your vehicle. This guide will walk you through the process, covering everything from why you might want to do it, to choosing the right bulbs, and addressing some frequently asked questions.

Why Change Your Instrument Cluster Lights?

There are several compelling reasons to consider changing the lights in your instrument cluster. Here are some of the most common:

Burned-Out Bulbs: This is the most straightforward reason. If a light has burned out, you won't be able to see the information it illuminates, which can be a safety hazard, especially with warning lights.
Dim Lighting: Over time, bulbs can dim, making it difficult to read the gauges and displays, particularly at night. Replacing them can significantly improve visibility.
Color Change: Many car owners choose to swap out the factory bulbs for LEDs of a different color. This can dramatically alter the look of the interior and personalize the driving experience. Imagine replacing dull yellowish lights with vibrant blue or red ones!
Improved Aesthetics: Even if the original bulbs are still working, you might want to change them simply to update the look of your car's interior. Newer LEDs often provide a cleaner, brighter light than older incandescent bulbs.
Troubleshooting: Sometimes, issues with the instrument cluster itself can manifest as flickering or dim lights. While replacing the bulbs might not always fix the problem, it's often the first step in diagnosing the issue.

How to Choose the Right Instrument Cluster Lights

Selecting the correct bulbs for your instrument cluster is crucial. Using the wrong bulbs can lead to several problems, including damage to the instrument cluster itself. Here's a breakdown of what to consider:

1. Consult Your Owner's Manual

The best place to start is your car's owner's manual. It will usually list the exact bulb types required for each location in the instrument cluster. Look for sections related to "Instrument Panel Lights," "Dashboard Lights," or "Bulb Replacement."

2. Bulb Size and Type

Instrument clusters commonly use small incandescent bulbs, but increasingly, LEDs are becoming a popular replacement option. Common bulb types include:

T5 Wedge Base: These are very common for indicator lights and smaller gauges.
T10 Wedge Base: Slightly larger than T5s, often used for the main gauges.
Miniature Incandescent Bulbs: Various sizes and shapes, often identified by a number (e.g., #74, #2721).
LED Replacements: LEDs designed to replace specific incandescent bulbs (e.g., T5 LED, T10 LED). Make sure they are CAN bus compatible for newer vehicles to avoid error messages.

Crucially, pay attention to the base type (wedge base, twist-lock, etc.) and the overall size of the bulb. Using a bulb that's too large can damage the cluster.

3. Voltage and Wattage

Ensure that the replacement bulbs have the same voltage (typically 12V for cars) as the original bulbs. Wattage is also important, especially when using incandescent bulbs. Using a bulb with a higher wattage than specified can generate excessive heat and potentially melt or damage the instrument cluster components. When using LEDs, this is less of a concern as they consume much less power.

4. LED Considerations

If you're switching to LEDs, there are a few additional things to keep in mind:

Brightness: LEDs are generally brighter than incandescent bulbs. Consider the desired level of brightness. Some LEDs offer adjustable brightness.
Color: LEDs are available in a wide range of colors. Choose colors that are easy to read and don't cause eye strain. Blue and white are popular choices, but avoid overly bright blues or reds that can impair night vision.
Polarity: LEDs are polarity-sensitive, meaning they only work when installed in the correct orientation. If an LED doesn't light up, try rotating it 180 degrees.
CAN Bus Compatibility: Newer vehicles use a CAN bus (Controller Area Network) system to monitor various functions, including bulb status. If you're replacing bulbs in a newer car, choose LEDs that are specifically designed to be CAN bus compatible to avoid error messages (e.g., "bulb out" warnings).

5. Where to Buy

You can purchase instrument cluster bulbs from several sources:

Auto Parts Stores: These stores typically carry a wide selection of bulbs and can help you find the correct type for your car.
Online Retailers: Online retailers like Amazon, eBay, and specialized automotive lighting websites offer a vast selection of bulbs, often at competitive prices. Be sure to check reviews and verify the compatibility before purchasing.
Dealerships: Dealerships can provide the exact OEM (Original Equipment Manufacturer) bulbs for your car, but they are usually more expensive than aftermarket options.

Real-World Owner Experiences

Many car owners have shared their experiences with changing instrument cluster lights online. Here are some common themes and tips gleaned from their experiences:

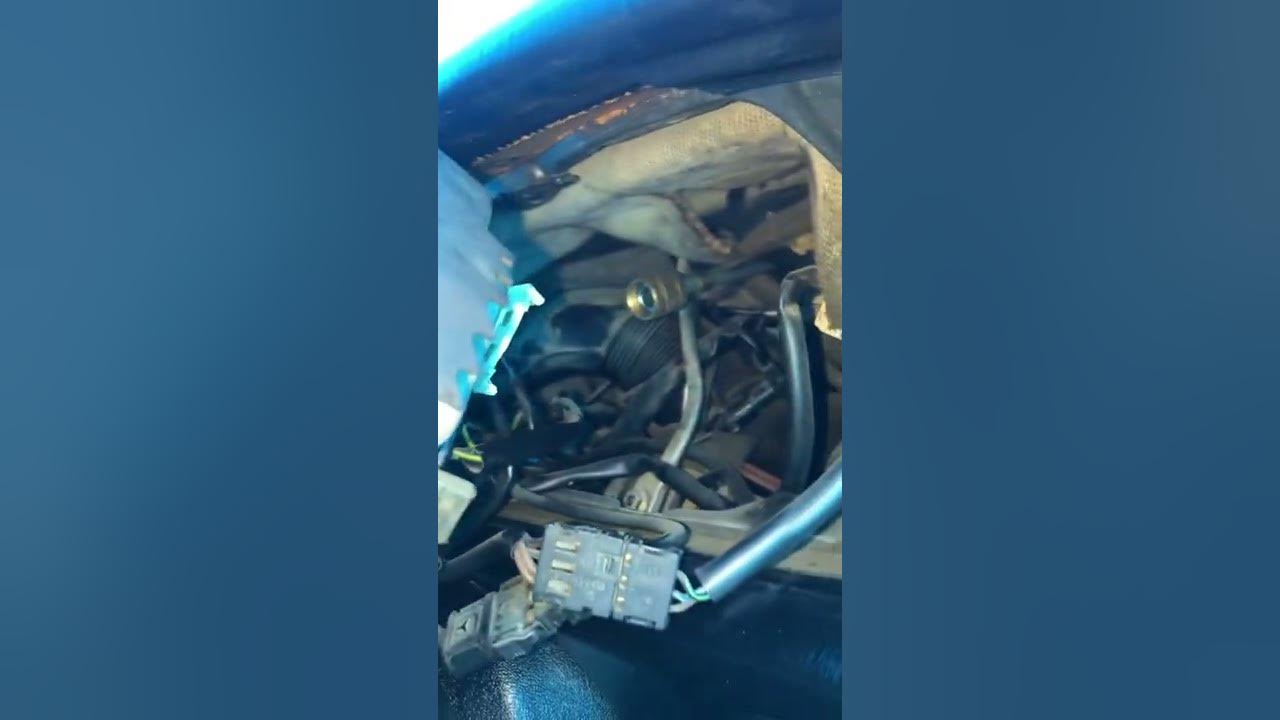

Difficulty of Access: The biggest challenge is often accessing the instrument cluster itself. Some cars require significant disassembly of the dashboard, while others are relatively straightforward. Research your specific car model beforehand and watch videos if possible.

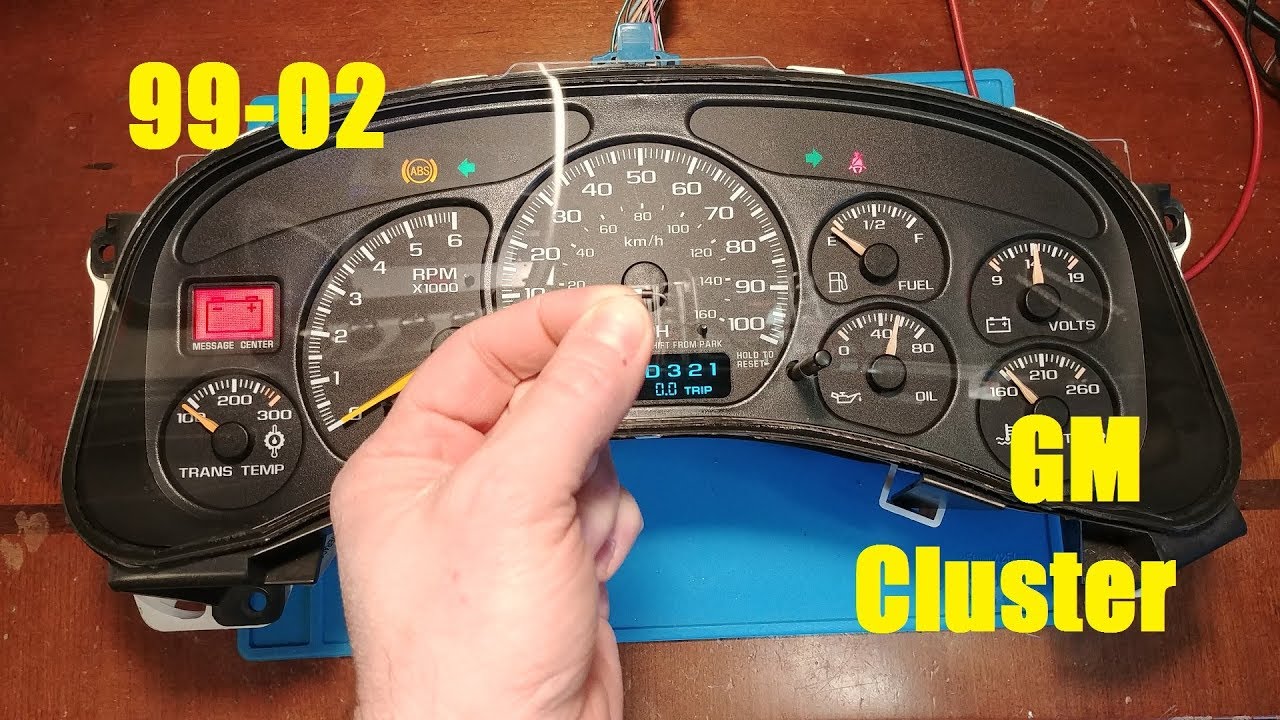

Fragility: Instrument clusters can be fragile, so be careful when removing and handling them. Avoid using excessive force.
LED Polarity: As mentioned earlier, LED polarity is a common issue. If a bulb doesn't light up, try reversing it.
Wiring Harnesses: Be gentle with the wiring harnesses and connectors. They can become brittle with age.
Labeling: Before removing any bulbs, take a picture or make a note of their locations, especially if you're replacing multiple bulbs at once. This will help you ensure that you install the new bulbs correctly.
Cleanliness: While you have the instrument cluster out, take the opportunity to clean the lens and surrounding areas. This can significantly improve the overall appearance.
Seek Professional Help: If you're uncomfortable disassembling your dashboard or working with electrical components, consider having a professional mechanic or auto electrician do the job.

One owner shared, "I changed the bulbs in my old Honda Civic and it completely transformed the interior. The new blue LEDs made the gauges so much easier to read at night. It was a bit tricky getting the cluster out, but the results were worth it." Another owner warned, "Be extremely careful when removing the needles on the gauges. They can be easily damaged. I ended up breaking one and had to buy a whole new cluster."

FAQs: Changing Instrument Cluster Lights

Here are some frequently asked questions about changing instrument cluster lights:

Q: How much does it cost to change instrument cluster lights?

A: The cost can vary significantly depending on the type of bulbs you choose (incandescent vs. LED), the difficulty of accessing the instrument cluster, and whether you do the work yourself or hire a professional. Bulbs themselves can range from a few dollars each for basic incandescent bulbs to $10-$20 each for high-quality LEDs. Labor costs can range from $50 to several hundred dollars, depending on the complexity of the job.

Q: Can I change the color of my instrument cluster lights?

A: Yes, you can typically change the color of your instrument cluster lights by using colored bulbs, particularly LEDs. However, be mindful of the color you choose. Avoid colors that are too distracting or that might impair your night vision. Also, check local regulations regarding colored lighting on dashboards, as some areas may have restrictions.

Q: Will changing to LEDs affect my car's warranty?

A: Generally, replacing bulbs with aftermarket LEDs will not void your car's warranty, unless the LEDs are proven to have caused damage to the vehicle's electrical system. However, it's always a good idea to check with your dealership or read your warranty documentation to be sure. Using non-CAN bus compatible LEDs in a vehicle that requires them *could* potentially cause electrical issues and thus potentially affect the warranty related to those issues.

Q: How long does it take to change instrument cluster lights?

A: The time required can vary widely depending on the car model and your experience level. For some cars, it might take as little as 30 minutes. For others, it could take several hours. Always allow yourself ample time and be patient.

Q: What tools do I need to change instrument cluster lights?

A: The tools you'll need will vary depending on your car model, but some common tools include:

Screwdrivers (Phillips and flathead)
Socket set
Pliers
Trim removal tools (to avoid damaging plastic trim)
Gloves (to protect your hands)
Flashlight or work light

Q: Is it difficult to change instrument cluster lights?

A: The difficulty level ranges from easy to challenging, depending on the car model. Some cars have easily accessible instrument clusters, while others require significant disassembly. Research your car model and watch videos to get a better idea of the process before you start.

By carefully researching your vehicle's specific needs, choosing the right bulbs, and taking your time, you can successfully change your instrument cluster lights and improve the look and functionality of your car's interior. Remember, if you're unsure about any part of the process, it's always best to seek professional help.
