How To Change Rear Brake Light

A malfunctioning rear brake light isn't just a nuisance; it's a serious safety hazard. It dramatically increases your risk of being rear-ended, especially in low-visibility conditions or during sudden stops. Replacing a burnt-out bulb is a simple maintenance task most experienced DIYers can tackle, saving time and money compared to a trip to the mechanic. This article provides a detailed guide on how to change your rear brake light bulb, covering the technical aspects, potential issues, and best practices for a successful and safe repair.

Understanding the Rear Brake Light System

The rear brake light system is a crucial part of your vehicle's active safety features. Its primary function is to alert drivers behind you when you are decelerating. The system typically consists of several components working in concert:

• Brake Light Switch: This switch, usually located near the brake pedal, activates when you press the pedal. It closes the electrical circuit, sending power to the brake lights.
• Wiring Harness: A network of wires carries the electrical current from the brake light switch to the rear light assemblies. This includes the wires for the brake lights, tail lights, and turn signals.
• Rear Light Assemblies (Tail Lights): These assemblies house the bulbs for the brake lights, tail lights (running lights), and often the turn signals. Modern vehicles may use LED (Light Emitting Diode) assemblies, but older vehicles still rely on incandescent or halogen bulbs.
• Brake Light Bulbs: These are typically dual-filament bulbs. The lower-wattage filament illuminates when the tail lights are on (running lights), and the higher-wattage filament lights up when the brake pedal is pressed. Sometimes there may be separate single filament bulbs for stop and tail.
• Fuses and Relays: These protect the electrical system from overloads. A blown fuse or a faulty relay can prevent the brake lights from working.

A common misconception is that a single blown bulb is not a major issue, especially if there are two brake lights on each side (as is the case on some vehicles). However, redundancy doesn't negate the importance of fixing the faulty bulb promptly. Furthermore, a single failed bulb can indicate a larger problem, such as a voltage issue or a failing wiring connection. Some modern vehicles also may have a single LED brake light bar.

Technical Breakdown: Replacing the Brake Light Bulb

The process for changing a rear brake light bulb varies slightly depending on the vehicle's make and model. However, the general steps remain consistent:

1. Safety First: Preparation and Precautions

Before you begin, safety is paramount:

• Turn off the Engine: Ensure the engine is off and the vehicle is in park (or neutral with the parking brake engaged on a manual transmission vehicle).
• Engage the Parking Brake: This prevents the vehicle from rolling.
• Use Wheel Chocks (Optional): For added safety, especially if you're working on a slight incline, use wheel chocks to secure the wheels.
• Wear Gloves: This protects your hands from dirt, grease, and potential cuts.
• Refer to the Owner's Manual: Your owner's manual provides specific instructions and diagrams for your vehicle model. This is essential.

2. Accessing the Bulb Housing

The method for accessing the bulb housing varies:

• From Inside the Trunk/Cargo Area: Many vehicles have an access panel inside the trunk or cargo area behind the tail light assembly. This panel is usually held in place by plastic clips, screws, or a combination of both. Remove the panel to reveal the back of the tail light assembly.

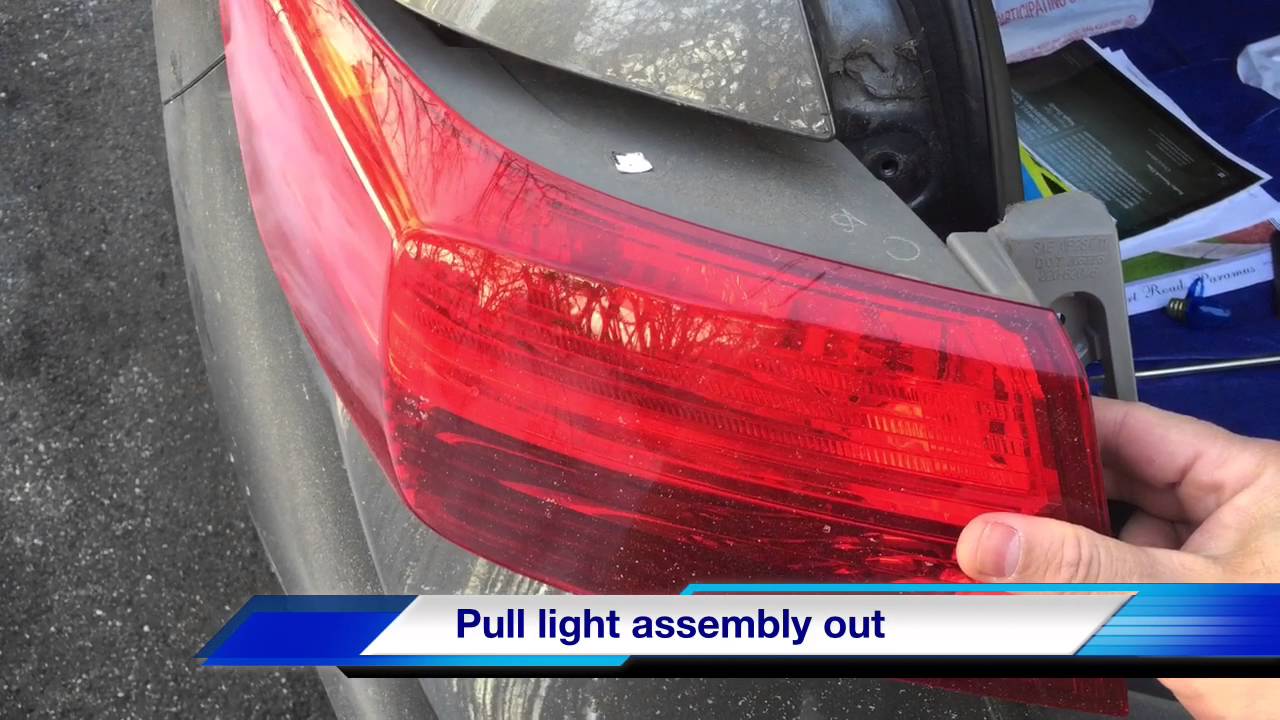

• From Outside the Vehicle: Some vehicles require you to remove the entire tail light assembly from the vehicle. This usually involves removing screws or bolts that hold the assembly in place. Be careful not to scratch the paint when removing the assembly. You may have to gently pry it out.

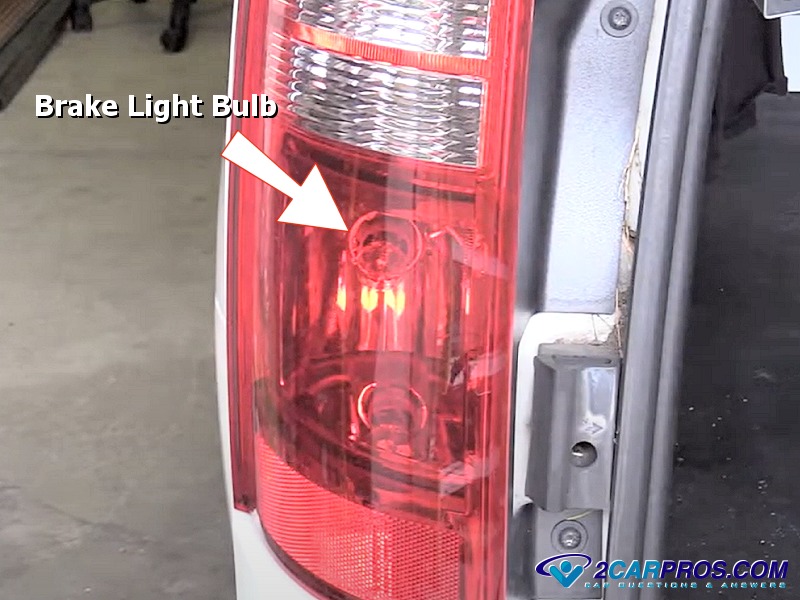

3. Identifying and Removing the Old Bulb

Once you have access to the back of the tail light assembly:

• Locate the Bulb Socket: The brake light bulb socket is typically labeled or colored differently from the other bulb sockets. Consult your owner's manual if you're unsure.
• Disconnect the Socket: In most cases, you need to twist the bulb socket counterclockwise to release it from the tail light assembly. Some sockets may have a locking mechanism that you need to depress before twisting.

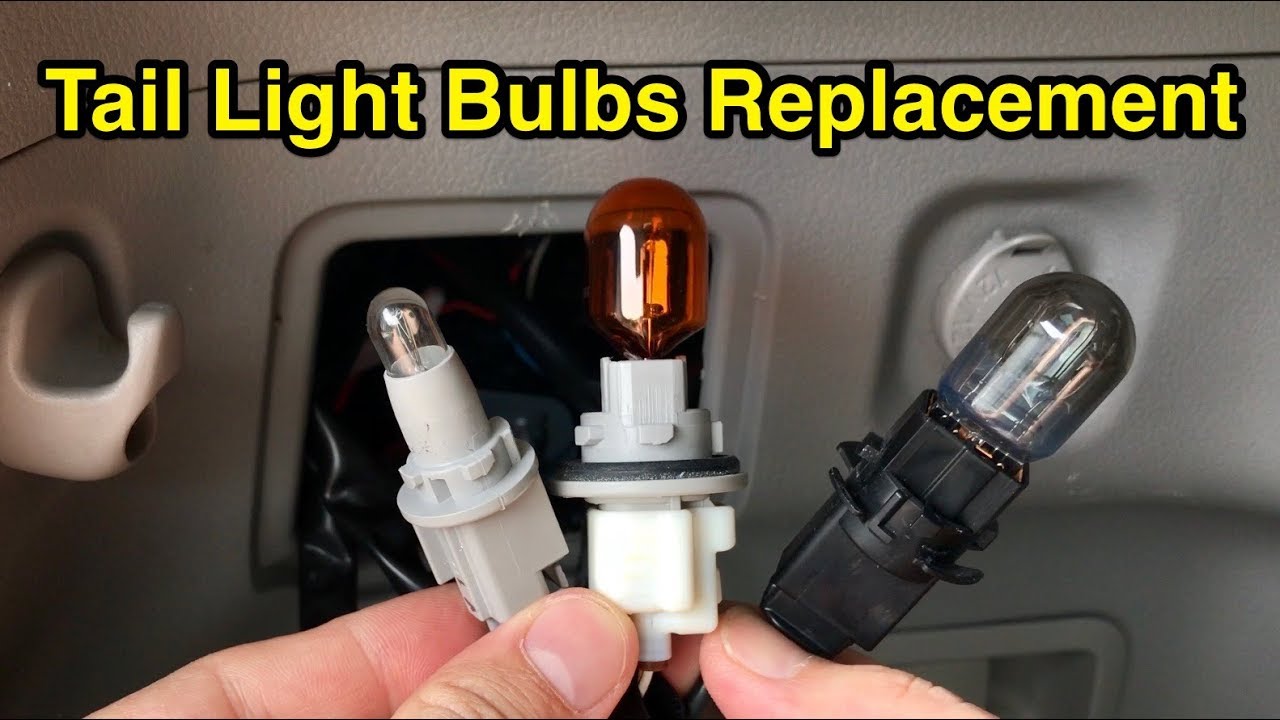

• Remove the Old Bulb: Depending on the bulb type, you might need to push it in slightly and twist counterclockwise, or simply pull it straight out. Note the bulb type (e.g., 1157, 3157, 7443). This is crucial for getting the correct replacement.

4. Installing the New Bulb

Installing the new bulb is generally the reverse of removal:

• Insert the New Bulb: Ensure the new bulb is the correct type and wattage. Align the bulb's pins or notches with the corresponding slots in the socket. Push it in and twist clockwise (if applicable) until it locks into place. Avoid touching the glass of the new bulb with your bare fingers. The oils from your skin can cause the bulb to overheat and fail prematurely. If you do touch it, clean it with a lint-free cloth and rubbing alcohol.
• Reinstall the Socket: Align the socket with the opening in the tail light assembly and twist it clockwise until it locks into place.

5. Testing and Reassembly

Before reassembling everything, test the new bulb:

• Test the Brake Lights: Have someone press the brake pedal while you observe the brake lights. Ensure the new bulb illuminates brightly when the brake pedal is pressed. Also check to make sure the tail light (running light) is also operating when the headlights are switched on.
• Reassemble the Tail Light Assembly: If the brake light works, reinstall the tail light assembly (if removed) and secure it with the screws or bolts. Reinstall the access panel inside the trunk or cargo area.

Common Issues and Maintenance Concerns

While replacing a brake light bulb is relatively straightforward, you might encounter some common issues:

• Corrosion in the Socket: Corrosion can prevent proper electrical contact. Clean the socket with a wire brush or electrical contact cleaner. In severe cases, you may need to replace the socket.
• Incorrect Bulb Type: Using the wrong bulb type can damage the tail light assembly or cause the brake lights to malfunction. Always refer to your owner's manual or a parts catalog to ensure you're using the correct bulb.
• Blown Fuse: If the brake lights still don't work after replacing the bulb, check the brake light fuse. The fuse box is usually located under the dashboard or in the engine compartment. Replace the blown fuse with a fuse of the same amperage.
• Faulty Brake Light Switch: If all brake lights are not working, the brake light switch might be faulty. This requires more advanced troubleshooting and might be best left to a professional.
• Wiring Issues: Damaged or frayed wiring can cause brake light problems. Inspect the wiring harness for any signs of damage. Repair or replace damaged wires as needed.

Preventative maintenance can significantly reduce the likelihood of brake light problems. Periodically inspect your brake lights to ensure they are working properly. Clean the tail light lenses to maintain optimal brightness. When replacing a bulb, consider replacing both bulbs at the same time to prevent the other bulb from failing shortly after. Also check the grounds and connections, as these can corrode over time.

Do's and Don'ts / Best Practices

Here are some essential do's and don'ts to keep in mind when changing your rear brake light bulb:

Do's:

• Do consult your owner's manual for specific instructions and bulb types for your vehicle.
• Do disconnect the negative battery terminal for added safety. (optional but recommended).
• Do wear gloves to protect your hands.
• Do use the correct bulb type and wattage.
• Do clean the bulb socket if it's corroded.
• Do test the brake lights after replacing the bulb.
• Do replace both bulbs at the same time if one fails.

Don'ts:

• Don't touch the glass of the new bulb with your bare fingers.
• Don't use excessive force when removing or installing the bulb.
• Don't use a higher wattage bulb than recommended.
• Don't ignore warning signs like dimming or flickering brake lights.
• Don't drive with a malfunctioning brake light.

Conclusion

Replacing a rear brake light bulb is a relatively simple task that can save you money and potentially prevent accidents. By following these steps and adhering to the best practices outlined in this article, you can confidently tackle this maintenance task. However, if you encounter any difficulties or suspect a more complex electrical issue, don't hesitate to consult a qualified mechanic. Maintaining functional brake lights is crucial for your safety and the safety of others on the road. Remember to always prioritize safety and follow proper procedures when working on your vehicle.
