How To Change Stabilizer Bar Link

Is your car making a clunking or rattling noise, especially when going over bumps or turning? You might be dealing with a worn or broken stabilizer bar link. These relatively small parts play a crucial role in your vehicle's handling and stability. Replacing them is a job many DIYers can tackle, saving you money and restoring your car's smooth ride. We’ll guide you through identifying the problem, understanding the cause, and fixing it effectively.

Recognizing the Symptoms of a Failing Stabilizer Bar Link

Knowing the signs of a failing stabilizer bar link is the first step toward addressing the issue. Here are some of the most common symptoms:

Clunking or Rattling Noise: This is the most prevalent symptom. You'll likely hear a distinct clunking or rattling sound, especially when driving over bumps, potholes, or uneven road surfaces. The noise may seem to be coming from underneath the car, near the wheels.
Swaying or Leaning During Turns: A damaged stabilizer bar link compromises the vehicle's ability to resist body roll during turns. You might notice your car leaning more than usual, feeling unstable, or even a bit "wobbly" when cornering.
Poor Handling: The vehicle may feel less responsive and more difficult to control, especially at higher speeds or when making quick maneuvers. The steering might feel loose or vague.
Excessive Body Roll: As mentioned above, a broken link reduces the effectiveness of the stabilizer bar, leading to increased body roll.
Noise When Going Over Speed Bumps: The same clunking or rattling noise that occurs on bumpy roads can also be exaggerated when driving over speed bumps.

The Root Cause: Stabilizer Bar Link Degradation

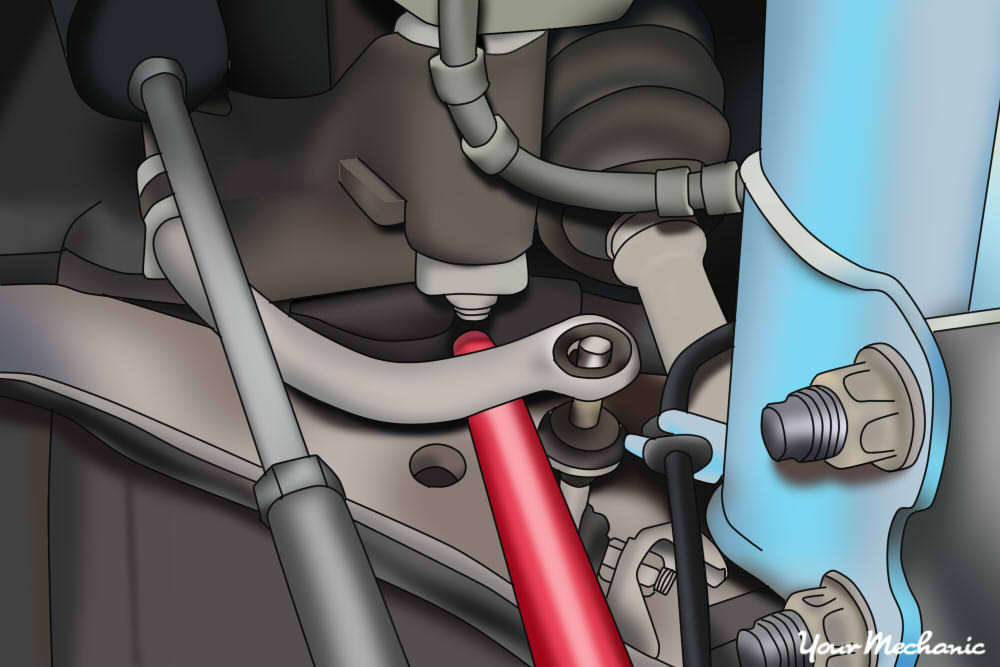

Stabilizer bar links, also known as sway bar links, connect the stabilizer bar (also called the sway bar) to the vehicle's suspension components, typically the control arms or the struts. Their primary function is to transfer force from one side of the suspension to the other, minimizing body roll during cornering. This keeps the car level and improves handling. Think of the stabilizer bar as a torsion spring; it resists twisting, and the links are what connect this resistance to the wheels.

These links are subject to constant stress and movement as the suspension works. Over time, the joints in the links, which usually consist of ball joints or bushings, can wear out. Several factors contribute to their deterioration:

Normal Wear and Tear: Like any other part of your car, stabilizer bar links simply wear out over time with regular use. The constant flexing and movement of the suspension cause the joints to loosen and develop play.
Road Conditions: Driving on rough roads with potholes, bumps, and other irregularities puts extra stress on the suspension components, including the stabilizer bar links, accelerating their wear.
Corrosion: Exposure to road salt, moisture, and other corrosive elements can damage the metal components of the links, leading to rust and eventual failure.
Loose Fasteners: Sometimes, the nuts and bolts that hold the stabilizer bar links in place can loosen over time. This can cause the links to move excessively, leading to premature wear.

Many stabilizer bar links have grease fittings for periodic lubrication. Neglecting this maintenance can significantly shorten the lifespan of the links.

Ignoring the Problem: Potential Consequences

While a worn stabilizer bar link might not seem like a major issue at first, ignoring it can lead to several problems:

Worsened Handling: The most immediate consequence is a decline in handling performance. The car will feel less stable and more difficult to control, particularly during turns and evasive maneuvers. This can compromise your safety, especially in emergency situations.
Increased Tire Wear: Improper weight distribution due to the compromised suspension can lead to uneven tire wear.
Damage to Other Suspension Components: A loose or broken stabilizer bar link can put extra stress on other suspension components, such as the struts, control arms, and bushings, potentially leading to premature wear and failure of these parts.
Increased Noise: The clunking or rattling noise will likely get louder and more frequent over time, becoming increasingly annoying.

In severe cases, a completely broken stabilizer bar link can disconnect from the suspension, causing the stabilizer bar to dangle and potentially damage other parts of the vehicle.

Recommended Fixes: Replacing the Stabilizer Bar Link

The recommended fix for a worn or broken stabilizer bar link is to replace it with a new one. This is a relatively straightforward repair that can often be done by a mechanically inclined individual with the right tools and a bit of patience.

Here's a general overview of the replacement process:

Gather Your Tools and Parts: You'll need a new stabilizer bar link (check your vehicle's make, model, and year to ensure you get the correct part), a jack, jack stands, a lug wrench, a socket set, a wrench set, penetrating oil, and potentially a ball joint separator or pickle fork.
Safety First: Park your car on a level surface, engage the parking brake, and chock the rear wheels.
Loosen the Lug Nuts: Use the lug wrench to loosen the lug nuts on the wheel of the side you're working on. Don't remove them completely at this point.
Jack Up the Car: Use the jack to raise the car and place a jack stand securely under the frame. Never work under a car supported only by a jack.
Remove the Wheel: Finish removing the lug nuts and take the wheel off.
Apply Penetrating Oil: Spray penetrating oil on the nuts and bolts that hold the stabilizer bar link in place. This will help loosen them and make removal easier. Let the oil soak in for a few minutes.
Remove the Old Stabilizer Bar Link: Use the appropriate sockets and wrenches to loosen and remove the nuts and bolts securing the stabilizer bar link. You may need to use a ball joint separator or pickle fork to disconnect the link from the stabilizer bar and the suspension component. Be prepared for the old link to be stuck, and don't be afraid to use a hammer and punch (carefully!) if needed.
Install the New Stabilizer Bar Link: Install the new stabilizer bar link in the reverse order of removal. Make sure to tighten the nuts and bolts to the manufacturer's specified torque. Consult your vehicle's repair manual for the correct torque specifications. Over-tightening can damage the new link.
Reinstall the Wheel: Put the wheel back on and tighten the lug nuts by hand.
Lower the Car: Remove the jack stand and lower the car back to the ground.
Torque the Lug Nuts: Use the lug wrench to torque the lug nuts to the manufacturer's specifications.
Repeat for the Other Side: If both stabilizer bar links are worn or damaged, repeat the process on the other side of the vehicle. It's generally recommended to replace both links at the same time to ensure balanced handling.
Test Drive: Take the car for a test drive and listen for any unusual noises. Check the handling to ensure it has improved.

Important Note: If you're not comfortable performing this repair yourself, it's best to take your car to a qualified mechanic.

Cost Estimates and Shop Advice

The cost of replacing a stabilizer bar link can vary depending on several factors, including the make and model of your car, the quality of the replacement parts, and the labor rates in your area.

DIY Cost: If you do the repair yourself, you'll only need to pay for the replacement parts. Stabilizer bar links typically cost between $20 and $80 each, depending on the brand and quality. Therefore, you can expect to spend around $40 to $160 for both links.
Professional Repair Cost: If you take your car to a mechanic, you'll also need to factor in labor costs. Labor rates typically range from $80 to $150 per hour. Replacing both stabilizer bar links usually takes about 1 to 2 hours, so you can expect to pay around $80 to $300 in labor costs. Therefore, the total cost for a professional repair can range from $120 to $460.

When choosing a mechanic, be sure to get quotes from several different shops and ask about their experience with stabilizer bar link replacements. Look for a shop that uses quality replacement parts and offers a warranty on their work.

Credibility: TSBs and Common Failure Points

While specific Technical Service Bulletins (TSBs) regarding stabilizer bar link failures are usually vehicle-specific, a general search for your vehicle's make and model along with "stabilizer bar link TSB" can reveal if the manufacturer has addressed known issues. Car forums and online communities are also valuable resources. Many owners share their experiences with stabilizer bar link failures, often reporting issues around 50,000 to 100,000 miles. However, this can vary significantly depending on driving conditions and maintenance habits. A review of owner complaints on sites like the NHTSA (National Highway Traffic Safety Administration) can also provide insights into common issues.

Furthermore, some vehicles are known to have particularly weak stabilizer bar link designs. Mechanics are often familiar with these problematic designs and may recommend upgraded aftermarket options that offer improved durability. Always discuss these options with your mechanic before proceeding with the repair.

By understanding the symptoms, causes, and solutions for stabilizer bar link problems, you can keep your car handling safely and smoothly for years to come.
