How To Change The Air Conditioner Filter On A Car

Changing your car's air conditioner filter, also known as the cabin air filter, is a maintenance task often overlooked. However, neglecting it can significantly impact your vehicle's heating, ventilation, and air conditioning (HVAC) system performance, potentially leading to decreased airflow, unpleasant odors, and even contribute to respiratory issues. This article provides a detailed, technically informed guide to replacing your cabin air filter, ensuring optimal HVAC system functionality and a more comfortable driving experience.

Background: The HVAC System and Cabin Air Filter

Before diving into the replacement process, let's understand the role of the HVAC system and, specifically, the cabin air filter. The HVAC system is responsible for regulating the temperature and air quality inside your car's cabin. It consists of several key components, including:

Compressor: Pressurizes the refrigerant.
Condenser: Dissipates heat from the refrigerant.
Expansion Valve: Controls the flow of refrigerant into the evaporator.
Evaporator: Absorbs heat from the air passing through it, cooling the cabin.
Blower Motor: Forces air across the evaporator core and into the cabin vents.
Ductwork: Channels the airflow to the appropriate vents.

The cabin air filter, often positioned before the evaporator core, plays a critical role in filtering the air entering the cabin. It's designed to trap dust, pollen, mold spores, bacteria, and other airborne contaminants. This filtration process ensures cleaner air for the occupants and helps protect the delicate components of the HVAC system, particularly the evaporator, from becoming clogged with debris. A clogged evaporator reduces cooling efficiency and can lead to costly repairs.

Technical Breakdown: How the Cabin Air Filter Works

Cabin air filters are typically constructed from pleated paper, activated carbon, or a combination of both. Pleated paper filters provide mechanical filtration, physically trapping particles as air passes through. Activated carbon filters incorporate carbon granules to absorb odors and gases, such as exhaust fumes, providing an additional layer of air purification. Some filters also include antimicrobial treatments to inhibit the growth of mold and bacteria.

The filtration efficiency of a cabin air filter is often measured in terms of Minimum Efficiency Reporting Value (MERV). A higher MERV rating indicates a greater ability to capture smaller particles. However, excessively high MERV ratings can restrict airflow, potentially reducing HVAC system performance. Most automotive cabin air filters fall within a MERV range of 8 to 12, offering a good balance between filtration efficiency and airflow.

As air passes through the filter, contaminants accumulate, gradually reducing its permeability. This restriction increases the pressure drop across the filter, forcing the blower motor to work harder to maintain airflow. Over time, this can lead to decreased cooling efficiency, reduced airflow from the vents, and increased energy consumption (more load on the alternator). A severely clogged filter can also cause the blower motor to overheat and fail prematurely.

Step-by-Step Guide: Changing the Cabin Air Filter

The location of the cabin air filter varies depending on the vehicle make and model. It's often located behind the glove box, under the dashboard, or even under the hood. Consult your vehicle's service manual or online resources for the specific location for your car. Here's a general guide:

Gather your tools and materials: You'll need a new cabin air filter (ensure it's the correct part number for your vehicle), a screwdriver (usually Phillips or flathead), a socket set (possibly), and a shop vacuum (optional).
Locate the cabin air filter housing: Refer to your vehicle's service manual for the exact location.
Access the filter housing: This often involves removing the glove box. To do this, typically you'll need to detach the damper (a small piston that slows the glove box opening) and release the retaining clips or screws that hold the glove box in place. Some vehicles require removing panels under the dash.

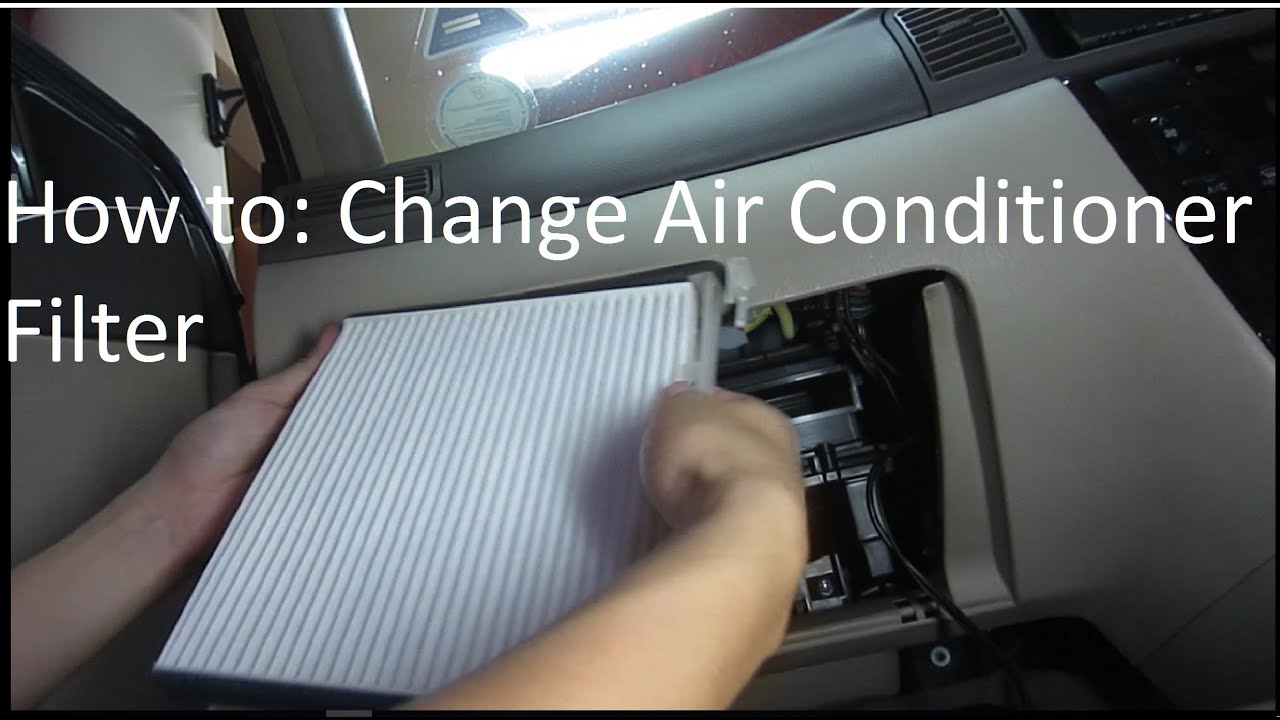

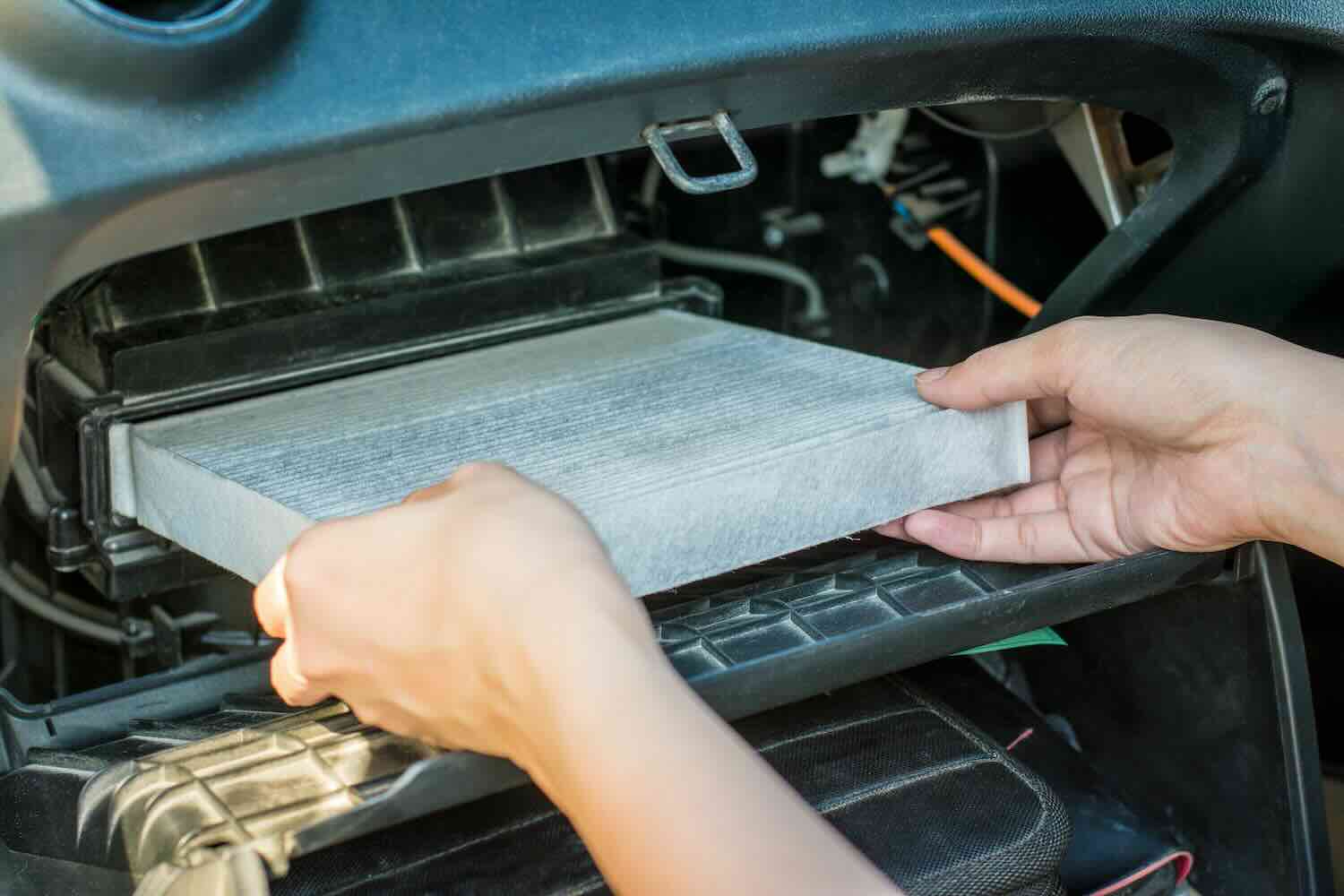

Remove the old filter: Once you have access to the filter housing, you'll usually find a retaining door or cover secured by clips or screws. Remove the cover and carefully slide out the old filter. Note the direction of airflow (usually indicated by an arrow on the filter) so you can install the new filter correctly.
Inspect the filter housing: Use a shop vacuum to clean out any debris or leaves that may have accumulated in the filter housing.
Install the new filter: Insert the new cabin air filter into the housing, ensuring that the airflow arrow matches the direction indicated on the old filter or in the service manual.
Reassemble the filter housing: Reinstall the retaining door or cover, securing it with the clips or screws.
Reinstall the glove box (or other components): Reattach the damper and resecure the glove box with the retaining clips or screws. Ensure everything is properly aligned and functioning correctly.

Technical Considerations During Installation

Pay close attention to the orientation of the old filter when removing it. The direction of airflow is crucial for proper filter function. Installing the filter backward can significantly reduce its efficiency. Also, ensure that the filter is properly seated within the housing to prevent air from bypassing the filter element.

When tightening screws or clips, avoid over-tightening. Over-tightening can damage the plastic components of the filter housing or glove box. Use a torque wrench if specified in the service manual, or simply tighten until snug.

Common Issues and Maintenance Concerns

Several common issues can arise if the cabin air filter is not replaced regularly:

Reduced Airflow: A clogged filter restricts airflow, leading to weak airflow from the vents.
Unpleasant Odors: A dirty filter can harbor mold and bacteria, resulting in musty or foul odors.
Reduced Cooling Efficiency: A restricted filter forces the HVAC system to work harder, reducing its cooling capacity.
Increased Energy Consumption: The blower motor has to work harder to move air, increasing the load on the alternator and potentially reducing fuel economy.
Component Damage: A severely clogged filter can cause the blower motor to overheat and fail prematurely, requiring costly repairs.
Allergic Reactions: Dirty filter releases dust, pollen and allergens into your vehicle causing allergic reactions for passengers.

The recommended replacement interval for the cabin air filter is typically every 12,000 to 15,000 miles or once a year, whichever comes first. However, if you live in a dusty or polluted environment, or if you frequently experience unpleasant odors from the vents, you may need to replace the filter more often. Regularly inspecting the filter's condition can help you determine the optimal replacement interval.

Do’s and Don’ts / Best Practices

Do’s:

Do consult your vehicle's service manual for the correct filter type and location.
Do note the airflow direction of the old filter before removing it.
Do clean the filter housing before installing the new filter.
Do use the correct tools for the job.
Do replace the filter more frequently if you live in a dusty environment.
Do purchase quality replacement filters from reputable brands.

Don’ts:

Don't force any components during removal or installation.
Don't over-tighten screws or clips.
Don't install the filter backward.
Don't reuse a dirty filter.
Don't neglect this maintenance task.

Conclusion

Changing your car's cabin air filter is a straightforward maintenance task that can significantly improve your driving experience and protect your vehicle's HVAC system. By following these guidelines and paying attention to the technical details, you can confidently perform this task yourself, saving money and ensuring optimal air quality inside your car. Neglecting the cabin air filter can lead to reduced performance, unpleasant odors, and even damage to your HVAC system. So, make it a priority to inspect and replace your cabin air filter regularly. It's recommended that you check the cabin filter every 6 months and change it at least every year for optimal air quality and HVAC performance.
