How To Change Windshield Washer Pump

Few things are more frustrating than a dirty windshield when you need clear visibility the most. Grime, bugs, and road spray can quickly obscure your view, making driving hazardous. Thankfully, modern vehicles are equipped with a windshield washer system to combat this. But what happens when that system fails? More often than not, the culprit is a faulty windshield washer pump. While seemingly insignificant, this little electric motor plays a vital role in driving safety. Let's delve into how to diagnose and replace a windshield washer pump, exploring the mechanics involved and providing practical insights.

The Case of the Vanishing Spray: Why Your Washer Fluid Isn't Reaching the Windshield

Imagine this: you're driving down a highway, and a truck kicks up a cloud of dust and road salt. Your windshield is instantly coated in a thick layer of grime. You reach for the washer stalk, expecting a cleansing spray, but... nothing. Just a pathetic whirring sound, or worse, complete silence. This is the classic scenario of a failed windshield washer pump. The problem isn't always obvious. You might have plenty of washer fluid, the nozzles might be clear, and the hoses appear intact. Yet, the windshield remains stubbornly dirty.

Think of the windshield washer system like a miniature water park. The washer fluid reservoir is the main pool. The pump is the water pump, responsible for drawing water and pushing it through the pipes. The hoses are the water slides, directing the water to the nozzles, which act as the spray jets, delivering the refreshing clean to your windshield. If the pump fails, the entire system grinds to a halt.

Understanding the Mechanics: How the Windshield Washer System Works

The windshield washer system is surprisingly simple in its design. Here's a breakdown of the key components and their functions:

Reservoir: This is a plastic container that holds the washer fluid. It's usually located in the engine bay, often near the firewall or fender.
Washer Pump: This is a small electric pump, typically mounted directly to the reservoir. It's responsible for drawing fluid from the reservoir and pressurizing it.
Hoses: These flexible rubber or plastic hoses connect the pump to the washer nozzles.
Washer Nozzles: These are small spray jets mounted on the hood or near the base of the windshield. They direct the washer fluid onto the glass.
Electrical Wiring: The pump receives power from the vehicle's electrical system. A switch, usually integrated into the windshield wiper stalk, activates the pump.

When you activate the washer system, the switch sends an electrical signal to the pump. The pump's electric motor spins, driving an impeller or diaphragm that draws fluid from the reservoir. This pressurized fluid is then forced through the hoses to the washer nozzles, creating a spray pattern that cleans the windshield. Many vehicles, especially SUVs and hatchbacks, have a separate pump and system for the rear window.

The pump itself is a relatively simple device. It typically consists of a small electric motor, a pump housing, and an impeller or diaphragm. The motor spins the impeller, which creates suction to draw fluid and then forces it out through the outlet port. Some pumps use a diaphragm instead of an impeller. The diaphragm is a flexible membrane that oscillates, creating the pumping action.

Diagnosing a Faulty Windshield Washer Pump

Before condemning the pump, it's crucial to rule out other potential issues. Here's a troubleshooting checklist:

Check the Washer Fluid Level: This might seem obvious, but make sure the reservoir is filled with washer fluid.
Check the Fuse: Locate the fuse for the windshield washer system in your vehicle's fuse box. If the fuse is blown, replace it.
Check for Clogged Nozzles: Use a small pin or needle to clear any debris from the nozzles.
Check the Hoses: Inspect the hoses for kinks, cracks, or leaks. Replace any damaged hoses.
Listen for the Pump: When you activate the washer system, listen carefully for the pump motor. If you hear a whirring sound but no fluid is spraying, the pump may be running but unable to build pressure. If you hear nothing at all, the pump may be dead, or the wiring may be faulty.

If you've ruled out all other possibilities, the washer pump is likely the culprit. To confirm, you can use a multimeter to check for voltage at the pump's electrical connector when the washer system is activated. If you're getting voltage but the pump isn't running, the pump is definitely faulty.

Replacing the Windshield Washer Pump: A Step-by-Step Guide

Replacing a windshield washer pump is a relatively straightforward DIY project that can save you money on labor costs. Here's a general guide; however, always consult your vehicle's service manual for specific instructions:

Gather Your Tools and Supplies: You'll need a new windshield washer pump (ensure it's compatible with your vehicle's make and model), a screwdriver set, pliers, a multimeter (optional), a drain pan, and safety glasses.
Disconnect the Battery: This is a crucial safety step to prevent electrical shocks or accidental activation of the washer system.
Access the Washer Pump: The location of the washer pump varies depending on the vehicle. It's usually located on the side or bottom of the washer fluid reservoir, inside the wheel well, or behind the bumper. You may need to remove the wheel well liner or bumper cover to access the pump.
Drain the Washer Fluid Reservoir: Use a siphon or disconnect the washer hose at its lowest point and let the fluid drain into a drain pan.

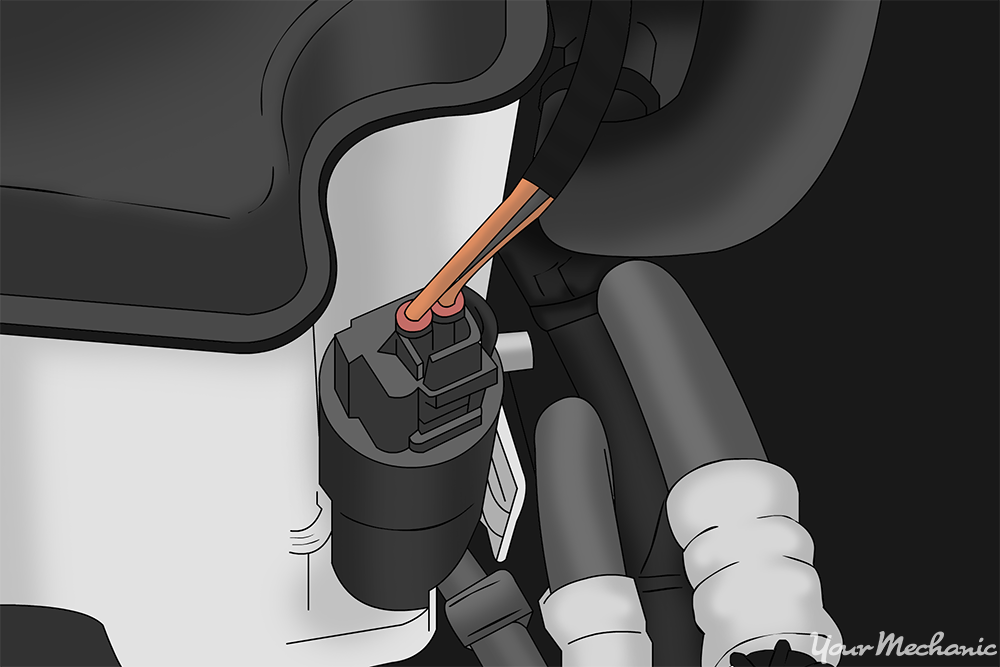

Disconnect the Electrical Connector: Disconnect the electrical connector from the washer pump.
Disconnect the Washer Hoses: Carefully disconnect the washer hoses from the pump. Some hoses may be secured with clamps; use pliers to remove them. Be prepared for some residual fluid to spill.
Remove the Old Pump: The pump is usually held in place by a rubber grommet or a retaining clip. Gently pull or pry the pump out of the reservoir.
Install the New Pump: Install the new pump in the reverse order of removal. Make sure the rubber grommet is properly seated.
Reconnect the Washer Hoses: Reconnect the washer hoses to the pump, ensuring they are securely attached.
Reconnect the Electrical Connector: Reconnect the electrical connector to the pump.
Refill the Washer Fluid Reservoir: Fill the reservoir with washer fluid.
Reconnect the Battery: Reconnect the battery.
Test the System: Activate the washer system and check for proper spray pattern and leaks.

Pros and Cons of DIY Replacement

Pros:

Cost Savings: You'll save on labor costs by doing the work yourself.
Learning Experience: You'll gain valuable knowledge about your vehicle's systems.
Satisfaction: There's a sense of accomplishment in fixing something yourself.

Cons:

Time Commitment: It can take several hours to complete the job, especially if you're not familiar with automotive repair.
Potential for Mistakes: If you're not careful, you could damage other components or install the pump incorrectly.
Limited Warranty: DIY repairs may not be covered by a warranty.

Manufacturer Examples and Variations

While the basic principle of the windshield washer system remains the same across different manufacturers, there are some variations in design and location. For example:

BMW: Often locates the washer fluid reservoir and pump within the wheel well, requiring removal of the wheel and wheel well liner for access.
Toyota: Typically places the reservoir and pump in an easily accessible location in the engine bay.
Ford: Some Ford trucks have separate pumps for the front and rear windshields, increasing complexity.

Some high-end vehicles may also have features like heated washer nozzles to prevent freezing in cold weather, adding another layer of complexity to the system.

Real-World Insights and Recommendations

Based on practical experience, here are a few tips and recommendations regarding windshield washer pumps:

Use Quality Washer Fluid: Cheap washer fluid can contain contaminants that can clog the pump and nozzles. Opt for a reputable brand with cleaning additives and freeze protection.
Avoid Running the Pump Dry: Running the pump dry can damage the motor. Always ensure the reservoir is filled with fluid.
Consider a Submersible Pump: These types of pumps reside inside the reservoir and are less prone to leaks.
Regularly Inspect the System: Check the hoses, nozzles, and reservoir for leaks or damage. Address any issues promptly to prevent further problems.
Don't Overlook the Rear Washer System: If your vehicle has a rear window washer, remember to check its pump and nozzles as well.

In conclusion, while a failed windshield washer pump might seem like a minor inconvenience, it can significantly impact driving safety. Understanding how the system works and being able to diagnose and replace the pump yourself can save you time and money. By following the steps outlined in this guide and considering the practical insights, you can keep your windshield clean and clear, ensuring a safer driving experience.
