How To Check Ac Clutch Relay

An AC clutch relay is a small, but critical, component in your vehicle's air conditioning system. It acts as a switch, controlling the flow of power to the AC compressor clutch. When the relay fails, your AC might stop working, leaving you sweltering on a hot day. Checking the AC clutch relay is a relatively simple task that many car owners can perform themselves, potentially saving time and money on expensive mechanic visits. This article provides a comprehensive guide on how to check your AC clutch relay, empowering you to diagnose and potentially fix the issue.

Why Checking Your AC Clutch Relay Matters

Understanding the importance of the AC clutch relay and its function is key to appreciating why regular checks, or at least knowing how to check it, are important. Here's a breakdown:

Comfort: The most obvious reason is comfort. A functioning AC system is essential for comfortable driving, especially in hot climates. A faulty relay means no AC, and no AC means a miserable driving experience.
Component Protection: If the relay is failing intermittently, it can cause the AC compressor clutch to engage and disengage rapidly. This "chattering" can put undue stress on the clutch, leading to premature wear and potentially expensive damage.
Diagnostic Clarity: Checking the relay helps you narrow down the potential causes of AC problems. If the relay is working correctly, you can then focus on other components like the compressor, refrigerant levels, or the pressure switch.
Cost Savings: Diagnosing and potentially replacing a faulty relay yourself can save you a significant amount of money compared to taking your car to a mechanic. Relays are typically inexpensive, and the process is relatively straightforward.
Preventative Maintenance: Periodically checking the relay can help you catch a failing component before it completely fails, allowing you to replace it proactively and avoid being stranded with a broken AC system.

Common Symptoms of a Failing AC Clutch Relay

Before diving into the checking process, it's important to recognize the symptoms that might indicate a failing AC clutch relay. These include:

AC Not Working: This is the most common symptom. The AC simply doesn't blow cold air.
Intermittent AC Operation: The AC might work sometimes, but not others. This could indicate a relay that's failing intermittently.

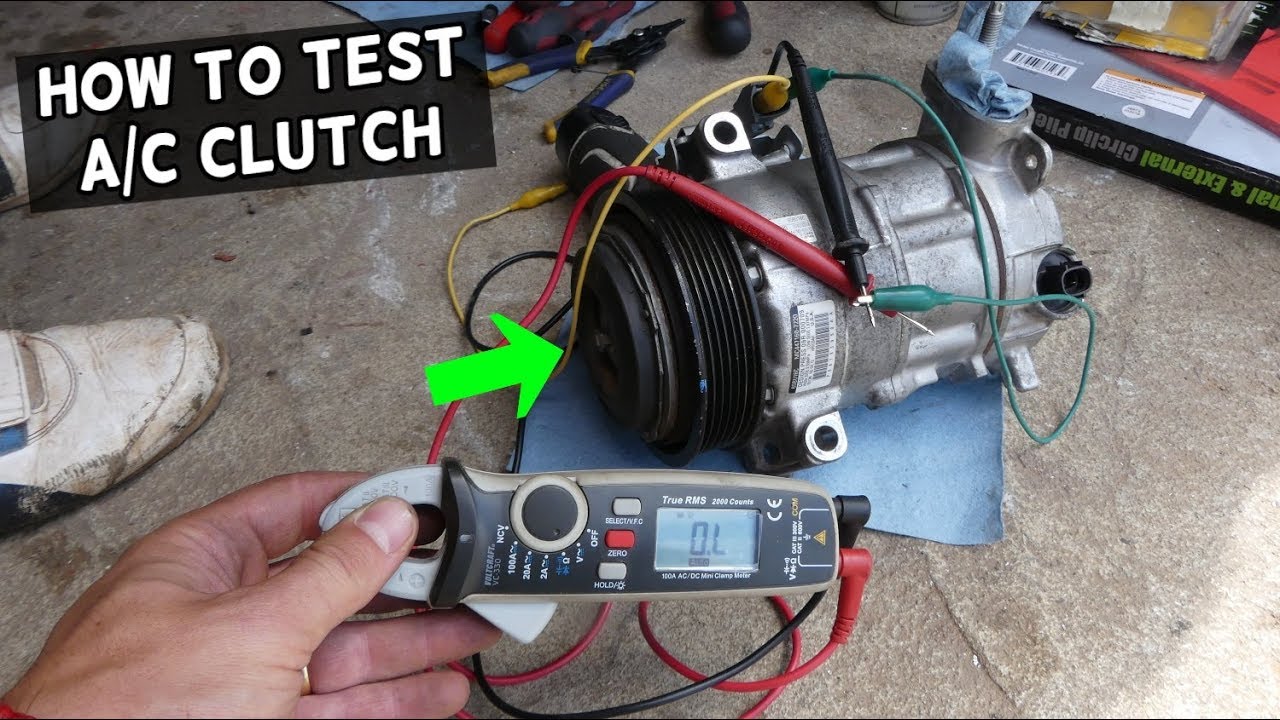

AC Clutch Not Engaging: You might hear a clicking sound when you turn on the AC, but the compressor clutch doesn't engage. The clutch is the part on the front of the compressor that spins when the AC is on.
Burning Smell: A burnt or melted smell coming from the relay box can indicate a short circuit or overheating within the relay.
Clicking Sound from Relay Box: Excessive clicking from the relay box, even when the AC is off, can be a sign of a failing relay.

How to Check the AC Clutch Relay

Here's a step-by-step guide on how to check your AC clutch relay:

Locate the Relay Box: The relay box (also called a fuse box or power distribution box) is typically located under the hood, near the engine, or sometimes inside the cabin, often under the dashboard. Refer to your vehicle's owner's manual to find the exact location and diagram for your specific make and model.
Identify the AC Clutch Relay: Once you've located the relay box, consult the diagram inside the lid to identify the AC clutch relay. The diagram will usually label each relay and fuse. If you're unsure, refer to your vehicle's repair manual or search online for your specific vehicle.
Visual Inspection: Carefully remove the relay from the box. Inspect it for any signs of damage, such as cracks, burns, or melted plastic. If you see any visible damage, the relay needs to be replaced.
Relay Swapping: This is a simple and effective way to test the relay. Locate another relay in the fuse box that's identical to the AC clutch relay and controls a non-essential function, such as the horn or the rear window defogger. Swap the two relays. If the AC now works and the function controlled by the swapped relay (e.g., the horn) no longer works, then the original AC clutch relay is faulty and needs to be replaced. Make sure the relays are identical in size, shape, and pin configuration.

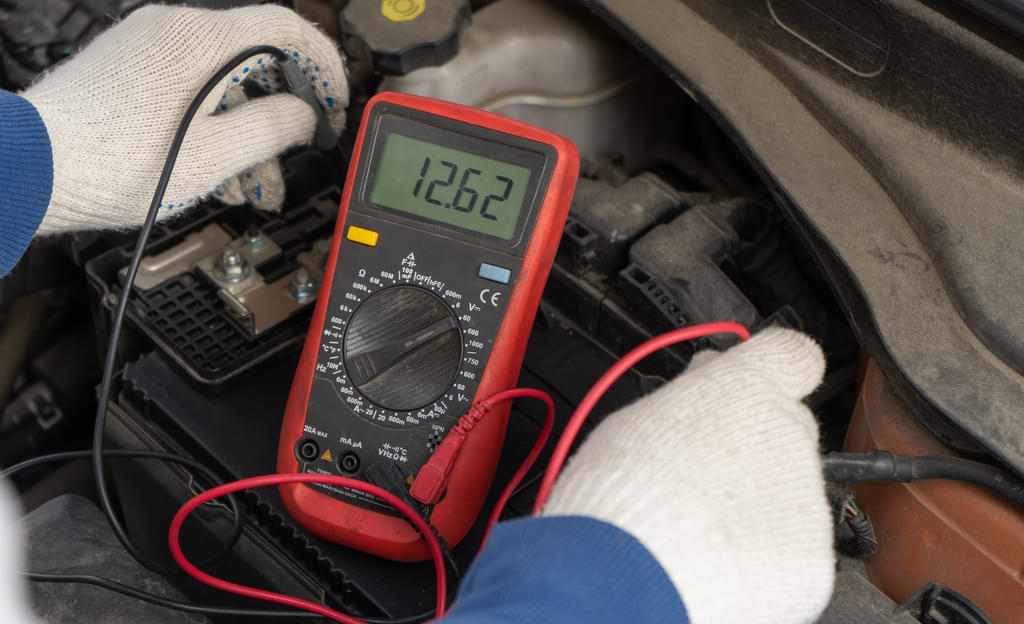

Multimeter Testing (Advanced): If you have a multimeter, you can test the relay more accurately.
- Continuity Test: Set your multimeter to the continuity setting (usually indicated by a sound wave or diode symbol). Identify the relay's coil terminals (refer to the relay's diagram, often printed on the side). With the relay unpowered, there should be no continuity between the coil terminals. When you apply 12V to the coil terminals, the relay should "click" and continuity should exist between the normally open (NO) terminals. If the relay doesn't "click" or doesn't show continuity when activated, it's faulty.
- Resistance Test: With the multimeter set to ohms, measure the resistance across the coil terminals. A very low resistance (close to zero) indicates a shorted coil, while a very high resistance (infinite) indicates an open coil. A normal resistance value will vary depending on the relay, but it's usually in the range of 50-120 ohms.
Professional Testing: If you're not comfortable performing these tests yourself, take your vehicle to a qualified mechanic for diagnosis. They have specialized tools and expertise to accurately diagnose and repair AC system problems.

How to Choose the Right AC Clutch Relay

If you determine that your AC clutch relay is faulty and needs to be replaced, it's crucial to choose the correct replacement. Using the wrong relay can damage your AC system or other electrical components. Here's what to consider:

Vehicle Compatibility: The most important factor is to ensure that the relay is specifically designed for your vehicle's make, model, and year. Check your owner's manual or a reliable auto parts website to find the correct part number.
Amperage Rating: The relay's amperage rating must match the original relay. Using a relay with a lower amperage rating can cause it to overheat and fail, while using a relay with a higher amperage rating might not provide adequate protection for the circuit.
Pin Configuration: The pin configuration (the number and arrangement of the pins) must be identical to the original relay. Otherwise, the relay won't fit into the socket and won't function correctly.
Brand Reputation: Opt for a relay from a reputable brand. While cheaper aftermarket relays might seem tempting, they often have lower quality and shorter lifespan. Established brands typically offer better reliability and performance.
Online Reviews: Before purchasing a relay, read online reviews from other users to get an idea of its quality and reliability.
OEM vs. Aftermarket: You can choose between an OEM (Original Equipment Manufacturer) relay or an aftermarket relay. OEM relays are typically more expensive but are guaranteed to meet the manufacturer's specifications. Aftermarket relays can be a more affordable option, but it's important to choose a reputable brand.

Real-World Owner Experiences

Many car owners have successfully diagnosed and replaced their AC clutch relays themselves, saving time and money. Here are a few real-world examples:

John, a Honda Civic owner: "My AC stopped working on a hot summer day. I checked the fuses, and they were fine. After watching a YouTube video, I decided to check the AC clutch relay. I swapped it with the horn relay, and the AC started working! I ordered a new relay online and replaced it myself. It was a quick and easy fix."
Sarah, a Ford F-150 owner: "My AC was working intermittently. I noticed a clicking sound coming from the relay box. I used a multimeter to test the AC clutch relay, and it failed the continuity test. I replaced the relay, and the AC has been working perfectly ever since."
Mike, a Toyota Camry owner: "I took my car to a mechanic, and they quoted me $500 to fix the AC. I decided to try fixing it myself. I found a diagram of the relay box online and identified the AC clutch relay. I swapped it with another relay, and the AC started working. I saved a lot of money by doing it myself."

These stories highlight the importance of knowing how to diagnose and potentially fix simple issues like a faulty AC clutch relay.

Frequently Asked Questions (FAQs)

Here are some frequently asked questions about AC clutch relays:

Q: How much does it cost to replace an AC clutch relay?
A: The cost of an AC clutch relay typically ranges from $10 to $50, depending on the brand and vehicle. If you take your car to a mechanic, the total cost, including labor, could be between $50 and $200.
Q: Can I drive my car with a bad AC clutch relay?
A: Yes, you can drive your car with a bad AC clutch relay, but you won't have AC. The relay only controls the AC compressor clutch, so it won't affect other vehicle functions.
Q: How often should I check my AC clutch relay?
A: You should check your AC clutch relay if you experience any of the symptoms mentioned above, such as the AC not working or working intermittently. It's also a good idea to check it periodically as part of your regular vehicle maintenance.
Q: Can a bad AC clutch relay drain my battery?
A: In rare cases, a shorted AC clutch relay can drain your battery. This is because the relay might be constantly drawing power, even when the AC is off.
Q: Is it difficult to replace an AC clutch relay?
A: Replacing an AC clutch relay is generally a simple task that most car owners can perform themselves. It doesn't require any special tools or expertise. However, if you're not comfortable working on your car, it's best to take it to a mechanic.

By following the steps outlined in this article, you can confidently check your AC clutch relay and potentially save yourself time, money, and a sweaty driving experience. Remember to always consult your vehicle's owner's manual for specific instructions and safety precautions.
