How To Check Ac Compressor Relay

The air conditioning system in your car is a complex network of components working together to keep you cool and comfortable. A crucial part of this system is the AC compressor, and the AC compressor relay is what allows the compressor to turn on and off. If your AC isn't working, a faulty relay could be the culprit. Checking it yourself can save you time and money compared to immediately taking your vehicle to a mechanic.

Why Checking Your AC Compressor Relay Matters

Understanding the AC compressor relay and knowing how to check it is important for several reasons:

• Cost Savings: Diagnosing and replacing a faulty relay is often a simple and inexpensive fix compared to replacing the entire AC compressor or other major components. A new relay might cost you just a few dollars, while a compressor replacement can run hundreds or even thousands.
• Time Efficiency: Scheduling an appointment with a mechanic, dropping off your car, and waiting for them to diagnose and repair the issue takes time. Checking the relay yourself can often be done in under an hour, saving you valuable time.
• Avoiding Misdiagnosis: Sometimes, a seemingly complex AC problem can stem from a simple issue like a bad relay. By checking the relay first, you can avoid a mechanic misdiagnosing the problem and recommending unnecessary repairs.
• Preventing Further Damage: A malfunctioning relay can sometimes cause electrical issues that can potentially damage other components in your AC system or even your car's electrical system. Identifying and replacing a faulty relay promptly can prevent these problems.
• Peace of Mind: Knowing how your car works and being able to troubleshoot basic issues gives you a sense of control and confidence. You'll be better equipped to handle minor problems and avoid getting taken advantage of by unscrupulous mechanics.

How to Check Your AC Compressor Relay: A Step-by-Step Guide

Before you begin, remember to consult your vehicle's owner's manual for the exact location of the AC compressor relay and any specific instructions for your make and model. Safety first! Disconnect the negative battery cable before starting any electrical work on your car.

1. Locate the AC Compressor Relay

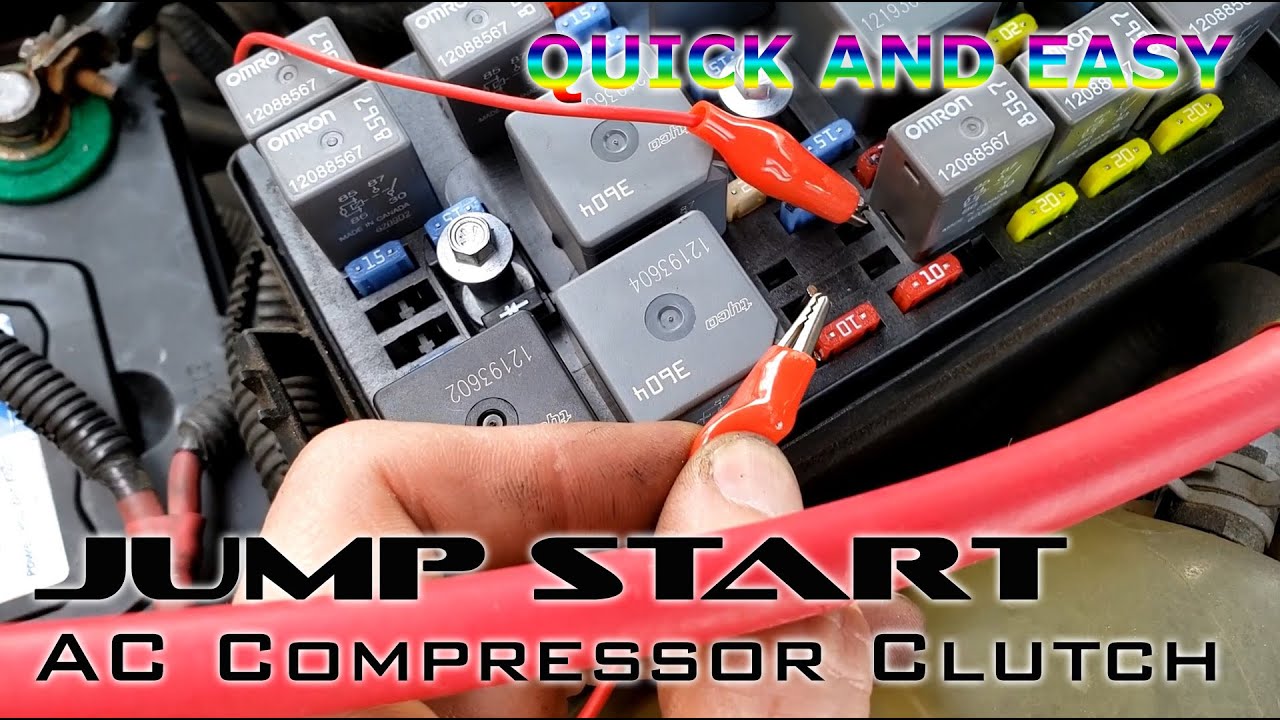

The AC compressor relay is usually found in the under-hood fuse box. The fuse box is typically located near the engine compartment, often on the driver's side or passenger's side. Refer to your car's owner's manual to identify the specific location of the fuse box and the AC compressor relay within the box. The relay should be labeled in the fuse box diagram, typically as "A/C Compressor Relay" or something similar.

2. Identify the Relay

Relays are usually small, cube-shaped components that plug into the fuse box. They are often black or gray in color, but can also be other colors. Once you've located the AC compressor relay in the fuse box diagram, find the physical relay that corresponds to that location.

3. The Swap Test

The easiest and most common way to test a relay is to swap it with a relay of the same type from a different system in your car. A good candidate for swapping is often the horn relay, or another relay that controls a non-essential function.

Here's how to perform the swap test:

1. Locate a relay that is identical to the AC compressor relay. Make sure the part numbers or markings on both relays are the same. This is crucial to prevent damage to other systems.
2. Carefully remove both relays from the fuse box. They should pull straight out.
3. Swap the relays. Place the AC compressor relay in the position of the other relay you removed, and vice versa.
4. Reconnect the negative battery cable.
5. Test the system controlled by the relay you swapped with the AC compressor relay. For example, if you swapped with the horn relay, test the horn. If the horn doesn't work (when it did before), then the original AC compressor relay is likely bad.
6. Start your car and turn on the AC. If the AC now works, then the original AC compressor relay was the problem.

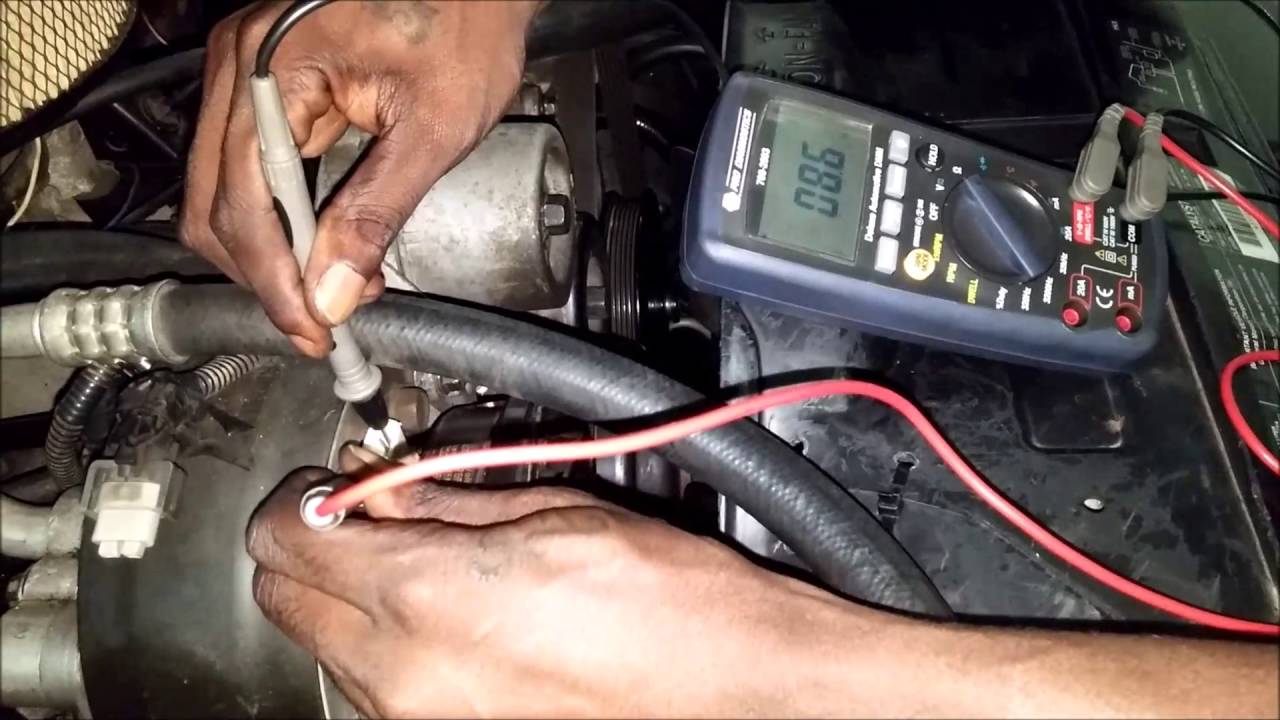

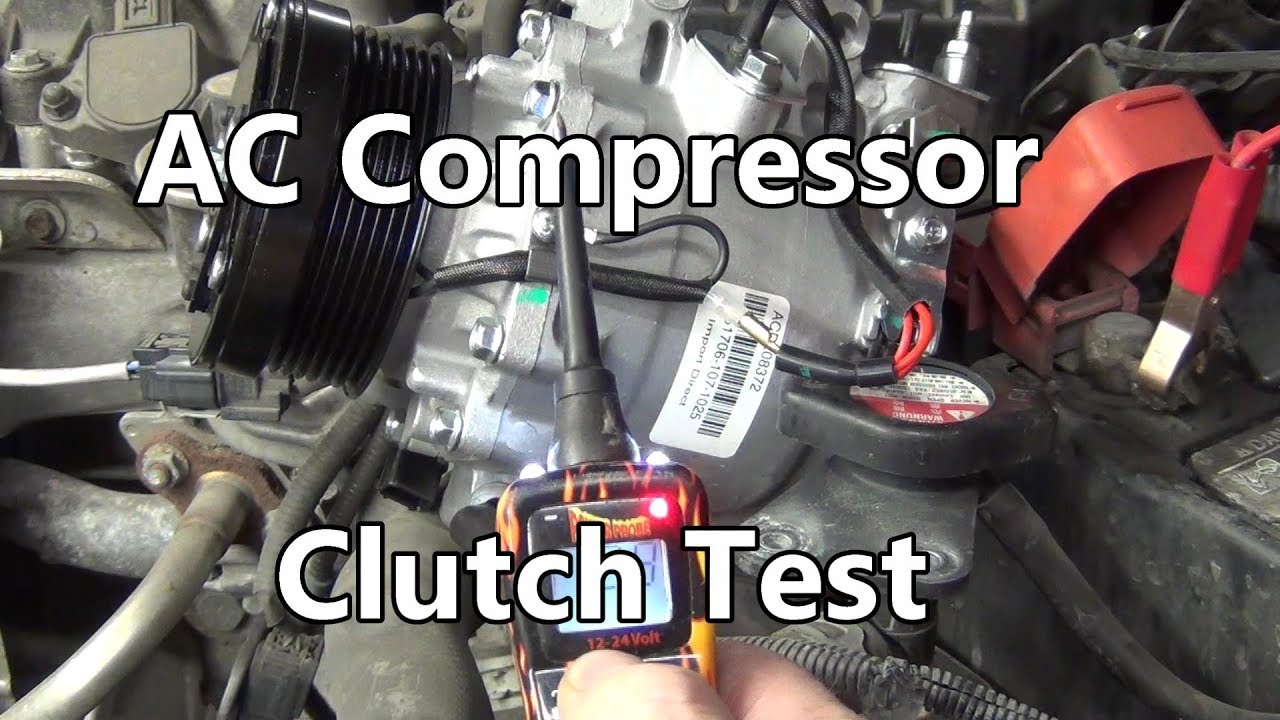

4. Using a Multimeter (Advanced)

For a more precise test, you can use a multimeter. This requires a bit more technical knowledge but can provide a definitive answer.

Here's how to test the relay with a multimeter:

1. Identify the relay terminals: Relays typically have four or five terminals. You need to identify the coil terminals (which activate the relay) and the switch terminals (which connect the circuit when the relay is activated). Refer to the relay's diagram (often printed on the relay itself) or your car's service manual to identify the terminals.
2. Test the coil: Set your multimeter to measure resistance (Ohms). Connect the multimeter probes to the coil terminals. You should read a resistance value. If the reading is zero (short circuit) or infinite (open circuit), the relay coil is likely bad. The expected resistance will vary depending on the relay, so consult your car's service manual if possible.
3. Test the switch: Set your multimeter to measure continuity. Connect the multimeter probes to the switch terminals. Without applying power to the relay, you should *not* have continuity (the multimeter should not beep or read zero resistance).
4. Apply power to the coil: Use jumper wires to connect the coil terminals to a 12V power source (like your car battery). Be very careful not to short-circuit anything. When power is applied, you should hear a click from the relay.
5. Test the switch again: With power applied to the coil, check the continuity of the switch terminals again. This time, you *should* have continuity. If you don't, the relay switch is bad.

How to Choose the Right Replacement AC Compressor Relay

If you determine that your AC compressor relay is faulty, you'll need to replace it. Choosing the right replacement relay is crucial for ensuring proper operation and preventing future problems. Here's what to consider:

• Vehicle Compatibility: The most important factor is to ensure that the relay is compatible with your specific vehicle make, model, and year. The easiest way to do this is to use the part number printed on the original relay. If you can't find the part number, consult your car's owner's manual or a parts store to find the correct replacement.
• Amperage Rating: The amperage rating of the relay must match the original relay. This is the amount of current the relay can handle. Using a relay with a lower amperage rating can cause it to overheat and fail, while using a relay with a higher amperage rating is generally not necessary but won't cause any harm.
• Relay Type: Ensure you are getting the correct type of relay. There are different types of relays, such as single-pole single-throw (SPST), single-pole double-throw (SPDT), etc. The replacement relay must be the same type as the original.
• Brand Reputation: While cheaper aftermarket relays are available, it's generally recommended to stick with reputable brands known for quality and reliability. Consider brands like Bosch, Denso, or ACDelco.
• Reviews: Before purchasing a relay, read online reviews from other users to get an idea of its performance and reliability.

Real-World Owner Experiences

Many car owners have successfully diagnosed and replaced their AC compressor relays themselves, saving money and time. Here are a few examples:

John, a Honda Civic owner: "My AC suddenly stopped working on a hot summer day. I took it to a mechanic who wanted to charge me $300 for a new compressor. I decided to do some research online and found out about the AC compressor relay. I swapped it with the horn relay, and sure enough, the AC started working again! A $10 relay fixed the problem."

Sarah, a Ford F-150 driver: "My AC was intermittent, sometimes working and sometimes not. I suspected a bad relay, so I bought a multimeter and tested it. The relay failed the continuity test. I replaced it with a new one from a local auto parts store, and the AC has been working perfectly ever since."

David, a Toyota Camry owner: "My mechanic told me my AC compressor was bad and needed to be replaced for $800. I decided to get a second opinion and another mechanic suggested checking the relay first. We did, and it was the relay! I saved a lot of money by getting a second opinion and insisting on checking the simple things first."

These experiences highlight the importance of checking the AC compressor relay as a first step in diagnosing AC problems. While not every AC issue is caused by a bad relay, it's a common problem that is relatively easy and inexpensive to fix.

Frequently Asked Questions (FAQs)

Q: How much does it cost to replace an AC compressor relay?

A: The cost of a replacement AC compressor relay is typically between $5 and $20, depending on the brand and where you purchase it.

Q: Can a bad AC compressor relay damage other components?

A: Yes, a malfunctioning relay can sometimes cause electrical surges or shorts that can potentially damage other components in the AC system or the car's electrical system.

Q: What are the symptoms of a bad AC compressor relay?

A: Common symptoms include: AC not working at all, intermittent AC operation, clicking sounds from the relay (even when the AC is off), and the AC compressor not engaging.

Q: Do I need special tools to replace an AC compressor relay?

A: No, you typically don't need special tools to replace a relay. You might need a small screwdriver to help pry the relay out of the fuse box, but otherwise, it's a simple plug-and-play replacement.

Q: Where can I buy a replacement AC compressor relay?

A: You can buy a replacement relay at most auto parts stores, online retailers like Amazon or eBay, or directly from your car's dealership.

Q: Is it safe to drive with a bad AC compressor relay?

A: While it's generally safe to drive, it's not recommended to drive for extended periods with a bad AC compressor relay. A malfunctioning relay can cause electrical issues that could potentially damage other components. Plus, you'll be without AC, which can be uncomfortable and even dangerous in hot weather.

By following these steps and understanding the basics of the AC compressor relay, you can confidently diagnose and potentially fix your AC problem yourself, saving time, money, and hassle.
