How To Check Car Transmission Oil

Maintaining your vehicle's transmission is crucial for its longevity and performance. One of the most important aspects of transmission maintenance is regularly checking the transmission fluid level and condition. This article provides a comprehensive guide for experienced DIYers and car enthusiasts on how to accurately check your car's transmission oil, identify potential problems, and maintain optimal transmission health.

Background of Automatic Transmissions

Before diving into the process, let's establish a basic understanding of automatic transmissions. Unlike manual transmissions that rely on the driver to select gears, automatic transmissions use a complex system of planetary gearsets, hydraulic circuits, and electronic controls to automatically shift between gears based on speed and load. This process is largely dictated by the Transmission Control Module (TCM), which receives inputs from various sensors and dictates when and how gear changes should occur.

The heart of this system is the torque converter. The torque converter acts as a fluid coupling between the engine and transmission. It allows the engine to continue running even when the wheels are stopped (idling) and provides torque multiplication at lower speeds, enhancing acceleration. Inside the torque converter, transmission fluid circulates, transferring power from the engine to the transmission input shaft.

The planetary gearsets within the transmission are responsible for providing different gear ratios. These gears are engaged and disengaged by a series of clutches and bands, which are hydraulically actuated. Hydraulic pressure is generated by the transmission pump, powered directly by the engine, which circulates the transmission fluid throughout the system. Clean and properly filled transmission fluid is essential for the proper operation of the transmission, providing lubrication, cooling, and hydraulic pressure.

Technical Breakdown: Checking Transmission Fluid

The procedure for checking transmission fluid varies depending on whether your vehicle has a dipstick or a sealed transmission.

Checking Transmission Fluid with a Dipstick

This is the more common method and involves the following steps:

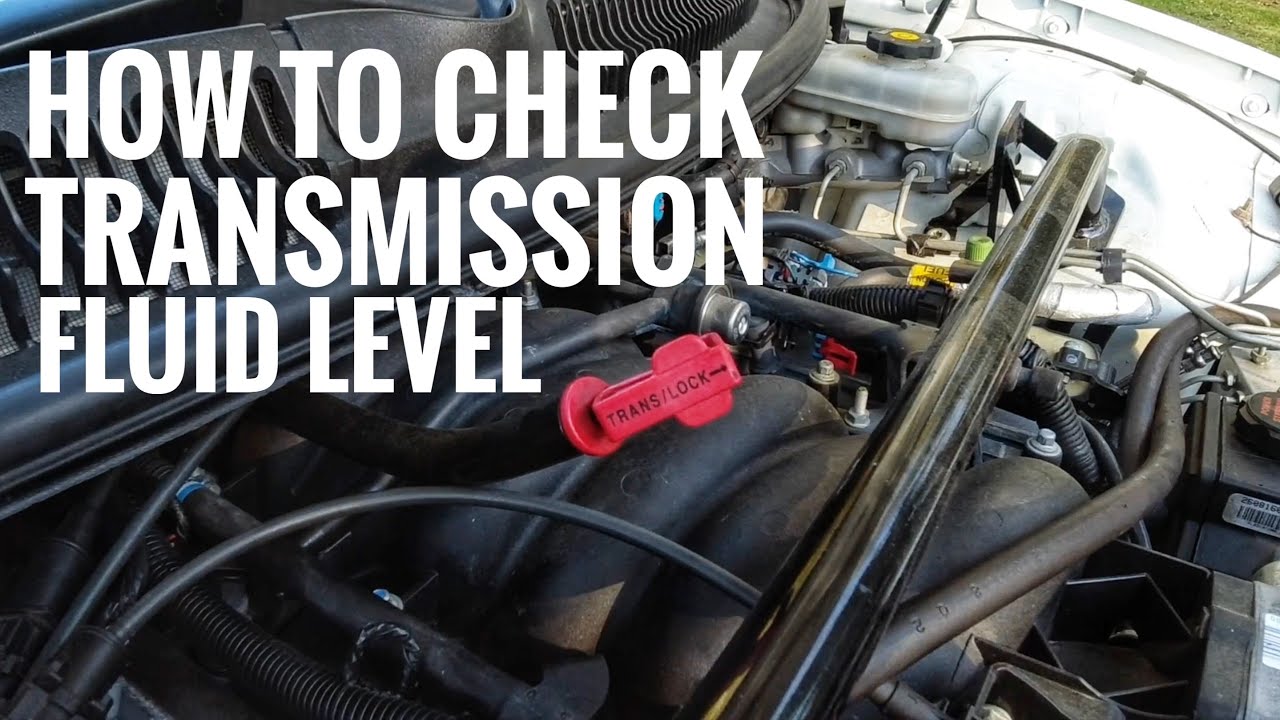

1. Locate the Transmission Dipstick: Unlike the engine oil dipstick (usually yellow or orange), the transmission dipstick is often located at the rear of the engine compartment, near the transmission itself. Consult your owner's manual if you're unsure of its location. Some are marked with "Transmission Fluid" or a similar label, and are often red or brown.
2. Warm Up the Engine: For an accurate reading, the transmission fluid needs to be at its normal operating temperature. Start the engine and allow it to run for approximately 10-15 minutes, or drive the vehicle for a short distance. Park on a level surface.
3. Engage Neutral or Park: With the engine running, shift the transmission into Neutral (N) or Park (P), depending on your vehicle's specific instructions. Consult your owner's manual for the recommended position. Engaging the parking brake is crucial for safety.

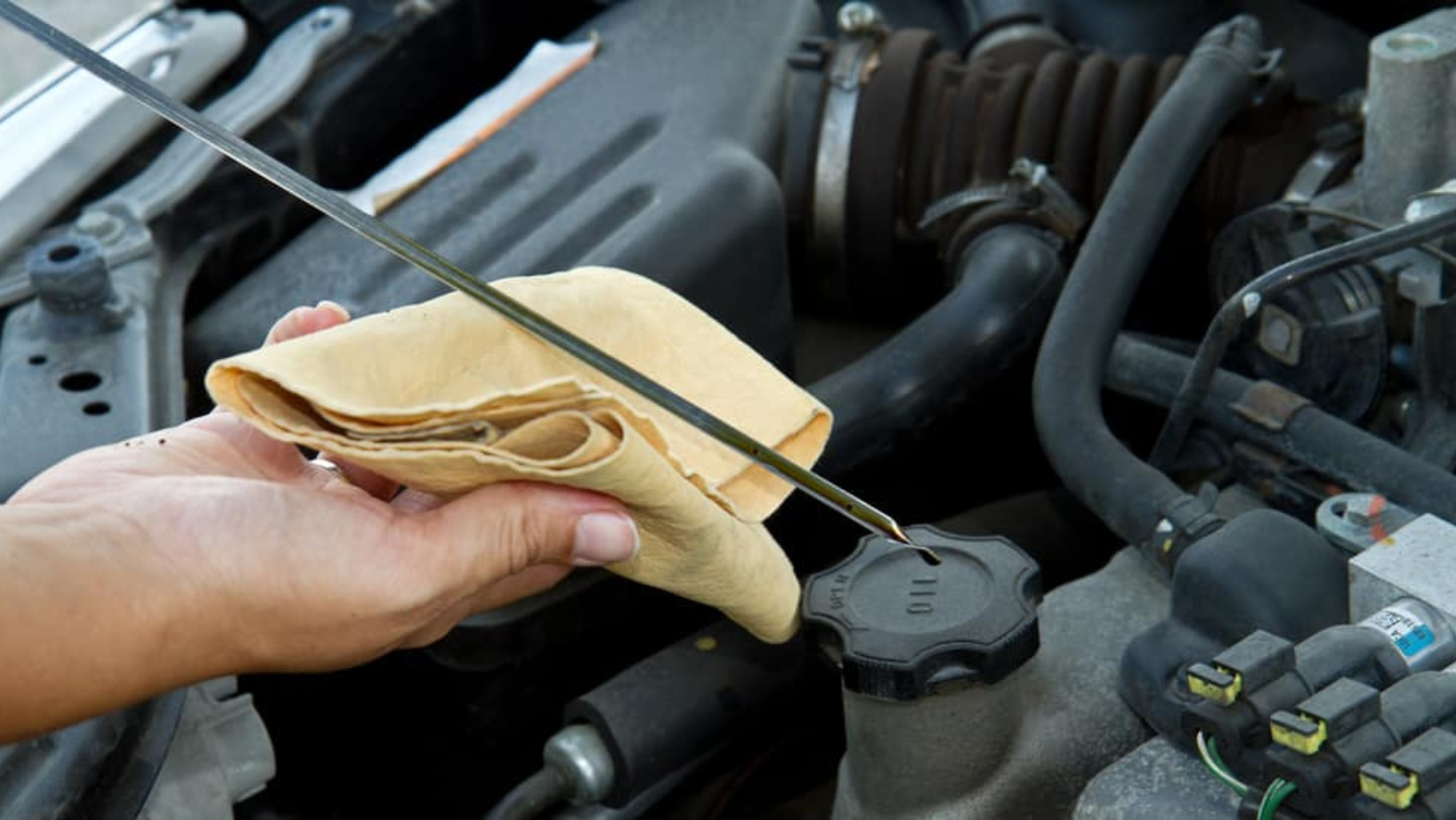

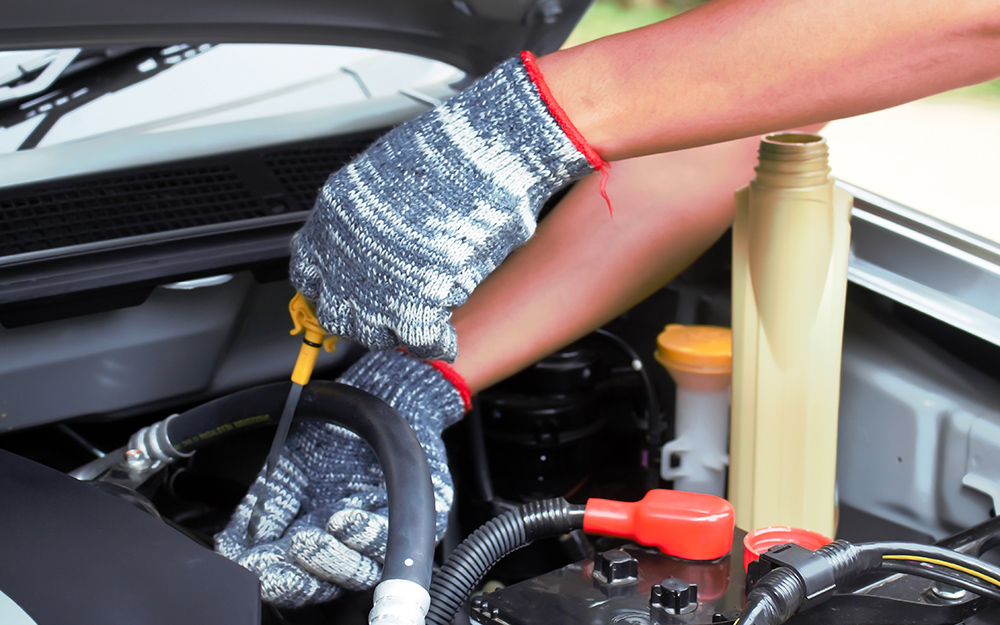

4. Locate and Remove the Dipstick: Carefully remove the transmission dipstick. Wipe it clean with a lint-free rag.
5. Reinsert and Remove the Dipstick: Fully reinsert the dipstick into the dipstick tube, ensuring it seats properly. Then, remove it again to check the fluid level.
6. Check the Fluid Level: The dipstick will have markings indicating the correct fluid level, typically labeled "Cold" and "Hot," or "Min" and "Max." The fluid level should be within the "Hot" or "Max" range if the engine is warmed up. If the level is below the "Cold" or "Min" mark, you need to add transmission fluid.
7. Inspect the Fluid Condition: Observe the color and smell of the fluid. Healthy transmission fluid is typically a bright red or pinkish color. Dark brown or black fluid, or fluid with a burnt smell, indicates potential problems such as overheating or contamination. Small metallic particles indicate excessive wear.
8. Reinsert the Dipstick: After checking the level and condition, reinsert the dipstick fully into the dipstick tube.

Checking Sealed Transmissions (Without a Dipstick)

Many newer vehicles have sealed transmissions that do not have a traditional dipstick. These transmissions require a different approach. Checking the fluid level typically involves removing a check plug on the transmission pan and verifying that the fluid level is at the bottom of the hole. This process is more complex and often requires specialized tools and knowledge.

Safety Warning: Working under a running vehicle is dangerous. Secure the vehicle properly on jack stands if you need to access the transmission pan.

1. Identify the Transmission Type: It's crucial to know the exact transmission model installed in your vehicle. This information can be found in your owner's manual or by consulting a qualified mechanic.
2. Warm Up the Engine: As with dipstick transmissions, the fluid should be at operating temperature.
3. Access the Transmission Pan: Safely lift the vehicle and secure it on jack stands. Locate the transmission pan.
4. Locate the Check Plug: The check plug is usually a small bolt or plug located on the side of the transmission pan.
5. Remove the Check Plug: Carefully remove the check plug. Be prepared for some fluid to drain out.
6. Check the Fluid Level: If fluid drips out slowly, the fluid level is generally correct. If no fluid comes out, the level is low. If fluid gushes out rapidly, the level may be overfilled.

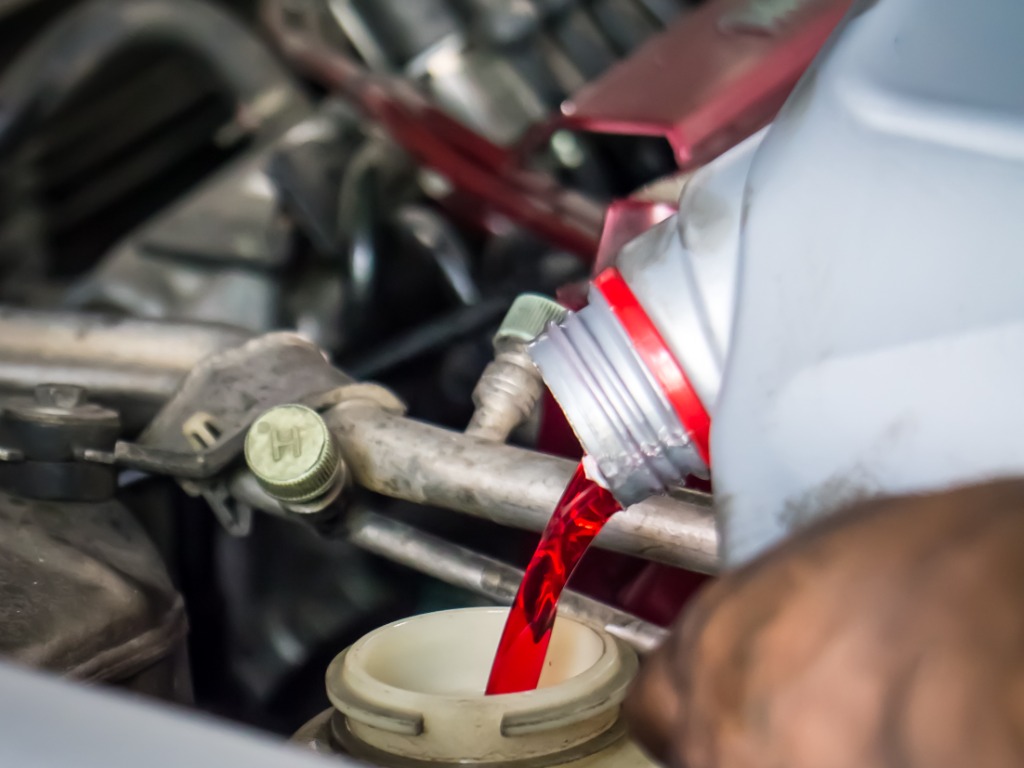

7. Add Fluid (If Necessary): If the fluid level is low, you'll need to add fluid through the fill plug, which is usually located higher on the transmission case. Use the correct type of transmission fluid as specified in your owner's manual.
8. Reinstall the Check Plug: Once the fluid level is correct, reinstall the check plug to the specified torque.
9. Lower the Vehicle: Carefully lower the vehicle.

Common Issues and Maintenance Concerns

• Low Fluid Level: Can lead to slipping, overheating, and damage to the transmission components.
• High Fluid Level: Can cause foaming of the fluid, reducing its lubricating properties and leading to pressure issues within the transmission.
• Contaminated Fluid: Dirt, debris, and metal particles can damage internal components.
• Overheated Fluid: Can cause the fluid to break down, losing its lubricating and cooling properties. This is often indicated by dark fluid and a burnt smell.
• Incorrect Fluid Type: Using the wrong type of transmission fluid can cause serious damage. Always use the fluid specified in your owner's manual. ATF+4, Dexron VI, and Mercon V are common, but not interchangeable.
• Leaks: Transmission leaks should be addressed promptly to prevent fluid loss and potential damage. Common leak locations include seals, gaskets, and the transmission pan.

Do's and Don'ts / Best Practices

Do's:

• Use the Correct Fluid: Always use the transmission fluid specified in your owner's manual. Using the wrong fluid can cause serious damage.
• Check Regularly: Check your transmission fluid level and condition regularly, ideally every time you change your engine oil.
• Change Fluid Regularly: Follow the manufacturer's recommended maintenance schedule for transmission fluid changes. This interval varies depending on driving conditions, but a good rule of thumb is every 30,000-60,000 miles.
• Consult a Professional: If you are unsure about any aspect of checking or changing your transmission fluid, consult a qualified mechanic.
• Dispose of Fluid Properly: Used transmission fluid is hazardous waste and should be disposed of properly at a recycling center or auto parts store.

Don'ts:

• Overfill the Transmission: Overfilling can cause foaming and pressure issues.
• Ignore Leaks: Address transmission leaks promptly to prevent fluid loss and potential damage.
• Use Additives Without Research: Avoid using aftermarket transmission additives unless you have thoroughly researched their compatibility with your specific transmission and fluid type. Many additives can actually cause more harm than good.
• Work on a Hot Exhaust: Allow the exhaust system to cool completely before working near the transmission.
• Neglect the Filter: When changing the transmission fluid, also replace the transmission filter.

Conclusion

Regularly checking your car's transmission fluid is a simple but crucial maintenance task that can significantly extend the life of your transmission. By understanding the importance of proper fluid level and condition, and by following the steps outlined in this guide, you can proactively identify potential problems and maintain optimal transmission health. If you encounter any issues or are unsure about any aspect of the process, it is always best to consult a qualified mechanic.
