How To Check Cigarette Lighter Fuse

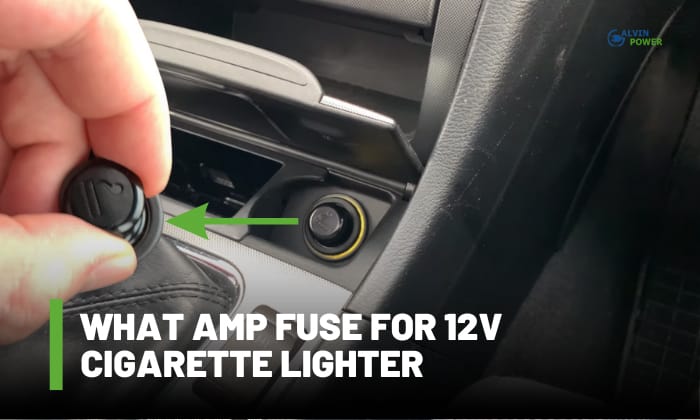

So, your phone's dead, you're on a long road trip, and the cigarette lighter – or more accurately, the 12V auxiliary power outlet – refuses to charge it. Frustrating, right? A non-functioning cigarette lighter is a common problem, and in many cases, the culprit is a blown fuse. Checking and replacing this fuse is usually a simple and inexpensive fix that you can often do yourself, saving you a trip to the mechanic. It’s important to address this issue promptly because a dead power outlet can leave you stranded without navigation, communication, or other essential electronic devices when you need them most.

Recognizing the Symptoms: Is it Really the Fuse?

Before you start tearing apart your dashboard, let's confirm that the cigarette lighter fuse is the likely cause. Here are the most common symptoms indicating a blown fuse:

Complete lack of power: This is the most obvious sign. Nothing happens when you plug anything into the outlet. No charging lights, no humming, just dead silence.
Other accessories are also not working: In some vehicles, the cigarette lighter shares a fuse with other accessories like the radio, interior lights, or even power windows. If these are also malfunctioning, it strongly points to a shared blown fuse.
The device used to work fine, then suddenly stopped: If your phone was charging perfectly fine yesterday, and today it's not, a blown fuse is a prime suspect. Sudden failures are often fuse-related.
Visual confirmation: (If accessible) Some cigarette lighters have a small indicator light. If this light is off when it normally would be on, the fuse could be the problem.

It's important to note that these symptoms *could* also indicate other issues, such as a faulty device, a broken outlet, or wiring problems. However, checking the fuse should be your first step, as it's the easiest and cheapest to resolve.

Understanding the Root Cause: Why Did the Fuse Blow?

A fuse blows because of an overload of electrical current. The fuse is designed as a safety device, a weak link in the circuit. When the current exceeds its rated amperage, the thin wire inside the fuse melts, breaking the circuit and preventing damage to more expensive components. Several things can cause this overload:

Overdrawing power: Plugging in multiple high-draw devices simultaneously can exceed the circuit's capacity. For example, using a phone charger, GPS, and a portable tire inflator at the same time could easily overload the fuse.
Faulty device: A malfunctioning device plugged into the outlet can draw excessive current, causing the fuse to blow. An internal short circuit within the device is a common cause.
Short circuit in the wiring: Damaged or frayed wiring in the cigarette lighter circuit can create a short circuit, causing a sudden and massive surge of current that instantly blows the fuse. This is less common but potentially more serious.
Old age or wear and tear: Fuses can weaken over time due to repeated thermal cycling (heating and cooling). While less frequent, sometimes a fuse simply fails due to age.

The Consequences of Ignoring a Blown Fuse

While a blown cigarette lighter fuse might seem like a minor inconvenience, ignoring it can lead to further problems:

Inability to use essential devices: As mentioned earlier, a dead outlet can prevent you from charging your phone, GPS, or other critical devices, leaving you without navigation, communication, or entertainment.
Further damage to electrical system: While unlikely *if* it is just the fuse, repeatedly replacing a blown fuse without addressing the underlying cause can lead to more serious electrical problems. If there's a short circuit, repeatedly replacing the fuse could eventually damage the wiring or even start a fire.
Frustration and inconvenience: Let's face it, it's annoying to not have a working power outlet, especially on long trips. It's a simple fix that avoids unnecessary aggravation.

Recommended Fixes: The Step-by-Step Guide

Here's how to check and replace your cigarette lighter fuse:

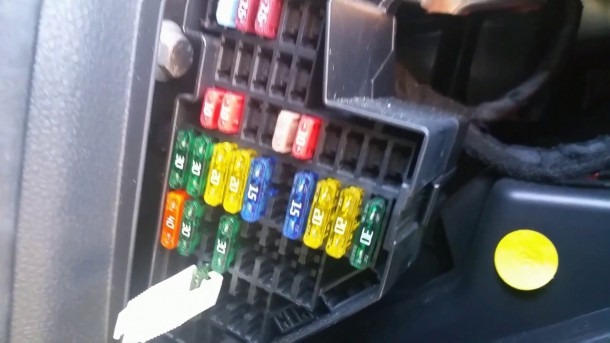

Locate the Fuse Box: Your car's fuse box is usually located in one of three places: under the dashboard (driver's side or passenger's side), in the engine compartment, or in the trunk. Consult your owner's manual to find the exact location for your specific vehicle.

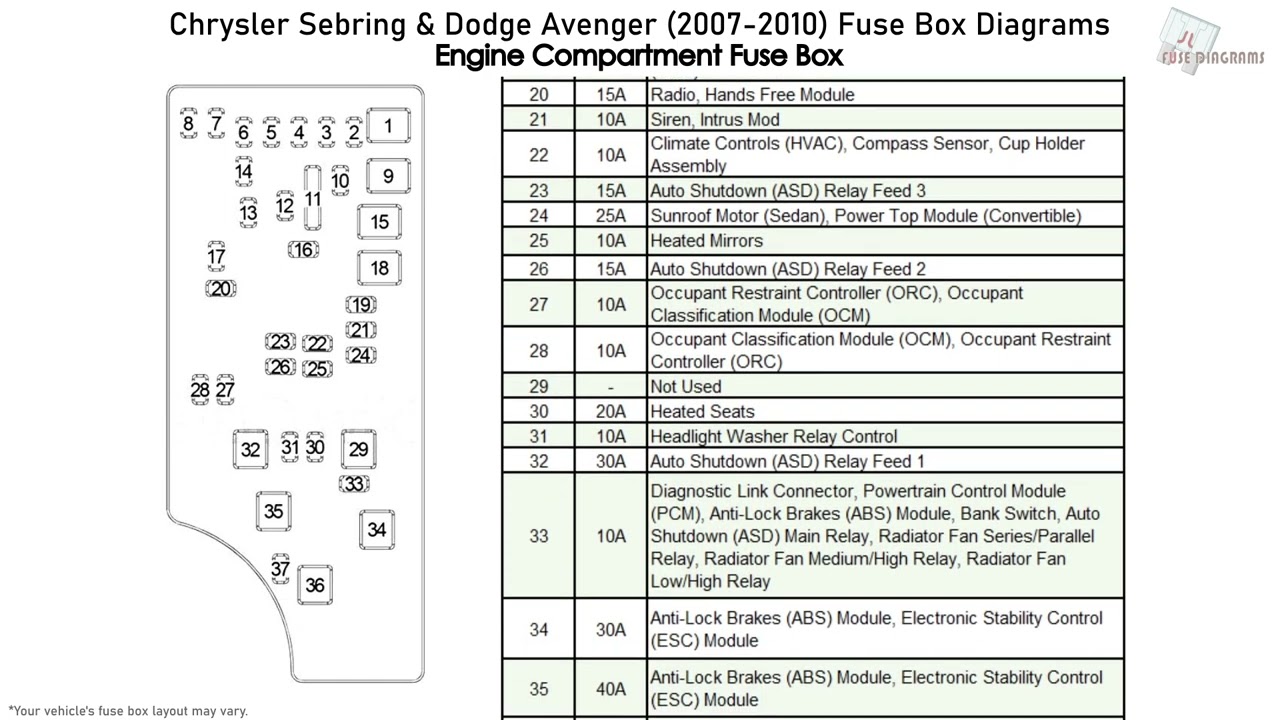

Identify the Cigarette Lighter Fuse: Once you've found the fuse box, you'll need to identify the correct fuse. Again, your owner's manual is your best friend here. It will have a fuse box diagram that labels each fuse. Look for labels like "CIG LTR," "PWR OUTLET," "AUX PWR," or something similar. If you can’t find it labeled this way, look for the symbol of a cigarette lighter (a small rectangle with a coil inside).
Inspect the Fuse: Use a fuse puller (often included in the fuse box) or a pair of needle-nose pliers to carefully remove the fuse. Hold the fuse up to the light and examine the thin wire inside. If the wire is broken or blackened, the fuse is blown.
Replace the Fuse: Replace the blown fuse with a new fuse of the same amperage rating. The amperage rating is printed on the fuse itself (e.g., 15A, 20A). Do not use a fuse with a higher amperage rating, as this can overload the circuit and potentially cause a fire. You can buy replacement fuses at any auto parts store or even most gas stations.
Test the Outlet: After replacing the fuse, test the cigarette lighter outlet with a known working device (e.g., your phone charger). If the outlet now works, you've successfully fixed the problem!
If the Fuse Blows Again: If the new fuse blows immediately or shortly after being replaced, there's likely a more serious underlying problem, such as a short circuit in the wiring. In this case, it's best to take your vehicle to a qualified mechanic for diagnosis and repair.

Tools You Might Need

Fuse puller (often found inside the fuse box)
Needle-nose pliers (if a fuse puller is not available)
Replacement fuse (of the correct amperage rating)
Owner's manual
Flashlight or work light

Cost Estimates and Shop Advice

The cost of this repair is usually very low. A replacement fuse typically costs only a few dollars. If you can do the repair yourself, the total cost will be minimal.

If you're not comfortable working on your car's electrical system, or if the fuse blows repeatedly, you'll need to take it to a mechanic. The cost of diagnosis and repair will vary depending on the complexity of the problem. A simple diagnosis might cost around $75-$150, while more extensive repairs, such as fixing a short circuit in the wiring, could cost several hundred dollars.

When choosing a mechanic, look for one with experience in automotive electrical systems. Ask for an estimate before authorizing any repairs. If you suspect a faulty device caused the fuse to blow, have that device inspected as well.

Credibility and Common Failure Points

While there aren't specific TSBs (Technical Service Bulletins) solely focused on cigarette lighter fuse failures, the principles behind fuse protection and common electrical faults are well-documented in automotive repair literature and industry best practices. The National Automotive Service Task Force (NASTF) provides resources and training for automotive technicians, emphasizing the importance of proper electrical system diagnosis and repair.

Data from online automotive forums and repair communities suggests that cigarette lighter fuse failures are more common in older vehicles or those with a history of electrical modifications. Vehicles with a higher number of aftermarket accessories plugged into the outlet are also more prone to fuse failures. Common mileage ranges for noticing accessory issues can vary widely, but vehicles exceeding 50,000 miles may be more likely to experience such issues due to wear and tear on wiring and electrical components.

Furthermore, many owner's manuals now include warnings against using the cigarette lighter outlet for high-draw devices, recognizing the potential for overloading the circuit. This highlights the importance of understanding the power requirements of your devices and avoiding excessive current draw.

By following these steps and understanding the potential causes of cigarette lighter fuse failures, you can often resolve this common problem quickly and easily, keeping your devices powered up and your travels uninterrupted.
