How To Check Cvt Fluid Level Nissan Altima No Dipstick

Let's talk about checking the CVT (Continuously Variable Transmission) fluid level in your Nissan Altima, specifically models that don't have a traditional dipstick. This is a common point of confusion and, frankly, a bit of a headache for DIY mechanics. But don't worry, we'll walk through it step-by-step, covering the theory, the procedure, and the potential pitfalls.

Why Does This Matter?

Maintaining the correct CVT fluid level is crucial for the longevity and performance of your transmission. Low fluid can lead to overheating, slippage, shuddering, and eventually, catastrophic failure. Overfilling is equally bad, as it can cause aeration of the fluid, reducing its lubricating properties and potentially damaging seals. A new CVT transmission is a hefty expense, so preventative maintenance is key. Owners care about this because it’s a non-negotiable aspect of car ownership that can save them thousands of dollars.

Background: The Altima's CVT and Why No Dipstick?

Many Altimas from the mid-2000s onward, particularly those equipped with the RE0F10A (JF011E) or RE0F11A (JF017E) CVT transmissions, lack a traditional dipstick for checking the fluid level. This design choice was likely driven by a few factors: cost reduction, a desire for a "sealed" system that requires less frequent maintenance (at least in theory), and perhaps to encourage owners to visit dealerships for service. While a “sealed” system sounds good on paper, it adds complexity for the average DIYer.

These transmissions are electronically controlled and rely heavily on the CVT fluid's properties for proper operation. The fluid acts as a hydraulic medium for the variators (the cones and belt or chain that vary the gear ratio), a lubricant for the internal components, and a coolant to dissipate heat. Its proper level and condition are therefore vital.

Technical Breakdown: How the Fluid Level Check Works (The Hard Way)

Since there's no dipstick, you'll be checking the fluid level through a check plug located on the transmission case. This process involves specific temperature ranges and a precise filling procedure.

Required Tools and Materials:

Nissan CVT Fluid NS-3: Do not substitute this with other fluids. These CVTs are highly sensitive to fluid type.
Fluid Pump: A hand pump or fluid transfer pump to add fluid to the transmission.
Socket Set: Metric sockets, particularly a socket that fits the check plug (usually a 19mm or 24mm).
Wrench Set: Wrenches to fit drain and fill plugs.
Torque Wrench: Essential for tightening the plugs to the correct torque specifications (we'll cover these later).
Infrared Thermometer: To accurately measure the transmission fluid temperature. Critical for an accurate reading.
Catch Pan: To collect any spilled fluid.
Rags or Shop Towels: For cleaning up spills.
Level: To ensure the vehicle is perfectly level.
OBDII Scanner (Optional but Recommended): Some scanners can read transmission fluid temperature directly, making the process easier.
Jack and Jack Stands: To safely raise the vehicle.
Gloves: To protect your hands.
Safety Glasses: To protect your eyes.

The Procedure:

Safety First: Ensure the vehicle is parked on a level surface, the parking brake is engaged, and the wheels are chocked.
Raise and Secure the Vehicle: Use a jack to lift the vehicle and securely place it on jack stands. Make sure the vehicle is perfectly level. Use a level on the frame rails to verify. This is critical for an accurate fluid level reading.
Locate the Check Plug: This is typically a small plug on the side of the transmission case, often near the bottom. It’s usually a different size or shape than the drain plug. Consult your vehicle's service manual if you're unsure of its location.
Locate the Drain Plug: Usually found at the bottom of the transmission pan.
Warm Up the Transmission: The CVT fluid needs to be within a specific temperature range (usually between 35°C and 45°C or 95°F and 113°F) for an accurate reading. Start the engine and let it idle. Monitor the transmission fluid temperature using your infrared thermometer aimed at the transmission pan, or use an OBDII scanner that can read transmission data.
Remove the Check Plug: Once the fluid is within the correct temperature range, carefully remove the check plug. Be prepared for some fluid to drain out.
Observe the Fluid Flow:
- If fluid is steadily dripping out, the level is likely correct. Allow it to drip until it slows to a very slow trickle or stops.
- If no fluid comes out, the level is low and needs to be topped off.
- If a significant amount of fluid gushes out, the level is too high. Let it drain until it slows to a trickle.

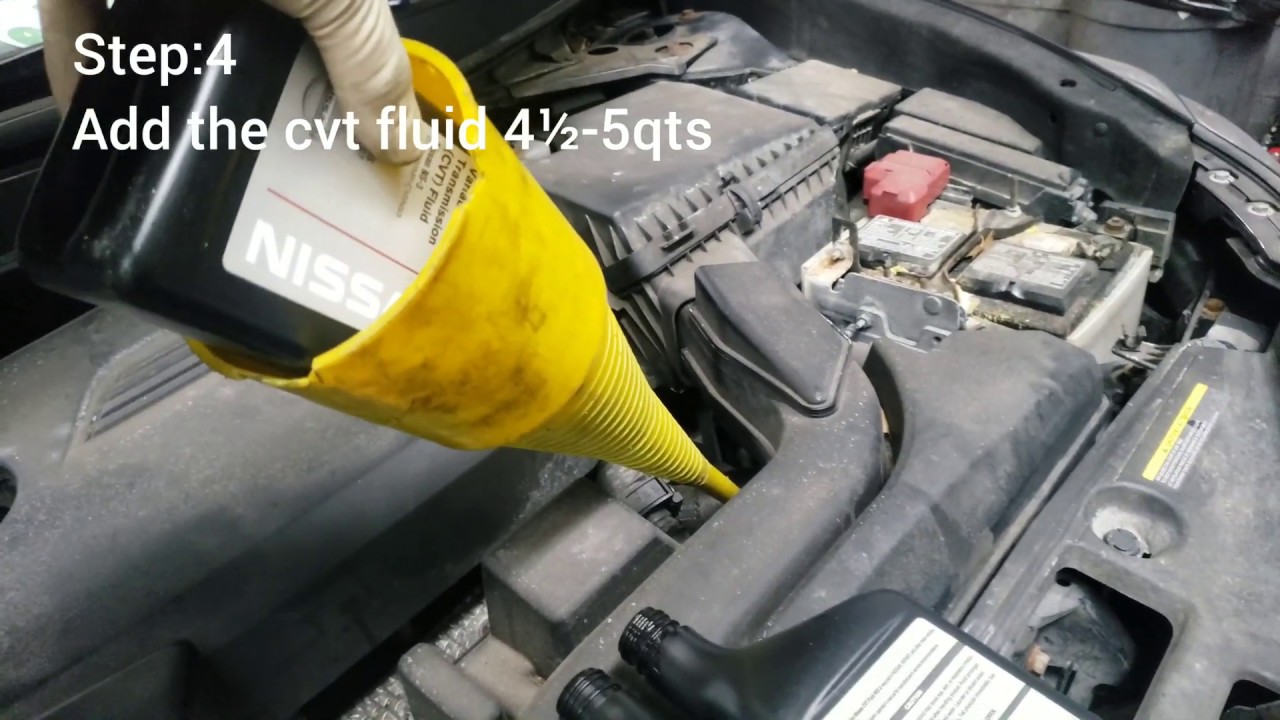

Add Fluid (If Necessary): If the fluid level is low, use the fluid pump to add CVT fluid through the check plug opening until it starts to trickle out.
Reinstall the Check Plug: Once the fluid flow has slowed to a trickle or stopped, reinstall the check plug with a new crush washer (if applicable). Tighten it to the correct torque specification (typically around 25-35 Nm or 18-26 lb-ft). Do not overtighten!
Lower the Vehicle: Carefully lower the vehicle back to the ground.
Final Check: Start the engine and let it idle for a few minutes. Check for any leaks around the check plug.

Common Issues and Maintenance Concerns

Incorrect Fluid Type: Using the wrong fluid can cause serious damage to the CVT. Always use genuine Nissan NS-3 fluid.
Overheating: CVTs are susceptible to overheating, especially under heavy load or in hot weather. Consider installing an external transmission cooler if you frequently tow or drive in demanding conditions.
Fluid Contamination: Debris and contaminants in the fluid can damage the internal components of the transmission. Regular fluid changes (typically every 30,000-60,000 miles, depending on driving conditions) are essential.
Stuck Fill Plug The fill plug can sometimes be extremely tight. Using penetrating oil and a breaker bar may be necessary, but be careful not to strip the plug.
Incorrect Temperature Reading: An inaccurate temperature reading can lead to an incorrect fluid level. Ensure your infrared thermometer is accurate and that you're aiming it at a representative area of the transmission pan.

Do's and Don'ts / Best Practices

Do's:

Do use the correct CVT fluid (Nissan NS-3).
Do ensure the vehicle is perfectly level before checking the fluid level.
Do use an accurate infrared thermometer or OBDII scanner to monitor the fluid temperature.
Do use a torque wrench to tighten the plugs to the correct specifications.
Do replace the crush washer on the check plug (if applicable) each time you remove it.
Do work in a clean environment to prevent contamination of the fluid.
Do consult your vehicle's service manual for specific instructions and torque specifications.
Do allow the fluid to drain slowly when it’s at the right level. This ensures a more accurate reading.

Don'ts:

Don't substitute CVT fluid with other types of transmission fluid.
Don't overfill or underfill the transmission.
Don't overtighten the plugs.
Don't check the fluid level on a hot exhaust system.
Don't ignore signs of transmission problems, such as slippage, shuddering, or unusual noises.

Conclusion: Knowledge is Power, But Professional Help is Sometimes Necessary

Checking the CVT fluid level in your Nissan Altima without a dipstick can be a challenging but manageable task for experienced DIYers. The key is to follow the procedure carefully, use the correct tools and materials, and pay close attention to detail. Accurate temperature readings and proper torque specifications are paramount. While this guide provides a comprehensive overview, always refer to your vehicle's service manual for specific instructions and torque specifications. If you're uncomfortable performing this procedure yourself, or if you encounter any difficulties, it's best to consult a qualified mechanic. While you can perform this task at home, remember that incorrect fluid levels or fluid types can quickly ruin your transmission. When in doubt, professional help is always a good investment.
