How To Check Cvt Fluid Level Nissan Sentra

Checking the CVT (Continuously Variable Transmission) fluid level in your Nissan Sentra is a crucial maintenance task that can significantly impact the lifespan and performance of your vehicle. Unlike traditional automatic transmissions, CVTs operate with a belt or chain and pulleys, requiring specialized fluid to ensure smooth and efficient operation. Neglecting this fluid can lead to slippage, overheating, and ultimately, costly repairs. This guide provides a comprehensive overview of how to check your CVT fluid level, empowering you with the knowledge to proactively maintain your Sentra.

The Importance of CVT Fluid Level

Imagine your CVT as a sophisticated system of gears constantly adapting to your driving needs. Instead of fixed gear ratios, it uses a belt or chain running between two variable-diameter pulleys. The CVT fluid acts as the lifeblood of this system, providing lubrication, cooling, and hydraulic pressure necessary for the pulleys to adjust smoothly and maintain proper contact with the belt or chain.

Think of it like this: you're cycling uphill. A traditional transmission would be like having only a few fixed gear options. You might struggle in a high gear or spin out in a low gear. A CVT, however, continuously adjusts the "gear" ratio, ensuring optimal power delivery and efficiency. This constant adjustment is entirely dependent on the CVT fluid. Low fluid levels can lead to insufficient lubrication, causing the belt or chain to slip against the pulleys. This slippage generates heat, which degrades the fluid further and can damage the transmission components. Furthermore, the hydraulic system that controls the pulley adjustments relies on adequate fluid pressure. Low fluid means reduced pressure, resulting in sluggish or erratic shifting (or the CVT equivalent of "shifting").

How the CVT System Works

At the heart of the Nissan Sentra's CVT is a pair of variable-diameter pulleys, one connected to the engine (the input pulley) and the other to the drive wheels (the output pulley). A high-strength belt or chain connects these pulleys. The magic of the CVT lies in its ability to change the effective diameter of each pulley simultaneously. As one pulley increases in diameter, the other decreases, effectively changing the "gear" ratio. This is all controlled by a complex hydraulic system that uses CVT fluid pressure.

The CVT fluid pump, usually driven by the engine, circulates the fluid throughout the transmission. This fluid not only lubricates the moving parts but also provides the hydraulic pressure required to actuate the pulley control valves. These valves, in turn, control the pressure applied to the pulley cylinders, which change the pulley diameters. Sophisticated electronic control units (ECUs) monitor various engine and vehicle parameters, such as throttle position, speed, and engine load, to determine the optimal pulley ratios for any given driving condition. The ECU then signals the pulley control valves to adjust the pulley diameters accordingly, resulting in a seamless and virtually imperceptible "shifting" experience.

Important note: Because the CVT uses friction to transfer power, it is critical to use the correct type of CVT fluid as specified by Nissan. Using the wrong fluid can lead to premature wear and failure.

Checking the CVT Fluid Level: The Process

Unfortunately, checking the CVT fluid level on many Nissan Sentra models is not as straightforward as checking the engine oil. Many models lack a traditional dipstick for easy access. Instead, you'll typically find a check plug located on the side of the transmission. This requires a specific procedure to ensure an accurate reading.

Steps for Checking CVT Fluid (Without Dipstick)

1. Safety First: Park your Nissan Sentra on a level surface. Engage the parking brake. Allow the engine to cool down completely. Working on a hot engine and transmission can result in severe burns.

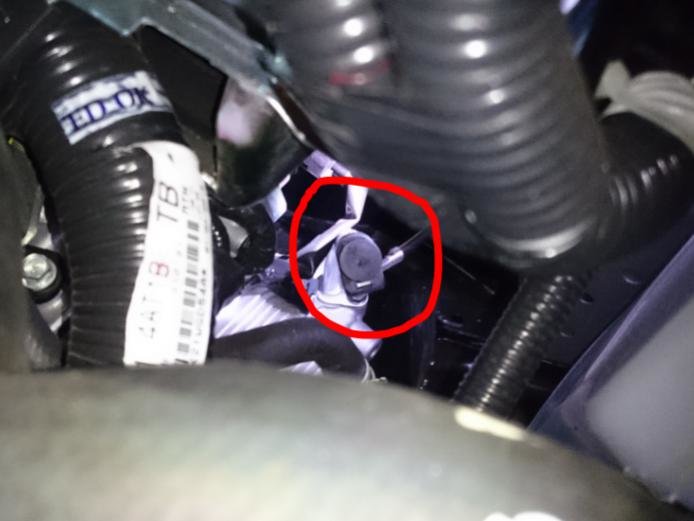

2. Locate the Check Plug: The check plug is typically located on the side of the transmission case. You might need to remove some underbody panels to access it. Consult your owner's manual or a repair manual for the exact location on your specific Sentra model.
3. Prepare for Fluid Spillage: Place a drain pan underneath the check plug to catch any fluid that spills out.
4. Remove the Check Plug: Carefully remove the check plug using the appropriate size wrench or socket. Be prepared for a small amount of fluid to trickle out.
5. Inspect the Fluid Level: The correct fluid level is when a small, steady stream of fluid drips from the check plug opening when the engine is OFF. If no fluid drips out, the fluid level is low.
6. Adding Fluid (If Necessary): If the fluid level is low, you will need to add CVT fluid through the fill plug (usually located higher up on the transmission case). Use a funnel and slowly add the correct type of CVT fluid (Nissan NS-3 is common). Periodically check the level by reinstalling the check plug briefly. Stop adding fluid when a small stream drips from the check plug opening.
7. Reinstall the Check Plug: Once the fluid level is correct, reinstall the check plug and tighten it to the manufacturer's specified torque.
8. Clean Up: Clean up any spilled fluid and reinstall any underbody panels that were removed.

Important Considerations:

• Fluid Temperature: Some models require checking the fluid level when the transmission is at a specific temperature. Consult your owner's manual or a repair manual for the correct temperature range and procedure. A scan tool capable of reading transmission fluid temperature may be required.
• Fluid Type: Use only the CVT fluid specified by Nissan (typically NS-3). Using the wrong fluid can cause serious damage to the transmission.
• Cleanliness: Ensure that all tools and surfaces are clean to prevent contamination of the transmission fluid.

Sentra Models With Dipsticks

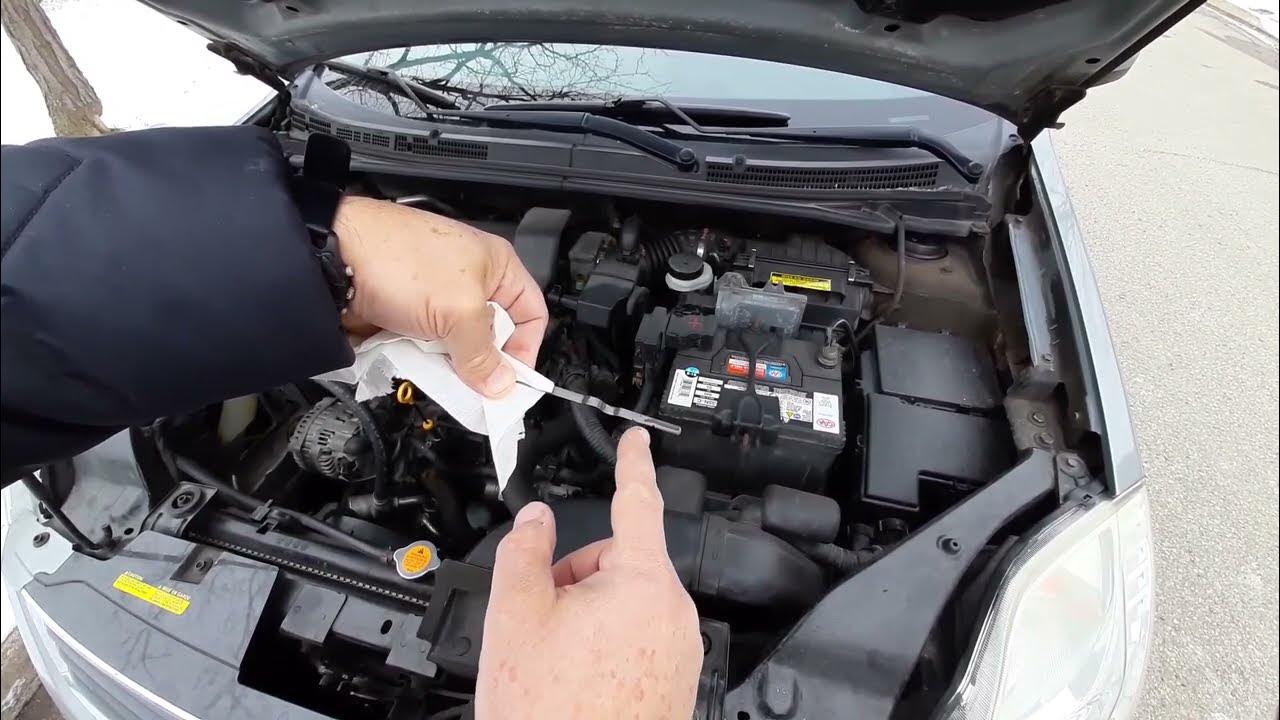

Some older Sentra models may have a traditional dipstick for checking the CVT fluid level. If your Sentra has a dipstick, the process is similar to checking engine oil:

1. Park on a level surface.
2. Warm up the engine to operating temperature.
3. With the engine running (in Park or Neutral, depending on the owner's manual), remove the dipstick.
4. Wipe the dipstick clean with a lint-free cloth.
5. Reinsert the dipstick fully and remove it again.
6. Check the fluid level. The fluid should be between the "Min" and "Max" marks on the dipstick.
7. Add fluid as needed, using a funnel, to bring the level within the acceptable range.

Pros and Cons of CVT Transmissions

Pros:

• Improved Fuel Efficiency: CVTs can keep the engine operating in its most efficient range, resulting in better fuel economy compared to traditional automatic transmissions.
• Smooth Acceleration: The seamless "shifting" of a CVT provides smoother and more linear acceleration.
• Reduced Emissions: By optimizing engine performance, CVTs can contribute to lower emissions.

Cons:

• Potential for "Rubber Banding" Feel: Some drivers dislike the sensation of the engine revving high and staying there while the vehicle gradually accelerates (often referred to as "rubber banding").
• Higher Repair Costs: CVT repairs can be more expensive than repairs for traditional automatic transmissions due to the specialized components and expertise required.
• Fluid Sensitivity: CVTs are more sensitive to fluid contamination and the use of incorrect fluid types.
• Perception of Lack of "Gears": Some drivers miss the feel of distinct gear changes.

Use Cases and Manufacturer Examples

CVTs are commonly found in vehicles where fuel efficiency and smooth operation are prioritized. Nissan has been a long-time proponent of CVT technology, using them extensively in models like the Sentra, Altima, Rogue, and Murano. Other manufacturers, such as Honda (in models like the Civic and CR-V) and Subaru (in nearly all its models), also utilize CVTs. Each manufacturer may have slightly different CVT designs and fluid specifications, so it's crucial to consult your owner's manual for the correct information.

Real-World Insights and Recommendations

Based on real-world experiences and anecdotal evidence, regular CVT fluid changes are essential for maintaining the health of your Nissan Sentra's transmission. While Nissan may recommend relatively long intervals for fluid changes under "normal" driving conditions, many mechanics and owners recommend more frequent changes, especially if you do a lot of stop-and-go driving, towing, or live in a hot climate. A fluid change every 30,000 to 50,000 miles is a good guideline. Furthermore, if you notice any symptoms of CVT issues, such as slipping, hesitation, or unusual noises, have your transmission inspected by a qualified mechanic immediately.

Consider this scenario: A Sentra owner consistently delayed CVT fluid changes, relying solely on the manufacturer's recommended interval. Over time, the fluid became contaminated with debris and lost its lubricating properties. This led to excessive wear on the belt and pulleys, eventually resulting in a complete CVT failure. The repair cost far exceeded the cost of regular fluid changes. This highlights the importance of proactive maintenance in preventing costly repairs.

In conclusion, understanding how to check your Nissan Sentra's CVT fluid level and adhering to a regular maintenance schedule is vital for ensuring the longevity and performance of your transmission. While the process may be slightly more involved than checking engine oil on some models, the knowledge gained and preventative measures taken will ultimately save you time, money, and headaches in the long run.
