How To Check Engine Codes Without A Scanner

Is your car's check engine light (CEL) glaring at you from the dashboard, mocking your attempts to ignore it? You're not alone. The dreaded CEL can signal anything from a loose gas cap to a major engine malfunction. While a professional scan is the most accurate way to diagnose the problem, sometimes you need a quick answer or don't have immediate access to a scanner. Fortunately, for certain vehicles, there are methods to retrieve these diagnostic trouble codes (DTCs) without needing specialized equipment. This article will walk you through how to check engine codes without a scanner, explain why it's important, and outline your next steps.

Why Check Engine Codes Without a Scanner?

Ignoring the check engine light is never a good idea. While it might seem tempting to dismiss it, the light indicates that your car's onboard diagnostic system (OBD) has detected an issue that needs attention. Checking the codes, even without a scanner, can provide a crucial first step in identifying the problem, potentially preventing further damage and saving you money in the long run. It allows you to make an informed decision about whether the issue is something you can address yourself or if it requires professional attention.

Symptoms That Warrant Code Retrieval

The check engine light itself is the primary symptom, but it's often accompanied by other telltale signs. Here's a list of common symptoms that should prompt you to check the codes:

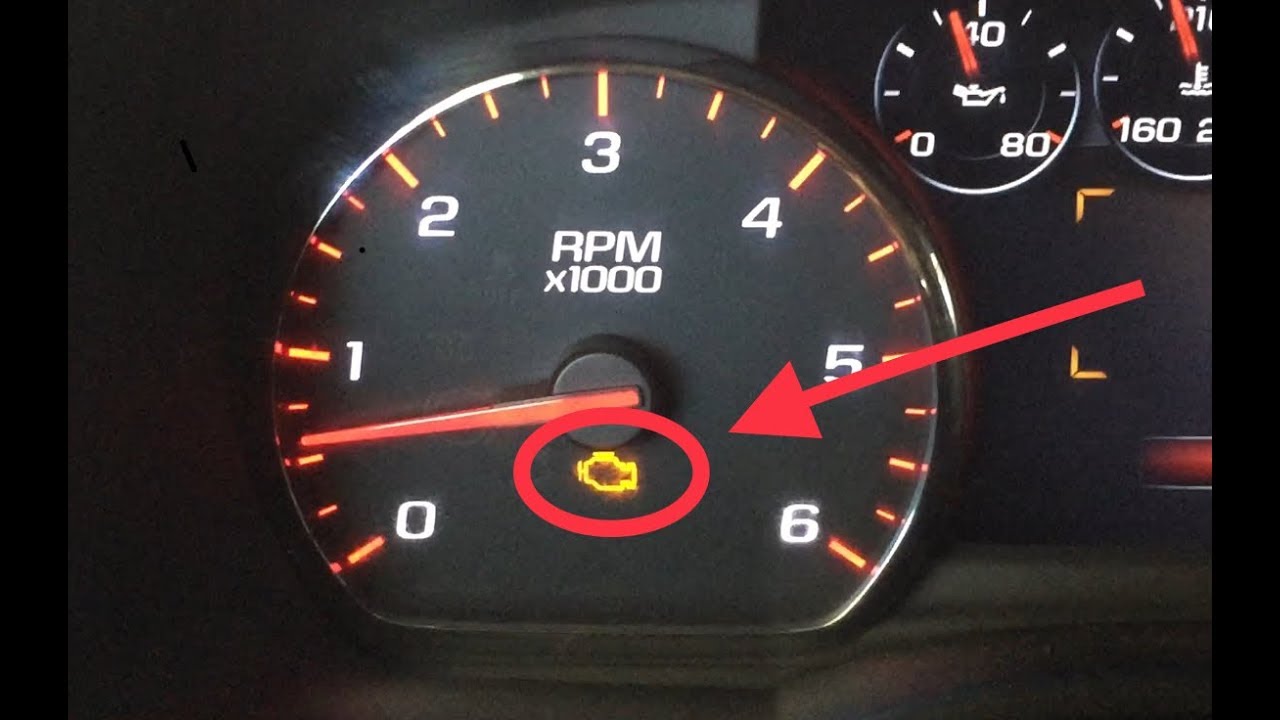

• Illuminated Check Engine Light: Solid or flashing. A flashing light usually indicates a more severe problem requiring immediate attention.
• Rough Idling: The engine shakes or sputters when at a standstill.
• Decreased Fuel Efficiency: Noticeably more frequent trips to the gas station.
• Hesitation During Acceleration: The car feels sluggish or unresponsive when you press the gas pedal.
• Stalling: The engine shuts off unexpectedly.
• Unusual Noises: Clicking, knocking, or hissing sounds emanating from the engine compartment.
• Burning Smell: Indicates a potential leak or overheating component.
• Difficulty Starting: The engine cranks for longer than usual before starting.
• Transmission Problems: Erratic shifting, slipping gears, or difficulty engaging gears.

The Root Cause: The Onboard Diagnostic System (OBD)

Modern vehicles are equipped with a sophisticated OBD system that monitors various sensors and components throughout the car. When the system detects a malfunction or a reading outside of acceptable parameters, it stores a diagnostic trouble code (DTC) in the vehicle's computer. The check engine light then illuminates to alert the driver to the problem. These codes are standardized, meaning that a P0300 code, for example, indicates a random/multiple cylinder misfire regardless of the vehicle's make or model. However, the specific cause of the P0300 can vary.

The OBD system is designed to help mechanics diagnose problems quickly and accurately. By reading the stored DTCs, mechanics can pinpoint the source of the problem and begin the repair process. However, some manufacturers, particularly older models, implemented methods to retrieve these codes without the need for a specialized scan tool.

What Happens If You Ignore the Check Engine Light?

Ignoring the check engine light can lead to a cascade of problems. Minor issues can quickly escalate into major, and expensive, repairs. For instance:

• Catalytic Converter Damage: A misfire (caused by faulty spark plugs or ignition coils) can dump unburned fuel into the catalytic converter, causing it to overheat and fail. Replacing a catalytic converter is a costly repair.
• Engine Damage: Ignoring low oil pressure or overheating can lead to severe engine damage, potentially requiring a complete engine rebuild or replacement.
• Fuel Efficiency Problems: A faulty oxygen sensor can cause the engine to run rich or lean, resulting in poor fuel economy.
• Emissions Failure: Many states require vehicles to pass emissions testing. A lit check engine light will automatically result in failure.
• Safety Issues: In some cases, a check engine light can indicate a safety-related issue, such as a malfunctioning brake system or a problem with the airbags.

Recommended Fixes: Retrieving Codes Without a Scanner

While a dedicated OBD2 scanner is the most reliable method, here are a few alternative methods to try (note: these methods are not universally applicable and primarily work on older vehicles):

1. The Key Dance (Chrysler, Dodge, Jeep):

This method works on many Chrysler, Dodge, and Jeep vehicles manufactured before around 2007. The process involves turning the ignition key on and off in a specific sequence. Important: Do not start the engine.

1. Insert the key into the ignition.
2. Turn the key to the "ON" position (just before starting the engine).
3. Turn the key to the "OFF" position.
4. Repeat steps 2 and 3 two more times (ON-OFF-ON-OFF-ON).
5. Leave the key in the "ON" position after the third cycle.
6. Watch the odometer display. The DTCs will be displayed in the odometer area.
7. If no codes are stored, "done" or similar will be displayed.

Example: If the odometer displays "P0300," it indicates a random/multiple cylinder misfire.

2. Counting the Flashes (Older GM Vehicles):

This method involves using a paperclip to jump two terminals on the diagnostic link connector (DLC), which is usually located under the dashboard. This forces the vehicle's computer to flash the check engine light in a specific pattern to indicate the DTCs. Note: This method requires some electrical knowledge and caution.

1. Locate the DLC. On older GM vehicles, it's typically a 12-pin connector.
2. Identify terminals "A" and "B" (the top right and bottom right pins).
3. Turn the ignition to the "ON" position (do not start the engine).
4. Use a paperclip to connect terminals "A" and "B".
5. Observe the check engine light. It will flash a series of times.
6. The codes are displayed in a two-digit format. For example, three flashes followed by four flashes indicates code 34.
7. The code will repeat three times before moving on to the next code.
8. Code 12 (one flash, then two flashes) usually indicates that the system is working correctly.

Important: Be extremely careful when working with electrical components. Incorrectly jumping terminals can damage the vehicle's computer.

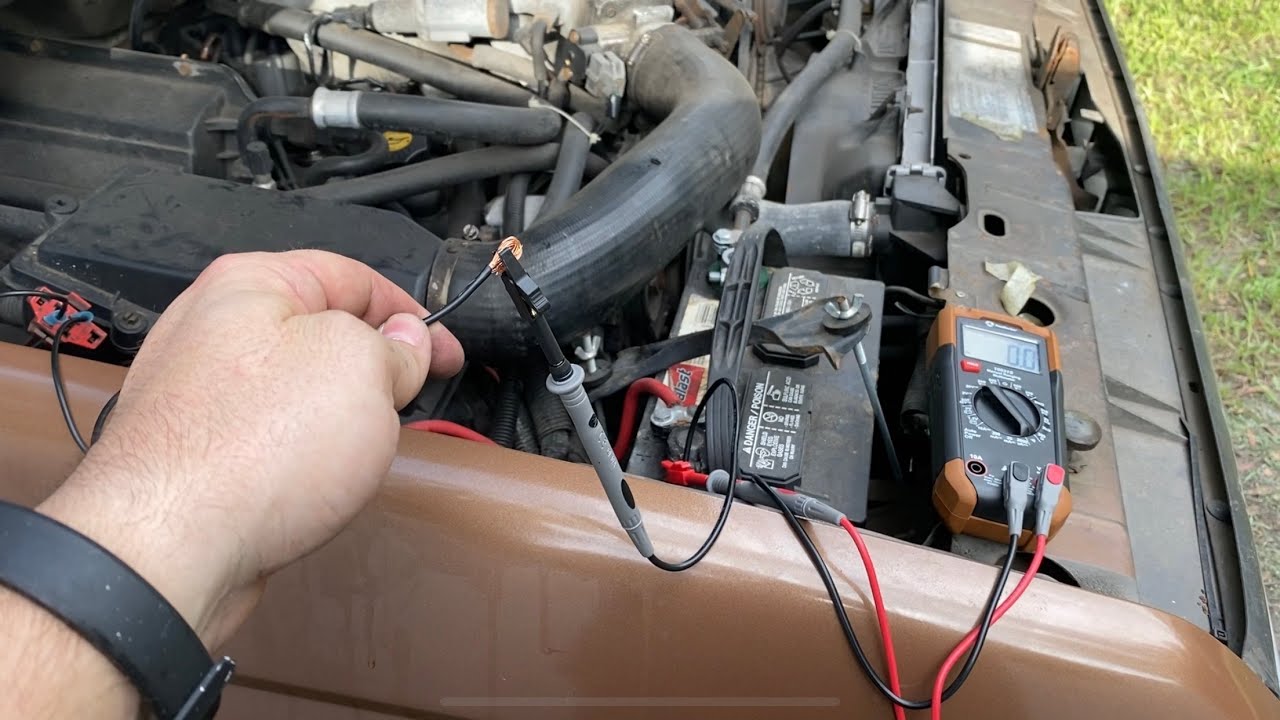

3. Using a Voltmeter (Older Vehicles with Analog Systems):

This is a more advanced method and not recommended for beginners. It requires a good understanding of electrical circuits and the vehicle's wiring diagram. It involves measuring voltage changes on specific diagnostic wires to interpret the codes.

Recommendation: This method is best left to experienced mechanics. Incorrectly using a voltmeter can damage the vehicle's electrical system.

Interpreting the Codes

Once you've retrieved the codes, you'll need to look up their meanings. You can find DTC definitions online by searching for "OBD2 code [your code]" (e.g., "OBD2 code P0300"). Websites like OBD-Codes.com and AutoCodes.com are excellent resources.

Remember: The code is just a starting point. It indicates a potential problem, but further diagnosis is often required to pinpoint the exact cause. For example, a P0300 code could be caused by faulty spark plugs, ignition coils, fuel injectors, or a vacuum leak.

Cost Estimates and Shop Advice

The cost of repairing a check engine light issue varies widely depending on the cause. A simple fix, such as replacing a loose gas cap, might cost nothing. However, more complex repairs, such as replacing a catalytic converter or repairing engine damage, can cost hundreds or even thousands of dollars.

If you're not comfortable diagnosing or repairing the problem yourself, it's best to take your vehicle to a qualified mechanic. A mechanic will use a professional scan tool to confirm the codes and perform further diagnostics to identify the root cause of the problem. They can then provide you with an accurate estimate for the repair.

Tip: Get multiple estimates from different shops before authorizing any repairs. This will help you ensure that you're getting a fair price.

Credibility and Technical Service Bulletins (TSBs)

Keep in mind that manufacturers often issue Technical Service Bulletins (TSBs) to address common problems with specific vehicles. These bulletins provide detailed instructions for diagnosing and repairing these problems. You can often find TSB information online or by contacting your local dealership. For example, a specific TSB might address a known issue with the mass airflow (MAF) sensor on a particular model, which could be causing a P0171 code (system too lean).

Furthermore, online forums and communities dedicated to specific car makes and models are invaluable resources. Often, other owners have experienced the same problems and can offer insights or solutions based on their experiences. It's also helpful to note the mileage at which certain components typically fail. For instance, oxygen sensors often need to be replaced around 100,000 miles.

While retrieving codes without a scanner can be a useful first step, it's important to remember that it's not a substitute for a professional diagnosis. If you're unsure about the cause of the problem or you're not comfortable performing the repair yourself, always seek the advice of a qualified mechanic. They have the expertise, tools, and knowledge to diagnose and repair your vehicle safely and effectively. Ignoring the check engine light can lead to more serious problems down the road, so it's best to address it as soon as possible.
