How To Check Engine Light Codes Without A Scanner

That little amber light on your dashboard, the dreaded Check Engine Light (CEL), can strike fear into the heart of any driver. It suggests something is amiss under the hood, but what exactly? While a dedicated OBD-II scanner is the most convenient way to diagnose the issue, it's not always readily available. Fortunately, in certain situations, and with specific vehicles, there are alternative methods to retrieve those crucial diagnostic trouble codes (DTCs) without a scanner. This article delves into these techniques, explaining the mechanics, limitations, and practical considerations involved.

Decoding the Mystery: When a Scanner Isn't Available

Imagine this: You're on a road trip, miles from the nearest auto parts store, and the CEL illuminates. Panic sets in. Is it a critical issue that requires immediate attention, or something minor? You don't have a scanner handy. Knowing how to potentially access the DTCs without one could be the difference between a costly tow and a temporary fix.

The core concept behind retrieving codes without a scanner revolves around accessing the vehicle's onboard diagnostic (OBD) system through alternative interfaces. This relies on the car's ability to communicate the diagnostic information using methods other than the standard OBD-II port. The most common alternative methods involve either using the vehicle's instrument cluster or utilizing a specialized key-on/key-off sequence.

How It Works: Mechanical and Electronic Foundation

The OBD-II System: A Brief Overview

Before exploring the alternative methods, understanding the standard OBD-II system is crucial. Modern vehicles are equipped with an engine control unit (ECU), also known as an engine control module (ECM), which monitors various sensors throughout the engine and drivetrain. These sensors provide data on parameters such as engine temperature, oxygen levels, manifold pressure, and more. If the ECU detects a value outside of the pre-programmed acceptable range, it triggers a DTC. This DTC is stored in the ECU's memory and, in most cases, illuminates the CEL.

The OBD-II system mandates a standardized 16-pin connector, usually located under the dashboard, which allows scanners to communicate with the ECU and retrieve these DTCs. The scanner sends a request for the codes, and the ECU responds with a list of stored codes, each corresponding to a specific fault.

Alternative Methods: Instrument Cluster Displays

Some manufacturers provide a built-in diagnostic mode accessible through the instrument cluster. This mode often involves a sequence of button presses or key turns that trigger the ECU to display the DTCs directly on the odometer, message center, or other instrument panel displays.

How it works: These methods often rely on a specific sequence of actions that the ECU is programmed to recognize as a diagnostic request. For example, on some older vehicles, it might involve turning the ignition key to the "on" position (without starting the engine) and then rapidly pressing and releasing the accelerator pedal a certain number of times within a defined time window. The ECU interprets this sequence as a command to enter diagnostic mode. The codes are then displayed using a series of flashes from the CEL itself, where a longer flash might represent "10" and shorter flashes "1," and the sequence of flashes corresponds to the numeric DTC.

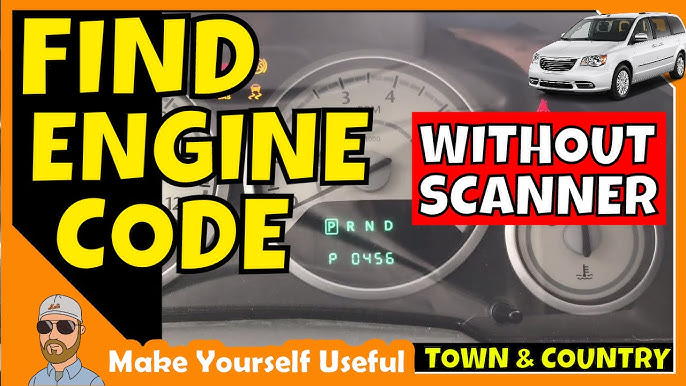

Example: Some older Chrysler vehicles (e.g., certain models from the 1990s and early 2000s) allowed code retrieval by cycling the ignition key from "off" to "on" three times in quick succession, leaving it in the "on" position on the third cycle. The DTCs would then be displayed on the odometer. Newer Chrysler vehicles generally require a scanner.

Alternative Methods: Key-On/Key-Off Sequences

Similar to the instrument cluster method, some vehicles utilize a specific sequence of turning the ignition key between the "on" and "off" positions to trigger a diagnostic mode. The DTCs are then often communicated through flashing of the CEL.

How it works: This relies on the ECU being programmed to recognize a particular pattern of power cycling as a diagnostic request. The timing and number of cycles are crucial. If the sequence is performed correctly, the ECU enters diagnostic mode and begins to output the codes. These codes are typically displayed through the flashing of the CEL in a specific pattern.

Example: Certain older GM vehicles might use this method. The exact procedure would vary depending on the year and model, and requires consulting the vehicle's service manual or online resources.

Pros, Cons, and Use Cases

Pros:

• Accessibility: No need for a dedicated scanner, making it useful in emergency situations or when a scanner is unavailable.
• Cost-Effective: No financial outlay required.
• Basic Diagnostics: Provides a general idea of the problem area, allowing for informed decisions on repair strategies.

Cons:

• Limited Applicability: Only works on specific vehicles and often older models. Modern vehicles increasingly rely solely on the OBD-II port for diagnostic access.
• Complexity: The procedure can be complex and vehicle-specific, requiring precise execution of the sequence.
• Code Interpretation: Deciphering the flashed codes or odometer readings can be challenging without a reference guide. You'll need to know what the flash patterns represent.
• Lack of Detail: These methods typically only provide the DTCs themselves, without the freeze frame data (engine parameters at the time the code was set) that a scanner would provide.
• Potential for Error: Incorrectly performing the sequence could lead to unintended consequences or fail to access the diagnostic mode.

Use Cases:

• Emergency Situations: Determining the severity of a CEL illumination when a scanner is unavailable.
• Basic Troubleshooting: Identifying the general area of the problem before seeking professional repair.
• Older Vehicles: Diagnosing older vehicles that might not be fully OBD-II compliant or where scanner compatibility is limited.

Manufacturer Examples and Considerations

As mentioned earlier, Chrysler and GM vehicles have historically been more likely to offer these alternative diagnostic methods, particularly in older models. However, the specific procedure varies widely between models and years. It is crucial to consult the vehicle's service manual or reliable online resources specific to your year, make, and model before attempting any of these methods.

Important Considerations:

• Safety: Always prioritize safety when working on your vehicle. Ensure the vehicle is parked on a level surface, the parking brake is engaged, and the engine is off unless specifically instructed otherwise.
• Accuracy: These methods are not a substitute for a professional diagnosis with a proper scanner. They provide a general indication of the problem area but lack the detail and accuracy of a scanner.
• Code Clearing: These methods typically only allow you to retrieve codes, not clear them. Clearing codes without addressing the underlying problem can mask the issue and potentially lead to more serious damage.

Real-World Insights and Recommendations

While accessing DTCs without a scanner can be a useful trick in a pinch, it's important to approach it with caution and realistic expectations. These methods are becoming increasingly rare in modern vehicles, and even when available, they are often less reliable and informative than using a scanner.

Recommendations:

• Invest in a Basic OBD-II Scanner: A basic OBD-II scanner is a relatively inexpensive and invaluable tool for any car owner. It provides a much more convenient and reliable way to access DTCs and other diagnostic information.
• Consult a Professional: If you are unsure about the meaning of a DTC or how to properly diagnose and repair the underlying issue, it's always best to consult a qualified mechanic.
• Use with Caution: Only attempt these alternative methods if you are confident in your ability to follow the instructions precisely and understand the potential risks involved.

Ultimately, while the ability to check engine light codes without a scanner can be a helpful fallback option, it's not a replacement for proper diagnostic tools and expertise. Understanding the limitations of these methods and prioritizing accurate diagnosis is essential for maintaining the health and longevity of your vehicle.
