How To Check Fuel Injectors With Multimeter

Is your car sputtering, idling roughly, or experiencing a significant drop in fuel economy? Before you start replacing expensive parts, it's worth investigating your fuel injectors. They are critical components, and a faulty one can mimic a variety of other engine problems. Luckily, with a multimeter and a little know-how, you can perform some basic tests to determine if your fuel injectors are the culprit. We'll walk you through the process, so you can diagnose the issue and potentially save yourself a trip to the mechanic.

Recognizing the Symptoms of Faulty Fuel Injectors

Identifying fuel injector problems early can prevent more significant engine damage down the road. Here are some common symptoms to watch out for:

Rough Idling: A malfunctioning injector can cause the engine to idle unevenly, resulting in noticeable vibrations.
Misfiring: If an injector isn't delivering fuel correctly, the cylinder it serves may misfire, leading to a jerky driving experience and a flashing check engine light. This can also be indicated by specific trouble codes such as P0300 (random misfire), P0301 (cylinder 1 misfire), P0302 (cylinder 2 misfire), etc.
Poor Fuel Economy: A leaking injector can dump excessive fuel into the cylinder, while a clogged injector starves the engine. Both situations lead to reduced fuel efficiency.
Hesitation During Acceleration: When you press the gas pedal, the engine might hesitate or stumble as it tries to accelerate. This is often due to an injector not responding quickly enough or not delivering the proper amount of fuel.
Stalling: In severe cases, a faulty fuel injector can cause the engine to stall, especially at low speeds or when idling.
Fuel Smell: A strong smell of gasoline, particularly after the engine is turned off, can indicate a leaking injector.
Check Engine Light: While a check engine light can illuminate for countless reasons, specific diagnostic trouble codes (DTCs) related to fuel injectors (e.g., P0200-P0299) are a strong indicator of an issue. Use an OBD-II scanner to retrieve these codes.
Black Smoke from Exhaust: Excessive fuel caused by a leaking injector can result in black smoke coming from the exhaust pipe.

Understanding the Root Cause: How Fuel Injectors Work (and Fail)

Fuel injectors are essentially electronically controlled valves that spray a precise amount of fuel into the engine's intake manifold or directly into the cylinder (in direct injection systems). They rely on a solenoid that, when energized, opens a needle valve, allowing fuel to flow. Here's what can go wrong:

Clogging: This is the most common issue. Over time, deposits of varnish, carbon, and other contaminants can accumulate inside the injector, restricting fuel flow. Poor fuel quality and infrequent fuel filter changes accelerate this process.
Electrical Failure: The solenoid coil inside the injector can fail due to overheating, corrosion, or physical damage. This prevents the injector from opening and closing correctly. A break in the wiring harness leading to the injector can also have the same effect.
Leaking: The injector's seals can degrade over time, leading to fuel leakage. This can cause excessive fuel consumption, rough running, and a strong fuel smell.
Physical Damage: Impact or improper handling can damage the injector body or internal components, leading to malfunction.
Wear and Tear: Like any mechanical component, fuel injectors have a limited lifespan. Over time, the internal components can wear down, leading to reduced performance or failure.

Ignoring the Problem: The Consequences of Neglect

Ignoring fuel injector problems can have serious consequences for your engine. Here's what can happen if you put off repairs:

Catalytic Converter Damage: Misfiring caused by faulty injectors can dump unburnt fuel into the exhaust system, which can overheat and damage the catalytic converter. Replacing a catalytic converter is a costly repair.
Engine Damage: A lean running condition (caused by a clogged injector) can lead to detonation, which can damage pistons, connecting rods, and cylinder heads. A rich running condition (caused by a leaking injector) can wash oil from the cylinder walls, leading to increased wear and tear.
Reduced Performance and Fuel Economy: As the problem worsens, you'll experience a significant decline in engine performance and fuel economy.
Increased Emissions: Faulty injectors can cause your car to fail emissions testing, preventing you from legally operating the vehicle.
Stalling and Safety Hazards: Unexpected stalling can be a safety hazard, especially in heavy traffic.

Recommended Fixes: Testing and Repairing Fuel Injectors

Before jumping to replacing all your fuel injectors, perform these tests to pinpoint the problem. We'll focus on using a multimeter, but keep in mind that professional fuel injector cleaning and testing services offer more comprehensive diagnostics.

Testing with a Multimeter:

Safety First: Disconnect the negative battery cable before working on any electrical components. Allow the engine to cool completely. Work in a well-ventilated area.
Locate the Fuel Injectors: They are typically located on the intake manifold, near the engine's cylinders. Refer to your vehicle's repair manual for specific locations.
Disconnect the Injector Connectors: Carefully disconnect the electrical connectors from each fuel injector.
Resistance Test: This test checks the integrity of the injector's solenoid coil.

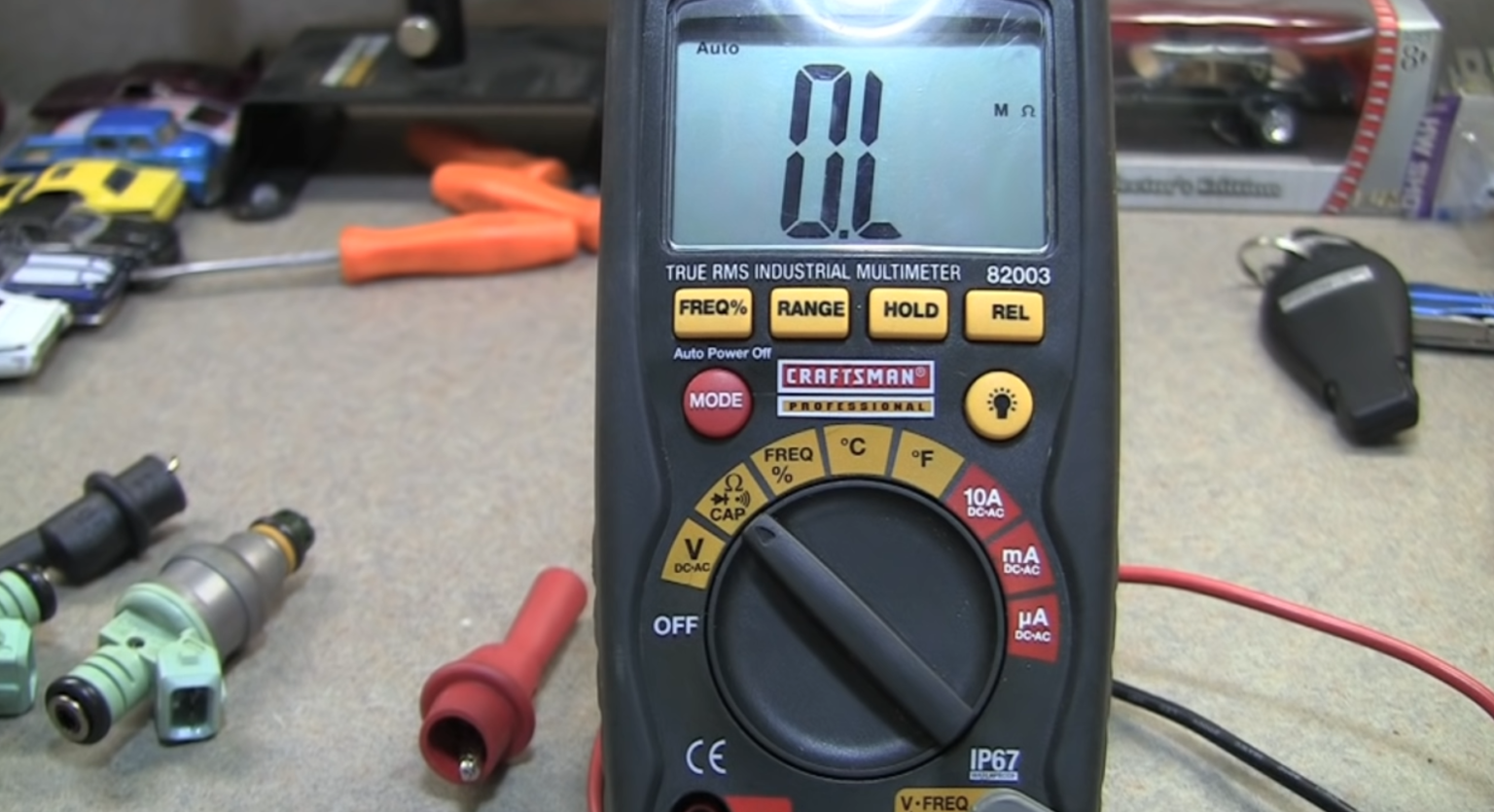

- Set your multimeter to the Ohms (Ω) setting. A setting of 200 ohms is usually appropriate.

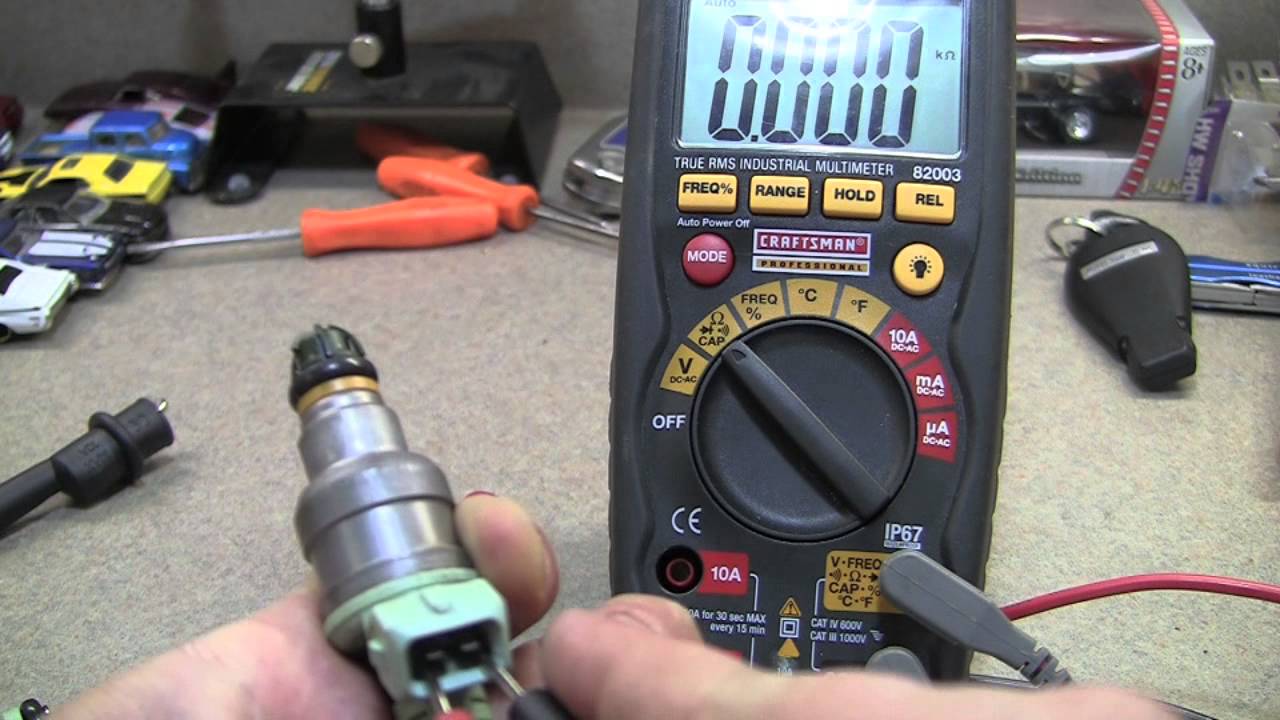

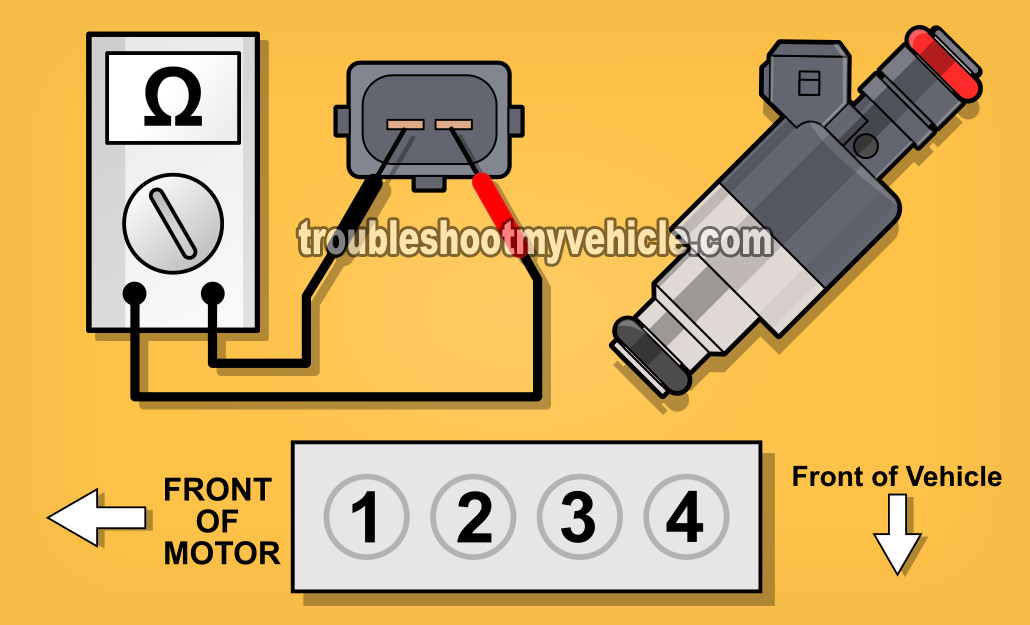

- Touch the multimeter probes to the two terminals on the injector connector.

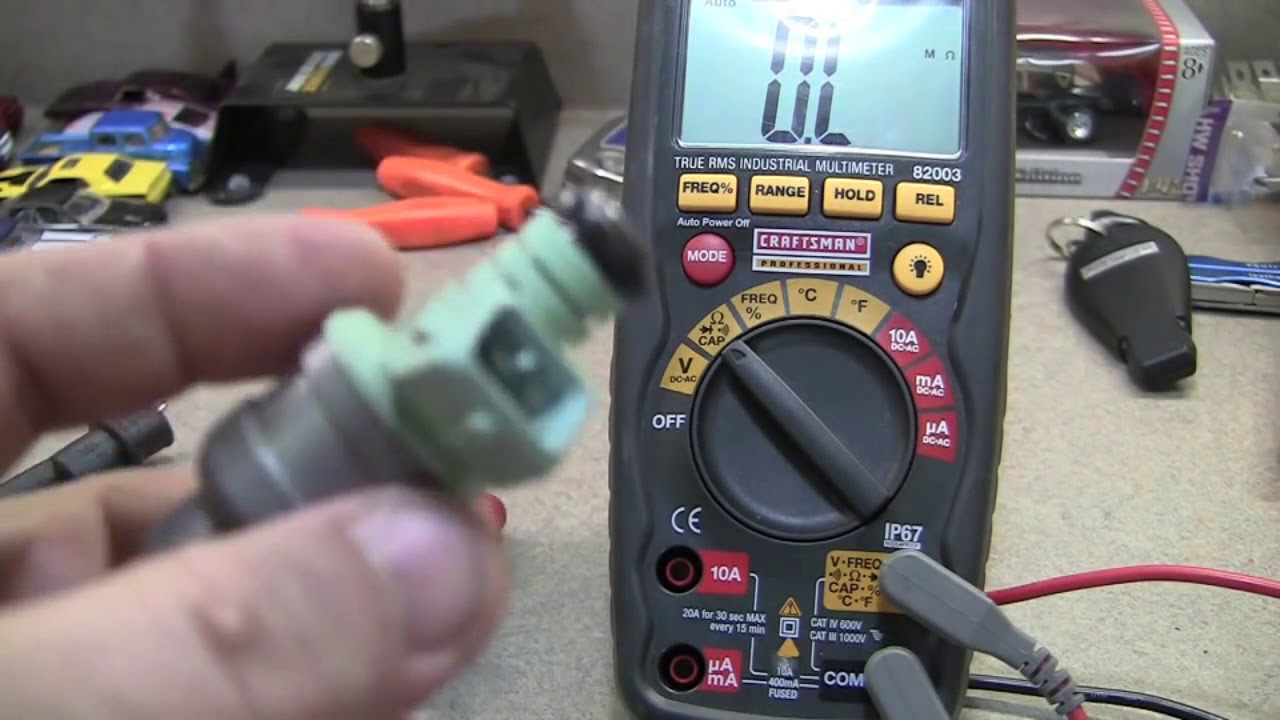

- Compare the resistance reading to the manufacturer's specifications. This information can usually be found in your vehicle's repair manual or online. Typical values range from 12-17 ohms for most injectors. A reading of zero ohms (short circuit) or infinite ohms (open circuit) indicates a faulty injector. It's crucial to have the correct specs; otherwise, you might condemn a perfectly good injector.
Continuity Test: This test is less common but can help identify breaks in the wiring leading to the injector.
- Set your multimeter to the continuity setting (often indicated by a diode symbol or a sound wave symbol).
- Touch one probe to one of the injector terminals and the other probe to a known good ground on the engine (e.g., a clean, unpainted metal surface).
- If the multimeter shows continuity (beeps or displays a low resistance value), it indicates a short to ground within the injector. This is also a sign of a faulty injector.
Voltage Test (Engine Running): This test verifies that the injector is receiving power from the engine control unit (ECU).
- Reconnect the injector connectors.
- Start the engine and let it idle.
- Using a back-probing technique (carefully insert the multimeter probes into the back of the connector without disconnecting it), measure the voltage between the two terminals of the injector connector.
- You should see a pulsed voltage signal as the ECU cycles the injector on and off. The voltage will typically fluctuate between 0 and battery voltage (around 12-14 volts). If you see no voltage, or a constant voltage, there may be a problem with the wiring, the ECU, or the injector driver circuit.
Compare Readings: Compare the readings from all injectors. Significant differences between injectors suggest a problem with the injector that deviates.

Cleaning or Replacing Injectors:

Fuel Injector Cleaning: If the resistance test is within spec but you suspect clogging, consider having the injectors professionally cleaned. This involves using specialized equipment to remove deposits. You can also try using a fuel injector cleaner additive in your gas tank, but its effectiveness is limited.
Fuel Injector Replacement: If the resistance test indicates a faulty injector, or if cleaning doesn't resolve the issue, replacement is necessary. It's generally recommended to replace all injectors at the same time, especially if they are old or have high mileage. This ensures consistent performance and avoids future problems.

Cost Estimates and Shop Advice

The cost of fuel injector repair or replacement can vary depending on several factors:

Vehicle Make and Model: Some vehicles have more expensive or difficult-to-access fuel injectors.
Type of Injector: Direct injection injectors are typically more expensive than port fuel injection injectors.
Labor Rates: Labor costs vary depending on the shop's location and expertise.
Whether you replace all injectors or just one: While you *can* replace just the faulty one, experienced mechanics usually suggest replacing all of them to ensure even fuel delivery and performance.

Here's a rough estimate:

Fuel Injector Cleaning (Professional): $100-$300 (for all injectors).
Fuel Injector Replacement (Each): $100-$500 (parts and labor). Replacing all can easily run $500-$2000, especially on a V6 or V8 engine with direct injection.

Shop Advice:

Get a Diagnostic Check: A reputable mechanic can perform a comprehensive diagnostic check to confirm the fuel injector problem and rule out other potential issues.
Ask for a Detailed Estimate: Before authorizing any repairs, get a detailed estimate that includes the cost of parts, labor, and any other associated fees.
Inquire About Warranty: Ask about the warranty on the new fuel injectors and the labor.
Check Online Reviews: Before choosing a mechanic, check online reviews and ratings to ensure they have a good reputation for quality work and customer service.

Credibility and Common Issues

Fuel injector issues are common, especially in older vehicles or those with high mileage. While specific failure rates vary depending on the make and model, here are some general observations:

Mileage: Injectors often start exhibiting problems after 75,000-100,000 miles.
Fuel Quality: Using low-quality fuel or neglecting fuel filter maintenance can significantly shorten injector lifespan.
Technical Service Bulletins (TSBs): Check for any TSBs issued by your vehicle manufacturer related to fuel injector problems. TSBs often provide specific diagnostic and repair procedures. For example, certain models of Volkswagen and Audi have known issues with carbon buildup on direct injectors, leading to misfires. These issues are often addressed in specific TSBs.
Community Data: Online forums and communities dedicated to your vehicle make and model can provide valuable insights into common fuel injector problems and solutions. Many owners share their experiences and troubleshooting tips.

By following these steps, you can effectively diagnose fuel injector problems using a multimeter and take appropriate action to restore your engine's performance and efficiency. Remember, safety is paramount, and if you're not comfortable working on your car, it's always best to consult a qualified mechanic.
